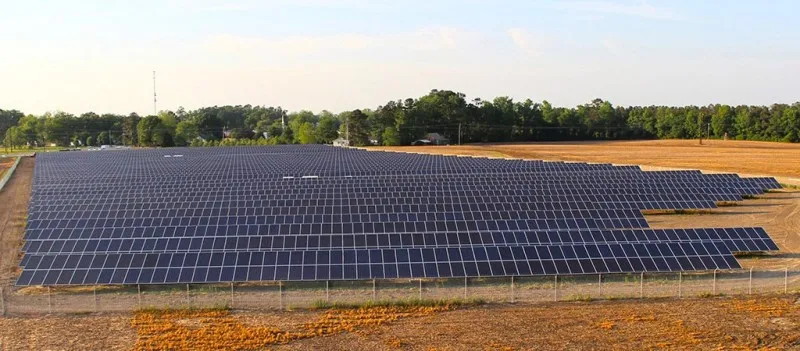

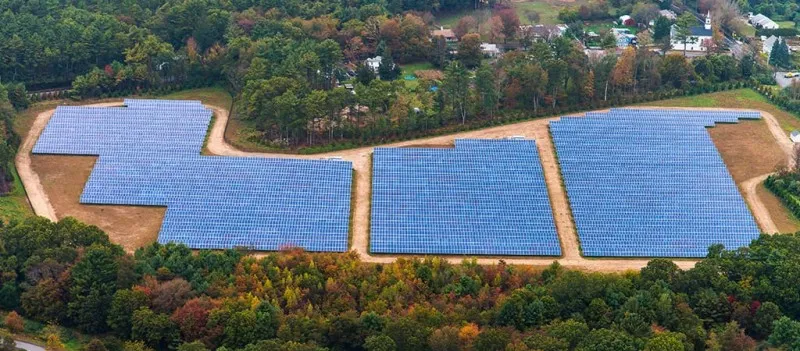

Ground solar panel brackets racking system usually consists of metal structure, concrete base and other spare parts to fix the solar panels on a rack. It is suitable for large-scale projects such as commercial PV plant power stations.
According to location, geographic conditions, and target power output, ground solar mounting systems are classified into three types:
Our photovoltaic panel racking system for ground projects consists of three core parts:

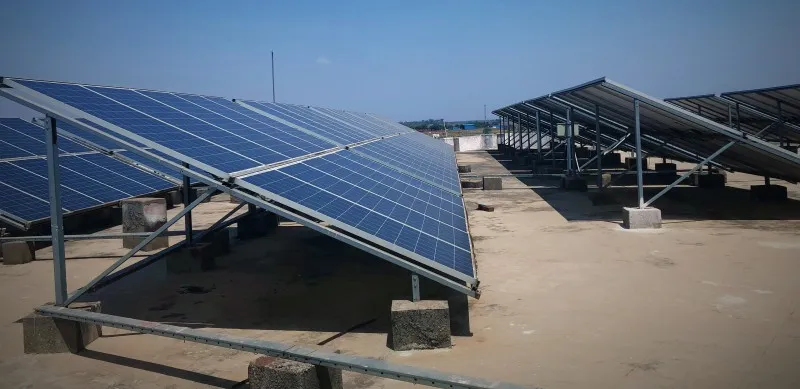

1. The Base: The support for the mounting system. It must hold the solar panels and withstand the strongest possible wind and snow loads.

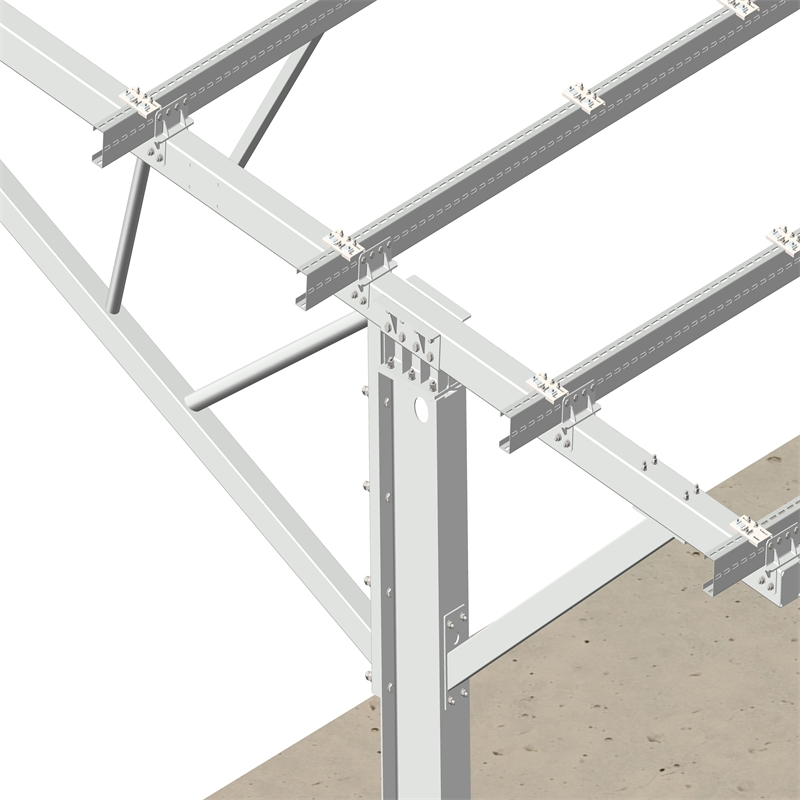

2. The Structure: The rack system holding the solar panels firmly at the correct positions. This is tailor-made based on panel size, wind/snow load, and project coordinates.

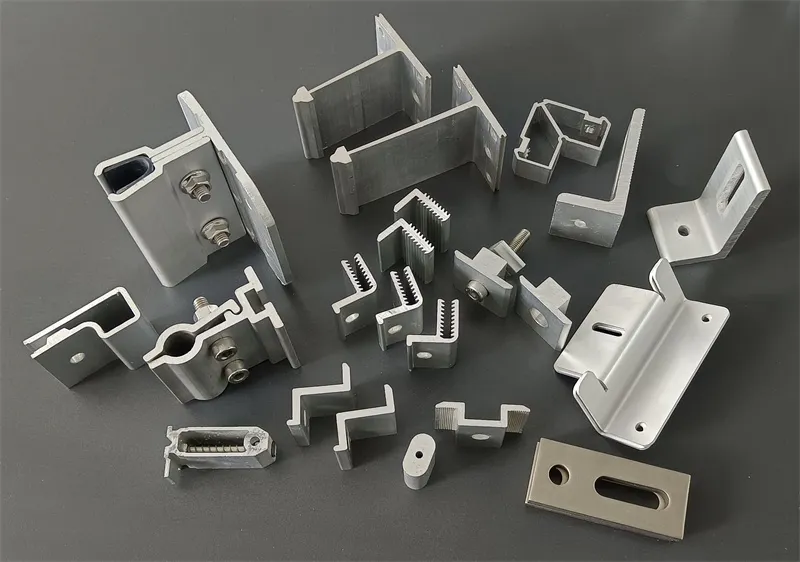

3. Clamps: Mid clamps and end clamps with bolts to fasten the panels securely to the racking system.
| Mount Type | Customized mounting system |
| Standard | AS/NZS 1170 |
| Applicable Module | Framed or frameless panel |
| Wind Load | Up to 130mph (60m/s) |
| Snow Load | Up to 30psf (1.4KN/m2) |
| Module Thickness | 30-50 mm |
| Adjustable Angle | 15~50° |
| Material | Aluminum alloy 6063 T5 |
| Application | Garden, balcony, railing, walls, etc. |
| Warranty | 10 years |
