| Model | POW32V8Ah | Type | Rechargeable LiFePO4 |
|---|---|---|---|
| Rated Capacity | 8Ah | Standard Voltage | 48V (Customized) |
| Combination | 10s1p | BMS Protection | Yes, Integrated |
| Electrolyte | Li-ion | Usage | Electric Wheelchair |
| Charging Voltage | 36.5V | Charging Current | 5A (Max 10A) |
| Discharge Voltage | 32V | Discharge Cut-off | 20V |

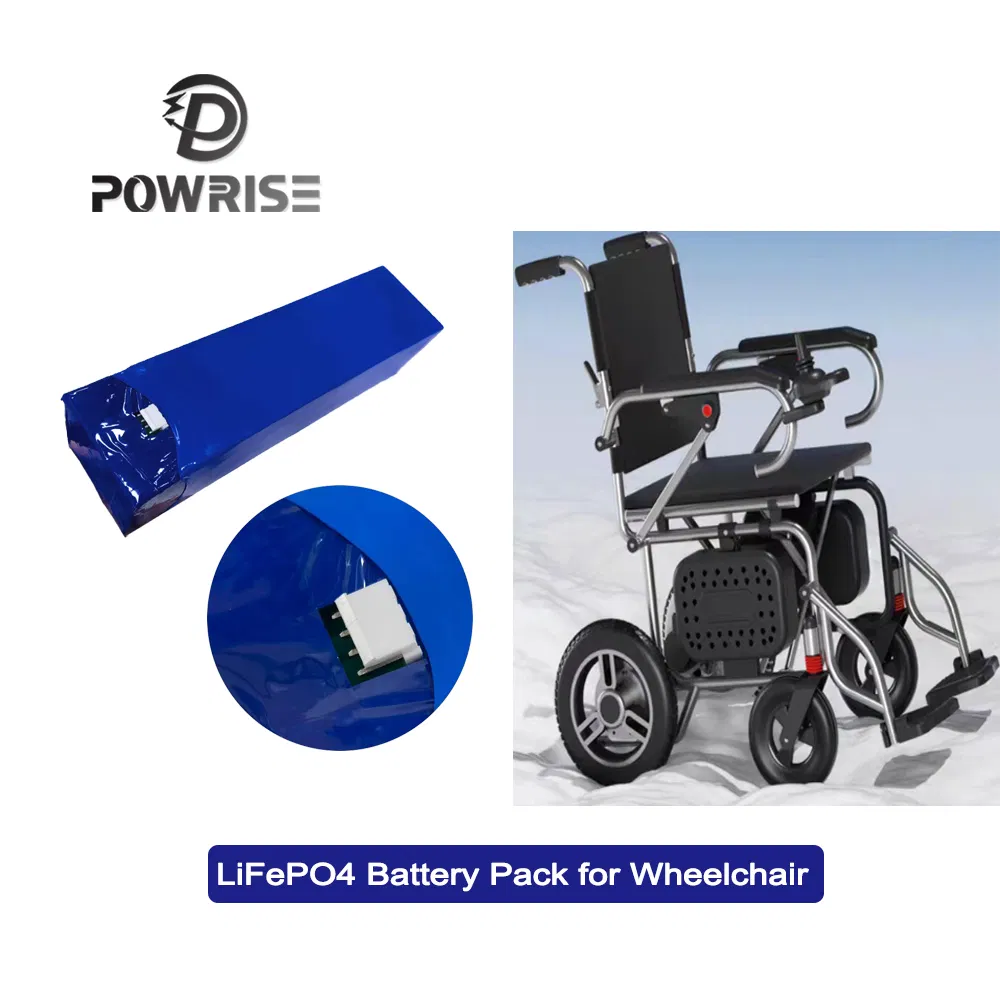

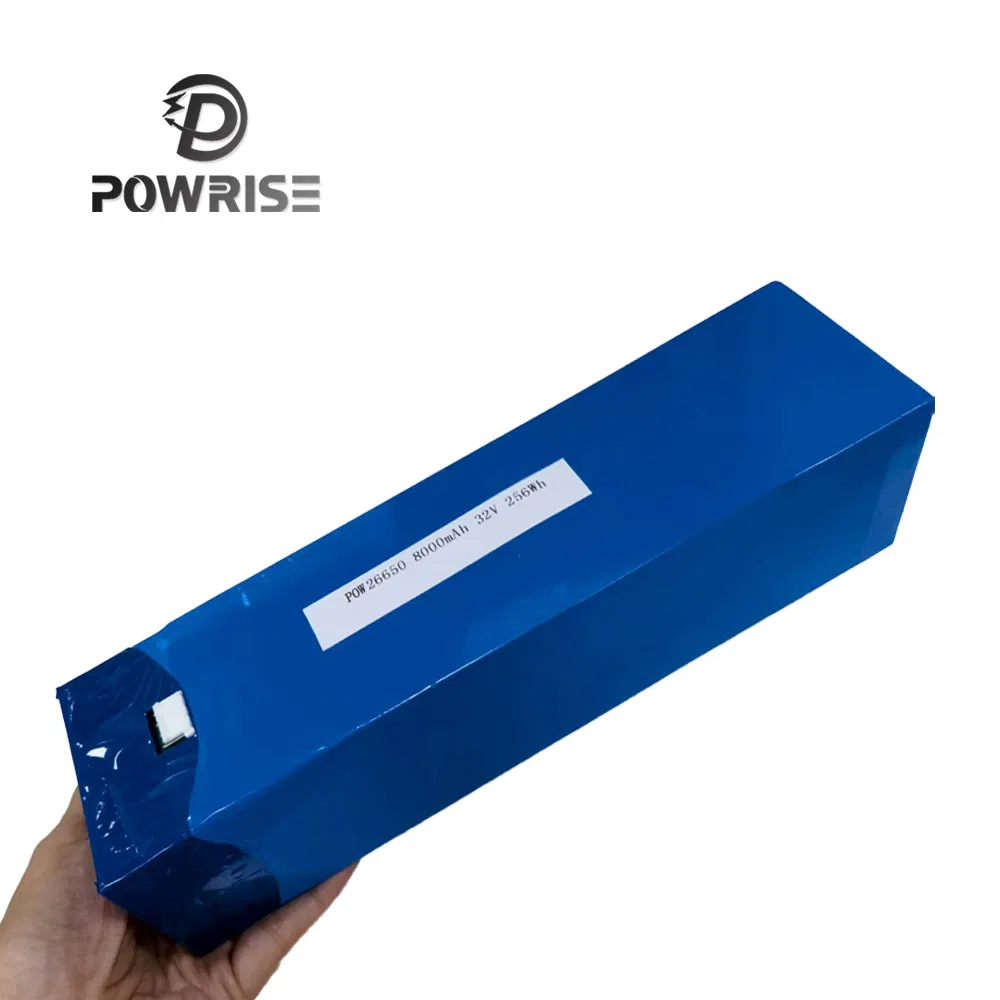

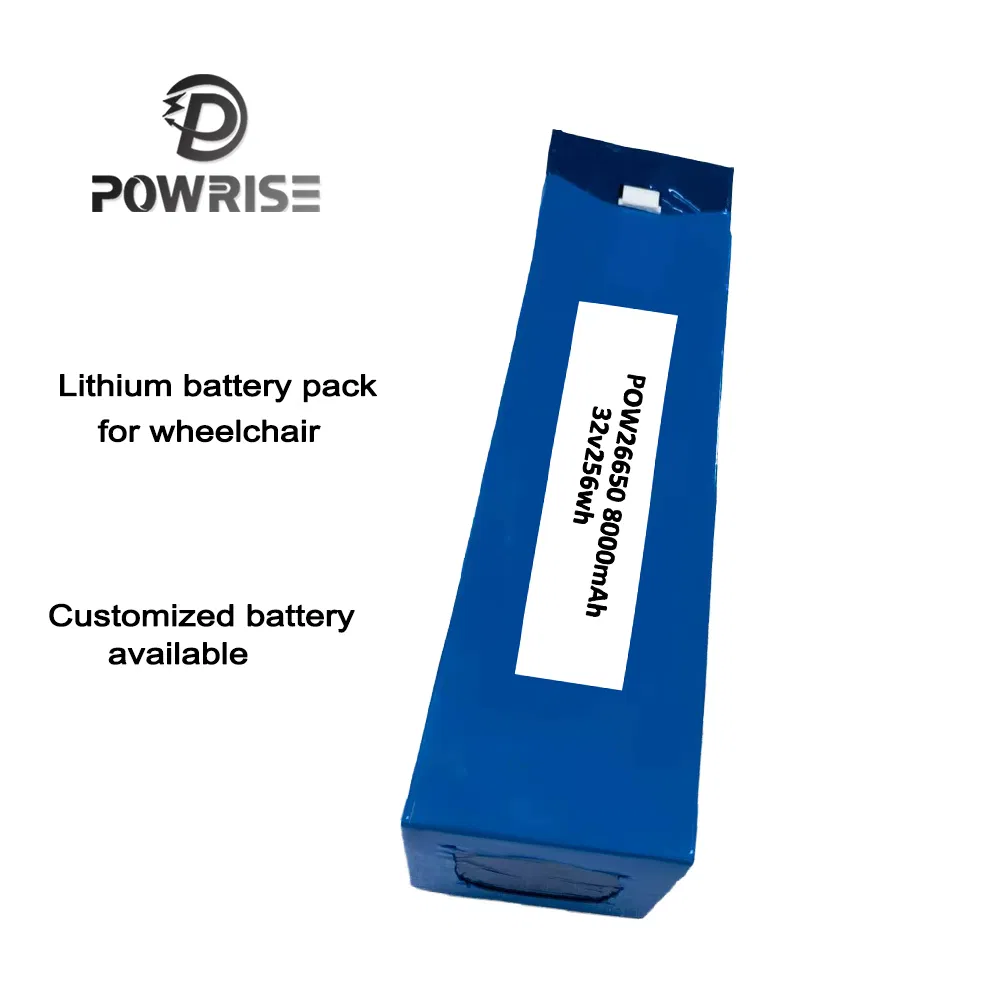

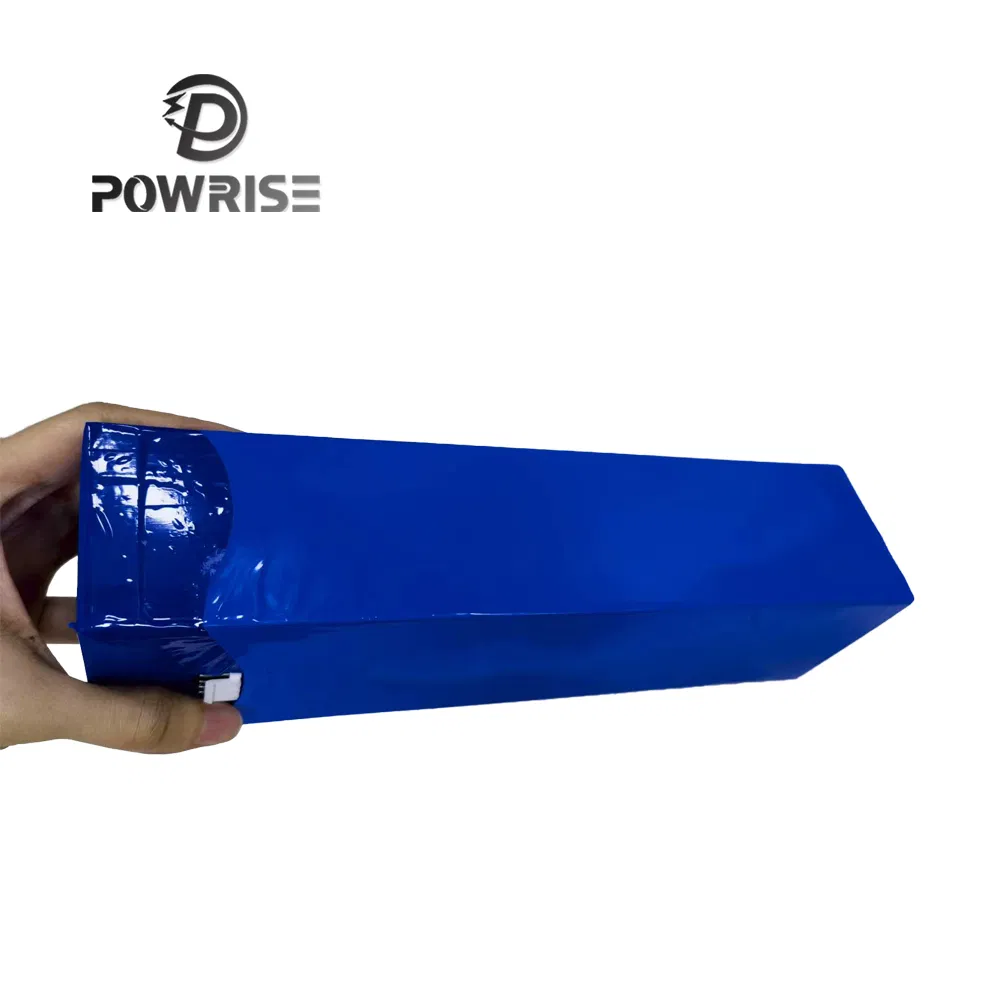

This 32V 8Ah (256 Wh) lithium-iron-phosphate (LiFePO4) pack is engineered specifically for ultra-light, foldable electric wheelchairs. At less than 2 kg, it weighs only one-third of an equivalent lead-acid battery, letting users lift and stow the chair with one hand.
Equipped with a Smart BMS featuring five-layer protection (over-charge, over-discharge, over-current, short-circuit, high/low temperature). It disconnects the output within 10ms of any fault detected.
Scalable capacity from 6-15 Ah and 24-36 V voltage range. Connectivity options include Anderson, XT60, aviation, or custom plugs. Communication support for CAN-bus, RS485, or UART for dashboard integration.
Perfect for lightweight folding electric wheelchairs, travel-style mobility scooters, and senior or rehabilitation assistive devices.
| Contents | Min. | Type | Max. | Unit |
|---|---|---|---|---|
| Input Charging Voltage | - | 36.5 | - | V |
| Input Charging Current | - | 5 | 10 | A |
| Output Discharging Voltage | 20 | 32 | 36.5 | V |
| Continuous Discharging Current | - | 5 | 10 | A |
| Operating Temperature | -20 | - | 85 | ºC |
| Storage Humidity | 0% | - | 80% | RH |
A1: This LiFePO4 battery pack weighs less than 2 kg, making it approximately one-third the weight of traditional lead-acid batteries.
A2: It is specifically engineered for ultra-light, foldable electric wheelchairs and travel-style mobility scooters.
A3: Yes, it includes a Smart BMS with five-layer protection against over-charge, over-discharge, over-current, short-circuit, and temperature extremes.
A4: Yes, we offer customization for capacity (6-15Ah), voltage (24-36V), and various connector types like Anderson, XT60, or aviation plugs.
A5: The battery is designed to operate safely in temperatures ranging from -20ºC to 85ºC.
A6: We can provide CAN-bus, RS485, or UART communication for displaying state-of-charge on dashboards or mobile apps.
