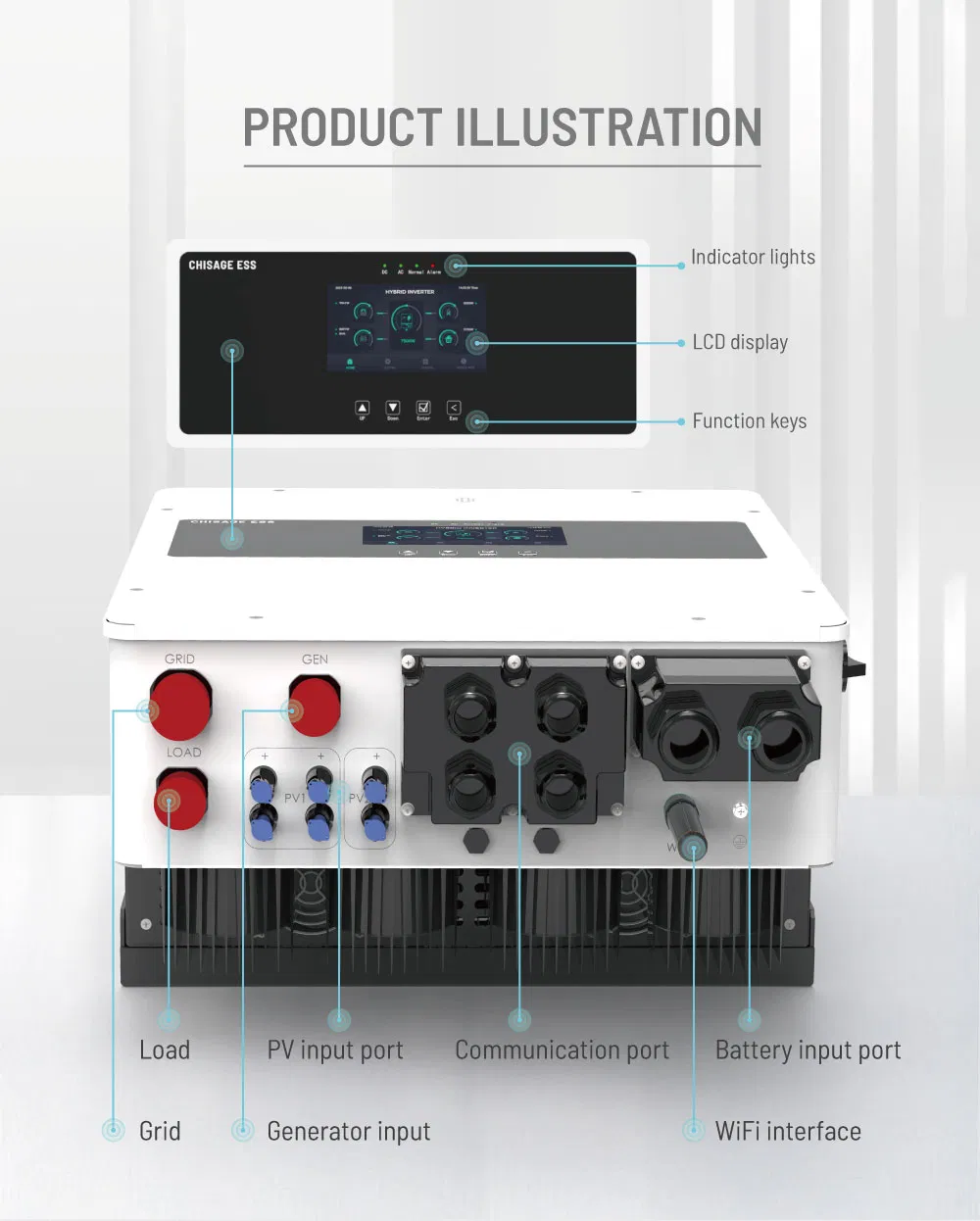

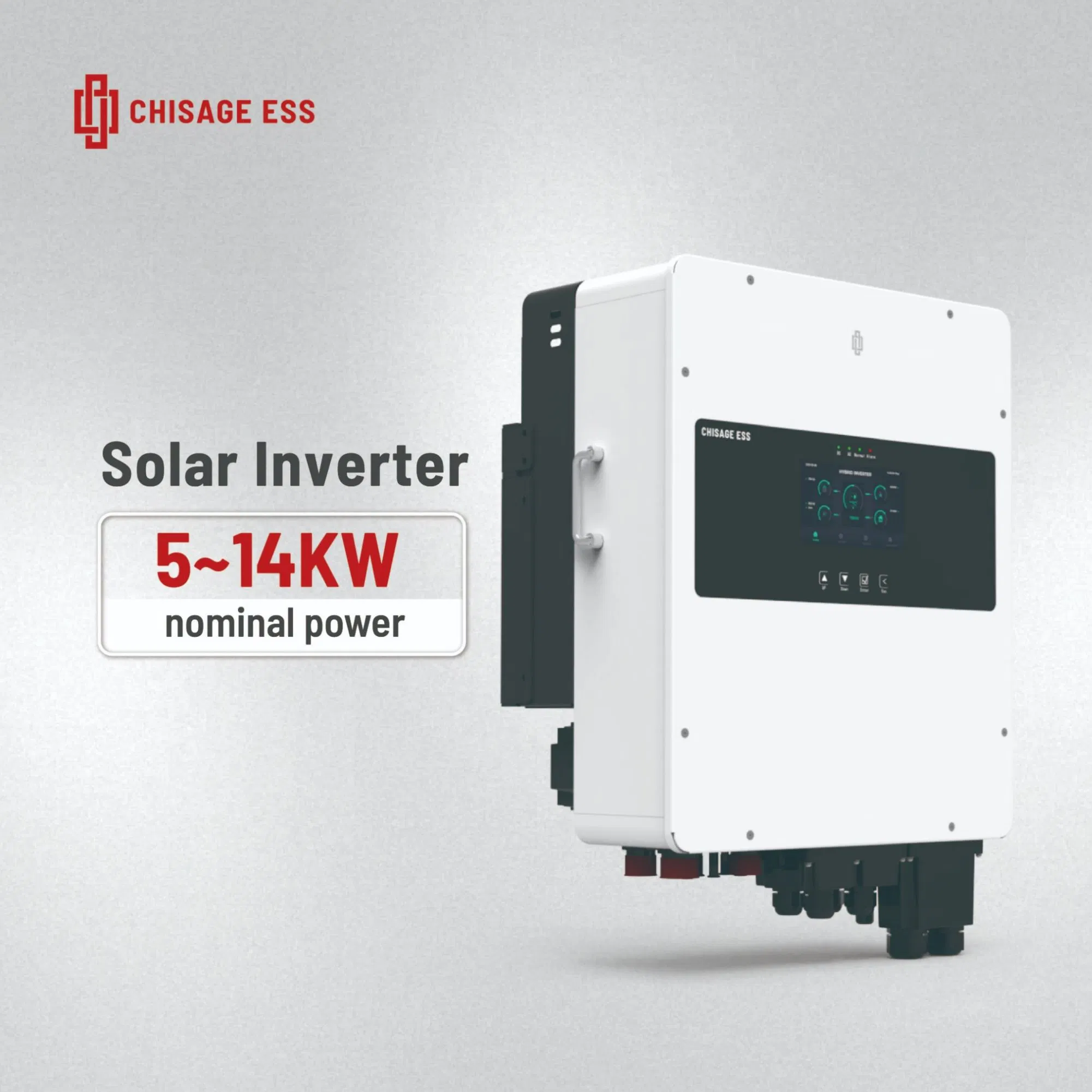

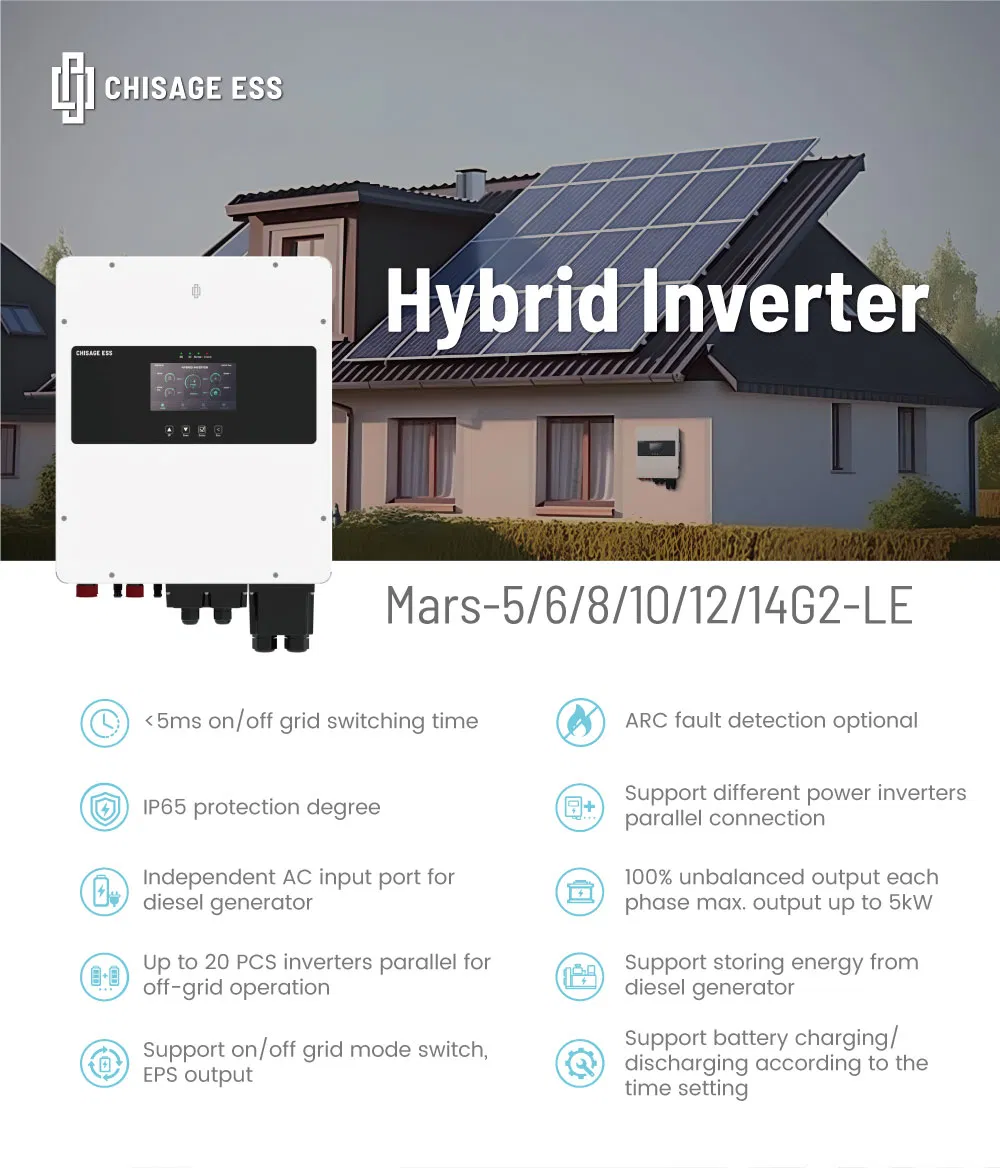

5kw 6kw 8kw 10kw 12kw 14kw PV System DC AC Solar Power Triple Phase Inverter Pure Sine Wave Hybrid Inverter. Less than 5ms on-off grid switching time. Supports different power inverters parallel connection (up to 20pcs in off-grid mode). Support on/off grid mode switch, EPS output.

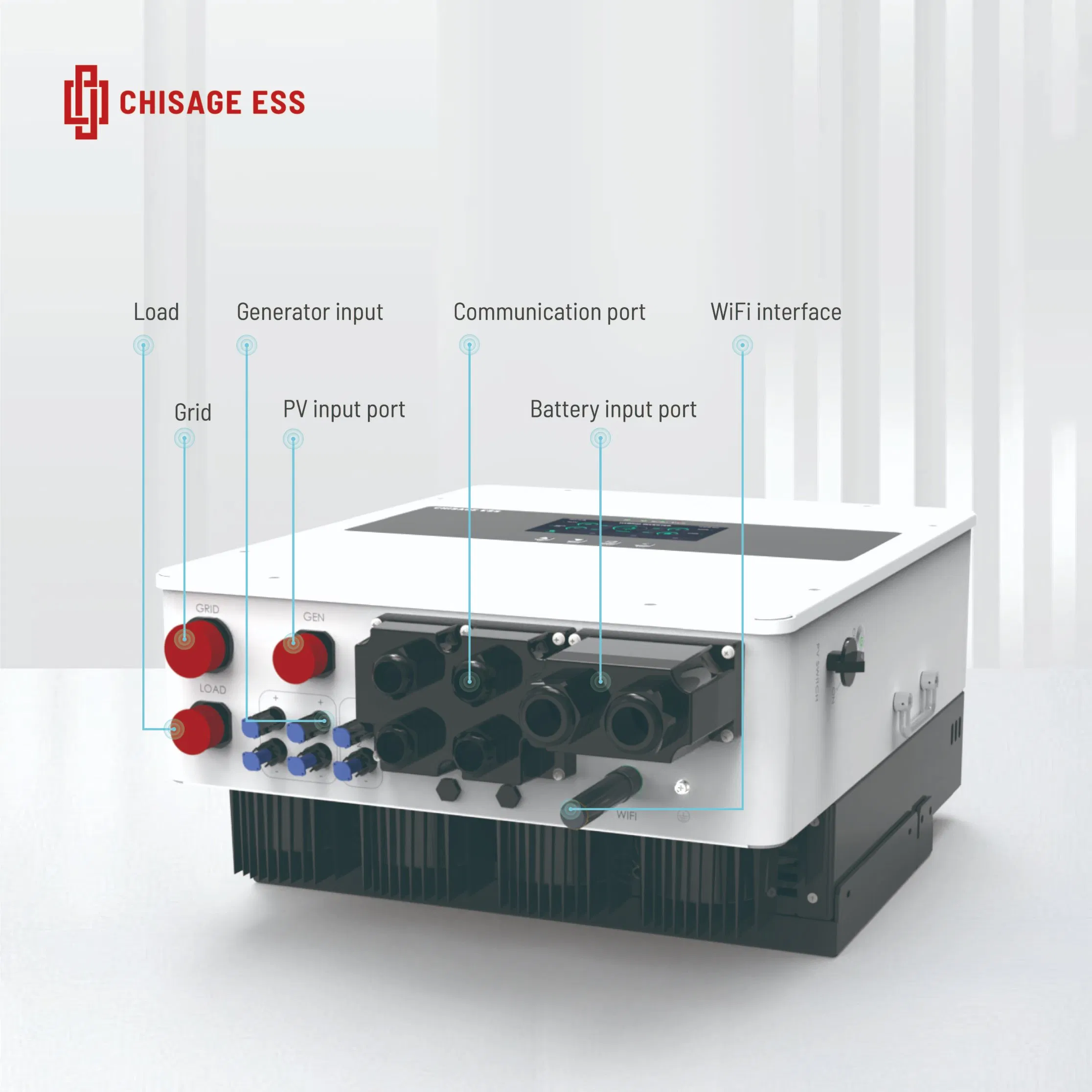

Support battery charging/discharging according to the time setting. Independent AC input port for diesel generator. Colorful 7-inch touch LCD, IP65 protection degree.
| Technical Data | ||||||
| Model | Mars-5G1/2-LE | Mars-6G1/2-LE | Mars-8G1/2-LE | Mars-10G1/2-LE | Mars-12G1/2-LE | Mars-14G1/2-LE |
| Battery Input | ||||||
| Battery Type | Lead-acid or Li-Lon | |||||
| Battery Voltage Range (V) | 40~60 | |||||
| Max. Charge Current (A) | 120 | 130 | 200 | 220 | 250 | 280 |
| PV String Input | ||||||
| Max. DC Input Power (W) | 7500 | 9000 | 12000 | 15000 | 18000 | 20000 |
| PV Input Voltage (V) | 650 (160~800) | |||||
| No. of MPPT Trackers | 2 | |||||
| AC Output | ||||||
| Rated AC Output Power (W) | 5000 | 6000 | 8000 | 10000 | 12000 | 14000 |
| Output Frequency/Voltage | 50/60Hz, 380/400Vac (Triple phase) | |||||
| General Data | ||||||
| Operating Temp Range | -45~60°C, >45 Derating | |||||
| Dimensions (mm) | 550W×730H×290D | |||||
Support storing energy from diesel generator. ARC fault detection optional.
