Product Description

Basic Information

Certification

ISO, CE

Application

Commercial

Material

Steel

Type

Ground Bracket

Lead Time

5-15 days

Package

Box+Wooden/Steel Pallet

Product Description

Aluminum solar panels ground mounting system - Type A is applicable for open fields, suitable for both residential and commercial projects. The system features high pre-assembly for efficient and easy installation. The structure is crafted from high-quality aluminum alloy, ensuring durability and performance.

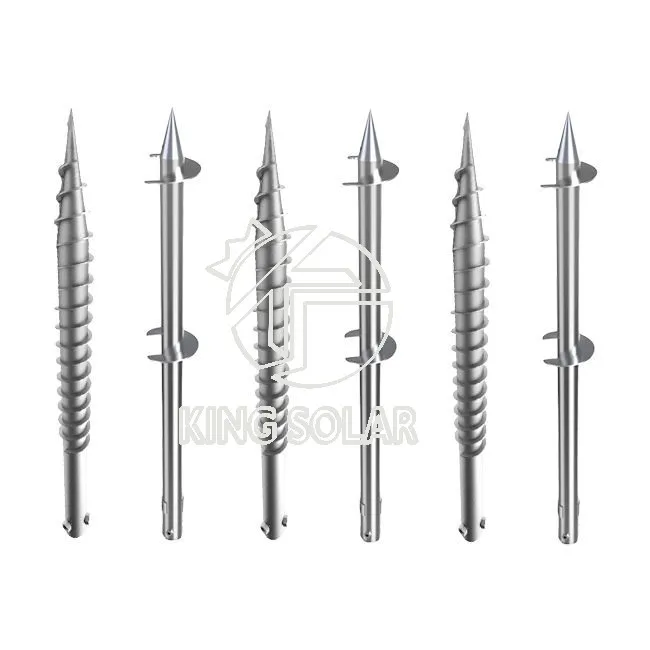

Ground Mounting Solution

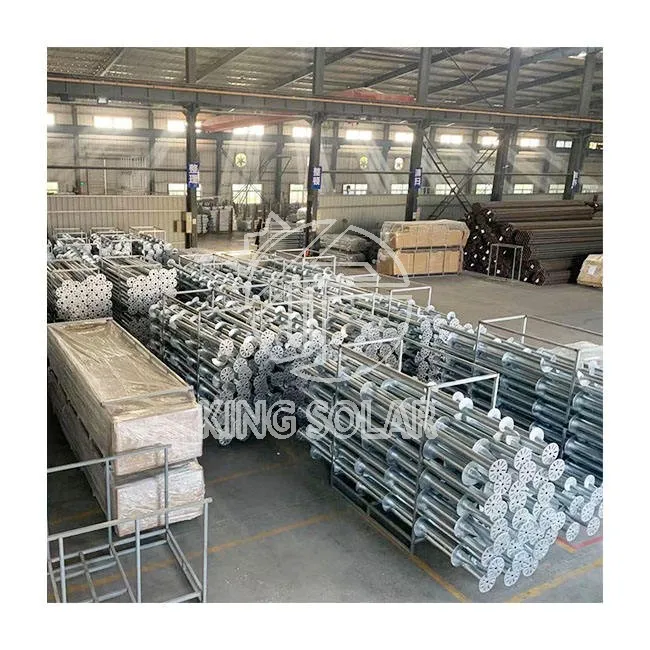

Solar Mounting Structure

Technical Specifications

Material	Anodized AL6005-T5, HDG steel Q235B, SUS304
Foundation	Ground Screw and Concrete Base
Warranty	10 years warranty and 25 years service life
Standard	AS/NZS1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006
Max Wind Load	Up to 60m/s
Snow Load	Up to 1.4KN/M²
Applicable Module	Framed or Frameless
Module Orientation	Portrait or Landscape

Product Advantages

✔ Lightweight, easy transportation and installation, safe construction.

✔ High corrosion resistance and excellent salt tolerance.

✔ Maximum pre-assembly to save construction time and labor costs.

✔ Environmental protection: durable, recyclable, and suitable for various geological conditions.

✔ Flexible solutions to meet diverse customer requirements.

✔ A-type structure pre-assembled for optimized field installation.

Packaging & Shipping

Packaging

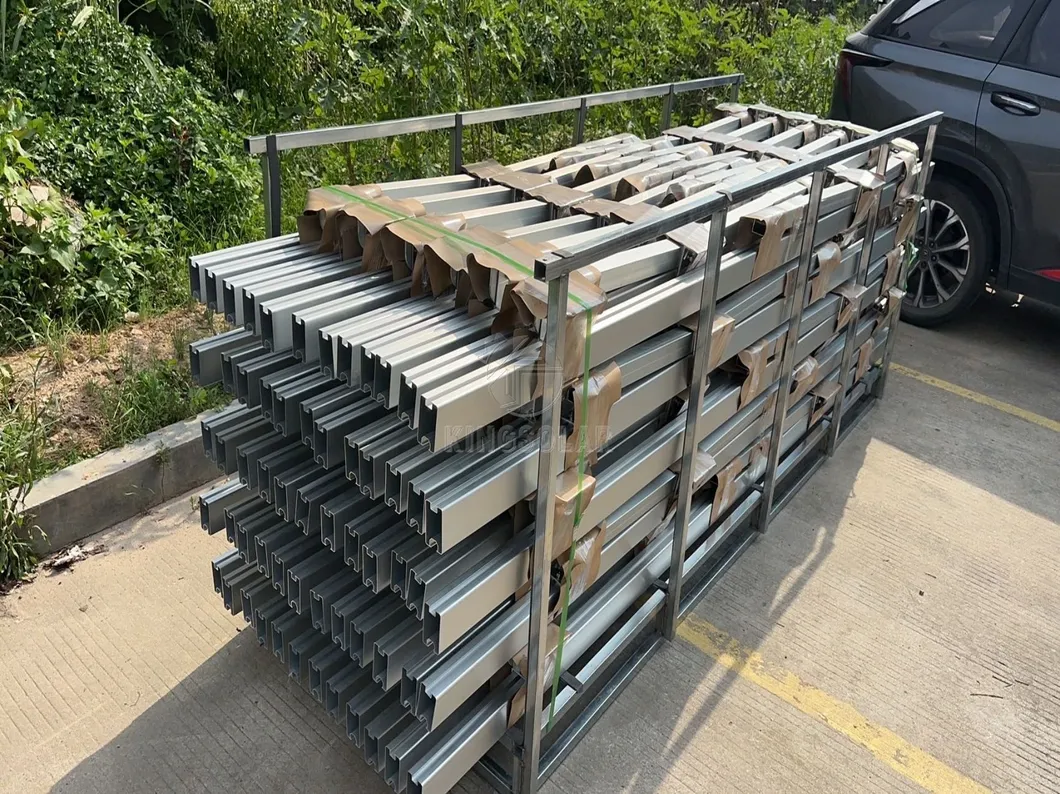

Shipping

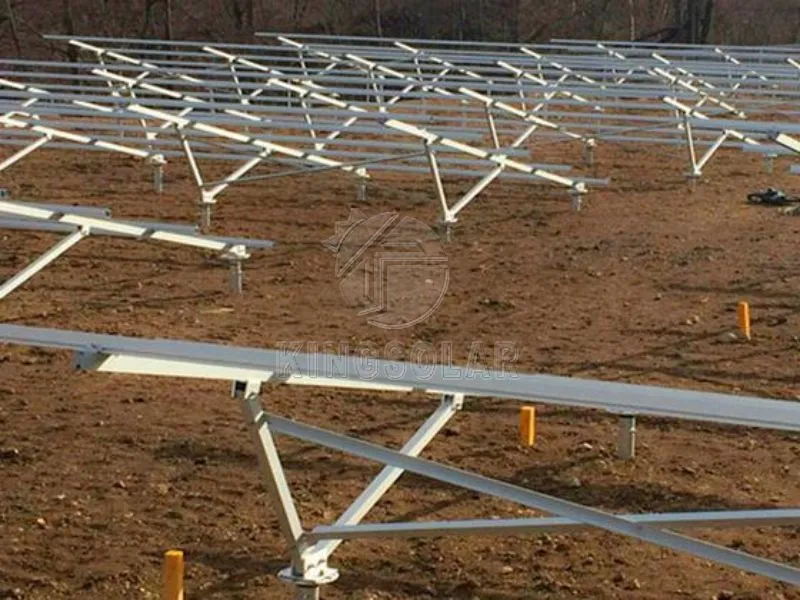

Logistics

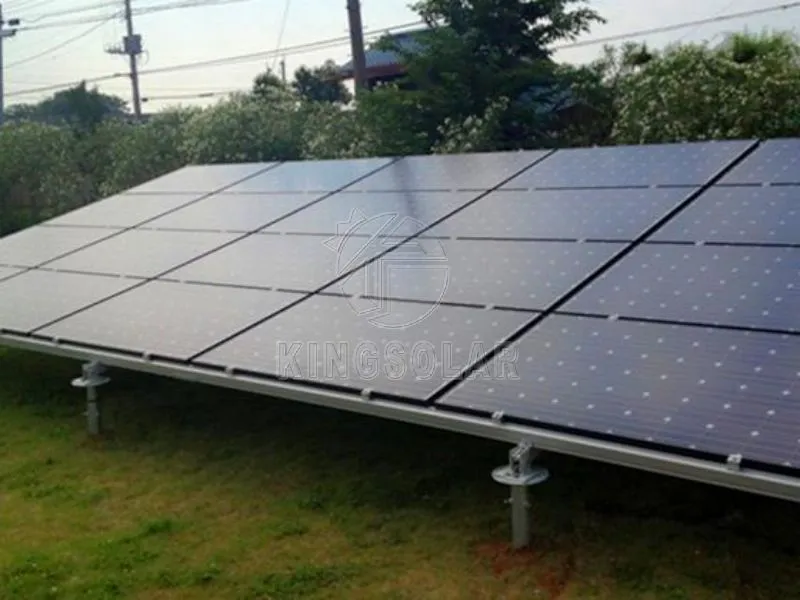

Storage

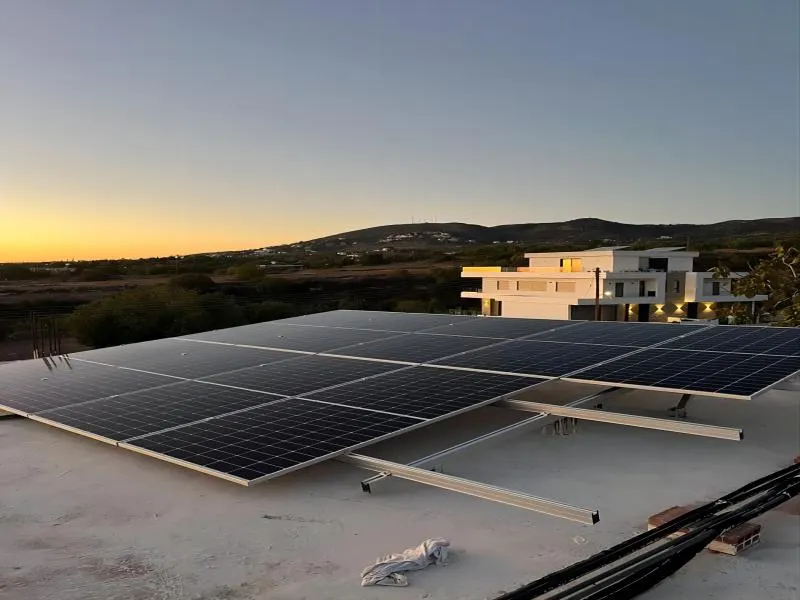

Delivery

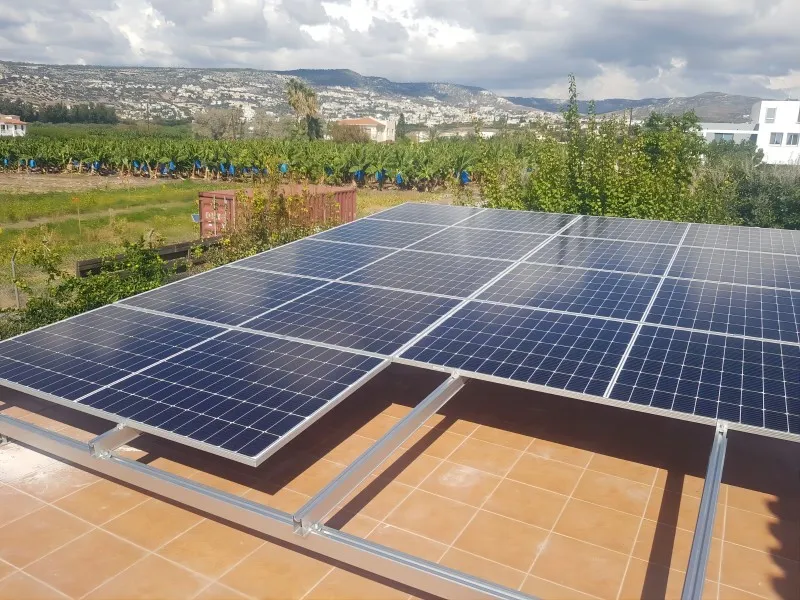

Final Product

Gallery

Project View

Site Overview

Necessary Information for Quotes

1. Solar panel info: L:___mm, W:___mm, T:___mm; Power:___w, Frame or Frameless?

2. Panel array: row___ column___

3. Wind Load:___ m/s | Snow Load:___ cm

4. Installation Angle:___ degree, Portrait or Landscape?

5. Installation location & Salinity control requirements?

6. Foundation type: Concrete or Ground screws anchor?

Frequently Asked Questions

Are you a professional photovoltaic system manufacturer?

Yes, we have an R&D team offering free system design and service. With our own factory, we have over 10 years of production experience.

Do you support OEM/ODM services?

Yes, we provide both OEM and ODM services. We have experience designing for top global EPC distributors.

What is your typical delivery time?

Delivery usually takes 5-15 days. For customized products, the lead time is approximately 20 days.

Can you provide samples for testing?

Yes, we provide free samples for your testing and quality evaluation.

How do you ship the goods and how long does it take?

Samples are usually shipped via DHL or FedEx (3-5 days). Large orders are shipped by sea, taking 7-30 days depending on the destination.

What is the warranty period for your systems?

We offer a 10-year warranty and a 25-year expected service life.
