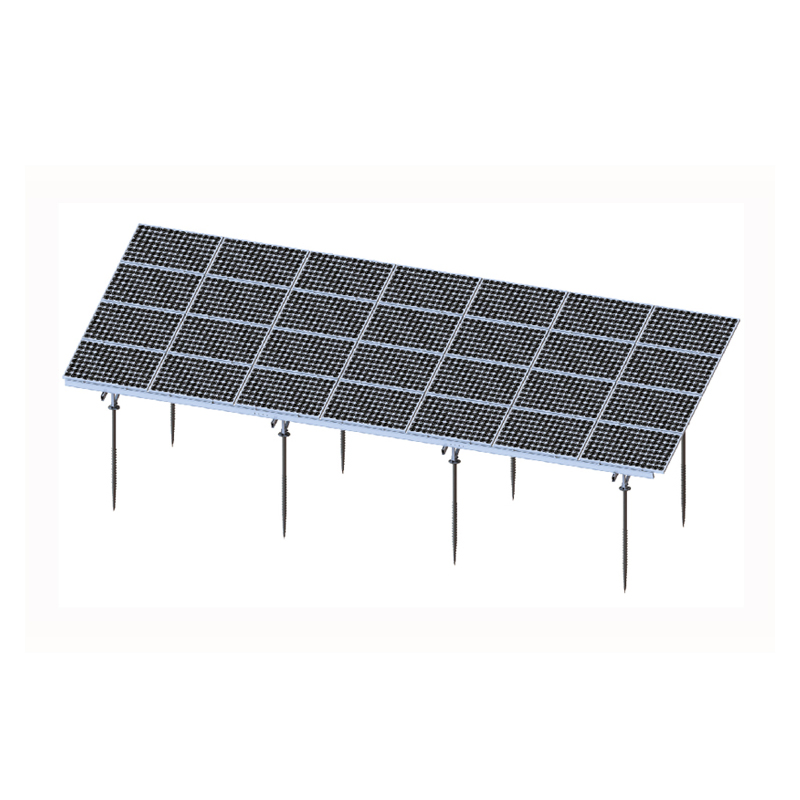

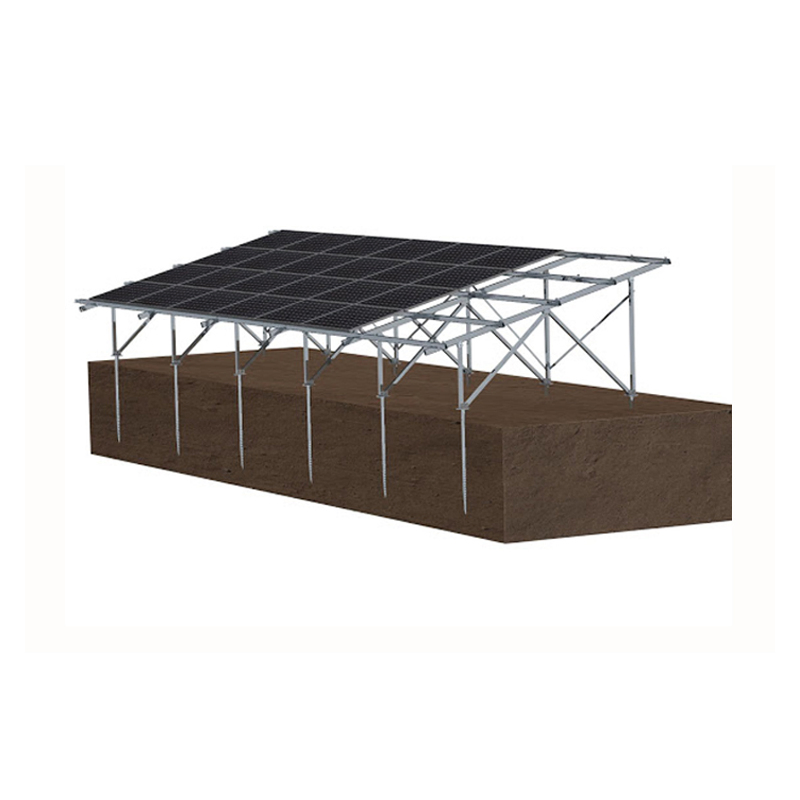

Ground Solar Mounting PV Racking Solar Pile Mount Structure System
Ground Solar Mounting PV Racking Solar Pile Mount Structure System
Ground Solar Mounting PV Racking Solar Pile Mount Structure System
Ground Solar Mounting PV Racking Solar Pile Mount Structure System
Ground Solar Mounting PV Racking Solar Pile Mount Structure System
1 / 5
Ground Solar Mounting PV Racking Solar Pile Mount Structure System
Ground Solar Mounting PV Racking Solar Pile Mount Structure System
Ground Solar Mounting PV Racking Solar Pile Mount Structure System
Ground Solar Mounting PV Racking Solar Pile Mount Structure System
Ground Solar Mounting PV Racking Solar Pile Mount Structure System

Ground Solar Mounting PV Racking Solar Pile Mount Structure System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
SF-M09
Certification
ISO, TUV, CE
Application
Commercial / Open Field
Material
Concrete / Aluminum
Type
Ground Bracket
Product Name
Solar Panel Ground Mounting Structure
Color
Silver
Tilt Angle
0-45deg
Surface Treatment
Aluminum Anodized
Production Capacity
300,000,000 Sets Per Month
☀️ Product Overview

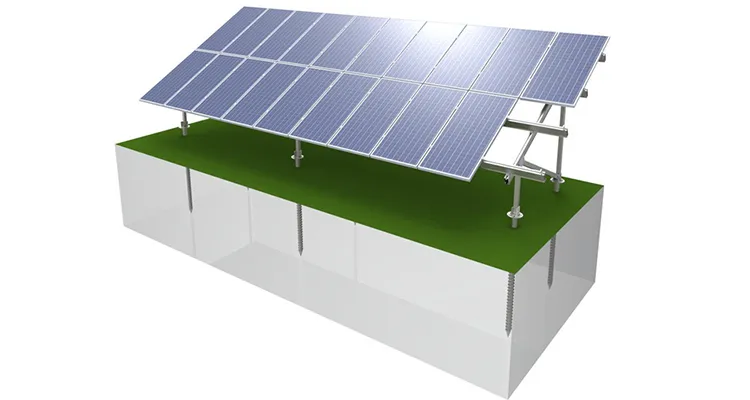

Solar Ground Mounting System

The Ground Screw Mounting Structure is widely applied for large solar farms, utilizing fixed ground screw foundations or adjustable screw piles. The unique oblique spiral design ensures maximum stability against static loads.

🛡️

Key Advantages

  • High anti-corrosion and anti-rust properties.
  • Simple and fast installation process.
  • Significantly reduced labor costs.
⚙️

Technical Summary

  • Main Components: AL6005-T5 Aluminum.
  • Accessories: Stainless steel fastening.
  • Duration: More than 25 years service life.

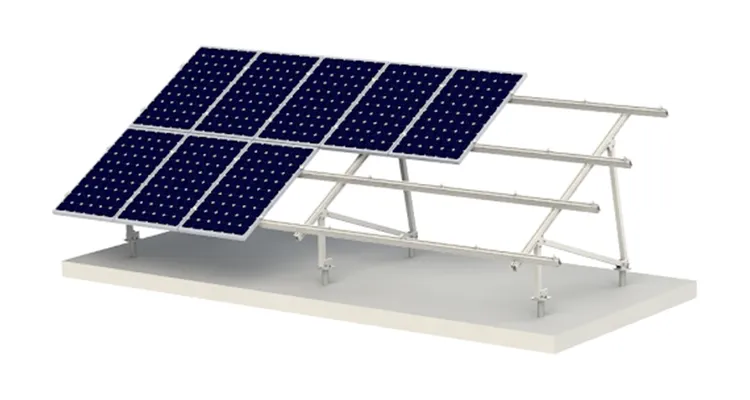

Ground Solar Advantage

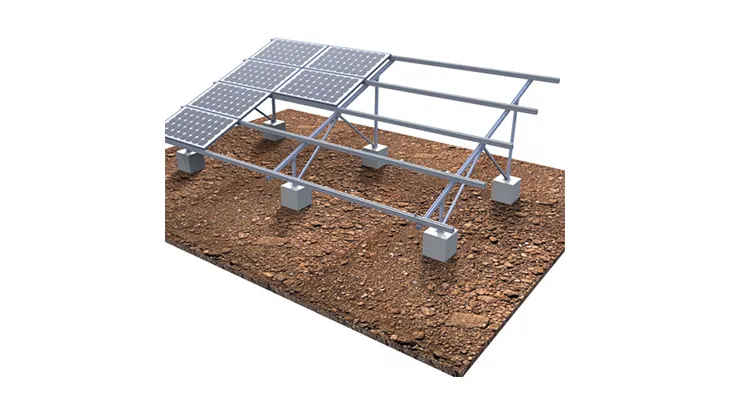

Solar Technical Data
📊 Technical Specifications
Parameter Details
Installation SiteOpen field
Wind LoadUp to 60m/s
Snow Load1.4kn/m2
Tile Angle0-45 deg
StandardsAS/NZS1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006
MaterialAnodized AL6005-T5, HDG steel Q235B, SUS304
Warranty10 Years Warranty and 25 Years Service Life
🏗️ Foundation Options

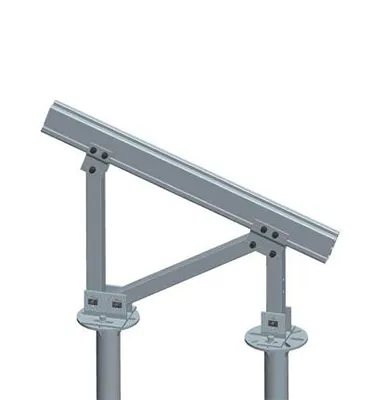

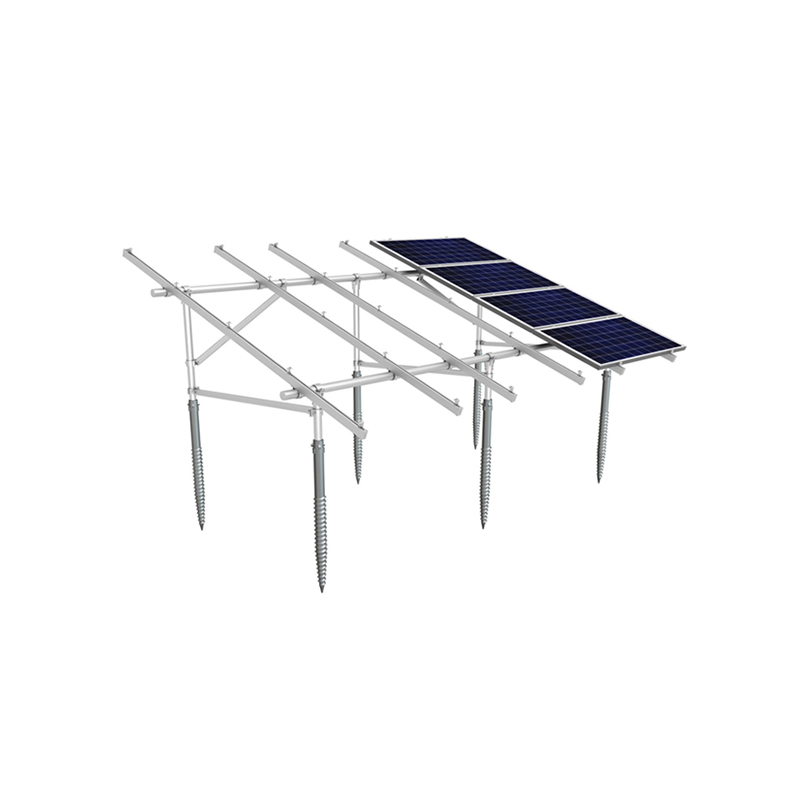

Screw Piles

Screw Piles

• High traction and pressure values.
• Installation by mini-digger machine with rotating head support.

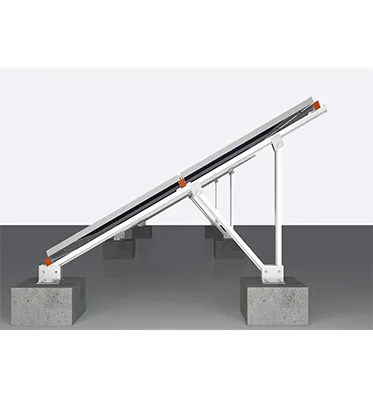

Concrete Base

Concrete Base

• Best suited where ground excavation is not permitted.
• The size is adjusted based on the static requirements and location.

🌎 Global Projects & Shipping

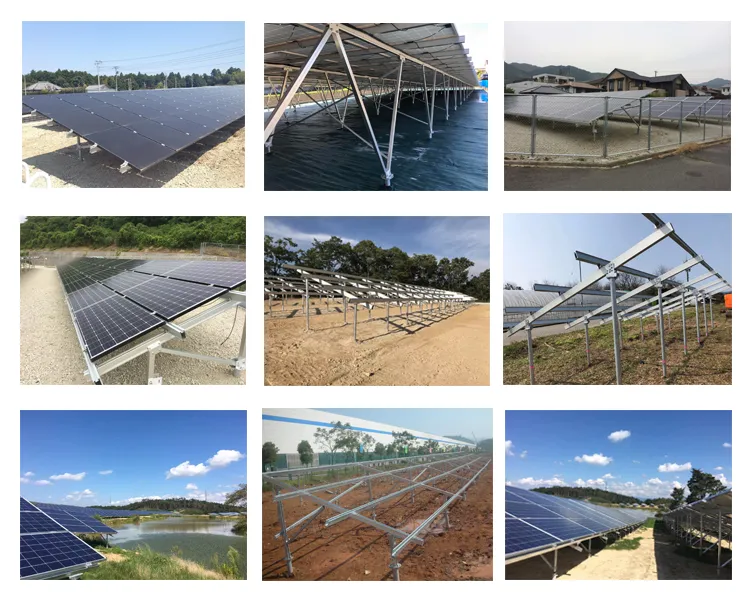

Solar Project Case
Packaging and Shipping
🏆 Exhibition & Certifications
Exhibition
Certifications
FAQ
What materials are used in the mounting structure?
The primary structure is made of Anodized AL6005-T5 aluminum alloy, with SUS304 stainless steel fasteners for superior corrosion resistance.
How long is the expected service life?
The system is designed for a service life of over 25 years, backed by a 10-year warranty.
Can this system withstand extreme weather conditions?
Yes, it is engineered to handle wind loads up to 60m/s and snow loads up to 1.4kn/m2.
What types of foundations are compatible?
The system is versatile and supports both ground screw piles and concrete base foundations depending on the soil conditions.
Is the tilt angle adjustable?
The mounting structure supports tilt angles ranging from 0 to 45 degrees to maximize solar efficiency.
Are the products certified for international use?
Yes, the structures meet multiple international standards including AS/NZS1170, JIS C8955:2017, and IBC 2006.
