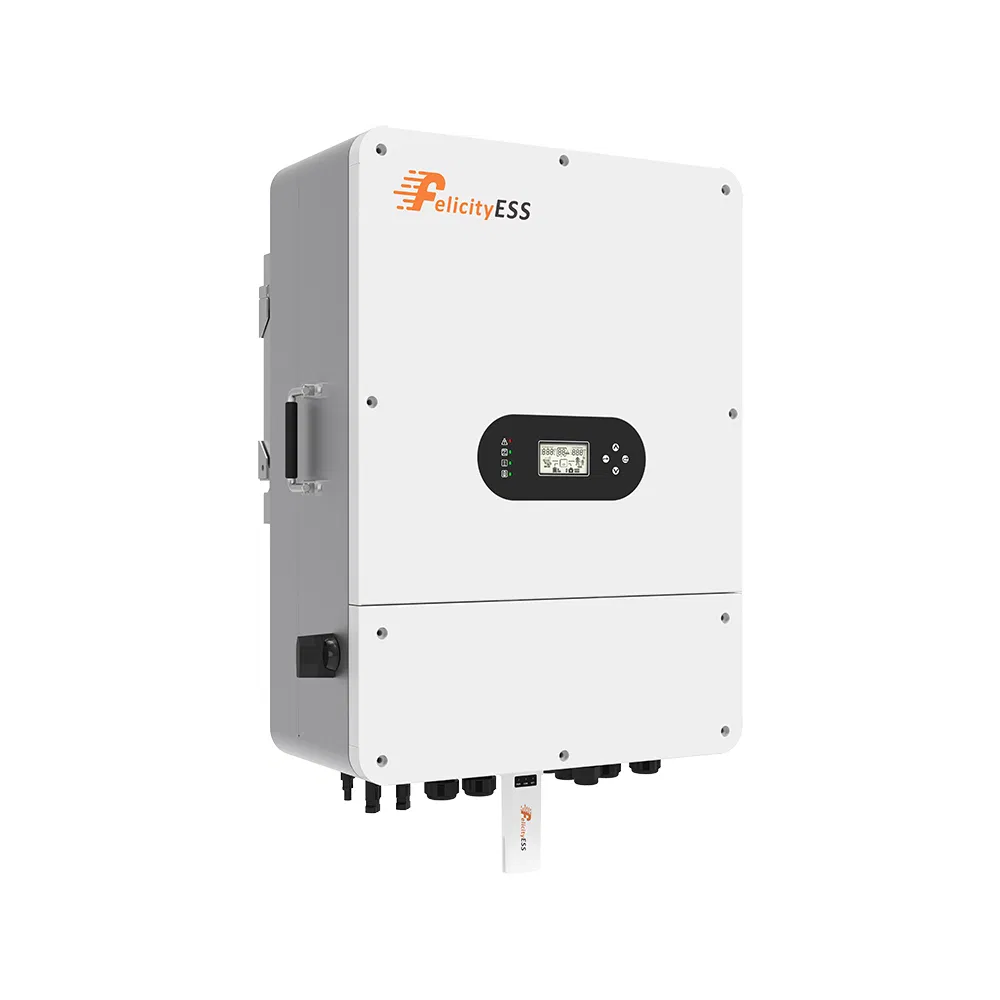

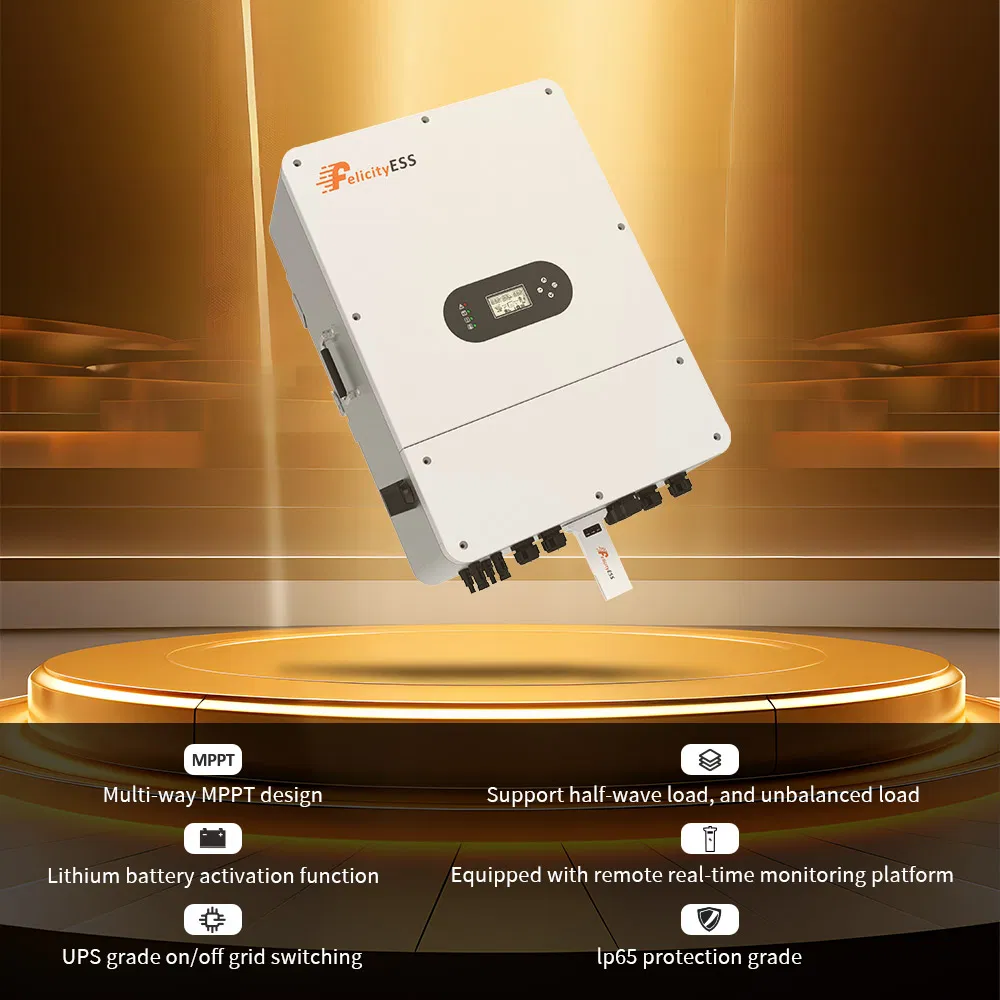

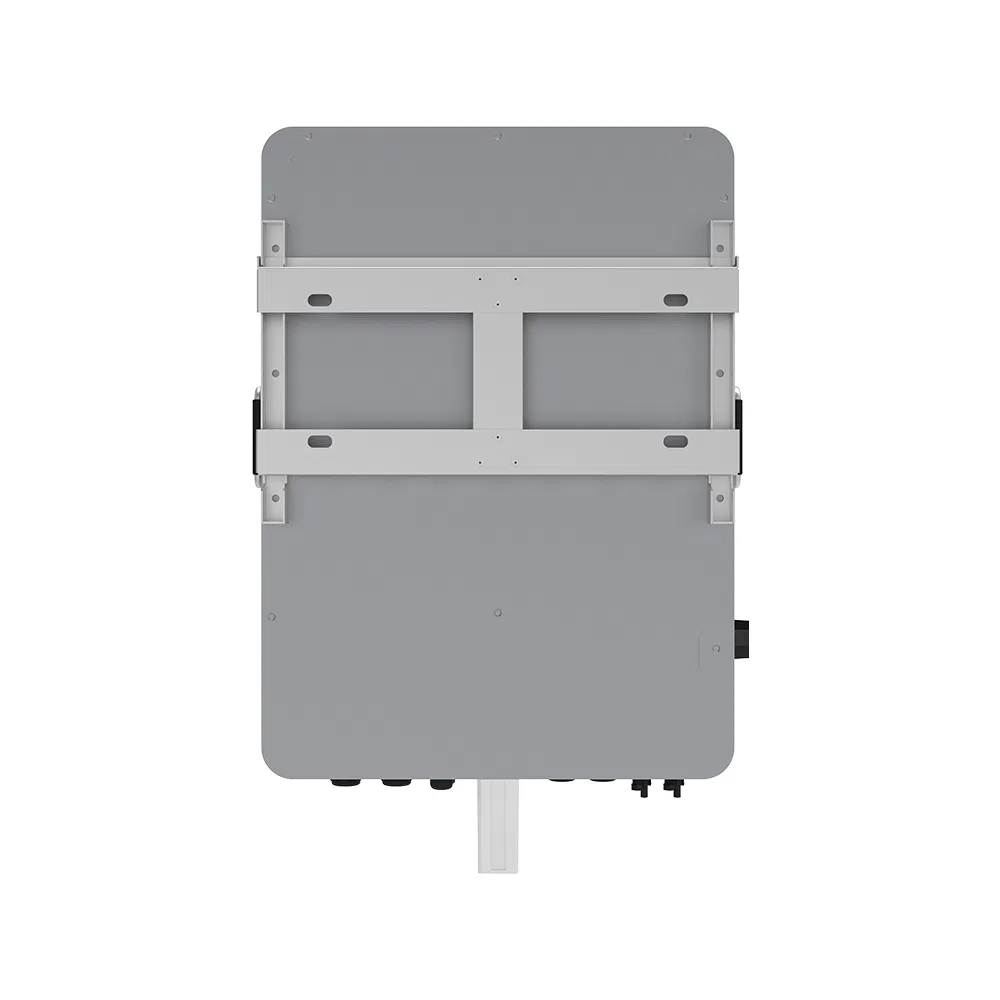

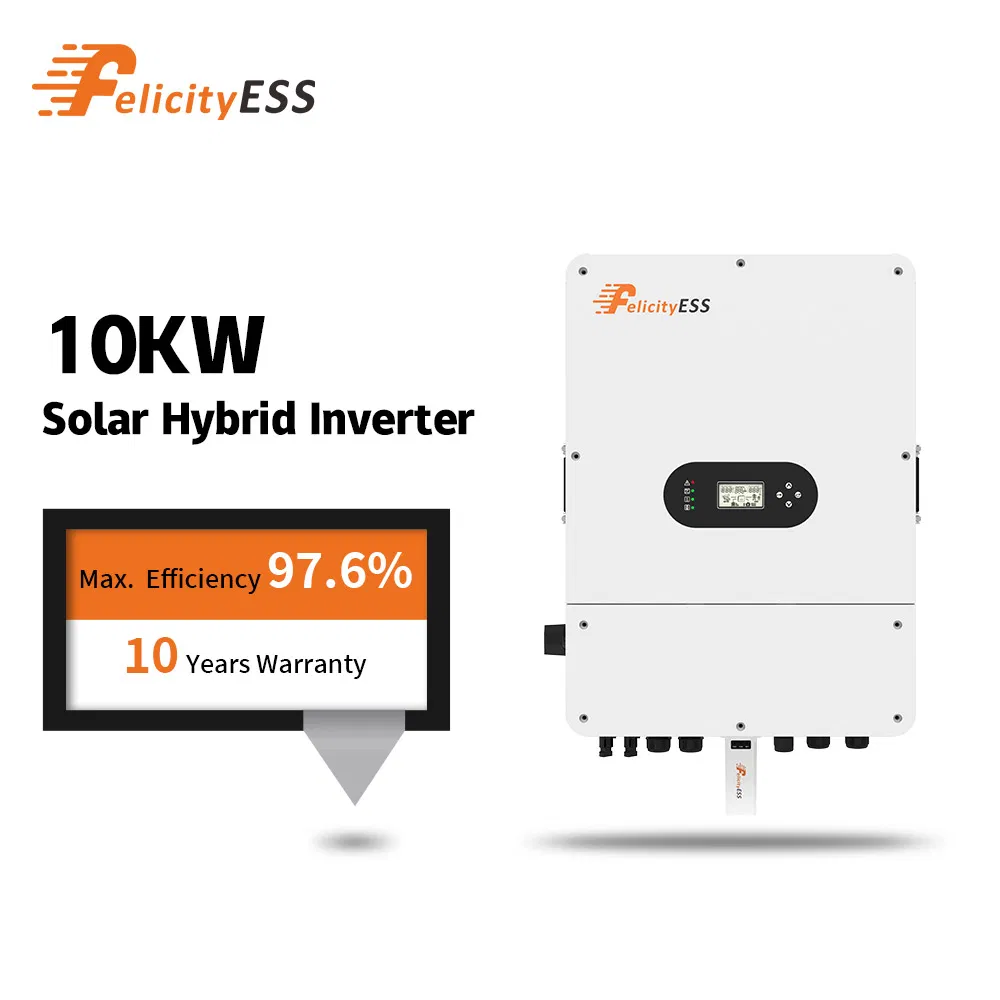

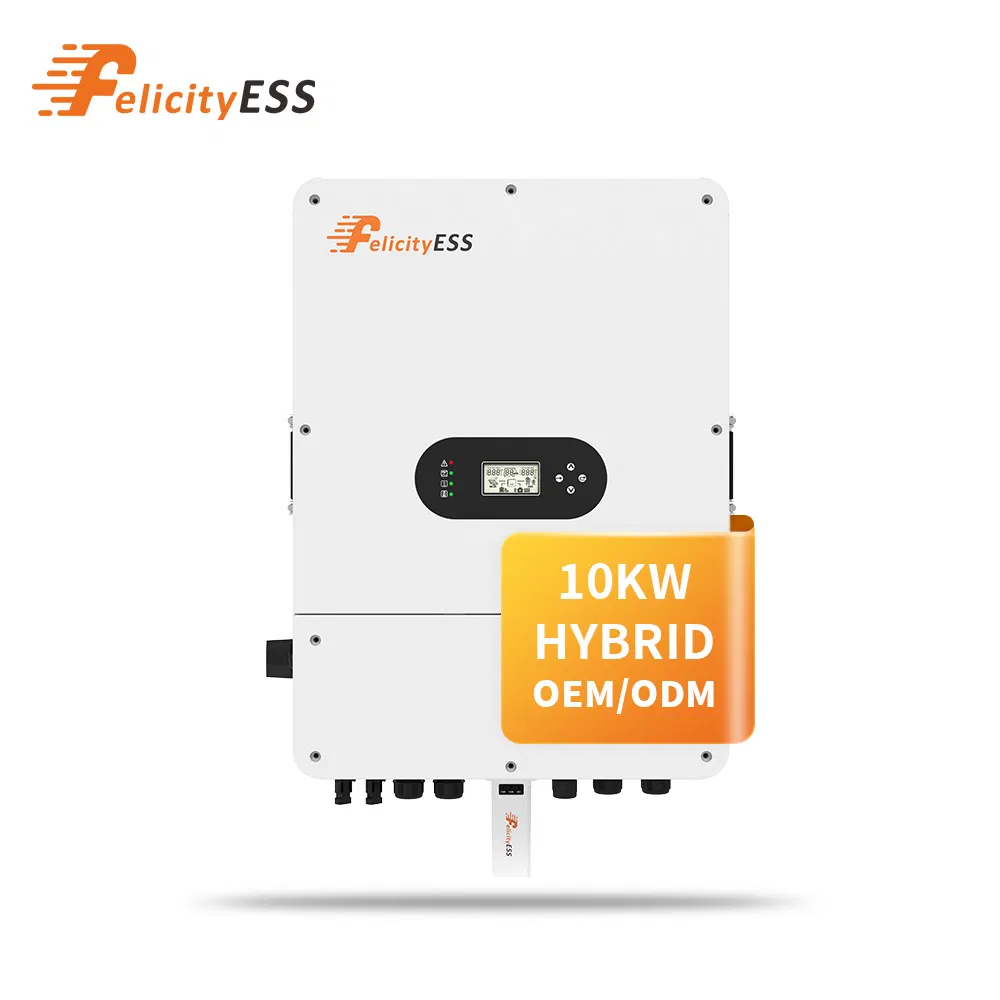

10kw On/Off Grid High Frequency Hybrid Solar Inverter
Integrated MPPT Controller Technology & IP65 Protection
0 Inventory, 0 Cost Investment
Top 100 Energy Storage Brands
100+ Global Patented Technologies
100+ Senior Technical Talents
| Technical Specifications | |

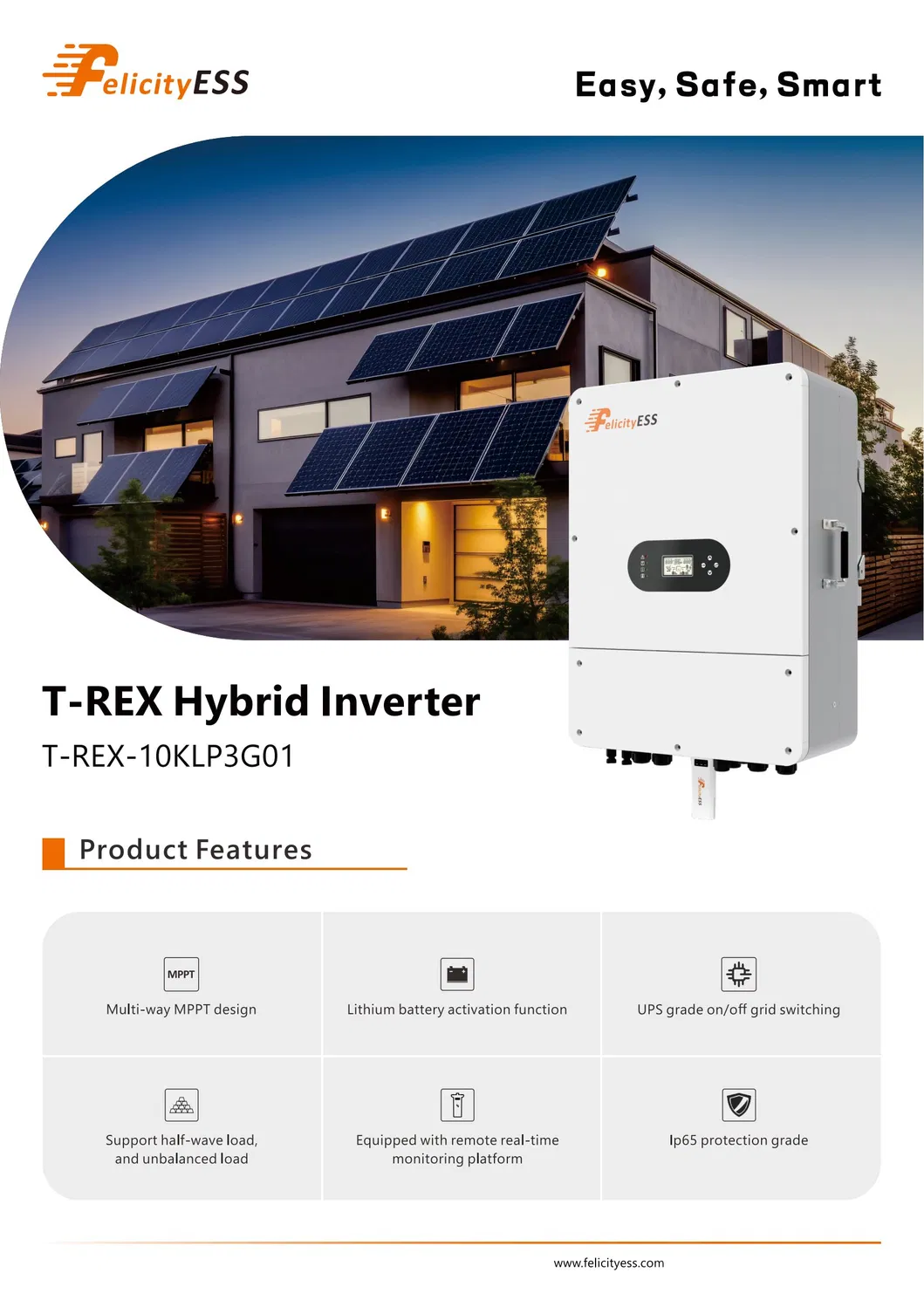

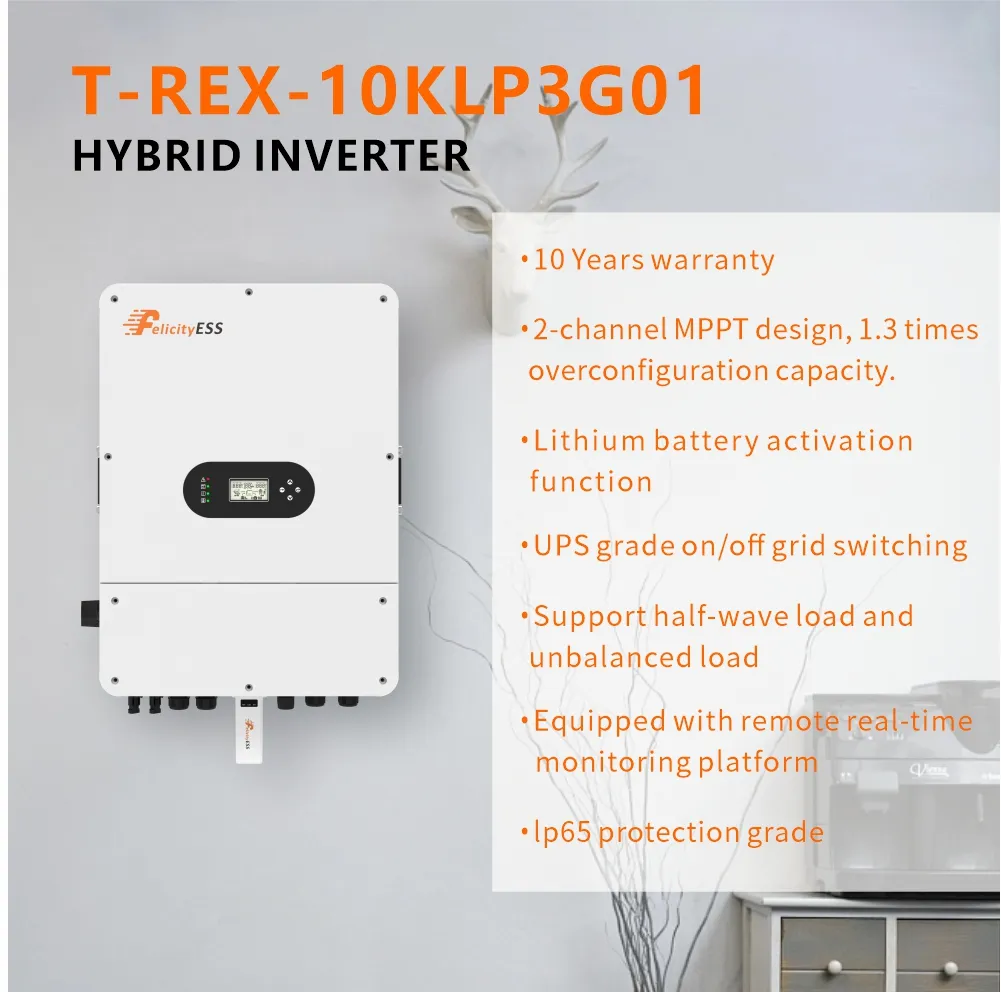

| Model | T-REX-10KLP3G01 |
| Battery Input Data | |
| Battery Voltage Range | 40V~60V |
| Max. Charging/Discharging Power | 10000W |
| Battery Type | Li-ion / Lead-acid |
| DC Input (PV Side) | |
| Max. Recommended PV Power | 13000W |
| Max. PV Voltage | 900V |
| MPPT Voltage Range | 200V-850V |
| Number of MPPT Trackers | 2 |
| Grid Data & Output | |
| Nominal Output Voltage | 230/400Vac (L1/L2/L3/N/PE) |
| Max. AC Output Power | 10000W |
| Max. Efficiency | 97.6% |
| General Data | |
| Protection Degree | IP65 |
| Operating Temp Range | -25°C ~ 60°C |
| Warranty | 10 Years |

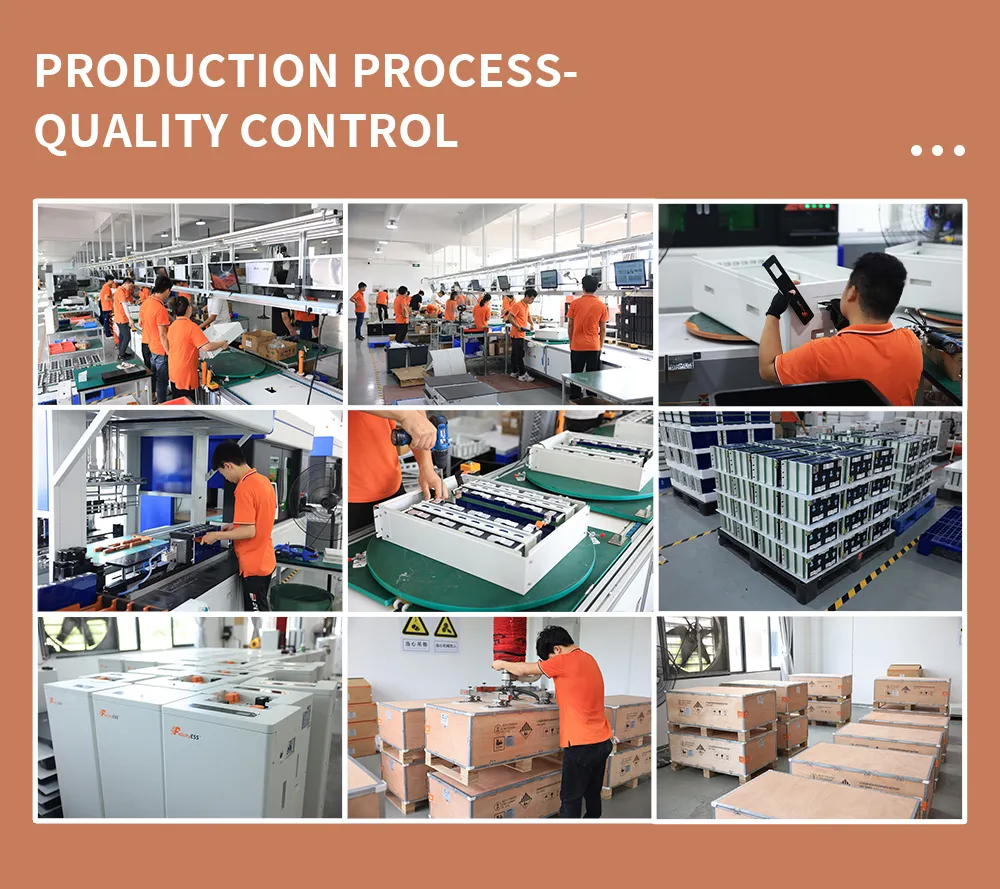

With 17 years of experience, our manufacturing facility spans 40,000 square meters and employs over 1,000 dedicated professionals. We specialize in home energy storage batteries and hybrid solar inverters, providing efficient energy solutions for global residential and commercial markets.
