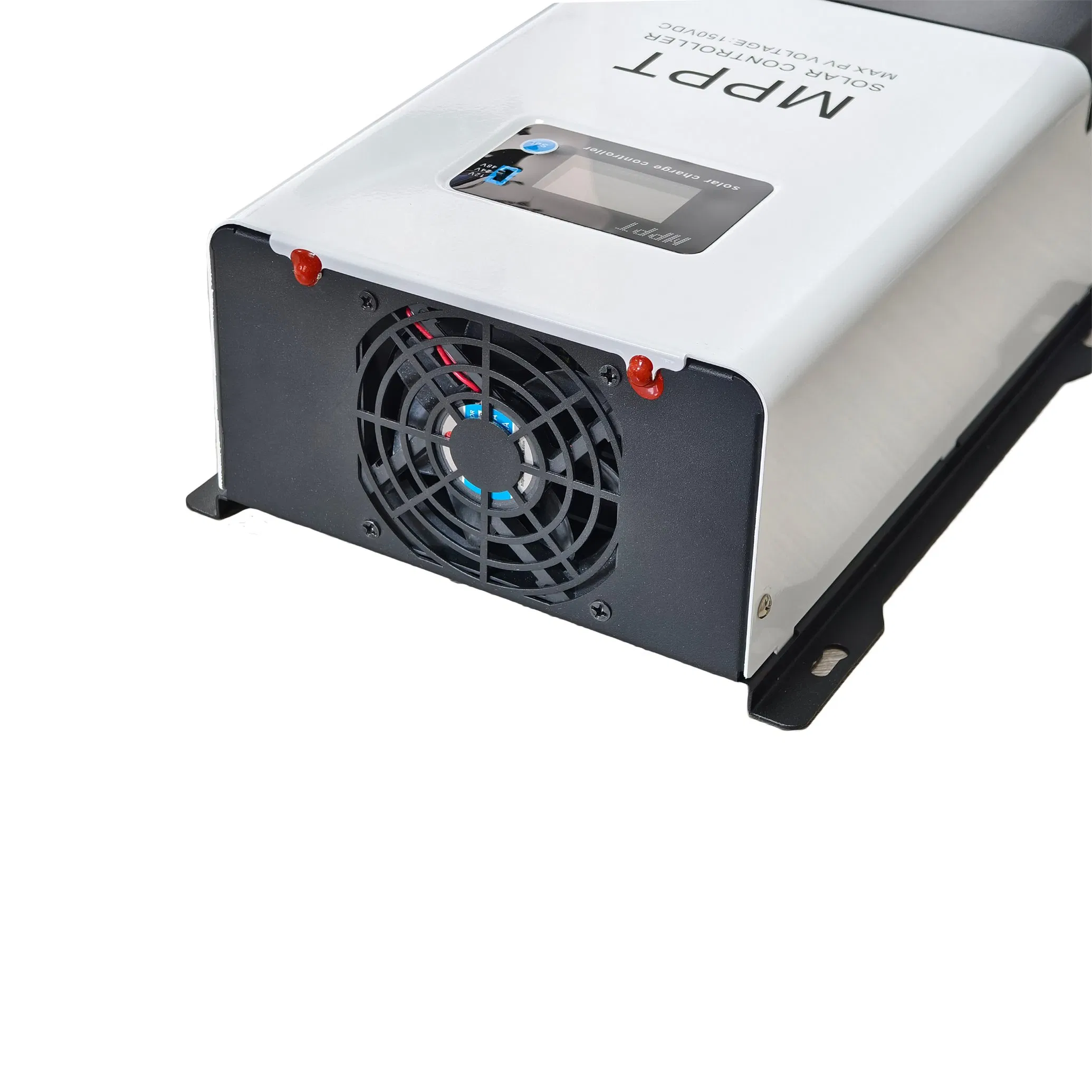

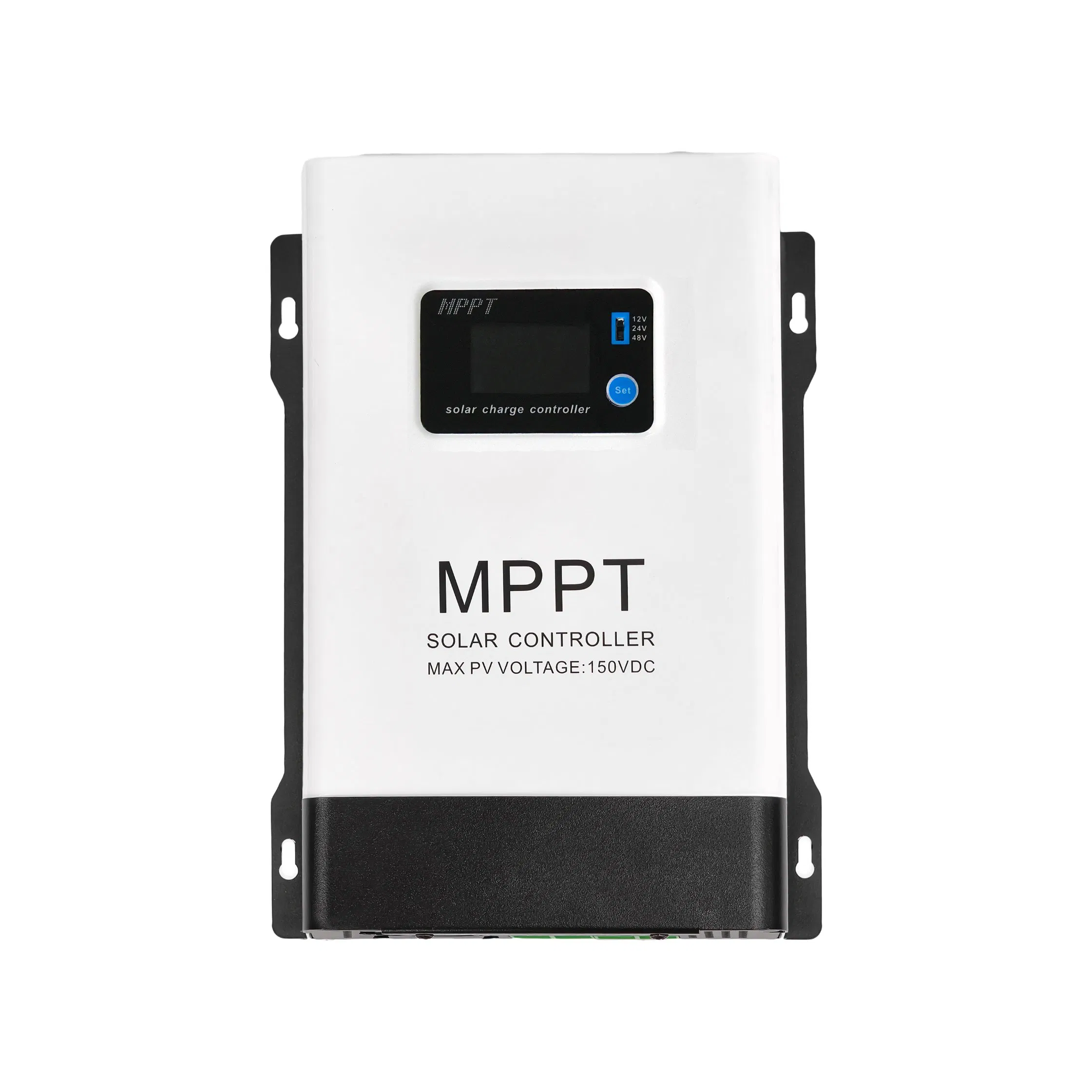

120A MPPT Solar Charge Controller 12/24/48V LCD Display Battery for Lead-Acid/Lithium
120A MPPT Solar Charge Controller 12/24/48V LCD Display Battery for Lead-Acid/Lithium
120A MPPT Solar Charge Controller 12/24/48V LCD Display Battery for Lead-Acid/Lithium
120A MPPT Solar Charge Controller 12/24/48V LCD Display Battery for Lead-Acid/Lithium
120A MPPT Solar Charge Controller 12/24/48V LCD Display Battery for Lead-Acid/Lithium
1 / 5
120A MPPT Solar Charge Controller 12/24/48V LCD Display Battery for Lead-Acid/Lithium
120A MPPT Solar Charge Controller 12/24/48V LCD Display Battery for Lead-Acid/Lithium
120A MPPT Solar Charge Controller 12/24/48V LCD Display Battery for Lead-Acid/Lithium
120A MPPT Solar Charge Controller 12/24/48V LCD Display Battery for Lead-Acid/Lithium
120A MPPT Solar Charge Controller 12/24/48V LCD Display Battery for Lead-Acid/Lithium

120A MPPT Solar Charge Controller 12/24/48V LCD Display Battery for Lead-Acid/Lithium

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Product Overview

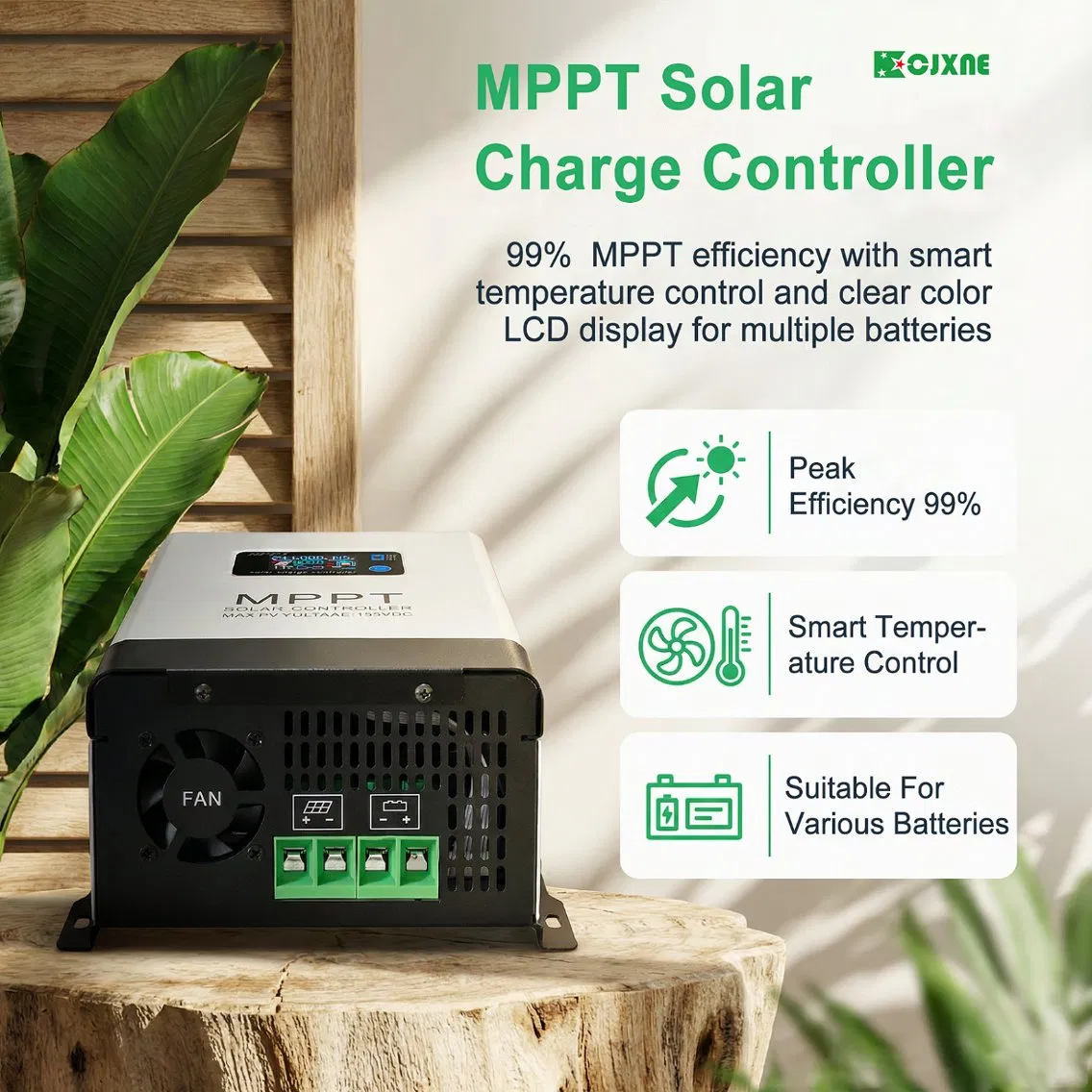

MPPT Solar Charge Controller
Model NO.JXMPPT-120
CertificationCE
Rated Voltage48V
Charge ModeMPPT Maximum Power Point Tracking
Tracking Efficiency99%
PV Power700-5600W
Battery TypeLead Acid/Gel/Lithium, etc.
Cooling SystemIntelligent Fan Cooling
Key Features & Benefits
⚡
High Efficiency: MPPT intelligent charging control with a peak efficiency of 99%.
🛡️
Complete Protection: Multi-layered electronic protection against overcharge, high temperature, and overpower.
🖥️
Smart Interface: High-definition color LCD display for real-time monitoring.
🔋
Universal Support: Compatible with 12V/24V/48V systems and various battery chemistries.
MPPT Controller Features
Technical Specifications
Product Model JXMPPT-60 JXMPPT-100 JXMPPT-120
PV Input Power 720W/1440W/2880W 1200W/2400W/4800W 1440W-11520W
Input Voltage 18V-150V 18V-150V 18V-230V
Discharge Current 60A 100A 120A
Max Efficiency 98% - 99%
Working Temp. -20℃ ~ +40℃
Dimension (mm) 170×220×90 170×220×90 240×320×100
Product Details

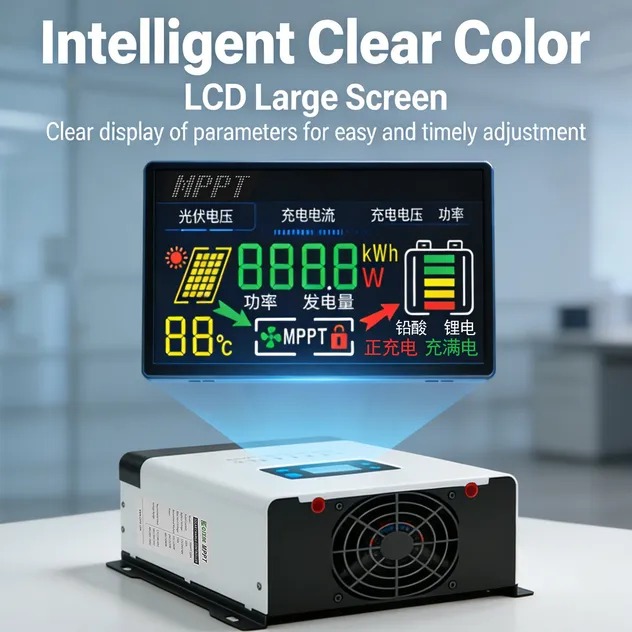

LCD Screen

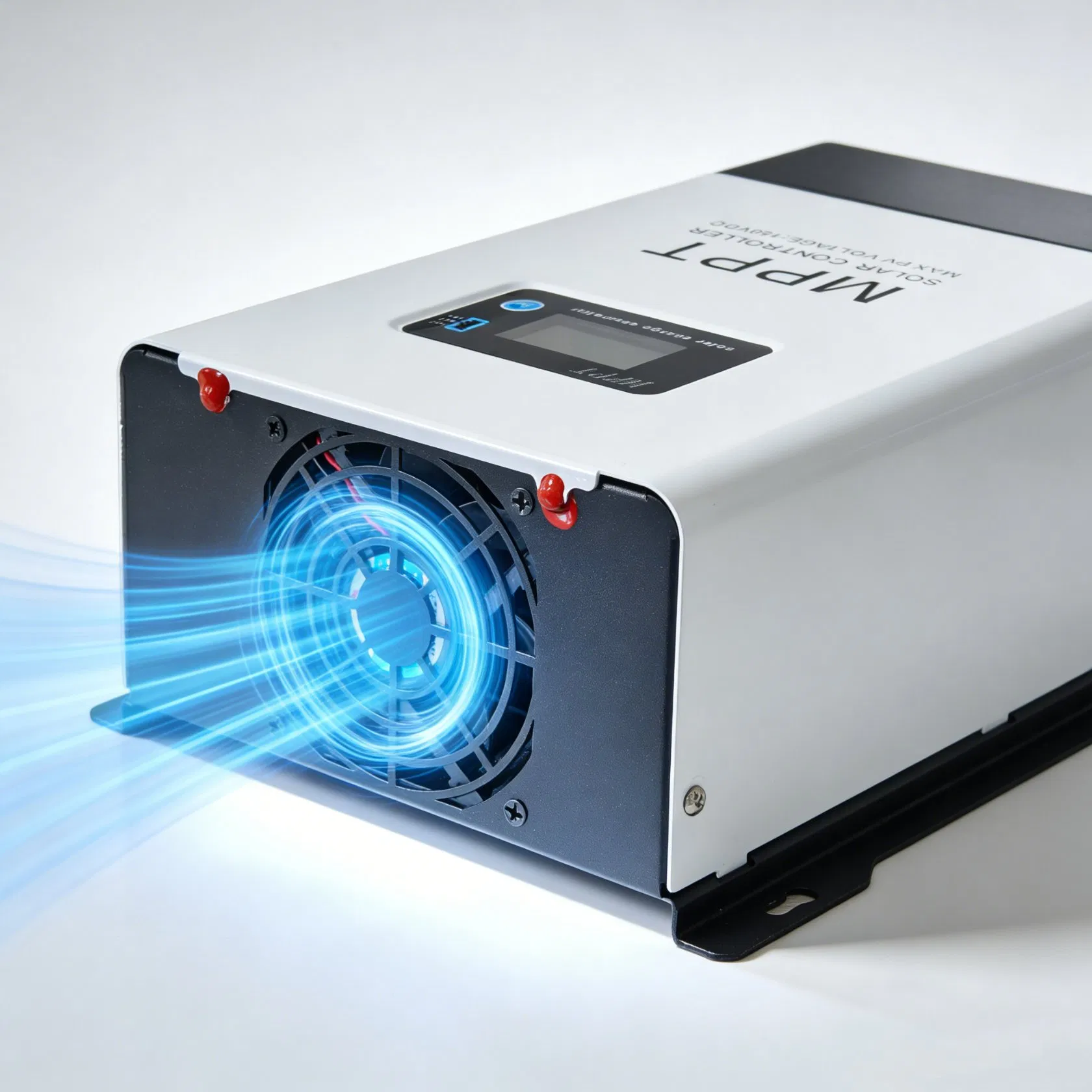

Fan System

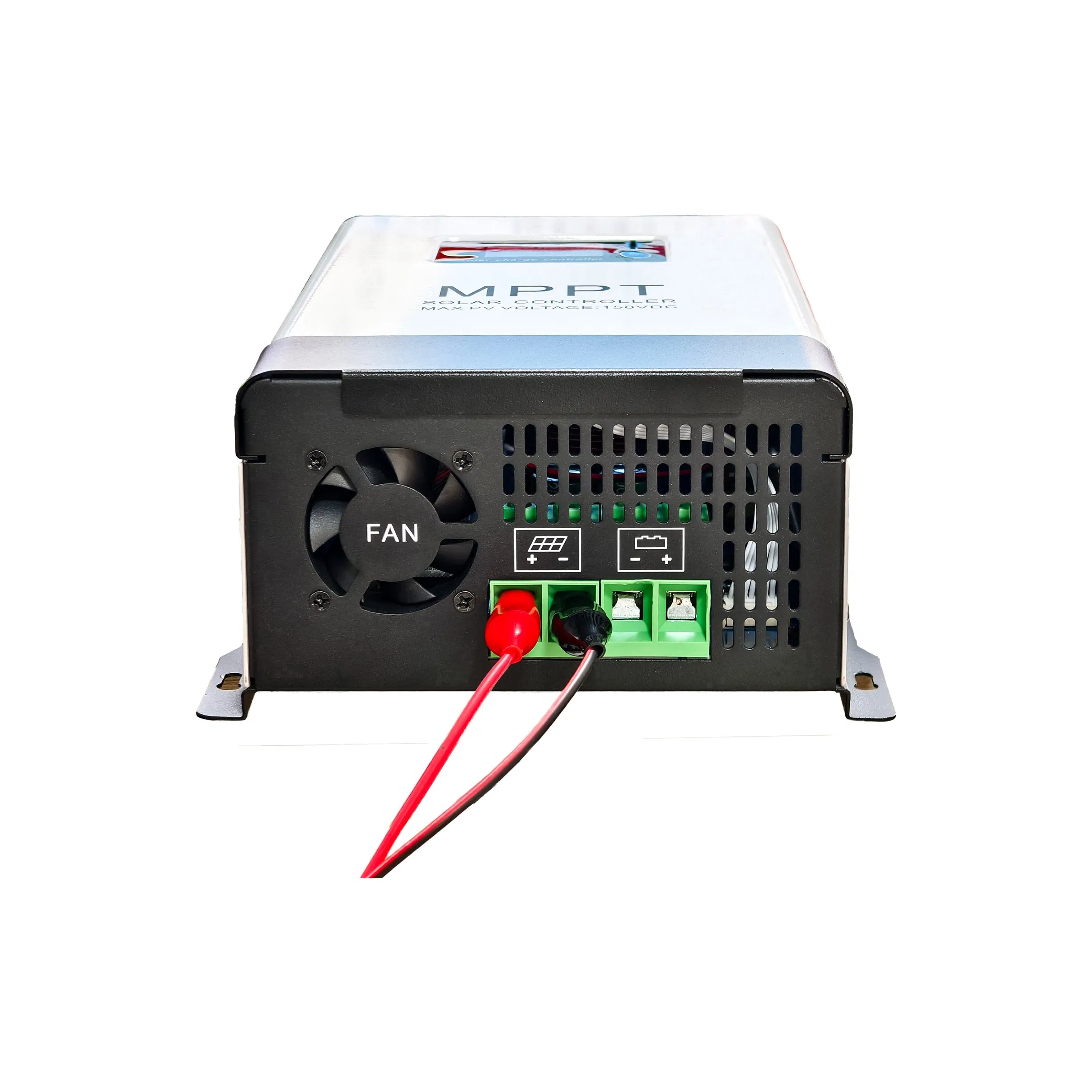

Wiring Design

Featuring HD LCD feedback buttons, an intelligent fan cooling system, and concealed installation wiring for a clean setup.

Application Scenarios
Solar Applications
✅ Solar Power Generation Systems
✅ Smart Home Energy Management
✅ Solar Monitoring & CCTV
✅ Solar Advertising Billboards
Packaging & Shipping
Package 1
Package 2
Frequently Asked Questions
Q: What is the tracking efficiency of this MPPT controller? A: The controller achieves a high-precision MPPT algorithm efficiency of up to 99%, ensuring maximum power extraction from your PV panels.
Q: What types of batteries are supported? A: It supports various battery types including Lead-acid (Sealed, AGM, Gel), Lithium-ion, and Lifepo4 batteries across 12V, 24V, and 48V systems.
Q: How should I install and maintain the unit? A: Install in a well-ventilated, cool, and dry location. Regularly check the vents for dust buildup and wipe the casing with a dry cloth. Ensure the inverter/controller is turned on before the appliances.
Q: Does it have built-in protection features? A: Yes, it includes comprehensive protection: Low voltage, Over voltage, Overload, Over temperature, Short circuit, and Reverse Polarity protection.
Q: Can it be used for inductive loads? A: Our pure sine wave systems are designed to handle both resistive loads (phones, TVs) and inductive loads (refrigerators, pumps, compressors) efficiently.
Q: What is your warranty policy? A: We provide a 24-month guarantee and life-long technical maintenance and support for all our controllers.
