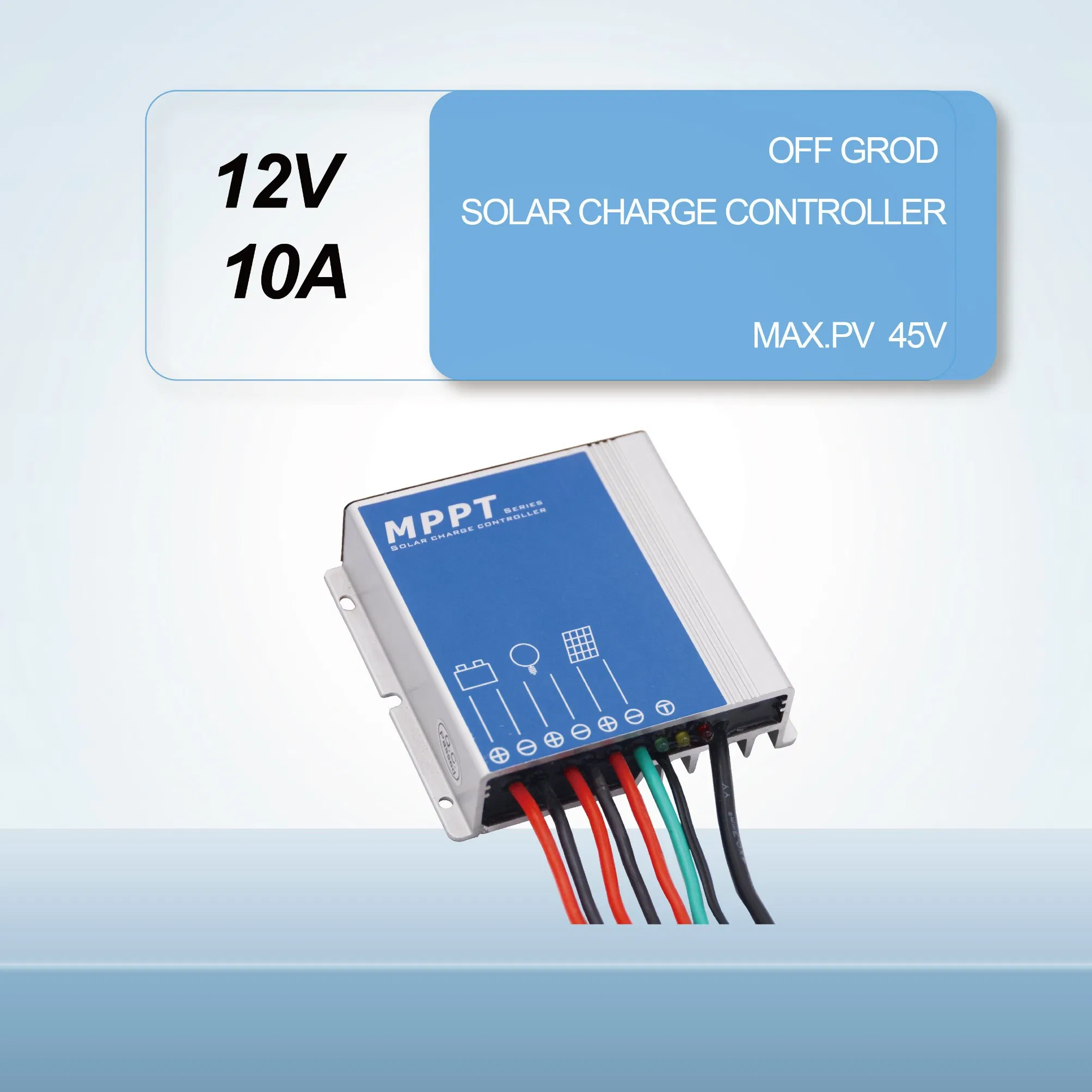

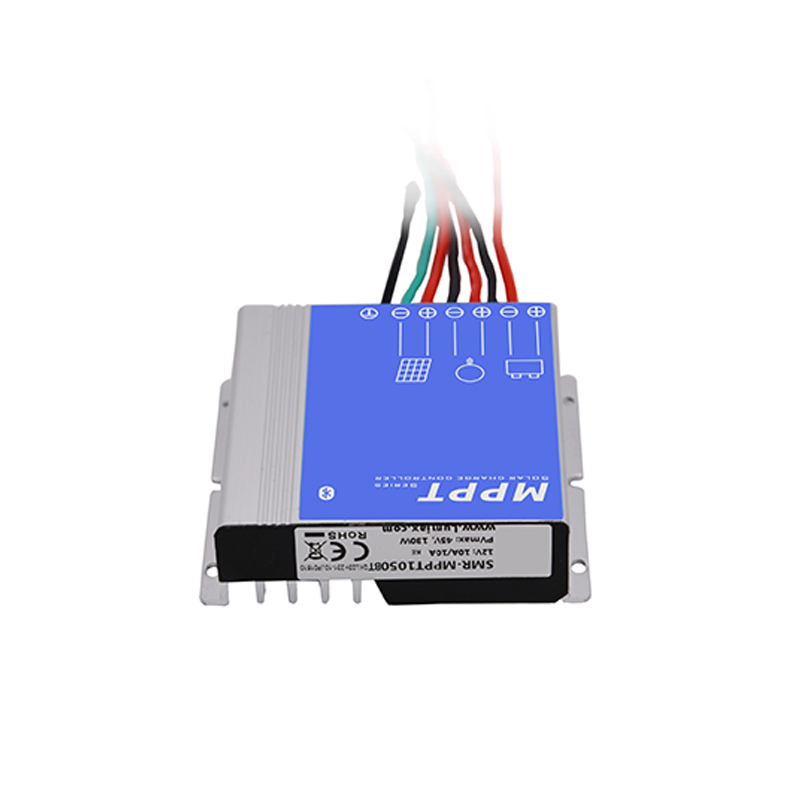

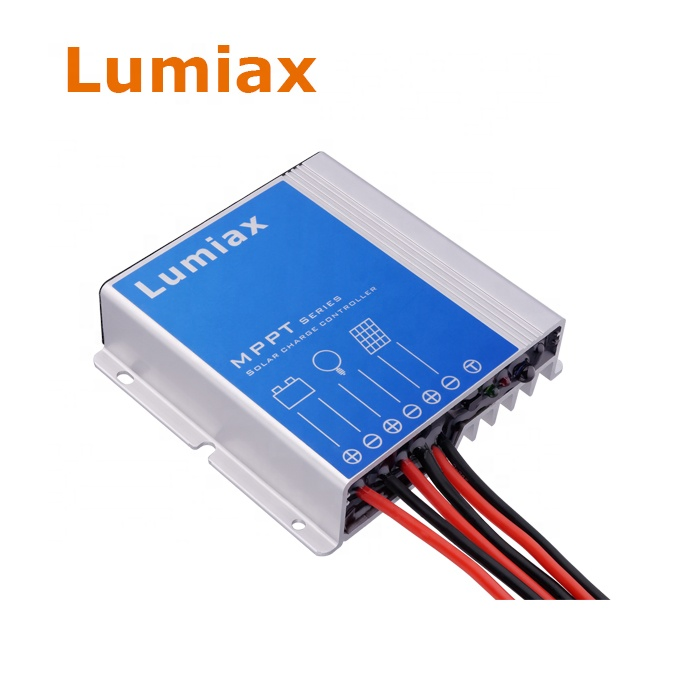

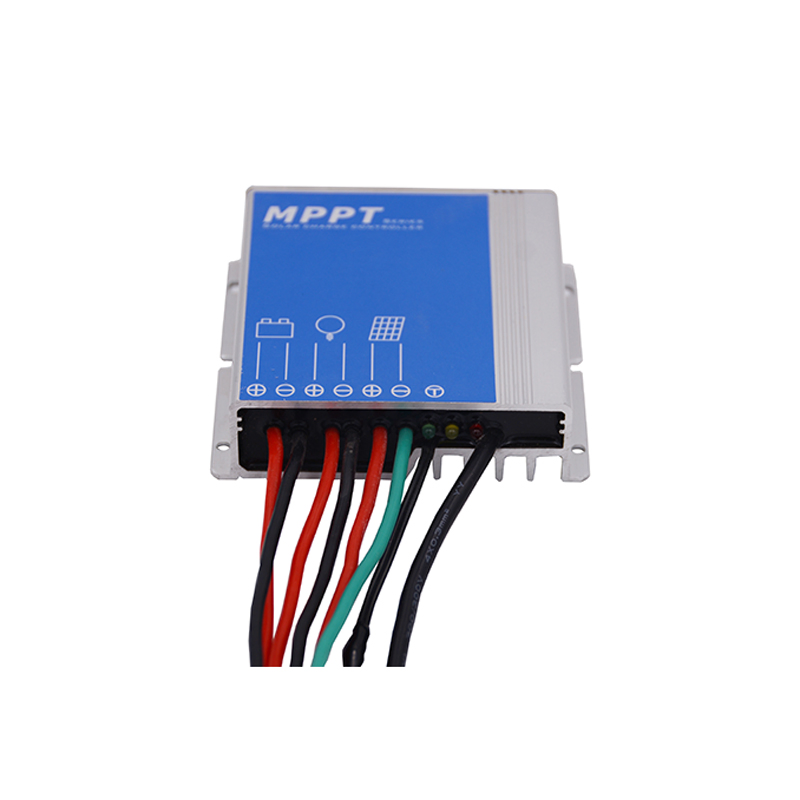

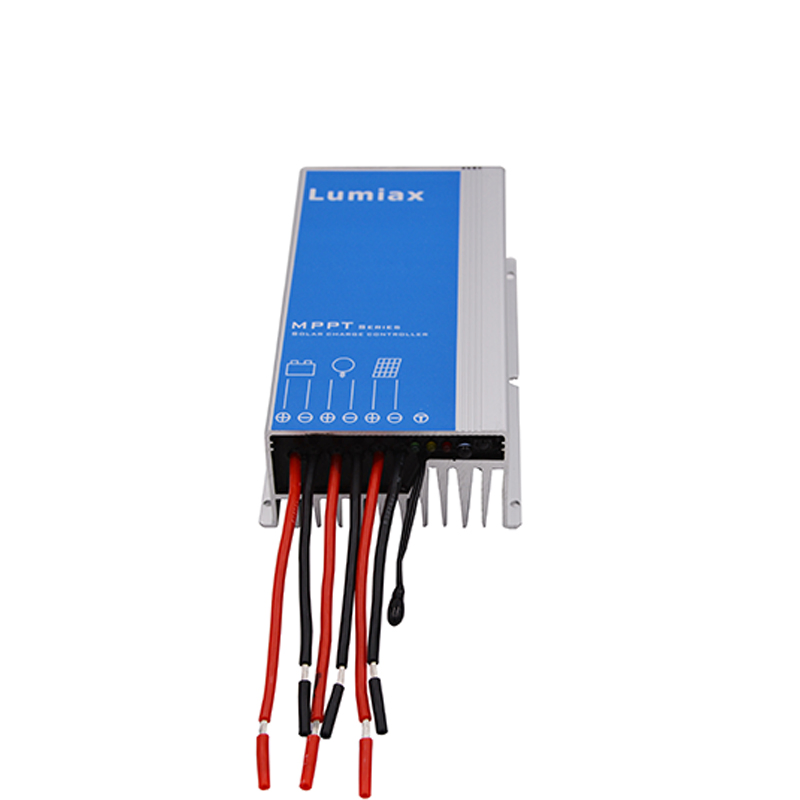

12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
1 / 5
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT

12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT

Customization: Available
After-sales Service: Installation and Debugging Guide
Warranty: 1
Send Inquiry

Product Description

i

Overview & Basic Info

Model NO.
SMR-MPPT Series
Condition
New
Certification
ISO, CE, RoHS, FCC
Application
Solar System, Charger, Lighting Controller
Rated Voltage
12V/24V
Max Tracking Efficiency
99.9%
Max Charge Conversion
96.5%/97.5%
Protection Degree
IP67
Battery Type
Lithium, Liquid, Gel, AGM
Charging Current
10A; 15A; 20A

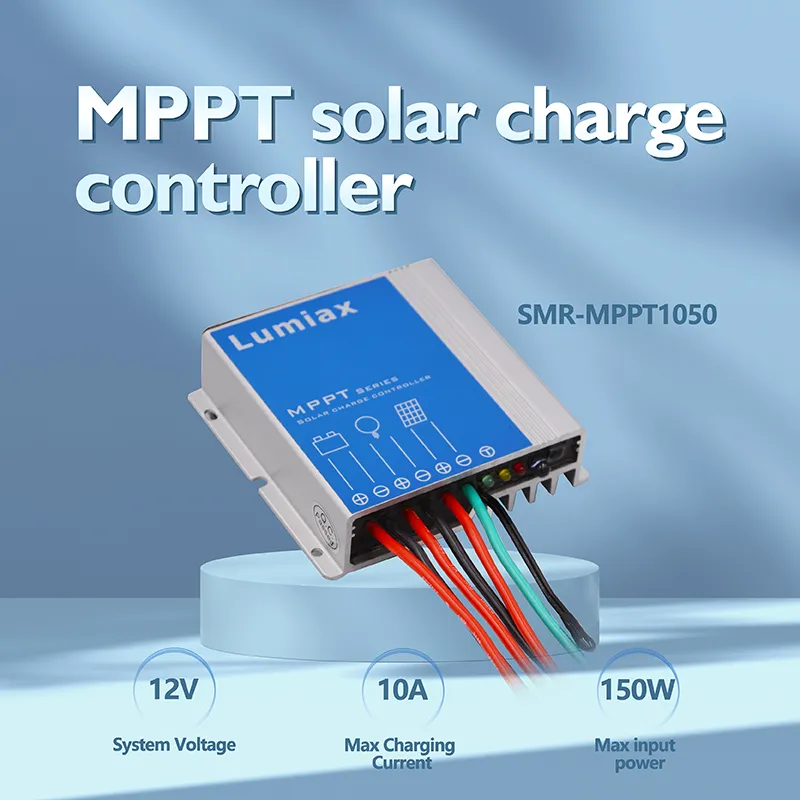

Solar Charge Controller

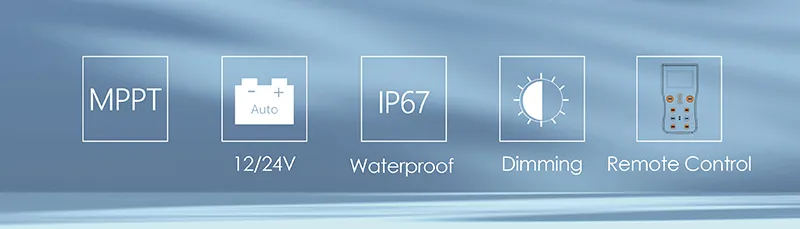

MPPT Controller Details
T

Product Parameters

Item SMR-MPPT1050/RS485 SMR-MPPT1575/RS485 SMR-MPPT2075/RS485
Max Charging Current 10A 15A 20A
System Voltage 12V 12V/24V Auto Recognition
Max Input Power 130W 200W/400W 260W/520W
Max Volt on Bat. Terminal 25V 35V
Max Tracking Efficiency >99.9%
Max Charge Conversion 96.5% 97.5%
IP Rating IP67

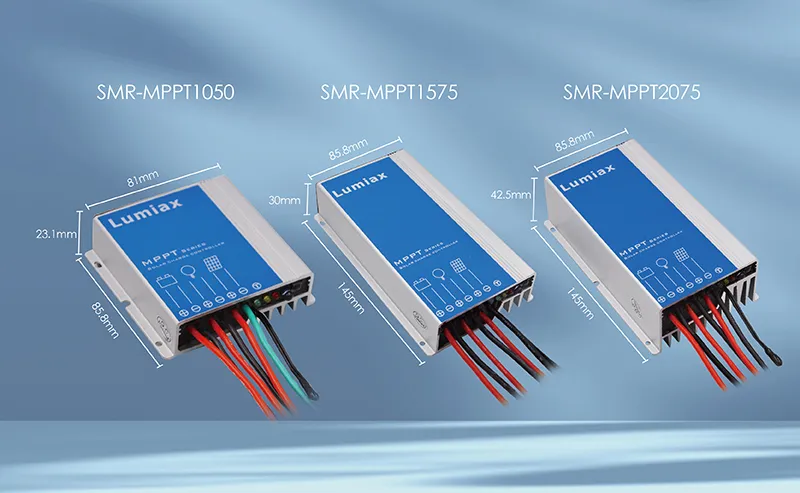

Dimensions 85.8*81*23.1mm 85.5*145*30mm 85.5*145*42.5mm

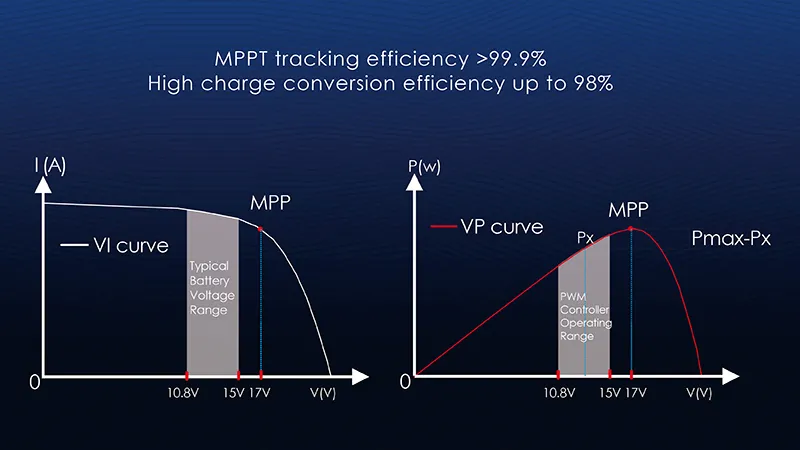

Technical Specifications
D

Product Description

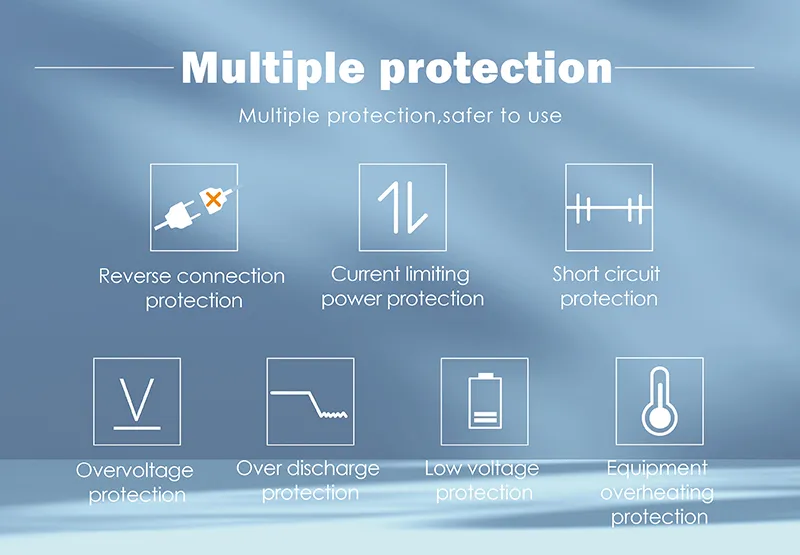

Feature 1
Feature 2

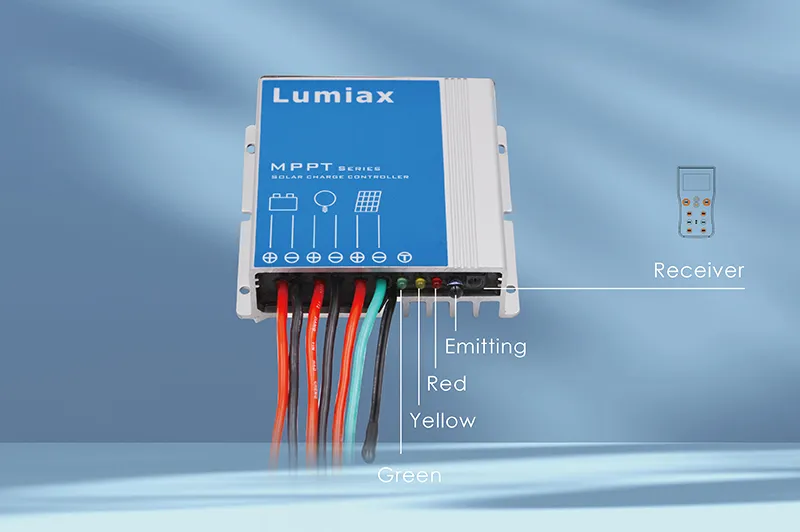

Feature 3

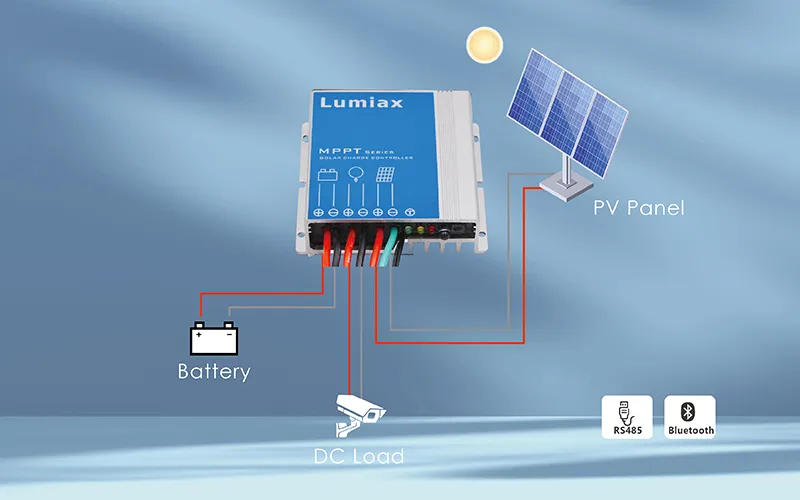

Application 1

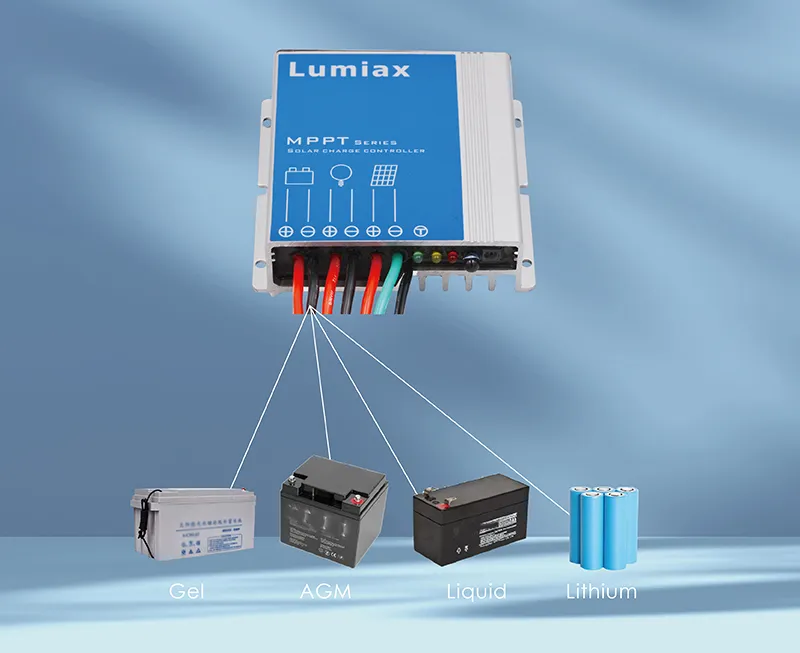

Application 2
A

Our Advantages & Certifications

Advantage Graphic
Technology
Certificates
C

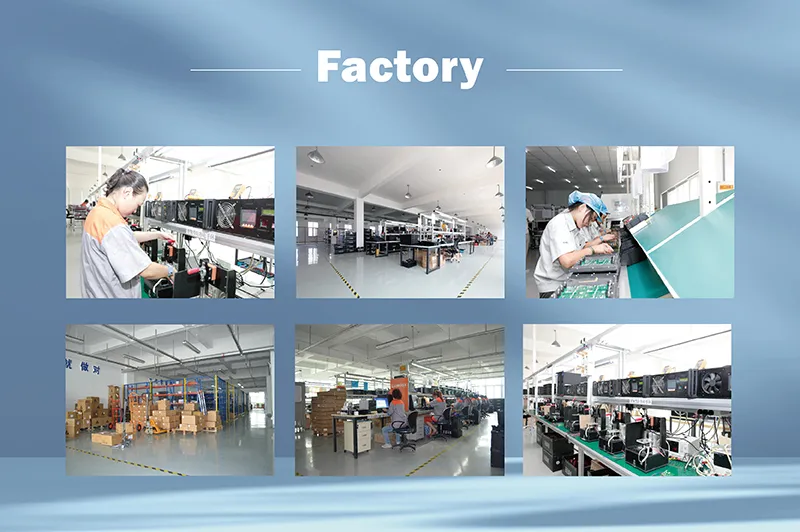

Production Facility

Production Line
Testing Facility
Warehouse
Quality Control 1
Quality Control 2
?

Frequently Asked Questions

What types of batteries does this MPPT controller support?
The SMR-MPPT series is compatible with Lithium (LiFePO4), Liquid, Gel, and AGM batteries. It features programmable settings with a default optimized for Gel batteries.
Is the solar charge controller waterproof?
Yes, it has a protection degree of IP67, making it highly resistant to dust and water ingress, suitable for harsh outdoor environments.
How efficient is the MPPT tracking?
The series boasts a maximum tracking efficiency of over 99.9% and a peak charge conversion efficiency of up to 97.5%.
Does it support both 12V and 24V systems?
Yes, the 15A and 20A models feature automatic recognition for both 12V and 24V systems, while the 10A model is dedicated to 12V systems.
What are the communication options available?
The controllers support Infrared, RS485, and Bluetooth (BT) communication protocols for monitoring and programming.
What is the operating temperature range?
The controller is designed to operate reliably in ambient temperatures ranging from -35ºC to +60ºC.
