12/24/48VDC 30-60A Solar Charge Controller PWM Controller for Solar Power System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Condition

New

Certification

ISO, CB, CE

Rated Voltage

12/24/48V

Capacity

50000PCS/Year

HS Code

9032899090

Application

Solar System, Water Heater, Lighting, Wind Controller, Voltage & Thermal Controller

PWM Solar Charge Controller

LCD HT Series

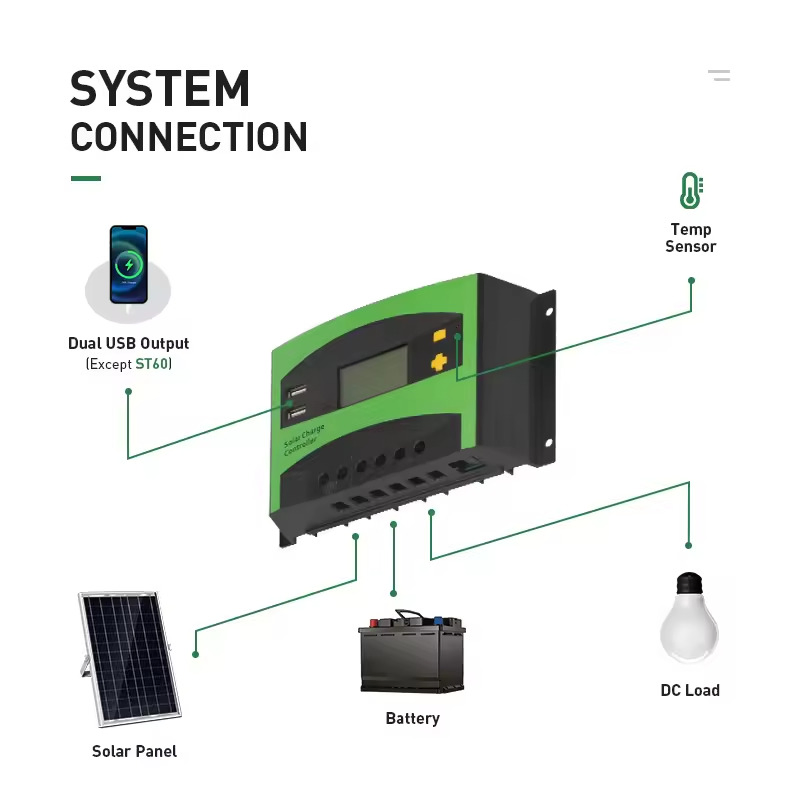

Key Features

LCD PWM Solar Charge Controller HT series 12/24/48V, 30/40/50/60A
12/24V automatic recognition or 48VDC
Dual 1A USB Charger ports
Adjustable charging and discharging parameters
Time and Light Control function for street lights
Preset parameters for three battery types
Temperature compensation function

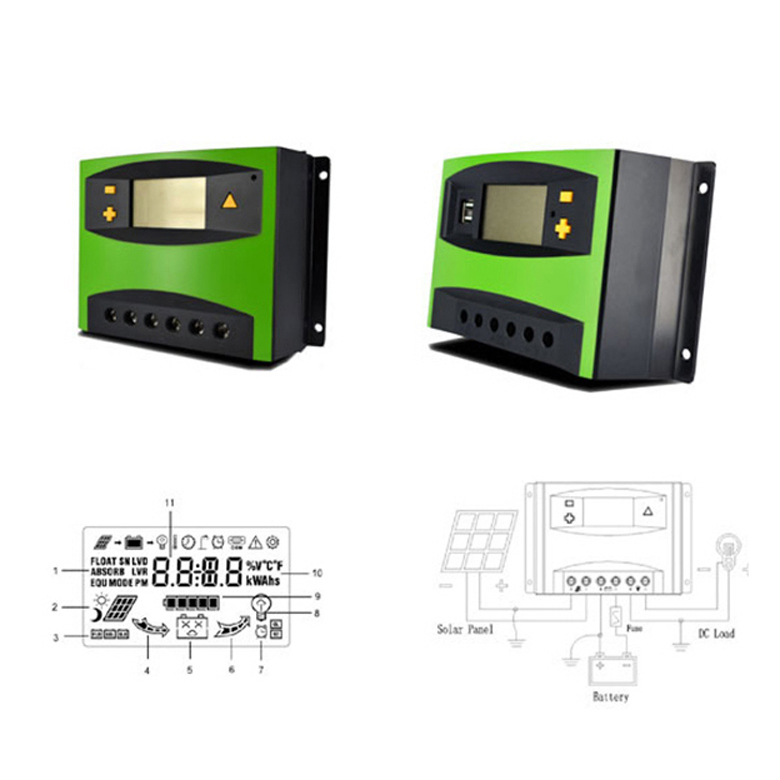

LCD display for energy capacity, fault codes, battery, PV, and Load details

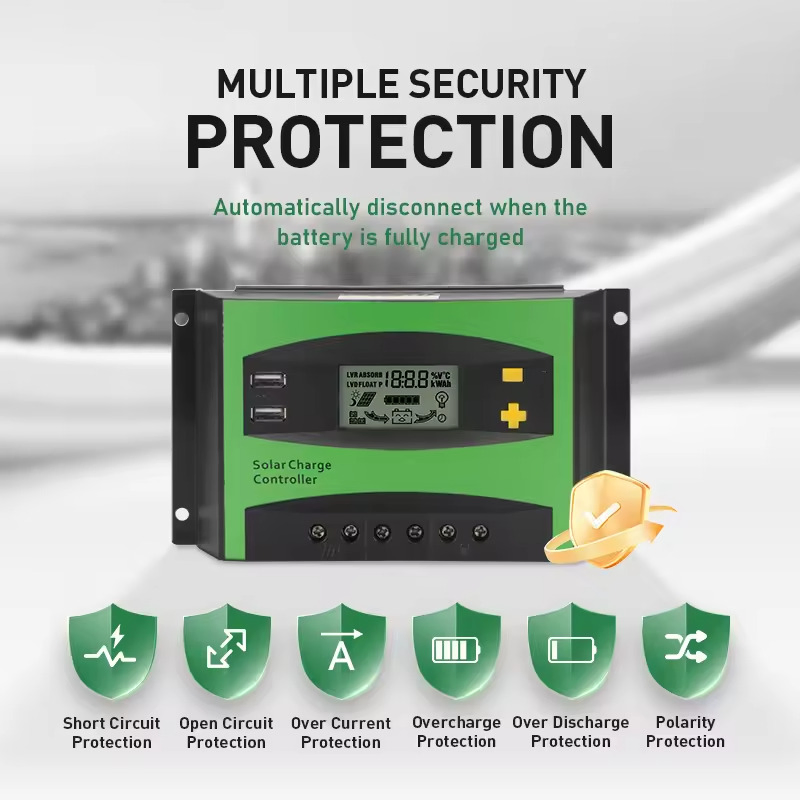

Comprehensive protection: Over current, reverse polarity, over charge/discharge, and over temperature
Optional RJ45 computer communication

Technical Specifications

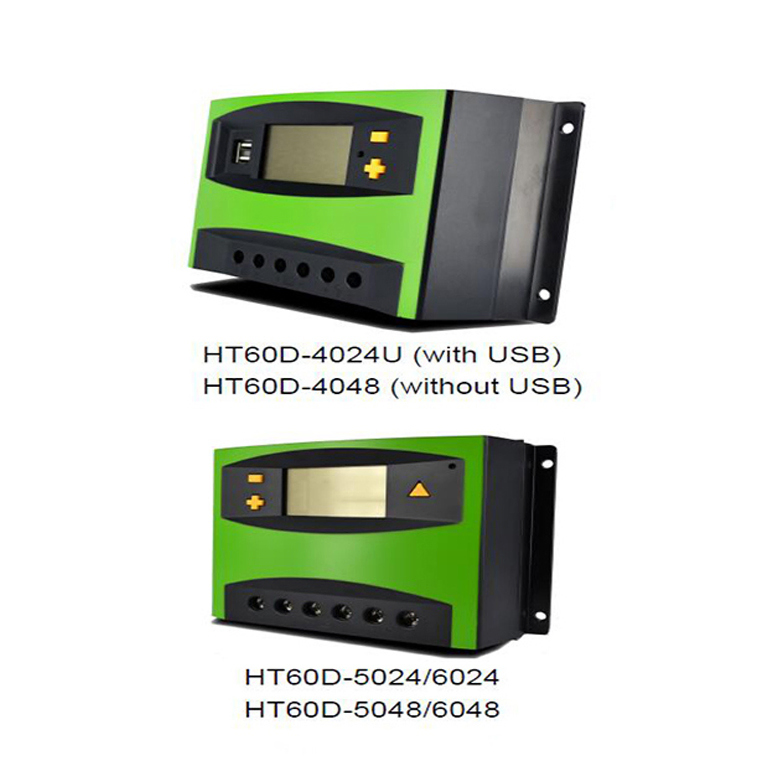

ITEM / MODEL	HT4830DU	HT4840DU	HT4850DU	HT4860DU	HT2450DU	HT2460DU
Rated charge current	30A	40A	50A	60A	50A	60A
System voltage	12/24/48V AUTO				12/24V AUTO
Static current	≤ 10mA
USB Charge	2 * 5V 1.0A
Protection Class	IP32
Case Material	ABS
Operating Temp	-20 ~ +55 °C

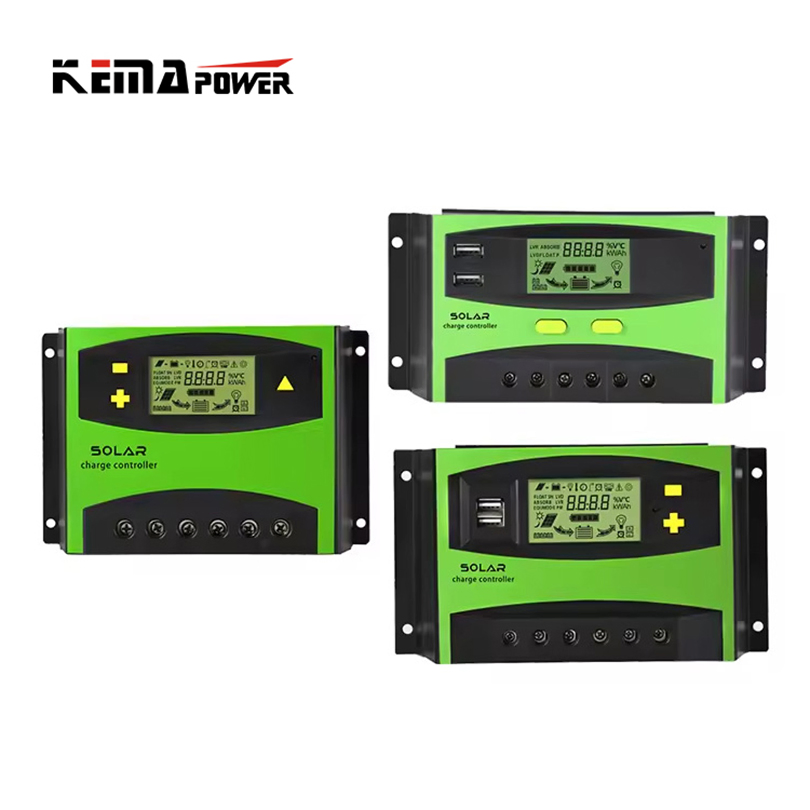

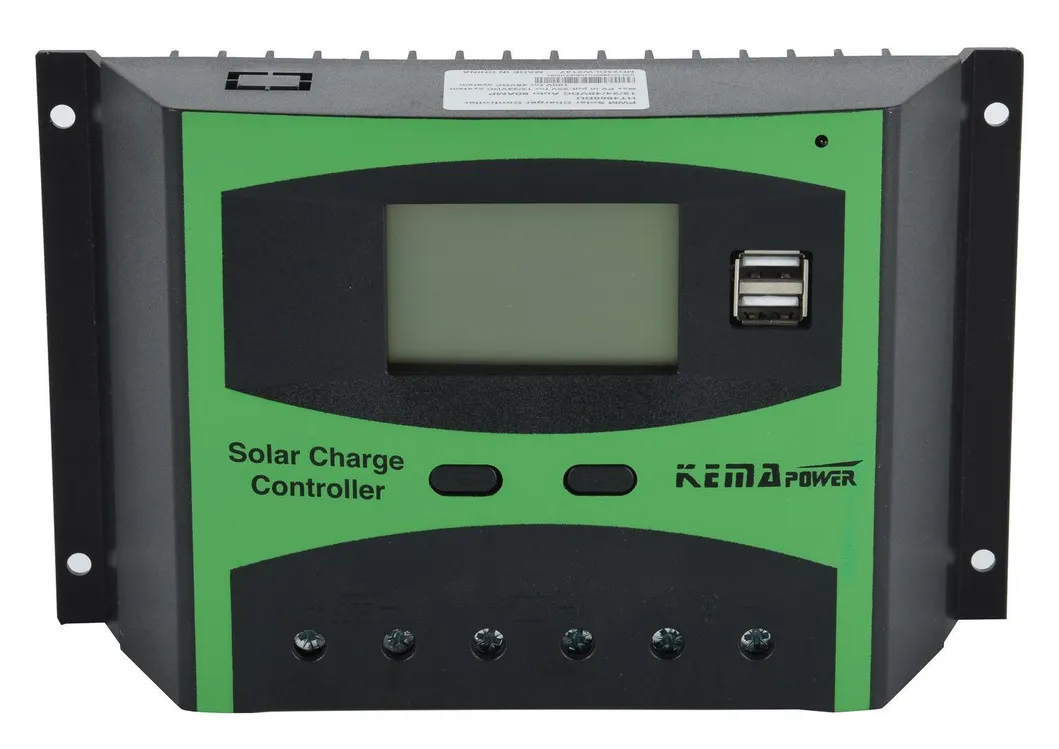

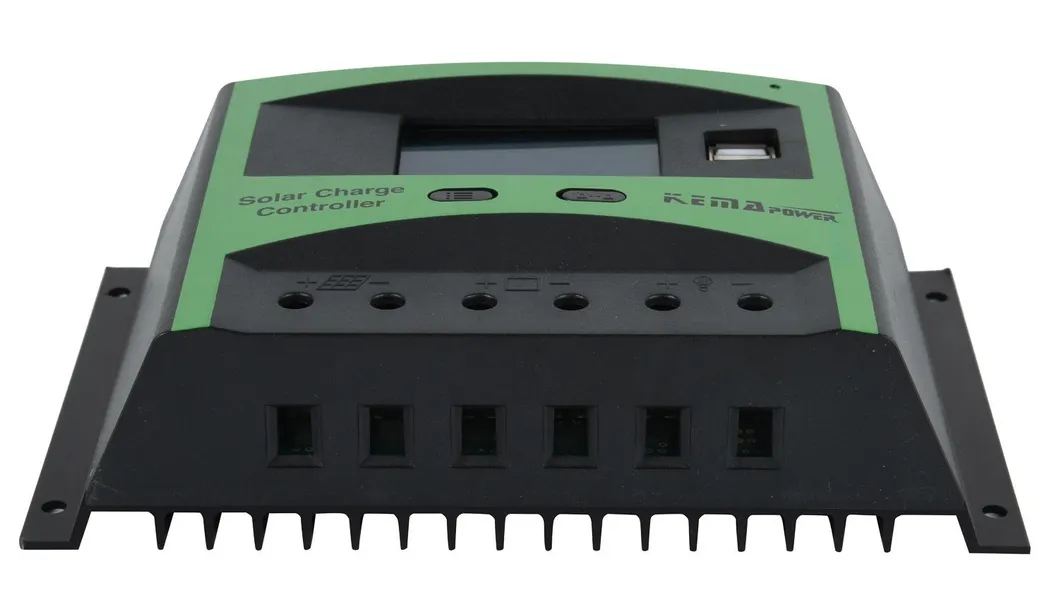

Product Display

Frequently Asked Questions

Q1: What is the maximum voltage and current supported by the HT series? The HT series supports 12V, 24V, and 48V systems with current ratings ranging from 30A up to 60A.

Q2: Does the controller feature USB charging ports? Yes, it includes two USB charger ports with a 5V 1.0A output for charging mobile devices.

Q3: What types of batteries can be used with this PWM controller? The controller is compatible with Sealed, GEL, Flood, and User-defined (Usr) battery types.

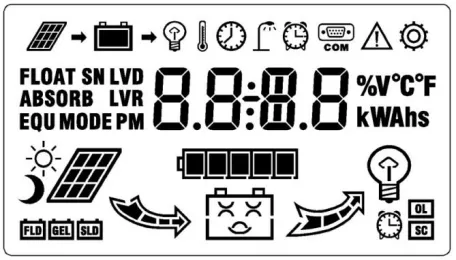

Q4: What information does the LCD screen display? The LCD shows battery type, voltage, PV output, charging/discharging current, accumulated AH, internal temperature, and fault codes.

Q5: Can this controller be used for solar street lights? Yes, it features selectable Light Control and Time Control modes specifically designed for street lighting applications.

Q6: What safety protections are built into the device? It includes protection for overload, short circuits, high/low voltage disconnection, reverse polarity for both panel and battery, and over-temperature cooling.
