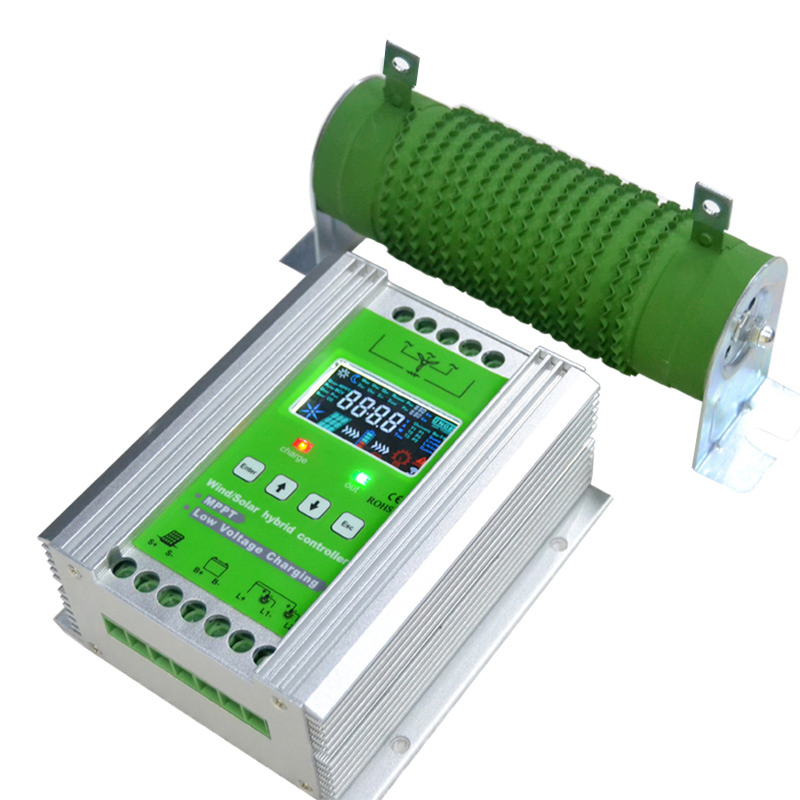

24V 600W MPPT PWM Overload Protection Hybrid Charge Controller for Wind Solar Hybrid Generator System
24V 600W MPPT PWM Overload Protection Hybrid Charge Controller for Wind Solar Hybrid Generator System
24V 600W MPPT PWM Overload Protection Hybrid Charge Controller for Wind Solar Hybrid Generator System
24V 600W MPPT PWM Overload Protection Hybrid Charge Controller for Wind Solar Hybrid Generator System
24V 600W MPPT PWM Overload Protection Hybrid Charge Controller for Wind Solar Hybrid Generator System
1 / 5
24V 600W MPPT PWM Overload Protection Hybrid Charge Controller for Wind Solar Hybrid Generator System
24V 600W MPPT PWM Overload Protection Hybrid Charge Controller for Wind Solar Hybrid Generator System
24V 600W MPPT PWM Overload Protection Hybrid Charge Controller for Wind Solar Hybrid Generator System
24V 600W MPPT PWM Overload Protection Hybrid Charge Controller for Wind Solar Hybrid Generator System
24V 600W MPPT PWM Overload Protection Hybrid Charge Controller for Wind Solar Hybrid Generator System

24V 600W MPPT PWM Overload Protection Hybrid Charge Controller for Wind Solar Hybrid Generator System

Customization: Available
After-sales Service: Yes
Warranty: 1 Year
Send Inquiry

Product Description

📊 Basic Information
Model NO.
JN-24-W600/S600
Condition
New
Certification
ISO, CB, CE
Application
Solar/Wind Controller
Rated Voltage
24V
Charge Mode
MPPT Tracking
Max Charging Current
30A
MPPT Efficiency
>98%
Function
Rectifier, Control, DC Output
Weight
2.4kg
📦 Packaging & Delivery
Package Size
36.00cm * 29.00cm * 11.00cm
Gross Weight
2.600kg
🔍 Product Description
24V 600W MPPT PWM Overload Protection Hybrid Charge Controller

Designed for Wind Solar Hybrid Generator Systems, ensuring maximum efficiency and safety.

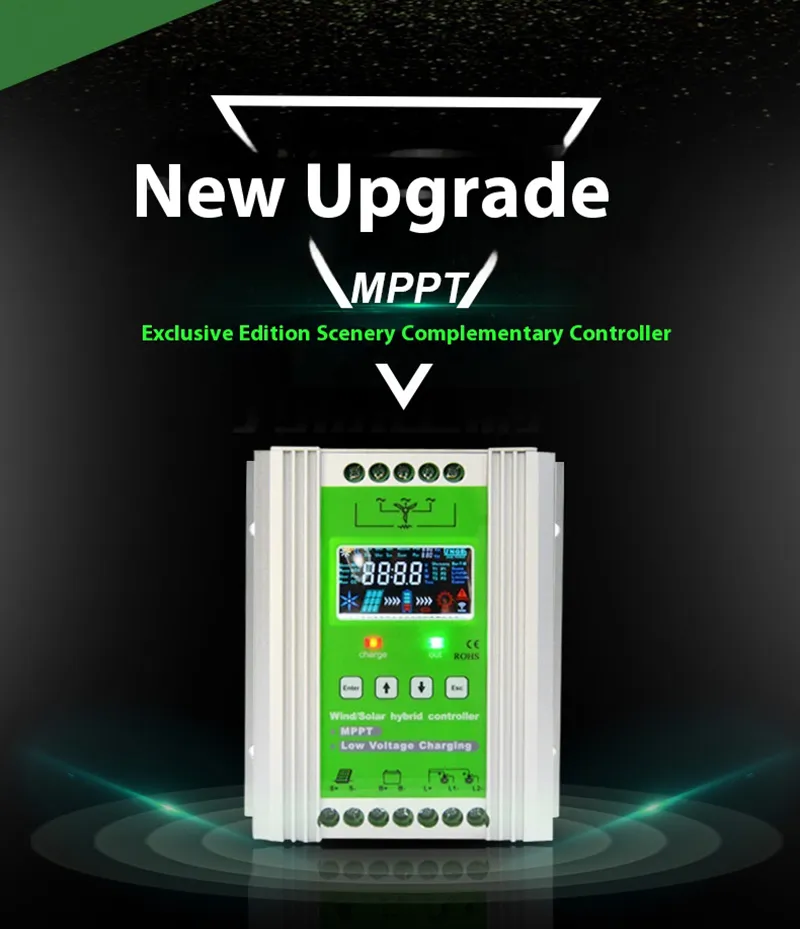

Controller View 1

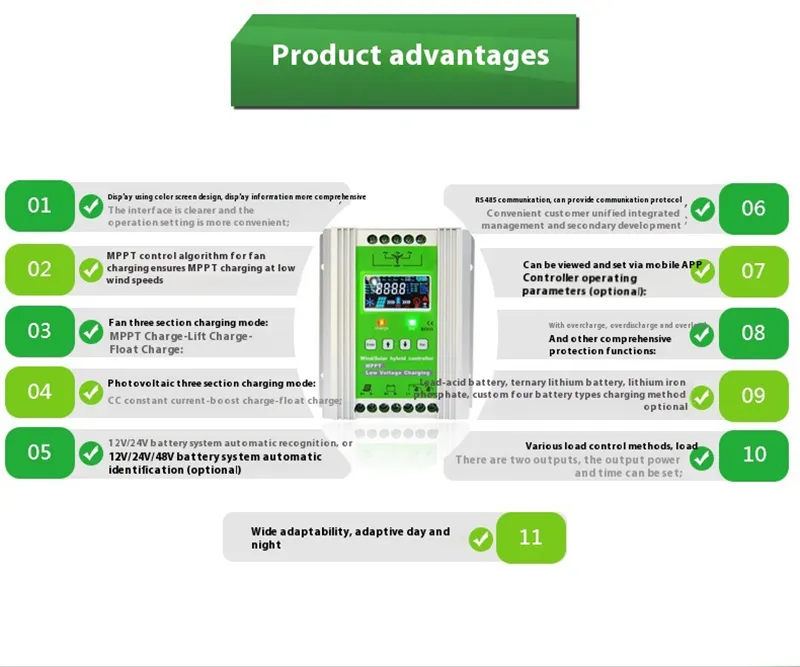

Controller View 2

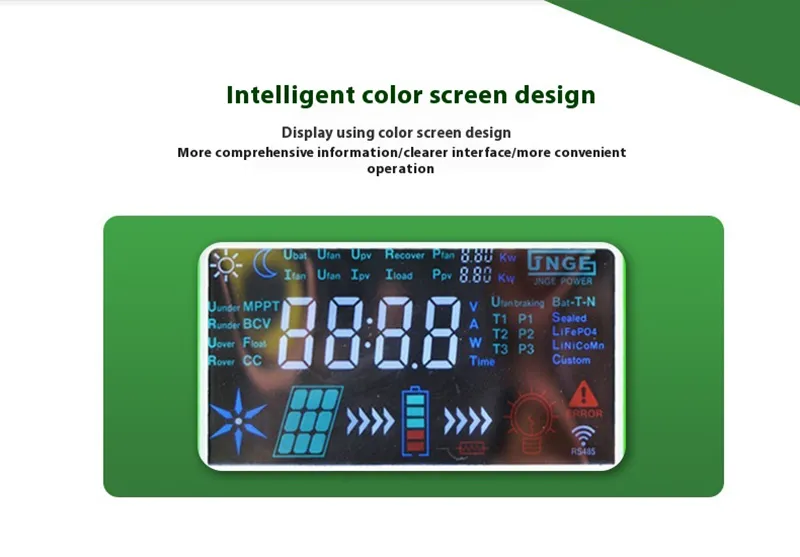

Controller View 3

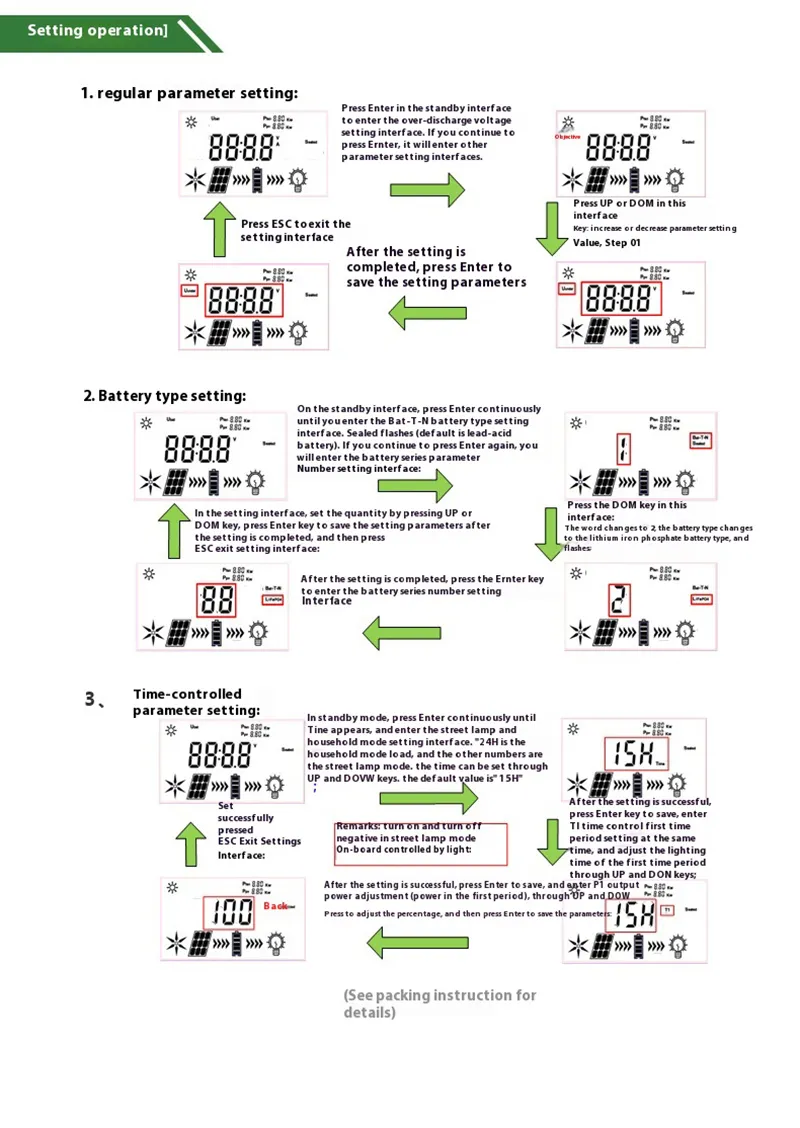

Technical Specs

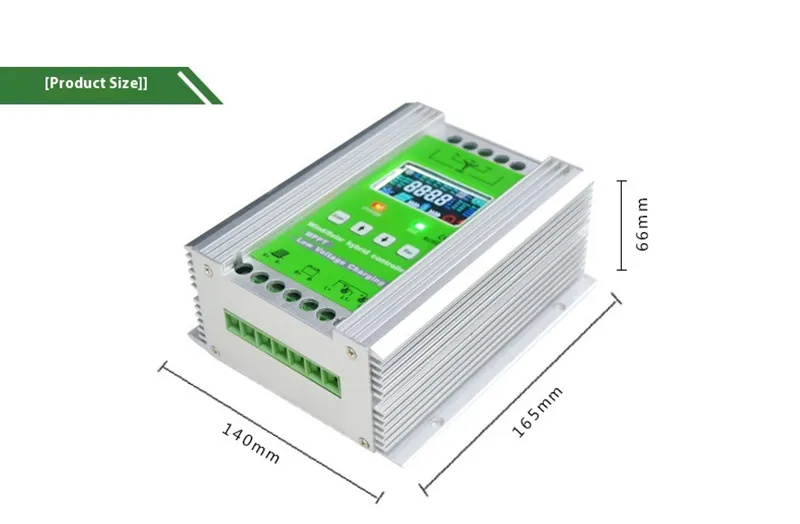

Internal Structure

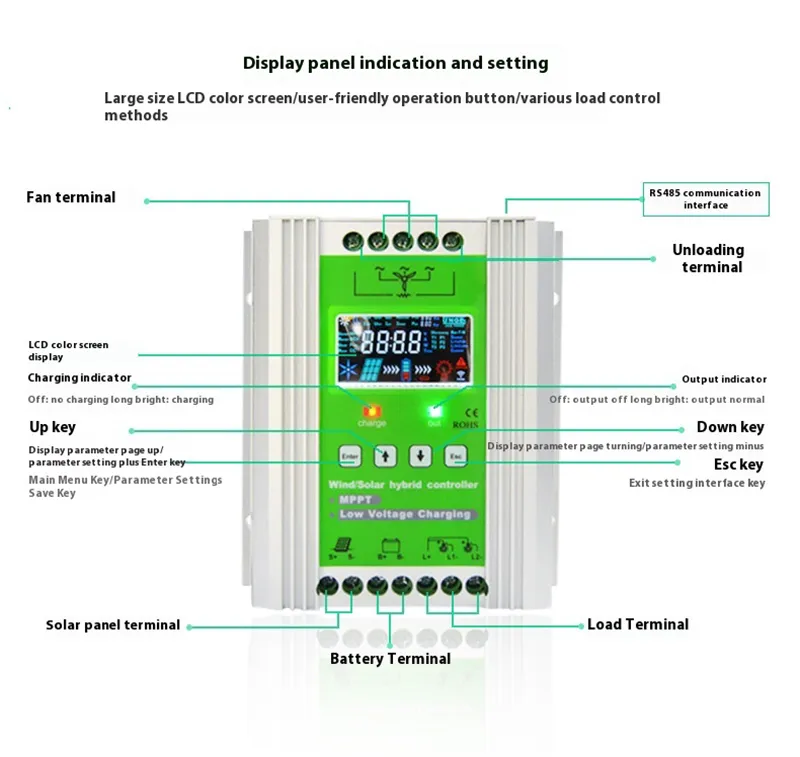

Features 1

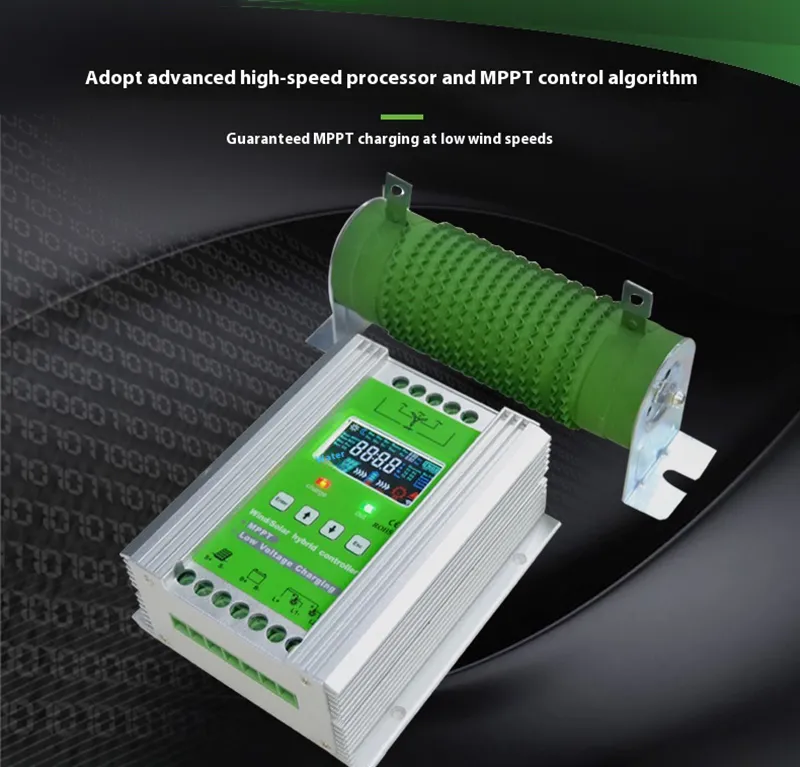

Features 2
⚙️ Product Parameters
System Parameters
Parameter Name Product Model (JN Series)
12V-300W 12V-500W 24V-600W 24V-800W 48V-800W 48V-1000W 48V-1200W 48V-1500W
System Voltage (V) 12 24 48
PV Max Voltage (V) 27.6 55.2 105
PV Rated Current (A) 25 40 25 33 17 21 21 21
Fan Rated Voltage (V) 12 24 48
Wind Turbine Power (W) ≤300 ≤500 ≤600 ≤800 ≤800 ≤1000 ≤1200 ≤1500
Conversion Efficiency >98%
Protection Level IP30
System Remarks:
- 12V System: Fan Max 500W / PV Max 500W
- 24V System: Fan Max 800W / PV Max 800W
- 48V System: Fan Max 1500W / PV Max 1000W
📷 Detailed Photos

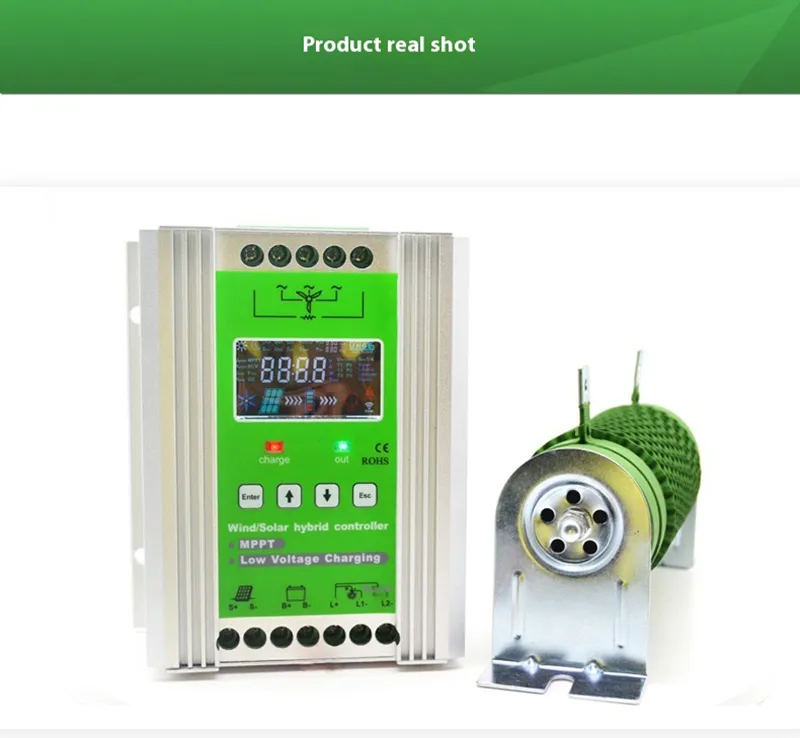

Detail 1

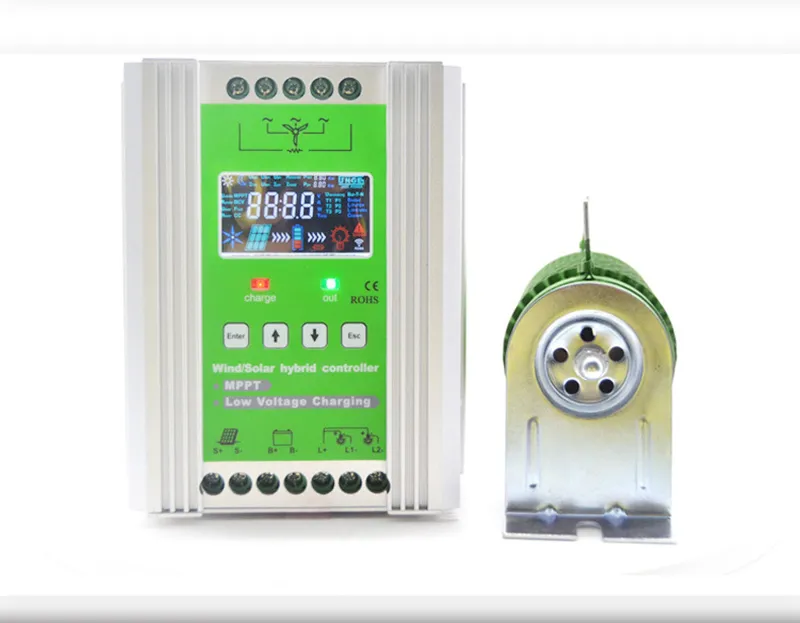

Detail 2

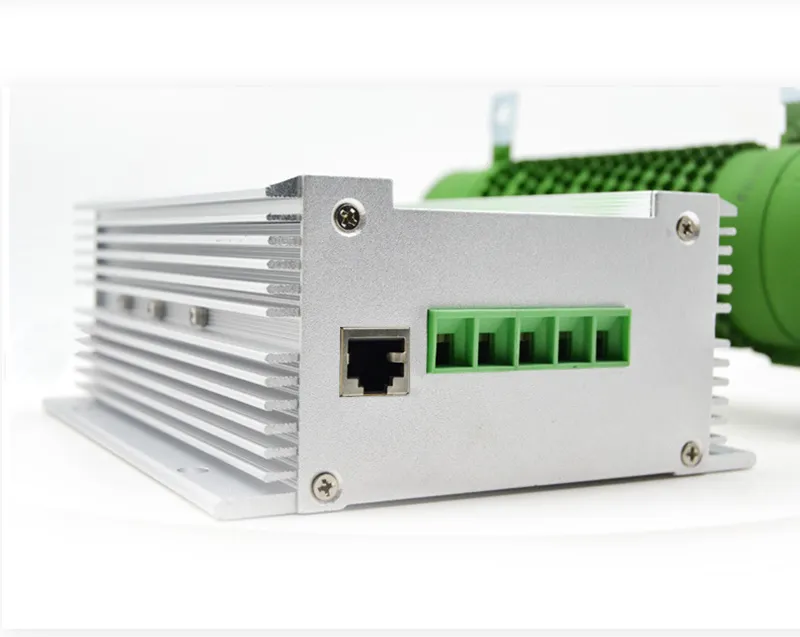

Detail 3

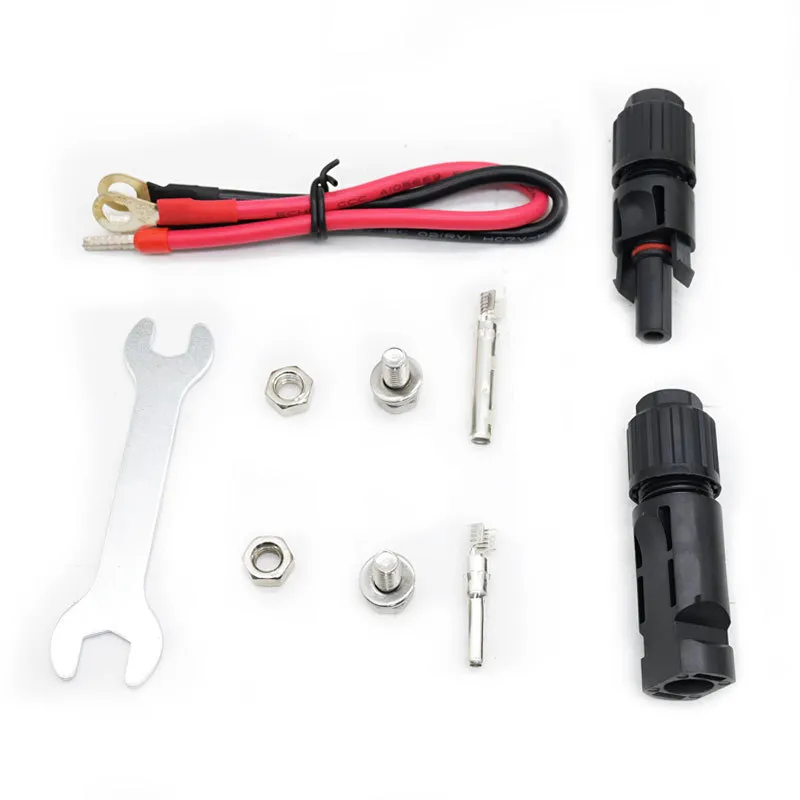

Detail 4

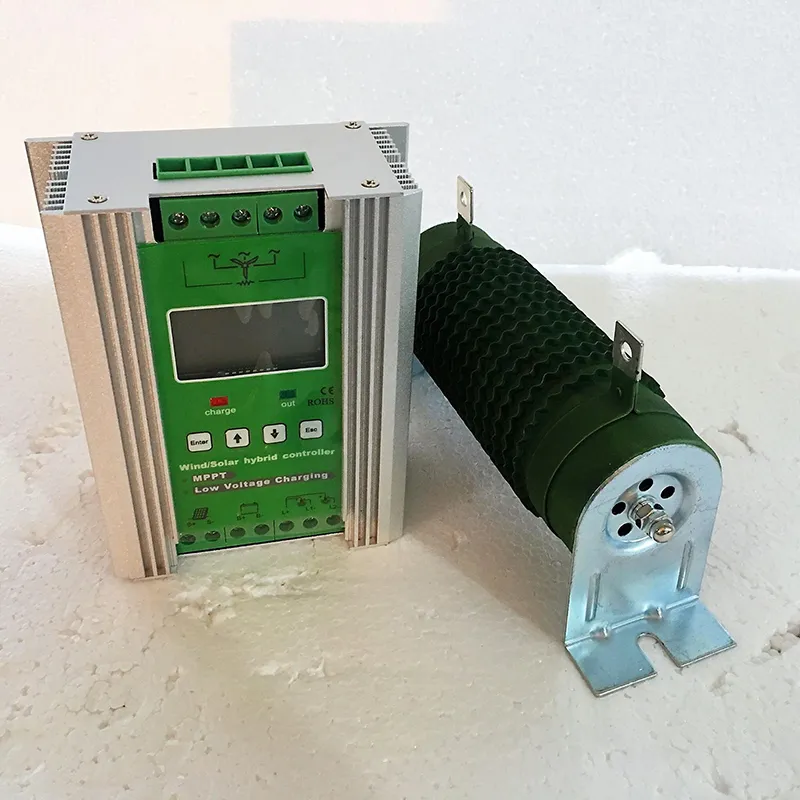

Detail 5

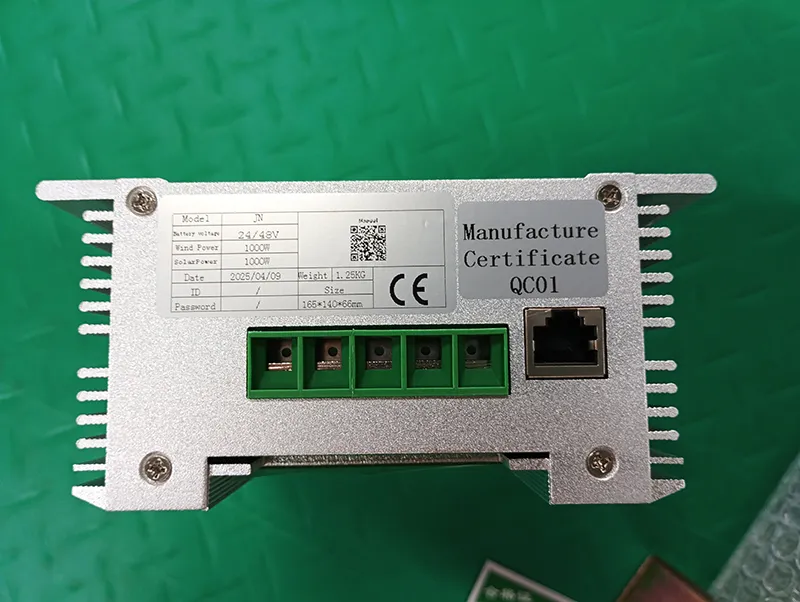

Detail 6

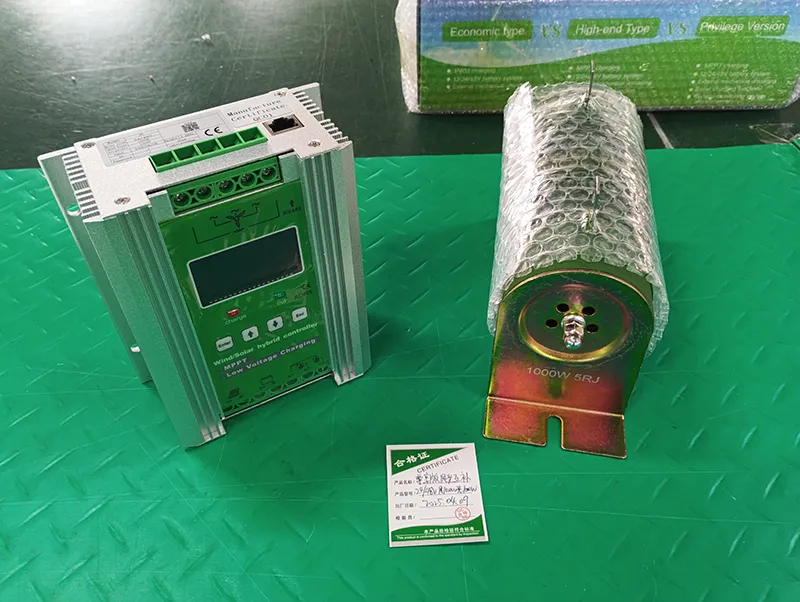

Detail 7
🌍 Application Areas
App 1

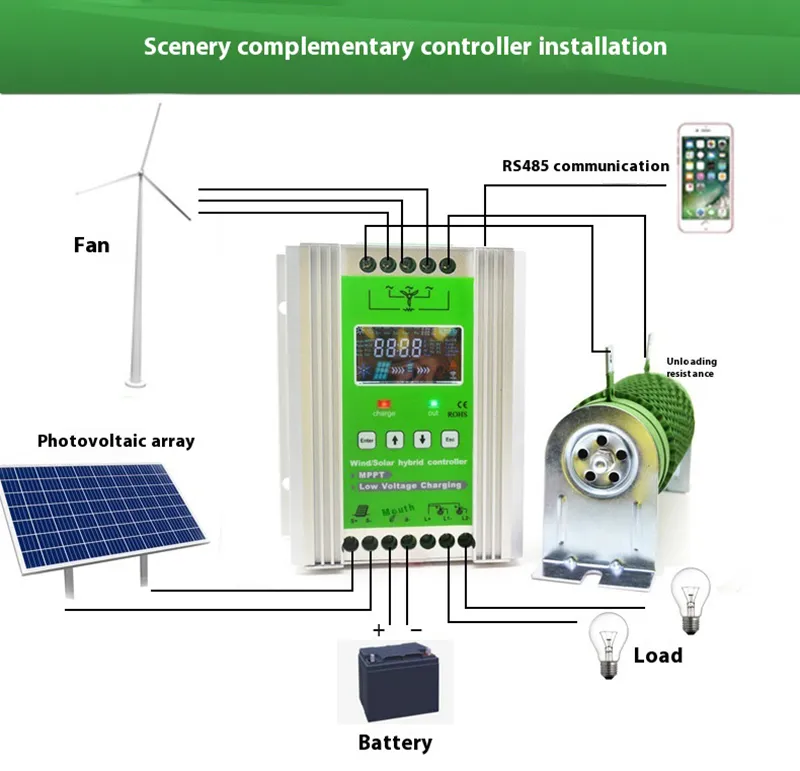

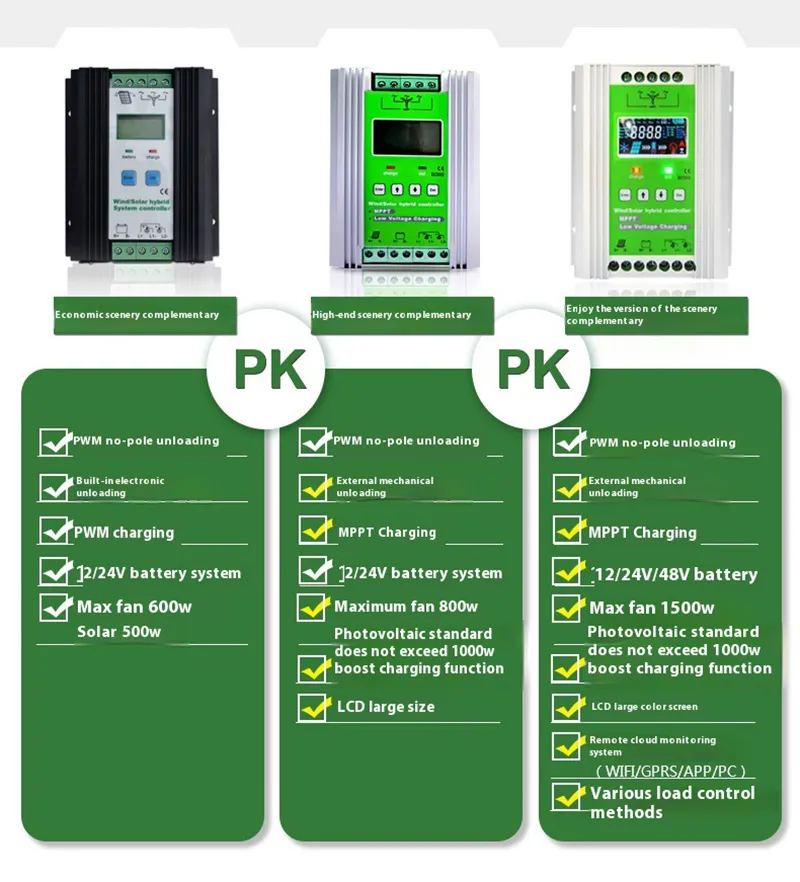

App 2
App 3

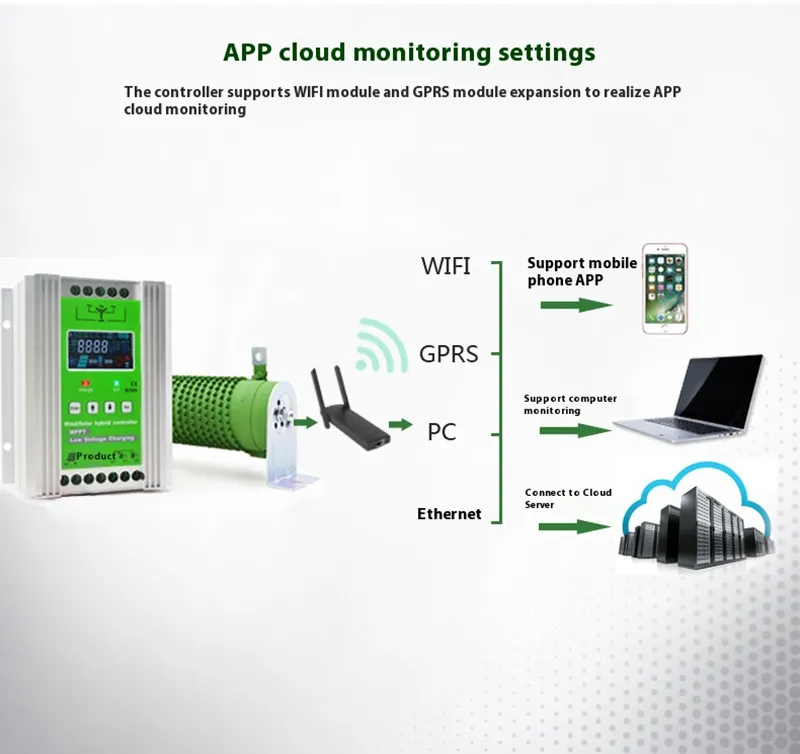

App 4

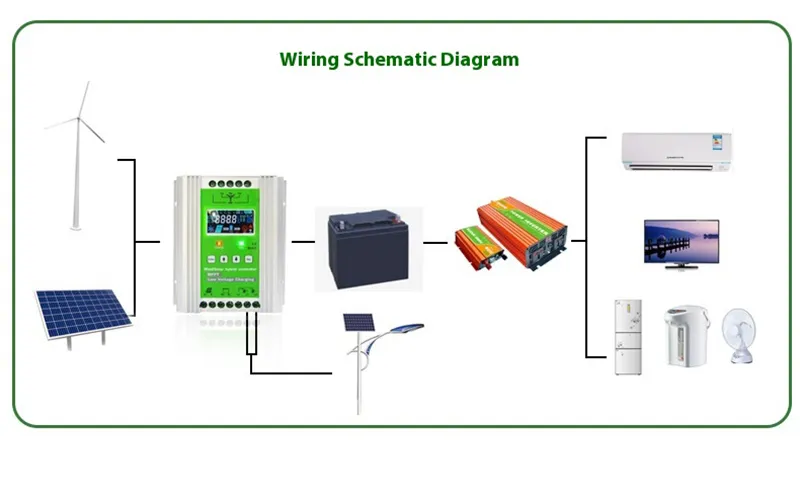

App 5
🏭 Production & Quality Control

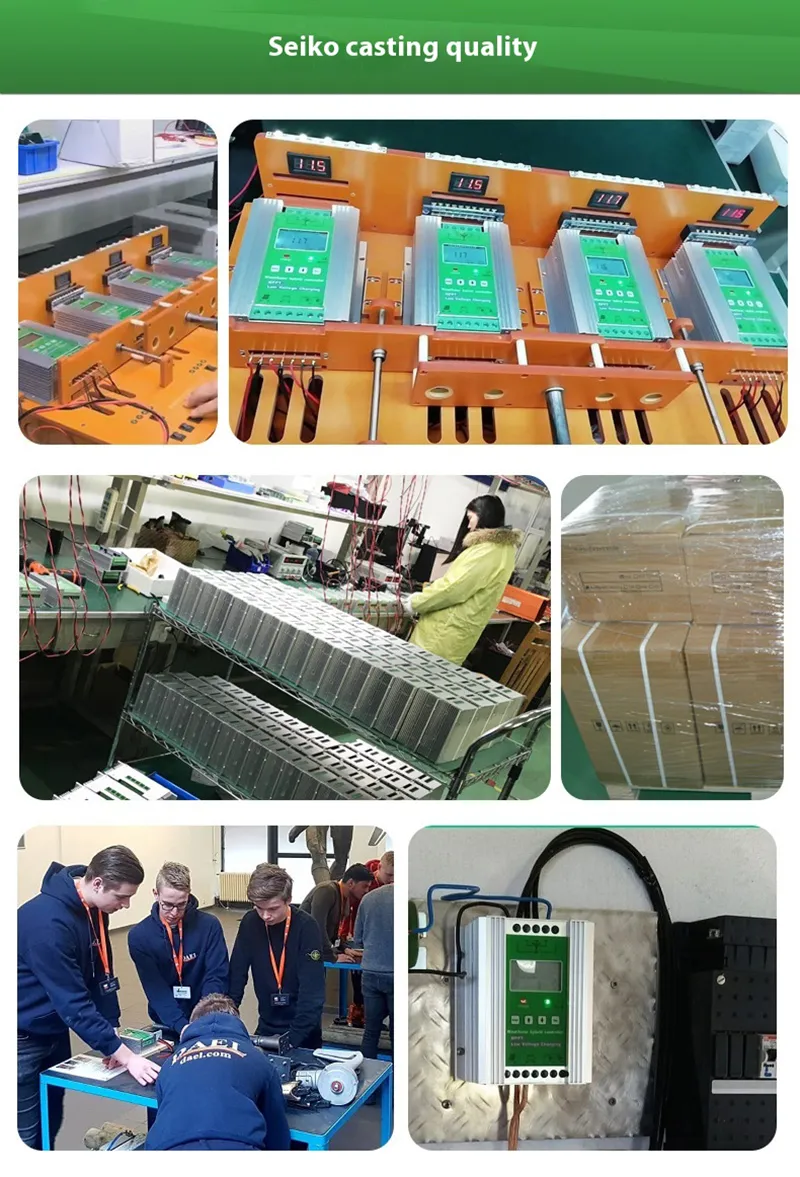

Factory 1

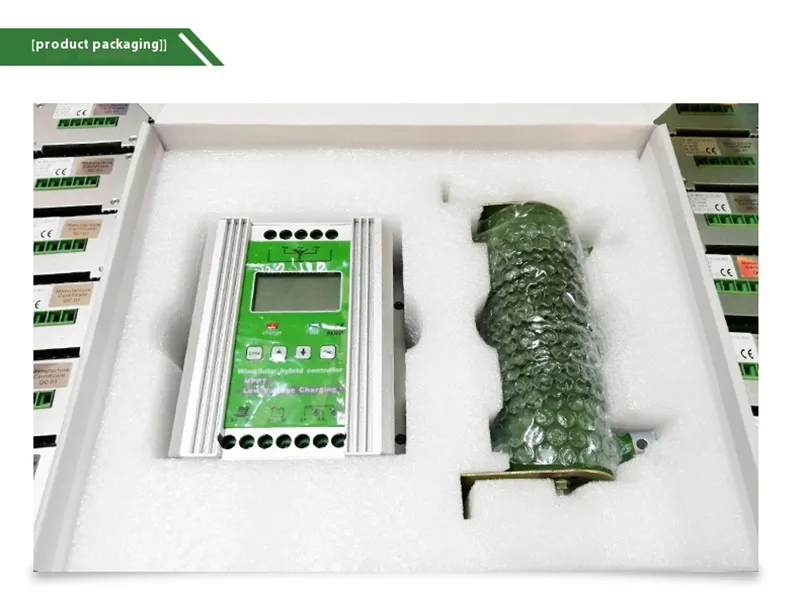

Factory 2

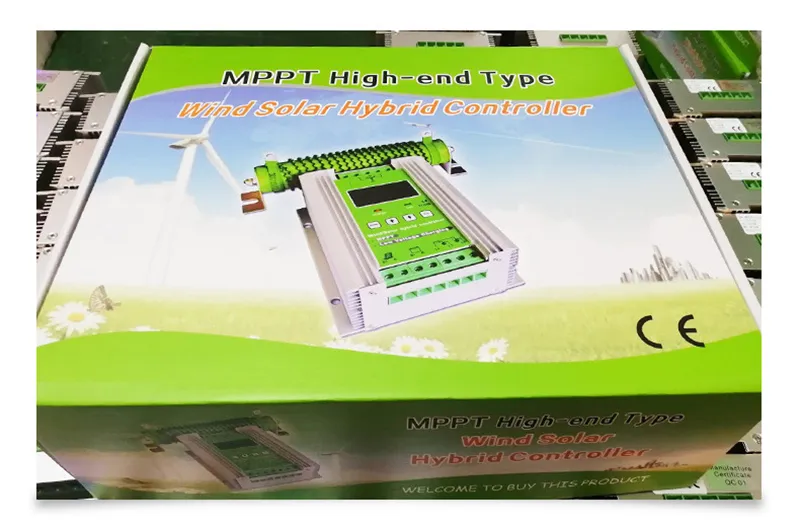

Factory 3

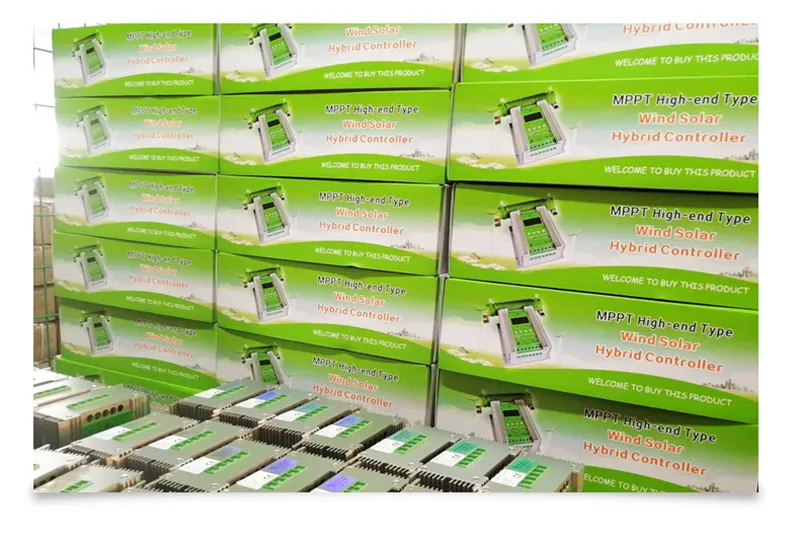

Factory 4
❓ Frequently Asked Questions
What is the peak conversion efficiency of this controller?
The controller features a high conversion efficiency of over 98%, ensuring minimal energy loss during the charging process.
Can this controller handle both wind and solar inputs simultaneously?
Yes, it is specifically designed as a hybrid controller to manage power from both wind turbines and photovoltaic (solar) arrays.
What safety protections are built into the device?
The unit includes overload protection, rectifier functions, and controls to prevent damage to the battery and connected components.
What is the IP rating of the hybrid charge controller?
The device has an IP30 protection level, making it suitable for indoor installation or protected environments.
Does the controller support different battery system voltages?
Yes, depending on the specific model selected, it supports 12V, 24V, and 48V battery systems with automatic identification within specific voltage ranges.
What is the maximum charging current capacity?
The maximum DC load output rated current is 30A, with a maximum one-way capacity of 15A.
