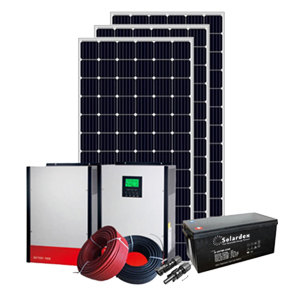

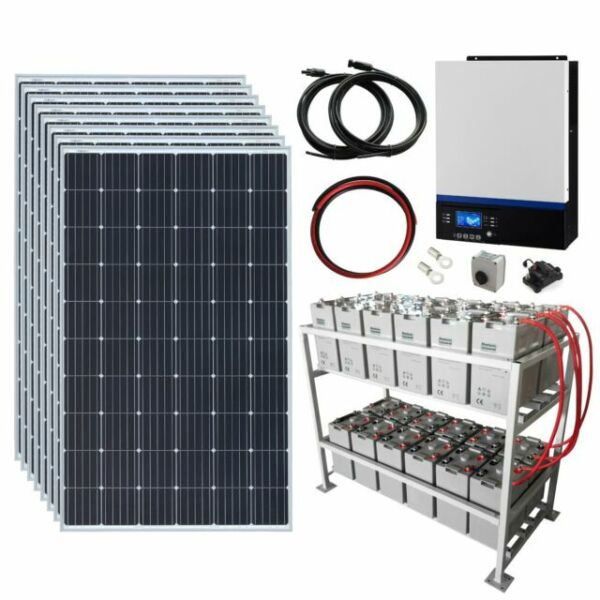

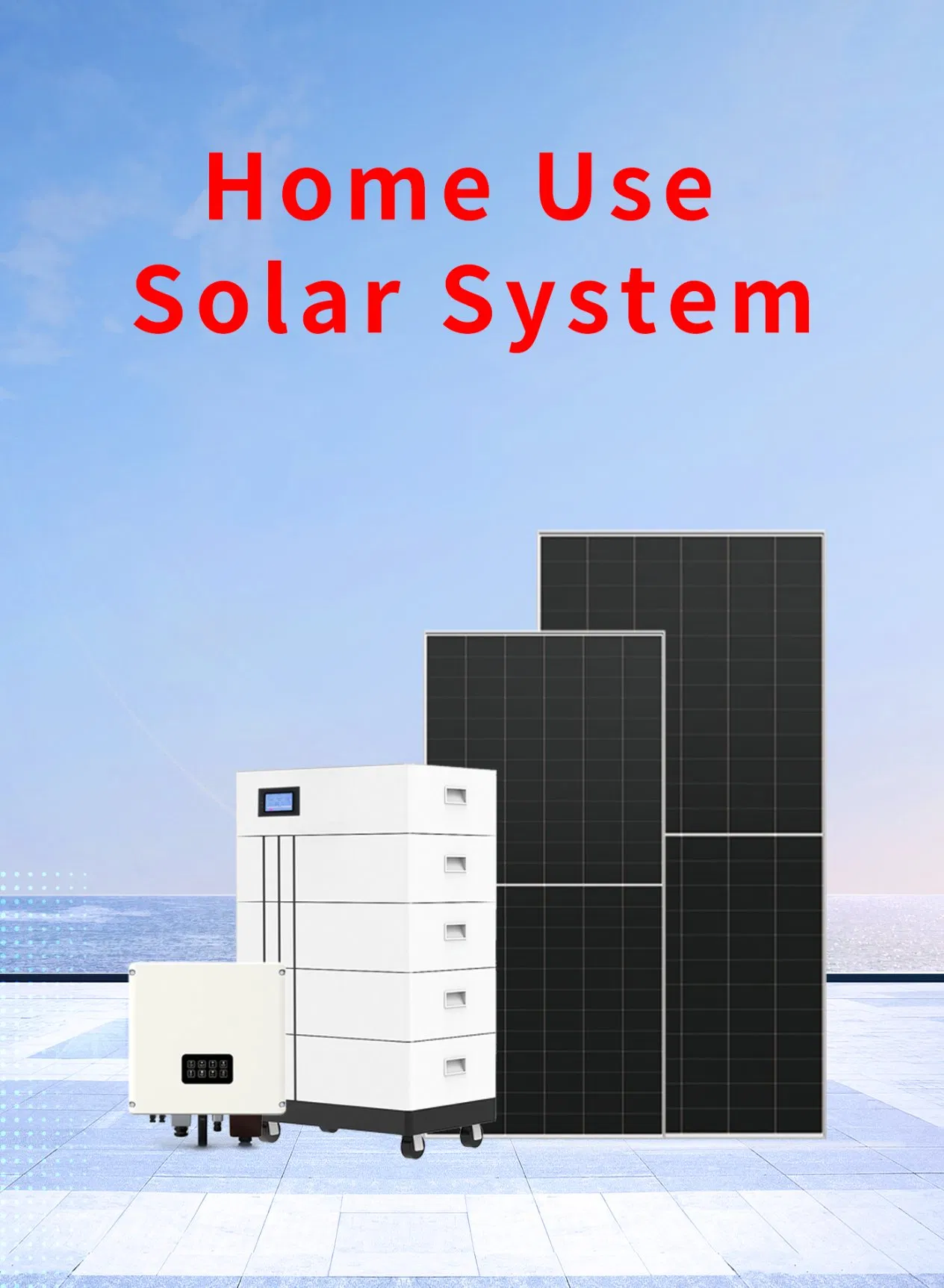

5kw Solar Energy System on&off Grid Solar Panel System 220V 380V PV Module Complete Set

1 / 5

5kw Solar Energy System on&off Grid Solar Panel System 220V 380V PV Module Complete Set

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview & Basic Info

Product Name

Mono Solar Panel

Number of Cells

144PCS

Material

Monocrystalline Silicon

Type

Half Cell N Type Mono PV Module

Specification

535W-550W (2278x1134x35mm)

Cell Size

78mm*166mm

Efficiency

Up to 21.28%

Junction Box

IP68

Frame

Anodized Aluminum Alloy

Weight

28kgs

Certification

ISO, CE, Rosh

Origin

China

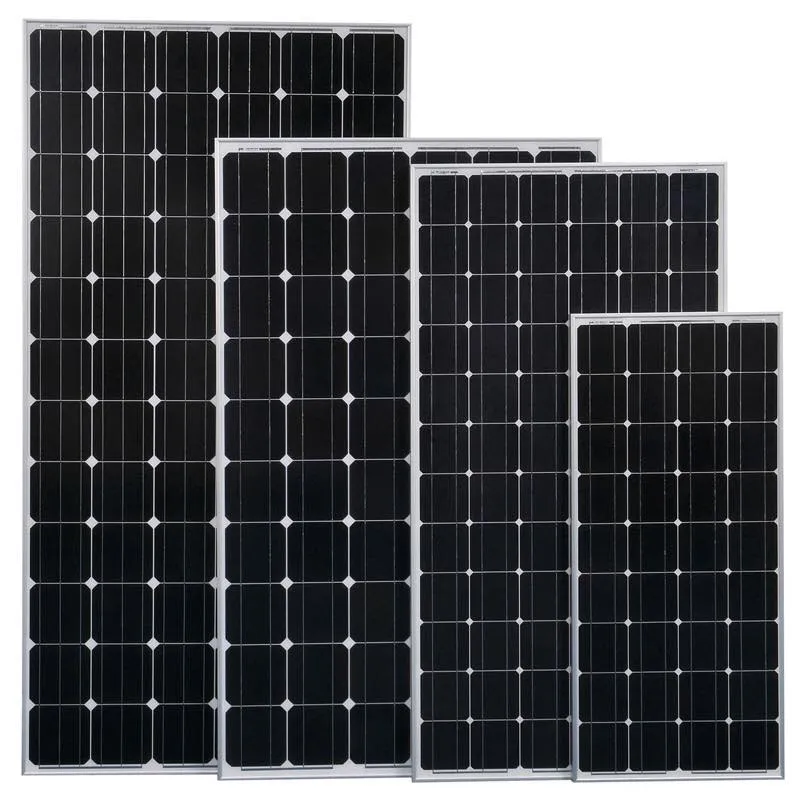

Detailed Photos

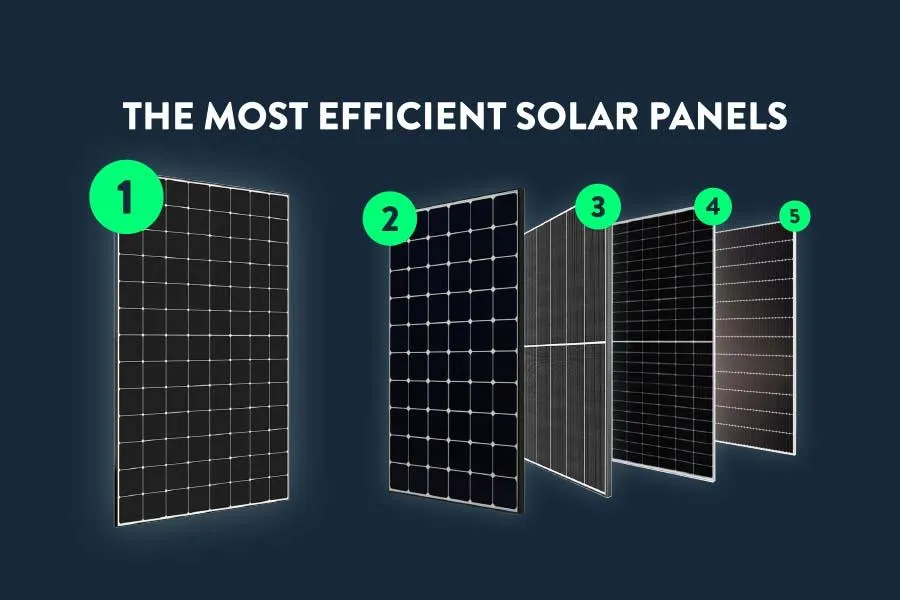

Product Parameters

Technical data for 530W-550W Mono Half Cell Solar Power double glass solar modules.

Rated Power -Pmax (W)	530w	535w	540w	545w	550w
Open Circuit Voltage -Voc (V)	49.2	49.35	49.51	49.69	49.88
Short Circuit Current -Isc (A)	13.68	13.75	13.82	13.89	13.97
Working Voltage -Vpm (V)	41.53	41.82	42.12	42.41	42.71
Working Current -Ipm (A)	12.76	12.79	12.82	12.85	12.88
Module Efficiency -η (%)	20.51	20.7	20.89	21.09	21.28

*STC: Irradiance 1000W/square meter, Cell Temperature 25°C, Air Mass AM 1.5

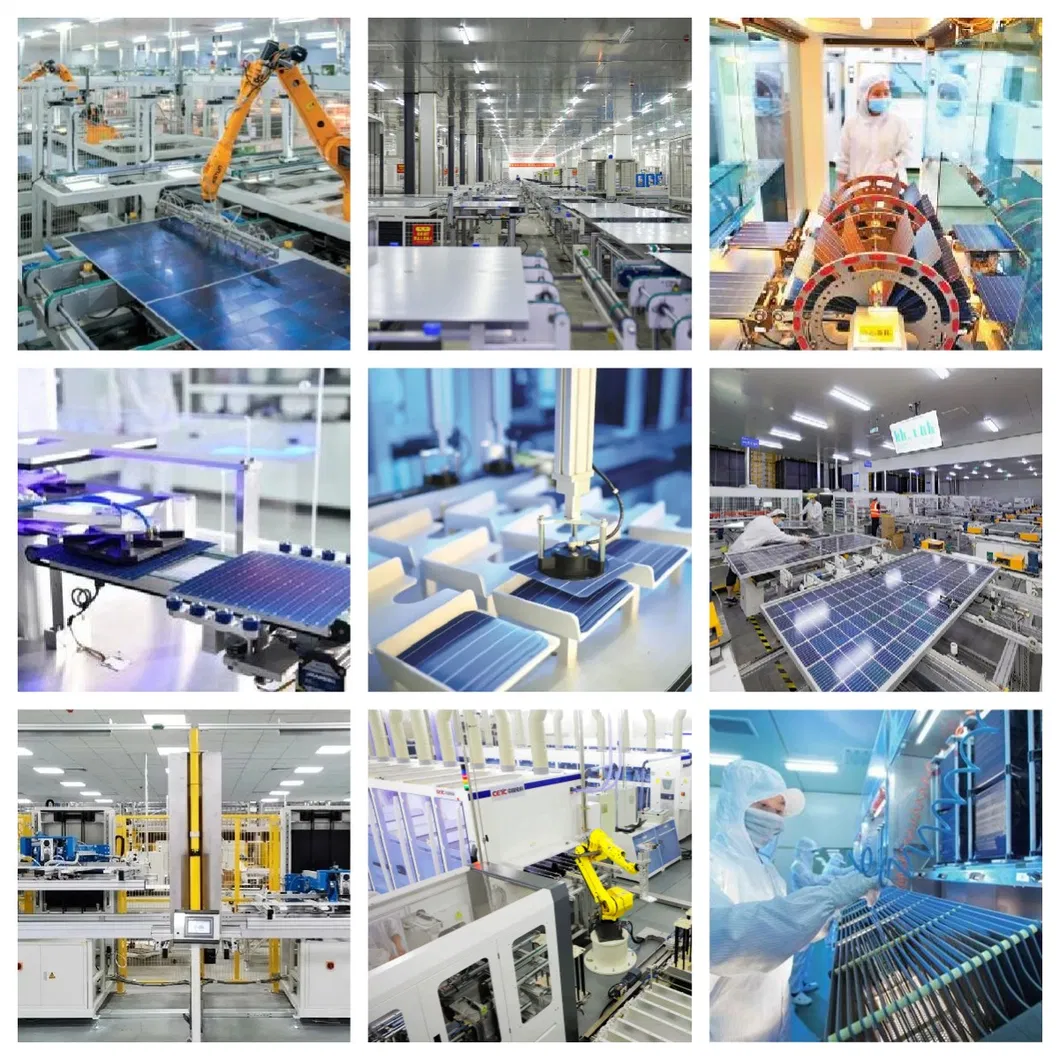

Production Line

We are an industry-leading solar energy company with a current high-efficiency module production capacity of 10GW. By designing, manufacturing and supplying high-efficiency monocrystalline solar modules, we provide outstanding photovoltaic products, system solutions and related services to customers around the world. Committed to creating value for partners and contributing to global carbon peaking goals.

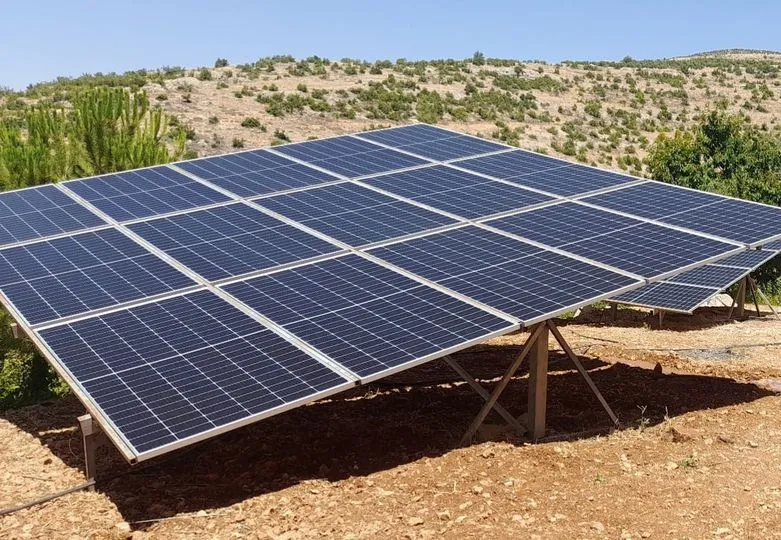

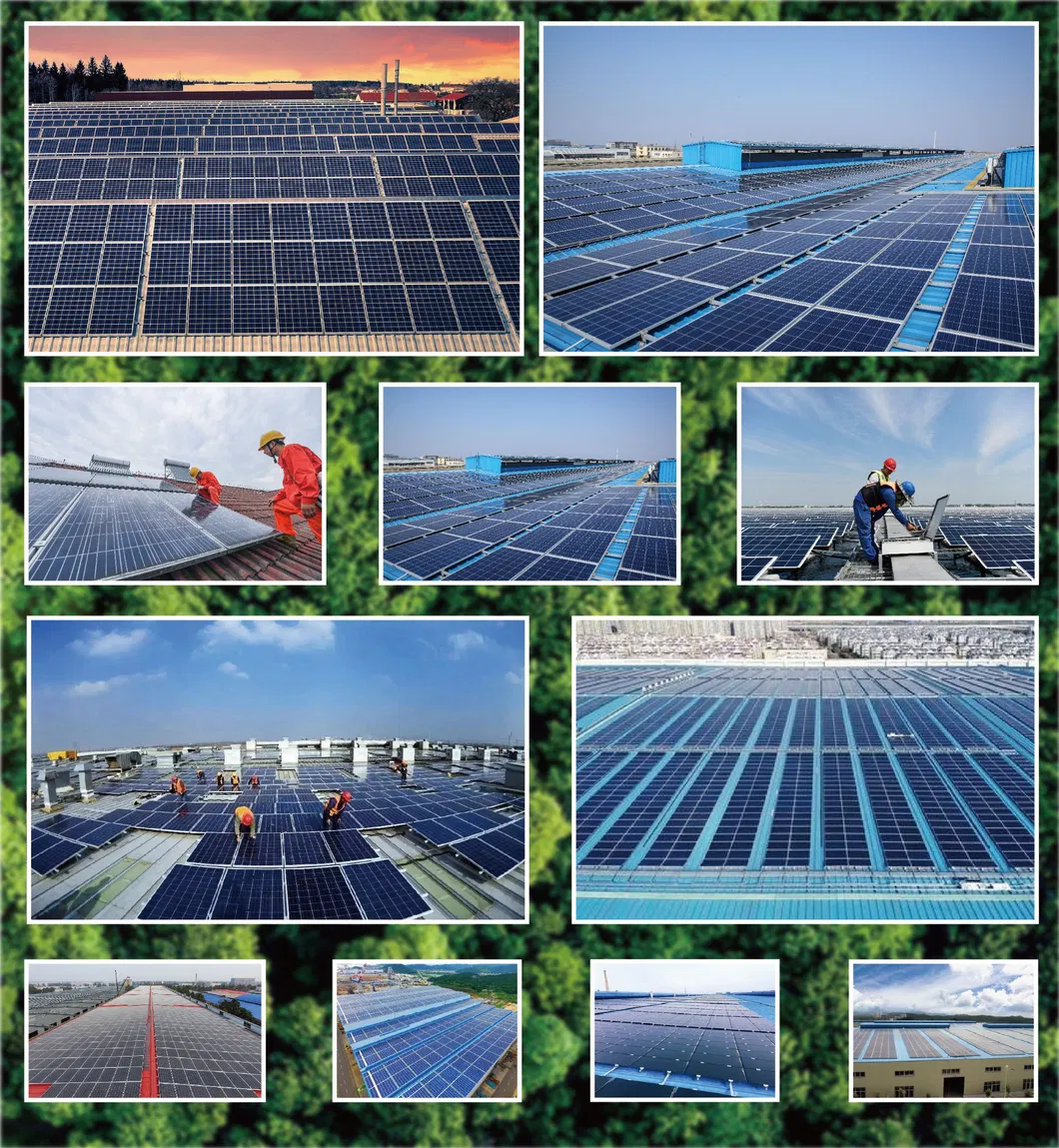

Photovoltaic Projects

Certifications

Packaging & Shipping

Package Size

1.00cm * 1.00cm * 1.00cm

Gross Weight

1.000kg

Quantity Per Pallet

31PCS PV Module

Shipment Capacity

620PCS/40'hq

Our Team

Frequently Asked Questions

What is the expected lead time for orders?

For requirements under 200kW, the lead time is approximately 10 days. Orders exceeding 200kW require negotiation based on current production schedules.

What are the available payment methods?

We accept 100% TT, or a maximum of 30% TT in advance with the remaining 70% TT due when goods are ready before shipment.

How are the solar modules transported?

International sections are generally handled via sea transport. Upon entry, we utilize multimodal transport including rail and barge.

What kind of warranty is provided?

We offer a 10-year enhanced product warranty on materials and workmanship, and a 25-year linear power output warranty.

What is the maximum efficiency of these modules?

Based on our technical parameters, the module efficiency reaches up to 21.28% for the 550W series.

What certifications do the solar panels hold?

Our products are fully certified with ISO, CE, and Rosh standards, ensuring high quality and safety for industrial applications.
