8kVA 48V Sun Tracking Roof Mounting Bracket Energy System for Solar Panels with GPS

1 / 5

8kVA 48V Sun Tracking Roof Mounting Bracket Energy System for Solar Panels with GPS

Customization:	Available
After-sales Service:	Yes
Warranty:	Support

Send Inquiry

Product Description

📊 Basic Information

Model NO.	XD-SWD 8kw solar system
Condition	New
Certification	ISO, CE, Test Report
Application	Household/Industrial/Office /Apartment
Rated Output Voltage	220V/230V/240V
Charging Mode	96VDC 50A MPPT Built-in Solar Inverter
DC Voltage	96V
Battery	Lead Acid Battery 12V200ah
Mounting Type	Ground, Roof, Carport Mounting
Output Frequency	50/60Hz
Load Power	8000W
Work Time	24 Hours
Daily Capacity	23760wh
Solar Panel Type	Polycrystalline Silicon

🌞 Product Description

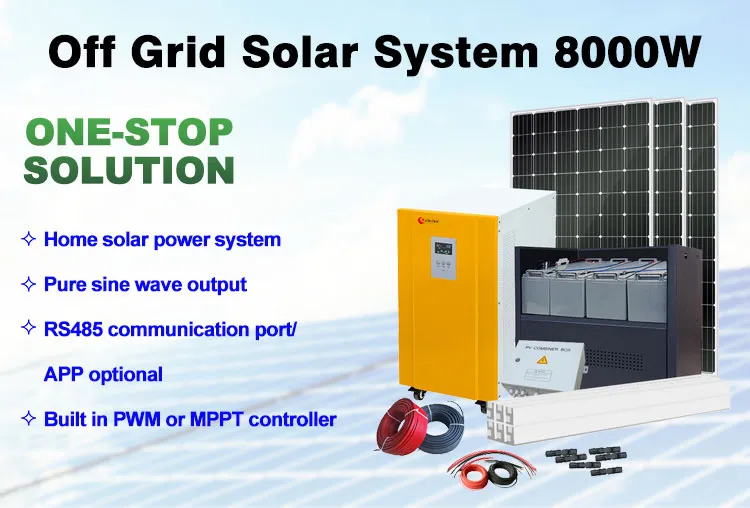

8000W Solar Energy System Overview:

Based on an estimated 6 hours of sunshine, the daily solar power generation capacity reaches 23,760Wh. This off-grid 8KW solar system is designed for high efficiency and stability.

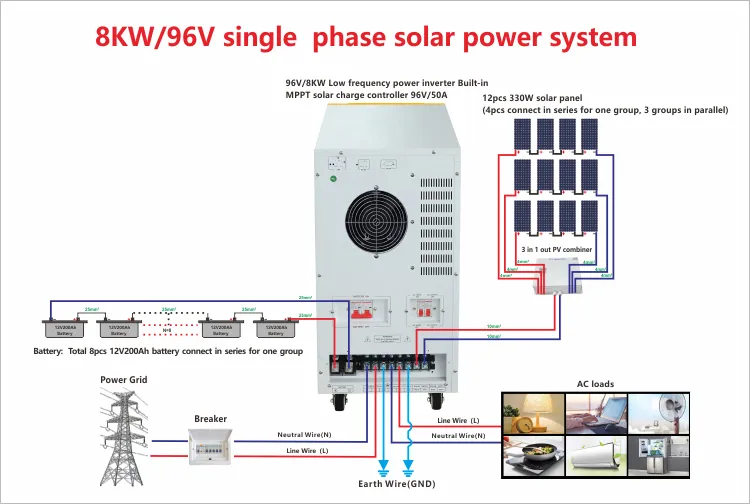

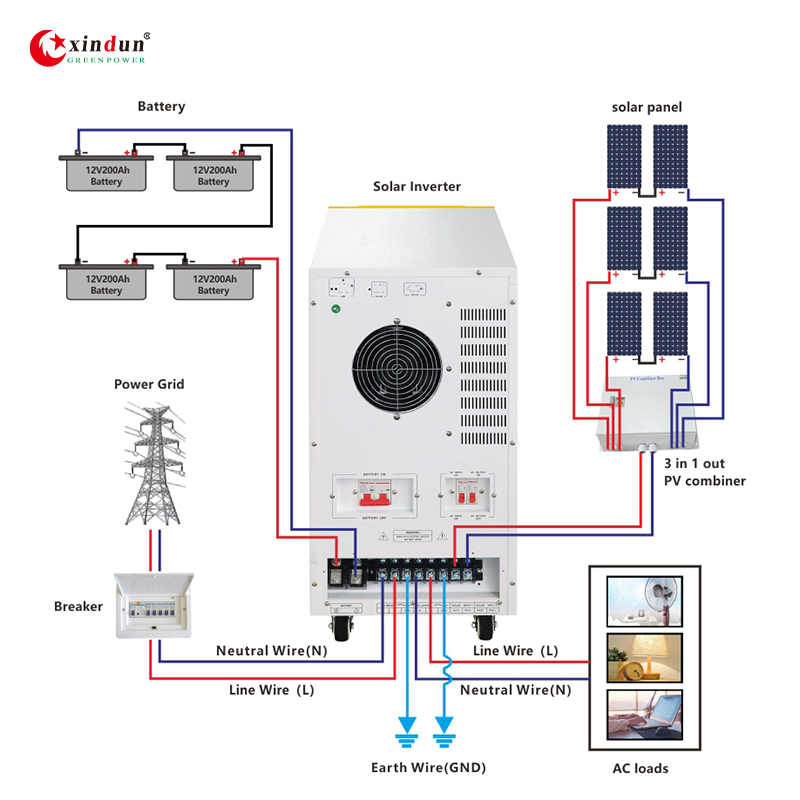

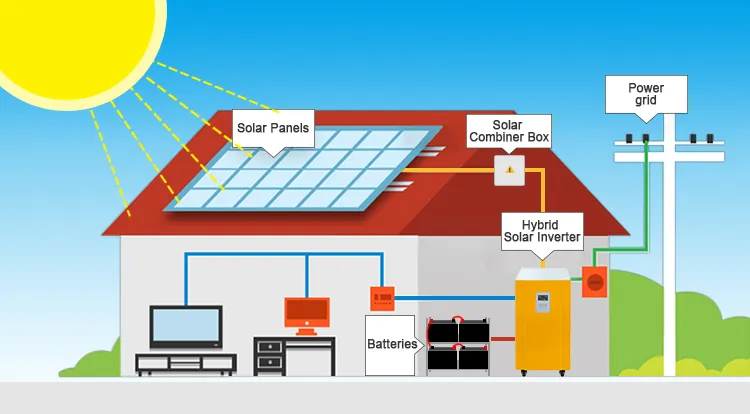

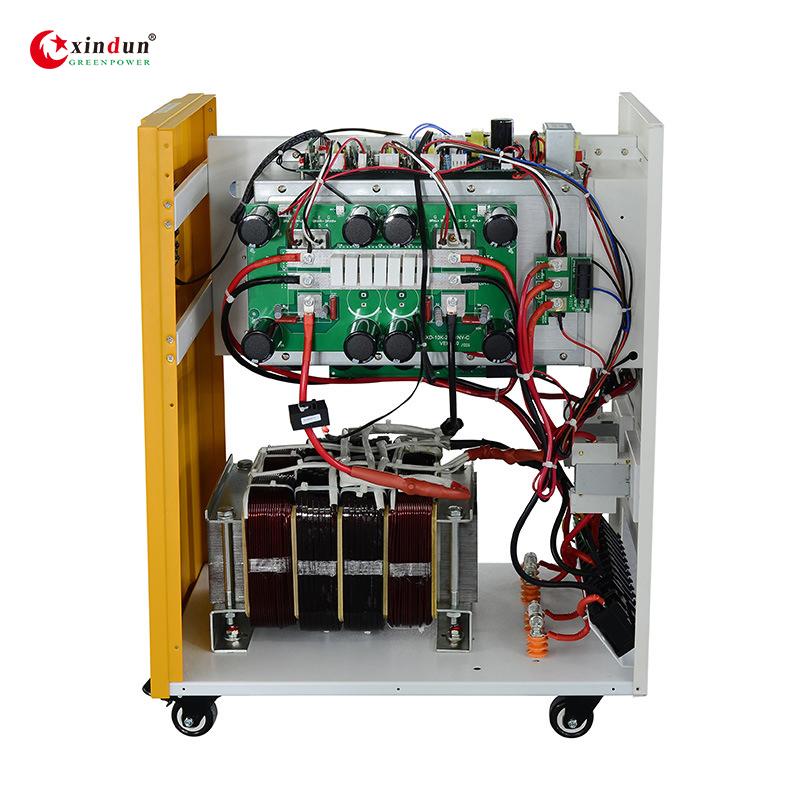

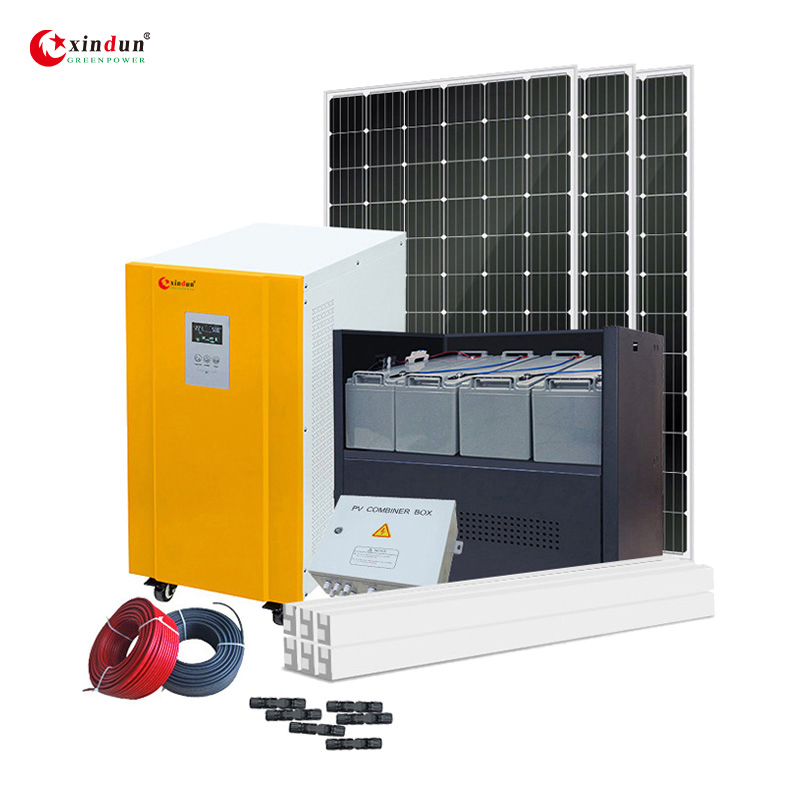

The complete package includes high-quality solar panels, PV combiner, hybrid solar inverter with built-in MPPT controller, durable batteries, and all necessary mounting brackets and cables.

Our configuration has undergone over 100 rigorous tests in various application scenarios, making it a reliable choice for global users.

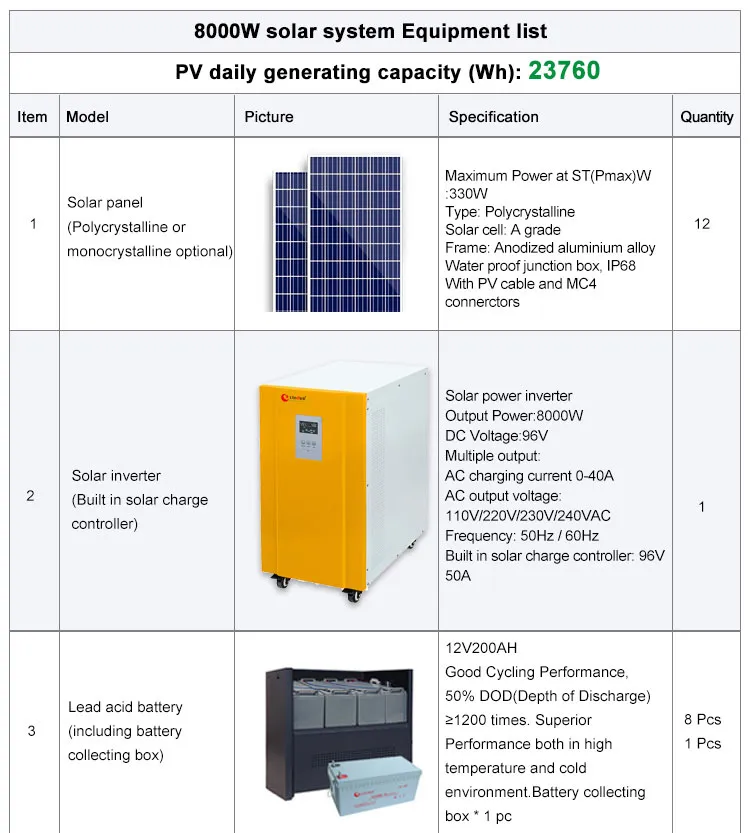

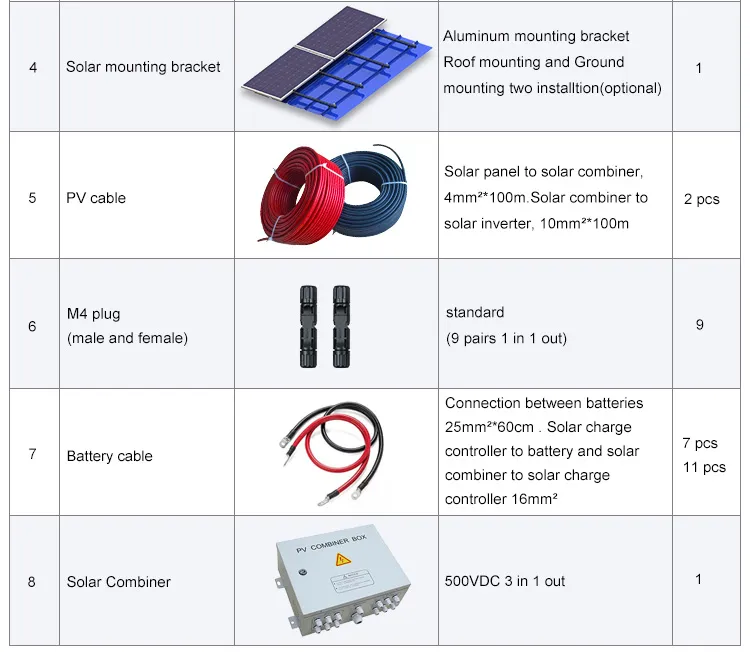

⚙️ Technical Parameters

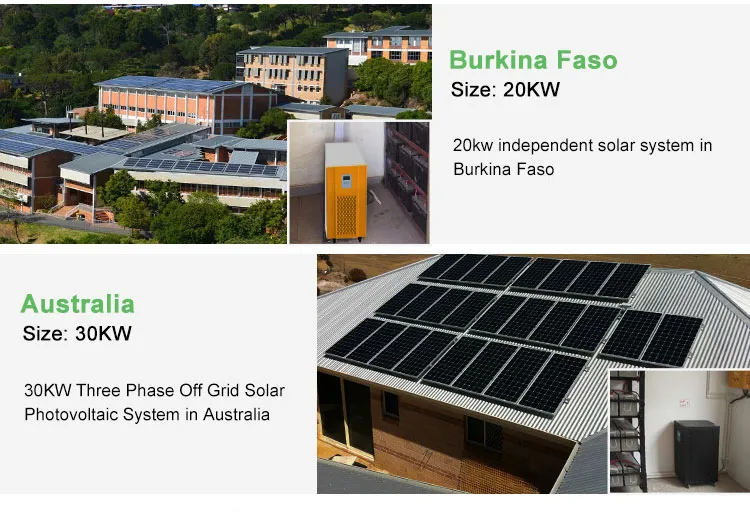

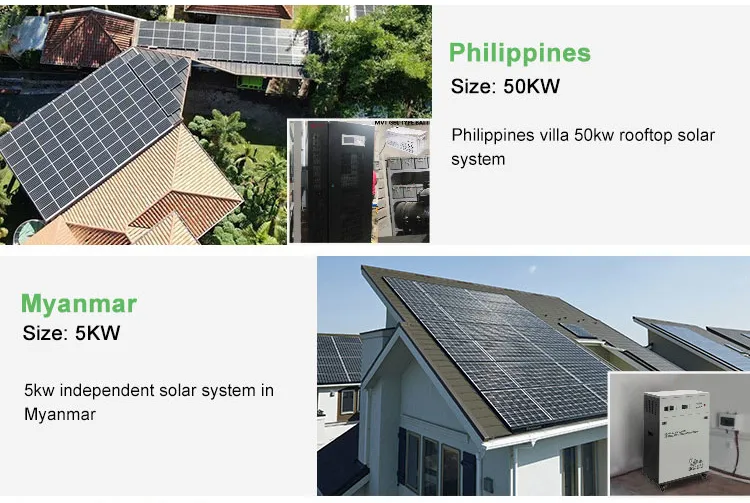

🏠 Application Scenarios

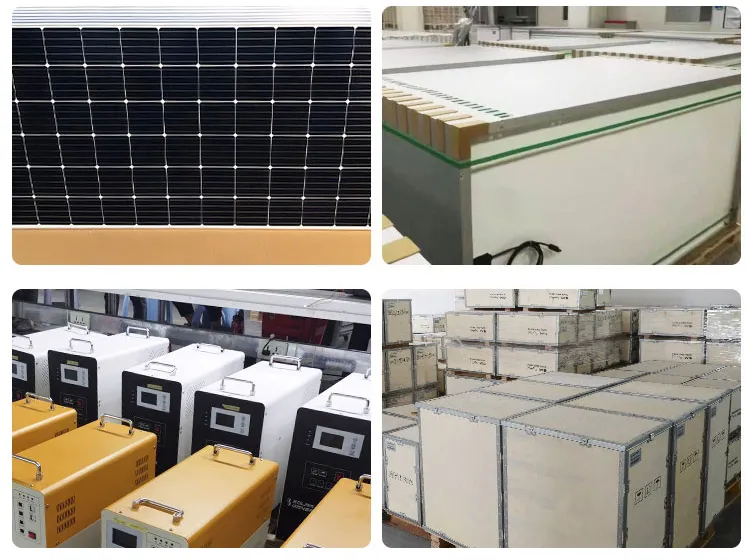

📦 Packing & Delivery

Shipping Details:

International express (Fedex/DHL/TNT/UPS) for samples, door-to-door service.
Air or sea freight for batch goods (CFL, Airport/Port receiving).
Flexible options: Customers can specify freight forwarders or negotiate shipping methods.
Delivery Time: 7 days for samples; 10 to 25 days for batch orders.

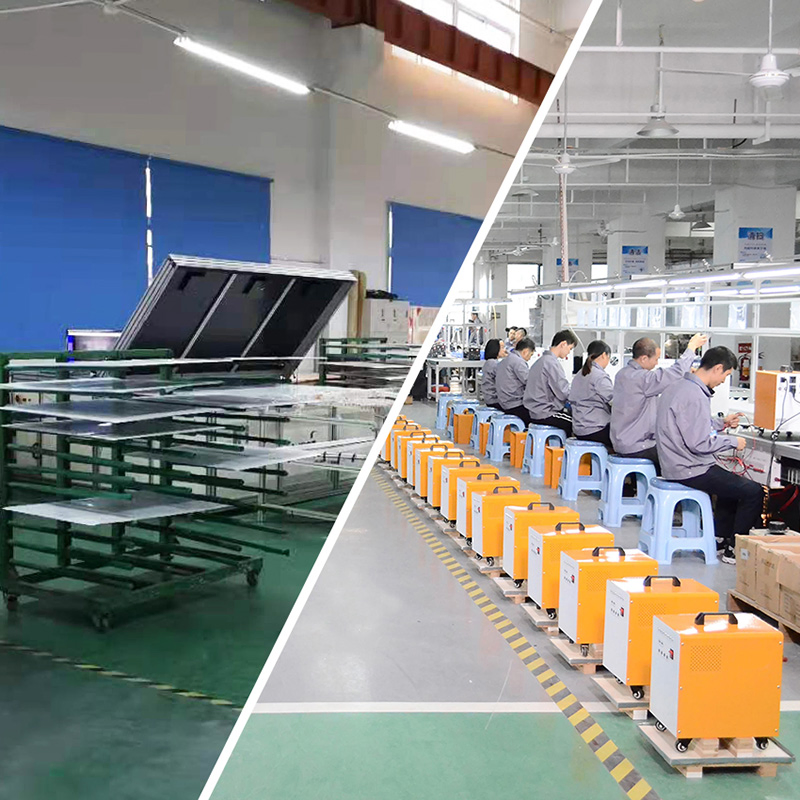

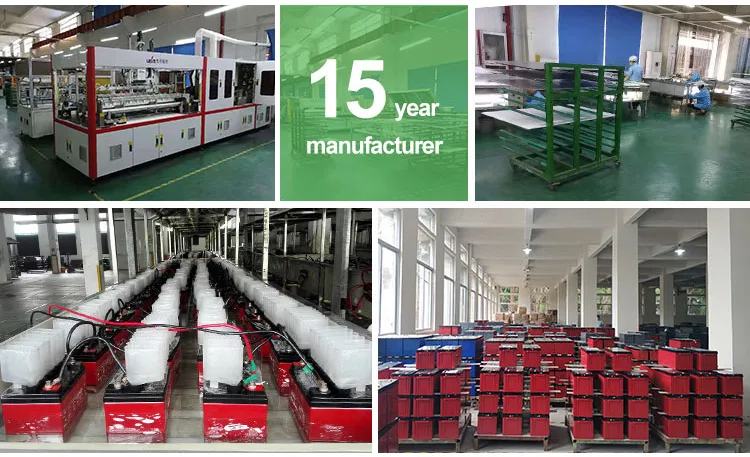

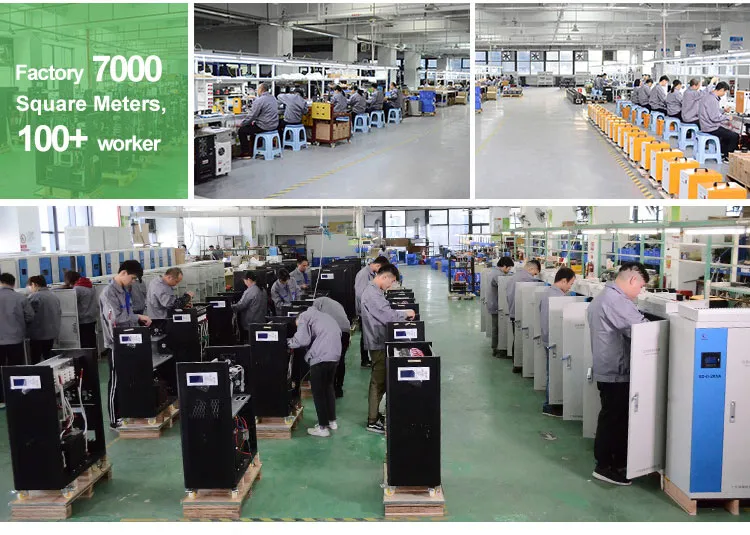

🏭 Production Workshop

📜 Qualifications & Standards

Frequently Asked Questions

Q1: What is the daily power generation capacity of this 8kW system? A: With an average of 6 sunshine hours per day, the system can generate approximately 23,760Wh of electricity daily.

Q2: What components are included in the full solar kit? A: The package includes polycrystalline solar panels, a PV combiner box, a hybrid solar inverter with built-in MPPT controller, 12V 200Ah batteries, and all necessary mounting brackets and cabling.

Q3: Can the output voltage be adjusted for different regions? A: Yes, the rated output voltage supports 220V, 230V, and 240V AC at 50/60Hz, making it compatible with most international standards.

Q4: What are the installation options for the solar panels? A: The system is versatile and supports ground mounting, roof mounting, and carport mounting structures.

Q5: How long does it take for delivery? A: Sample orders are typically processed within 7 days. For batch goods, the estimated delivery time ranges from 10 to 25 days depending on the order volume.

Q6: Is remote monitoring available for this system? A: Yes, the system supports communication via RS485 and can be equipped with WiFi or GPRS modules for APP-based monitoring.
