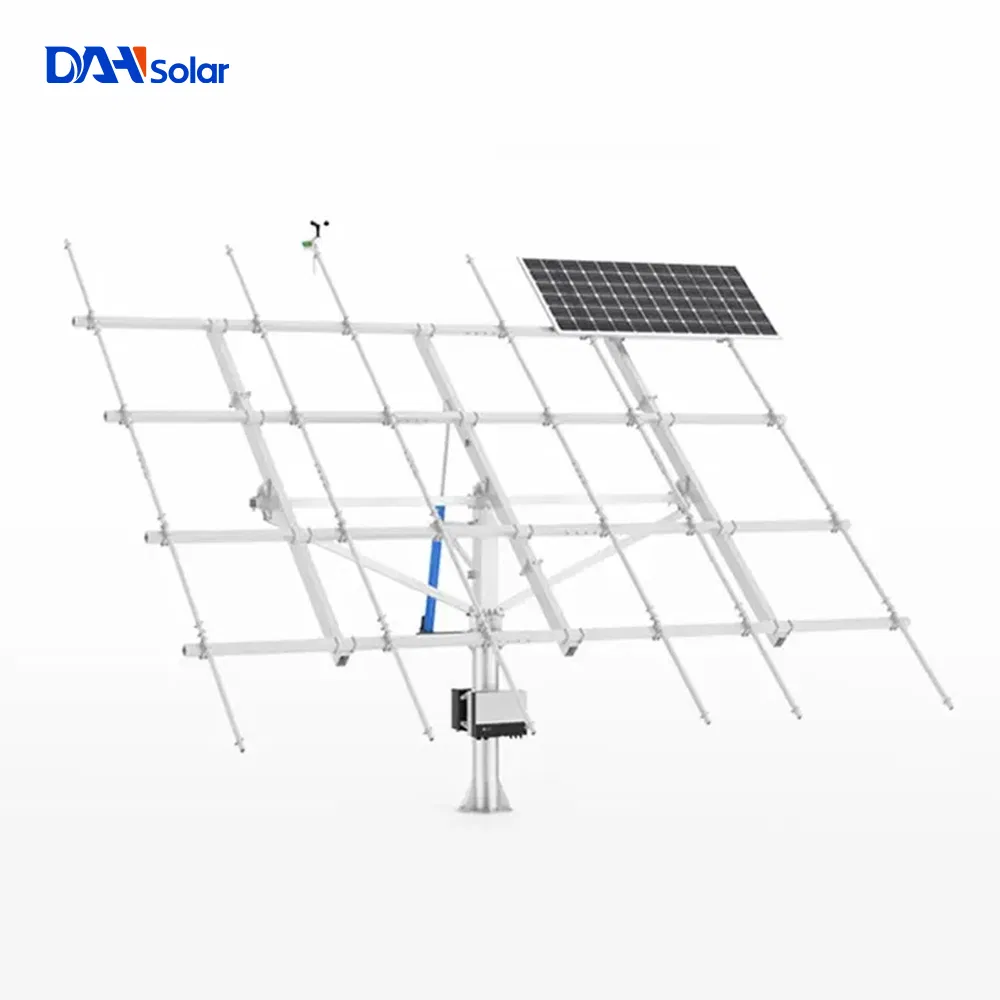

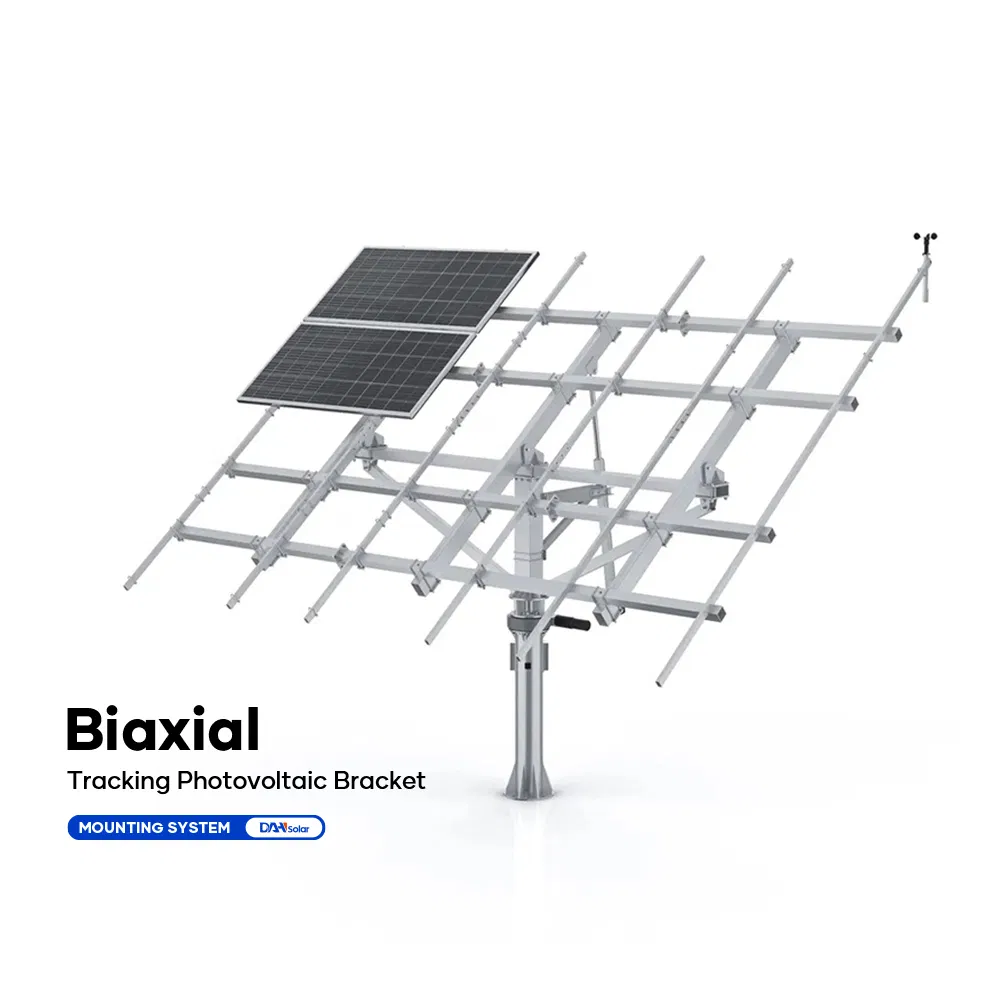

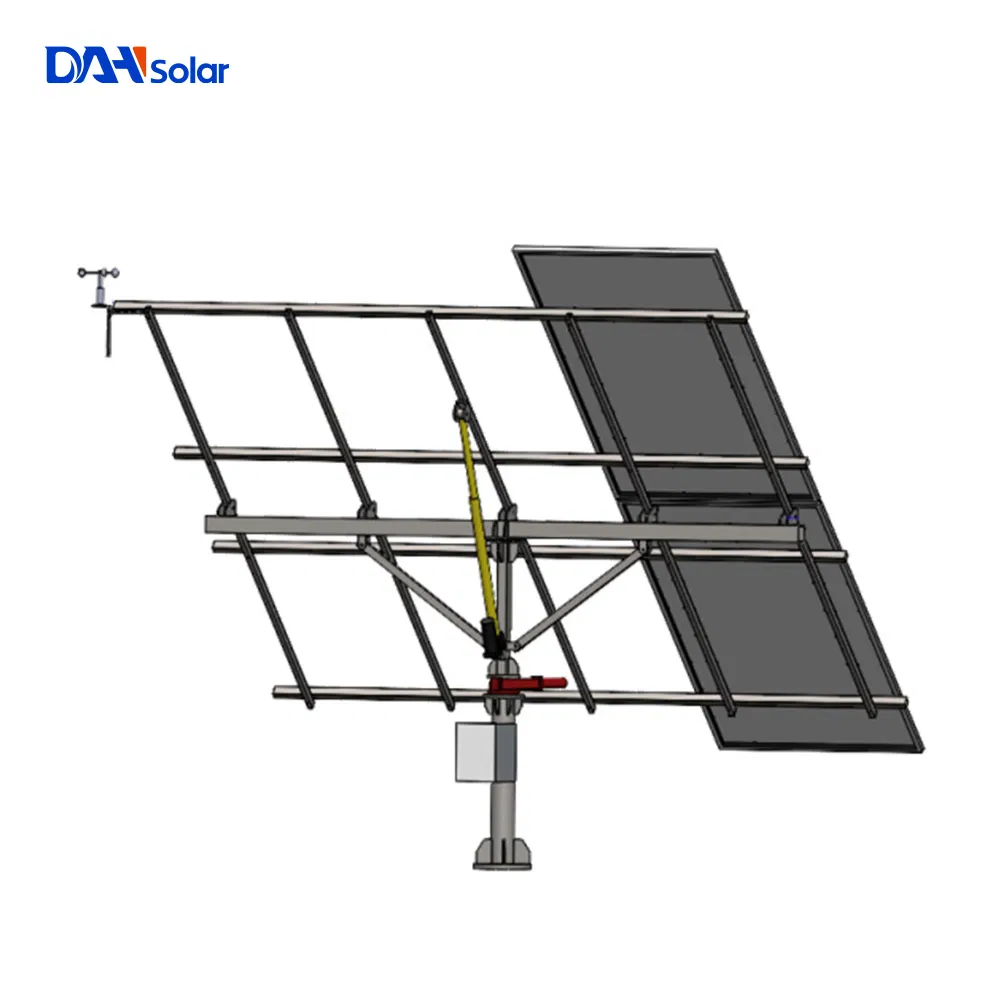

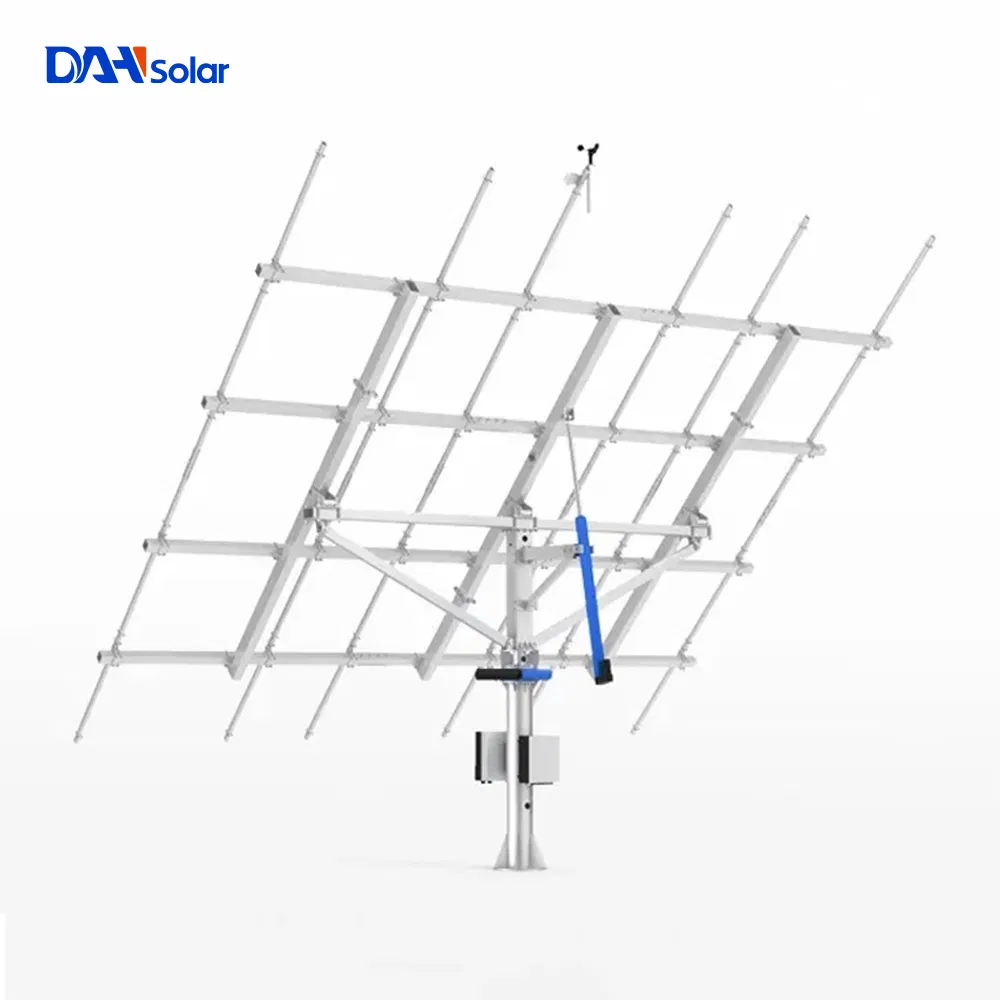

Dah Solar Sun Tracking Solar Panel Mount Dual Axis Automatic Solar Tracker Photovoltaic Solar Tracking System
Dah Solar Sun Tracking Solar Panel Mount Dual Axis Automatic Solar Tracker Photovoltaic Solar Tracking System
Dah Solar Sun Tracking Solar Panel Mount Dual Axis Automatic Solar Tracker Photovoltaic Solar Tracking System
Dah Solar Sun Tracking Solar Panel Mount Dual Axis Automatic Solar Tracker Photovoltaic Solar Tracking System
Dah Solar Sun Tracking Solar Panel Mount Dual Axis Automatic Solar Tracker Photovoltaic Solar Tracking System
1 / 5
Dah Solar Sun Tracking Solar Panel Mount Dual Axis Automatic Solar Tracker Photovoltaic Solar Tracking System
Dah Solar Sun Tracking Solar Panel Mount Dual Axis Automatic Solar Tracker Photovoltaic Solar Tracking System
Dah Solar Sun Tracking Solar Panel Mount Dual Axis Automatic Solar Tracker Photovoltaic Solar Tracking System
Dah Solar Sun Tracking Solar Panel Mount Dual Axis Automatic Solar Tracker Photovoltaic Solar Tracking System
Dah Solar Sun Tracking Solar Panel Mount Dual Axis Automatic Solar Tracker Photovoltaic Solar Tracking System

Dah Solar Sun Tracking Solar Panel Mount Dual Axis Automatic Solar Tracker Photovoltaic Solar Tracking System

Customization: Available
After-sales Service: Yes
Warranty: 3 Years
Send Inquiry

Product Description

Basic Specifications

Model NO.
Dual Axis Automatic Solar Tracker
Certification
TUV, CE
Application
Commercial
Material
Galvanized Steel Superdyma
Type
Tracking Bracket
Control Mode
Time + GPS
Accuracy
0.1°- 2.0° Adjustable
Gear Motor
24V/1.5A
Output Torque
5000 N.M
Power Consumption
<0.02kwh/Day
Temperature
-40℃ - +75℃
Panel Capacity
1.5kw - 5.0kw

Product Overview

Dual axis solar tracking system has two axis tracking the azimuth angle and elevation angle of the sun. The control system can control the driving system track the sun according to the longitude, latitude and local time data downloaded by GPS device, keeps solar panels at best angle for receiving sunlight, so that it can makes full use of sunlight, promote the power generation capacity by 25%-40%, reduces your LCOE and bring more revenue for investors.
Solar Tracker System View 1

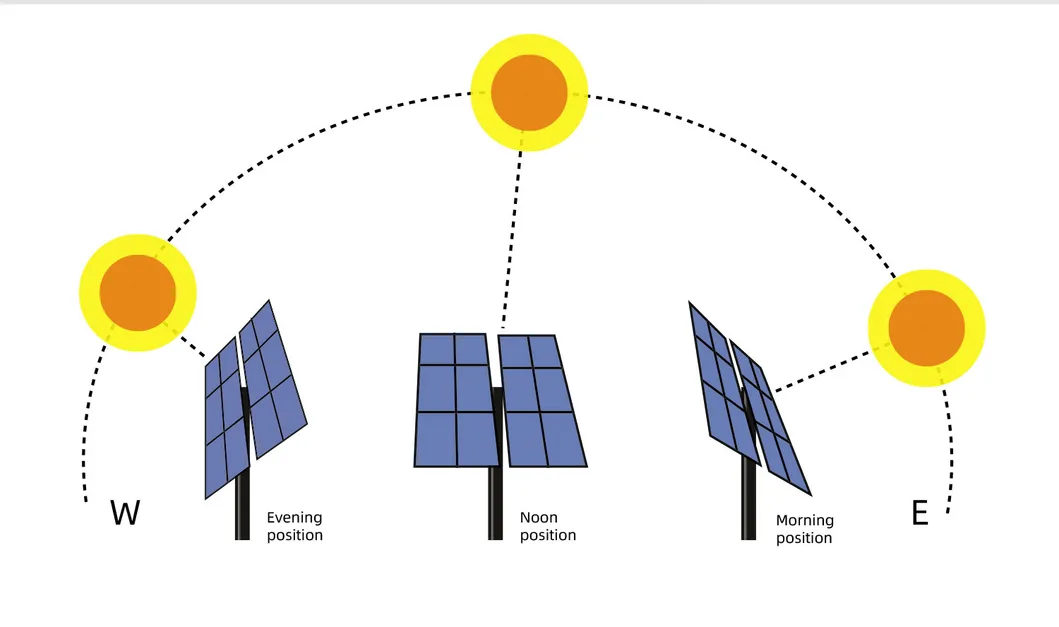

Solar Tracker System View 2

Technical Parameters

Control ModeTime + GPS
Average Tracking Accuracy0.1°- 2.0° (adjustable)
Azimuth Angle Range±45°
Elevation Angle Range45°
Max Wind Resistance (Horizontal)40m/s (standard 30m/s)
Max Wind Resistance (Operation)24 m/s
System Guarantee3 years
Weight Per Set150 - 240 KGS
Total Power Per Set1.5kW - 5.0kW (panels < 23㎡)

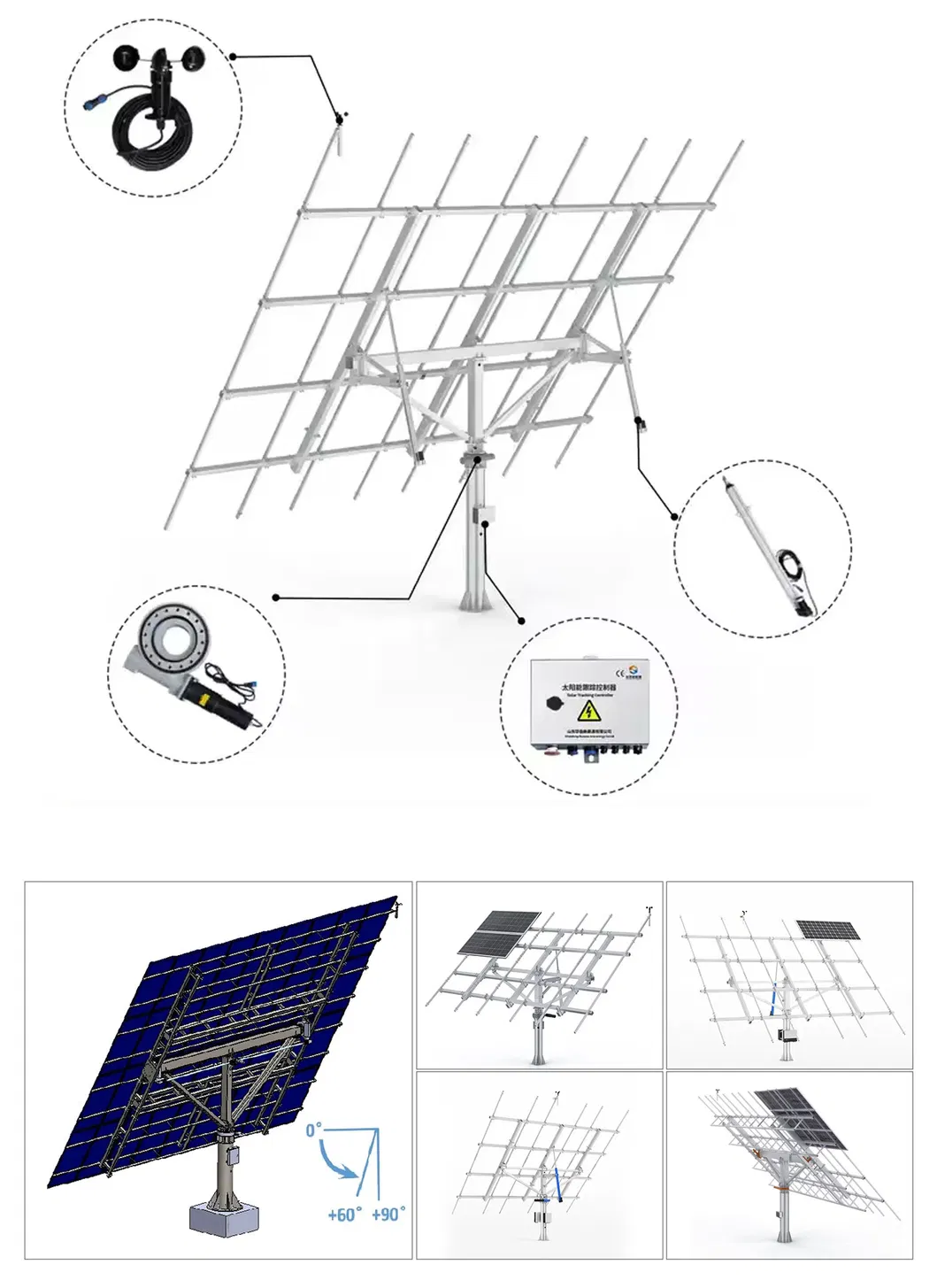

Technical Layout 1

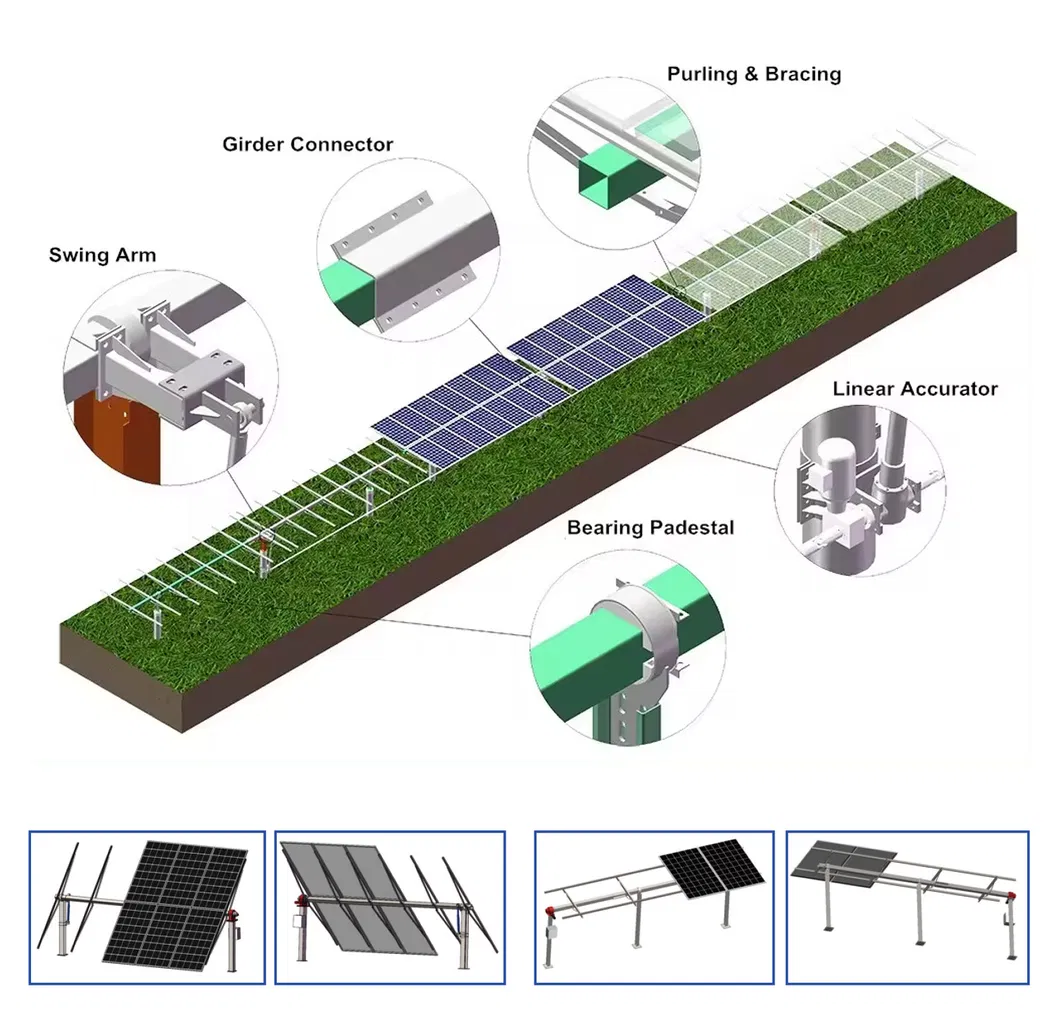

Technical Layout 2

Projects & Exhibitions

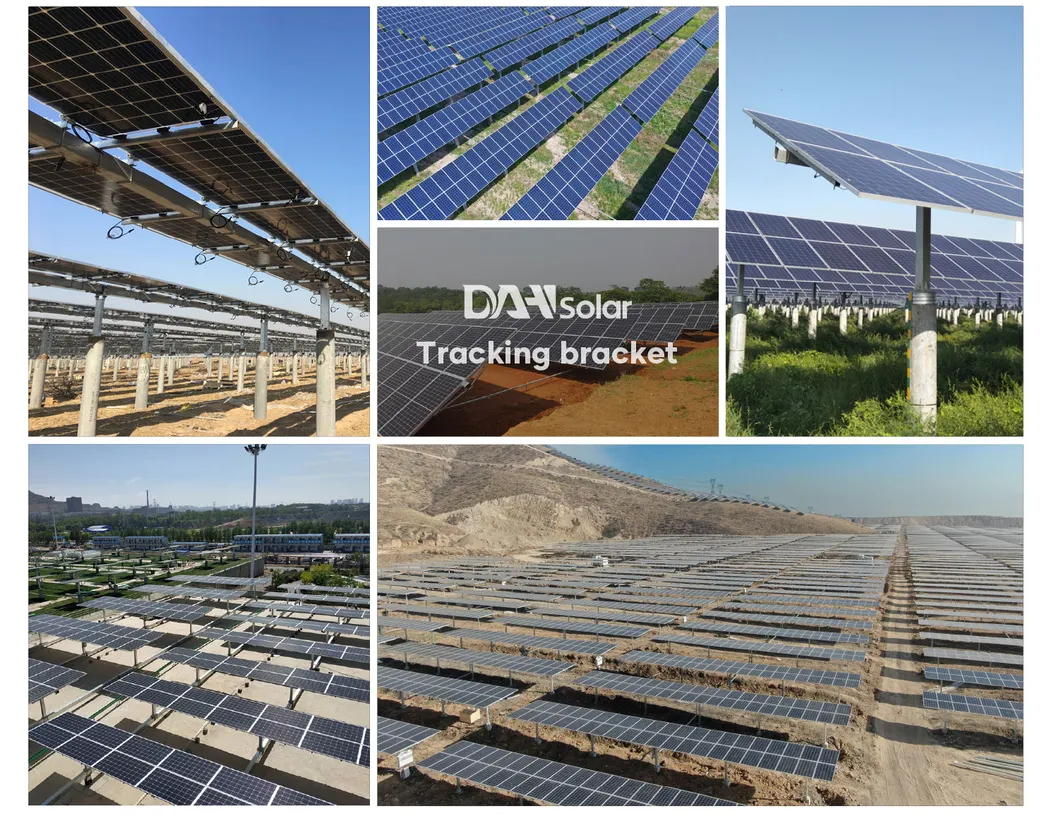

Project Case 1
Project Case 2

Frequently Asked Questions

1. How much can a dual-axis tracker increase energy production?
By tracking both azimuth and elevation angles, this system can increase power generation capacity by 25% to 40% compared to fixed tilt systems.
2. What control technology is used for sun tracking?
The system utilizes a combination of Time and GPS data to calculate the precise position of the sun based on local longitude and latitude.
3. What is the maximum wind resistance of the structure?
The tracker is designed to withstand horizontal wind speeds of up to 40m/s and can remain operational in winds up to 24m/s.
4. What materials are used for the tracking bracket?
The bracket is constructed from high-quality Galvanized Steel and Superdyma for superior durability and corrosion resistance.
5. What are the working temperature limits for the system?
The system is designed to operate reliably in extreme environments, with a working temperature range of -40℃ to +75℃.
6. Does the system come with a warranty?
Yes, the solar tracking system includes a 3-year system guarantee and holds CE and TUV certifications.
