| Model NO. | WTT-2P |
|---|---|
| Certification | ISO, CE |
| Application | Commercial |
| Material | Aluminum Alloy |
| Type | Ground Bracket |
| Install Site | Open Terrain |
| Module Orientation | Landscape, Portrait |
| Anti-Corrosive | Anodized |
| Max Wind Speed | 60m/S |
| Max Snow Load | 1.6kN/M² |
| Duration | More Than 20 Years |
| Transport Package | Carton or Iron Frame |
| Production Capacity | 1gw/Years |
| Package Size | 376.00cm * 366.00cm * 248.00cm |
|---|---|
| Package Gross Weight | 500.000kg |
The solar tracking system is a system that optimizes the use of sunlight during the process of solar thermal and photovoltaic power generation to improve the efficiency of photoelectric conversion. The Multi-drive double portrait horizontal single-axis solar tracker adopts multi-actuator drive mode. This tracker system is quick and easy to install and operate, stable and reliable system, suitable for a variety of large-scale solar power stations.
| PV-Modules | |
| PV- Modules supported | Fully fit for 210 module |
| Structure | |
| System type | One portrait horizontal single-axis tracker |
| Maximum capacity per row | 72kWp (Estimated with 600W PV-Modules) |

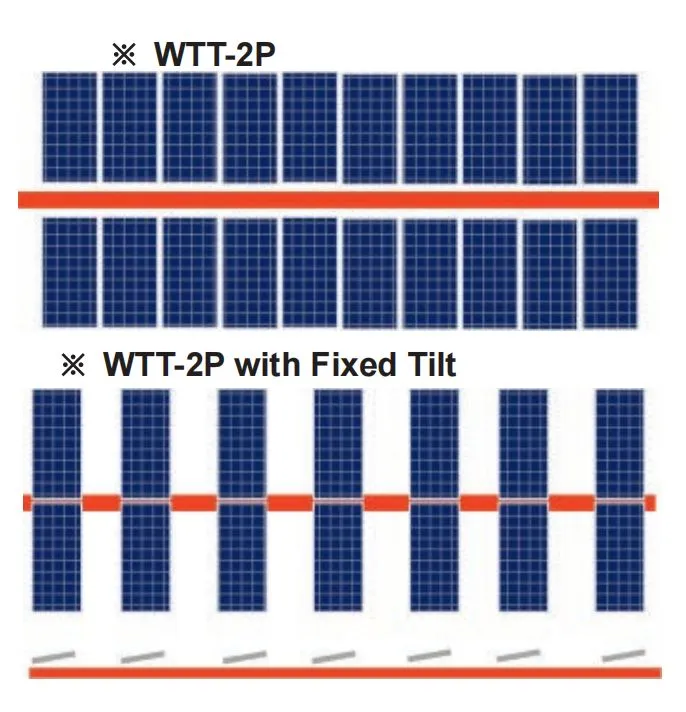

| PV- Module quantity per row | 2PX45, 2PX60 |
| Tracking Range | ±60° (Customized) |
| Tracking accuracy | ±1° |
| Structural Materials | HDG Steel, Al- Mg-Zn Coating Steel |

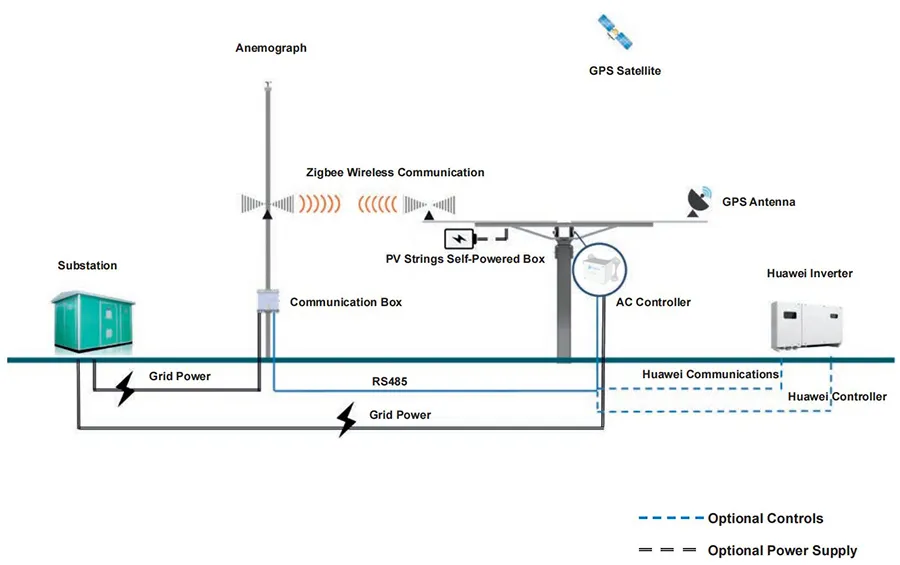

| Electrical & Control | |
| Tracking method | Astronomical algorithm + closed-loop control (AI) |
| Control system | MCU |
| Drive method | Slew Drive |
| Power supply | AC-powered or self-powered |
| Protection & Environment | |
| Wind protection | ≥18m/s |
| Operating temperature | -30°C ~ +60°C |

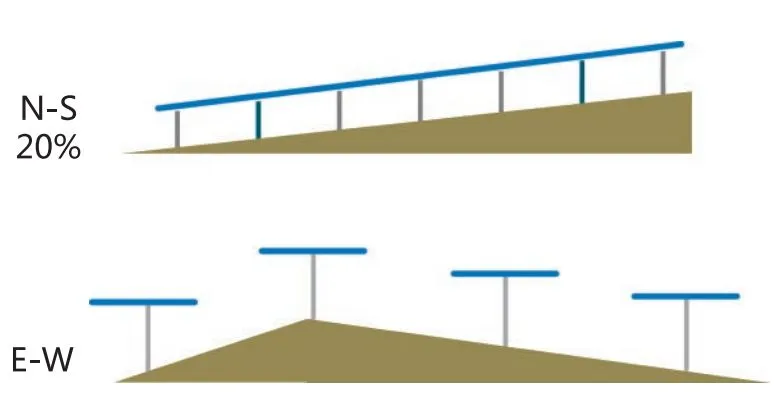

| Slope tolerance | North-south 10%~20%, East-west no limits |

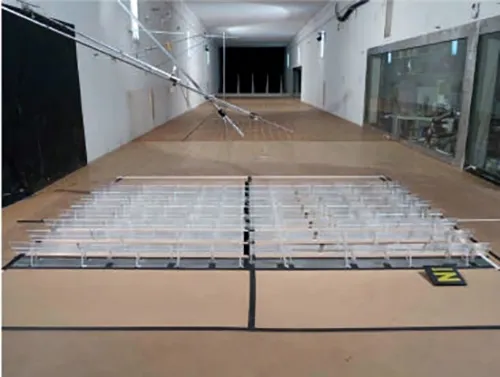

Combining the frequency and characteristics of damping ratio, we study resonance, flutter, gallop, and torsional divergence caused by aerodynamics to ensure system stability under extreme conditions.

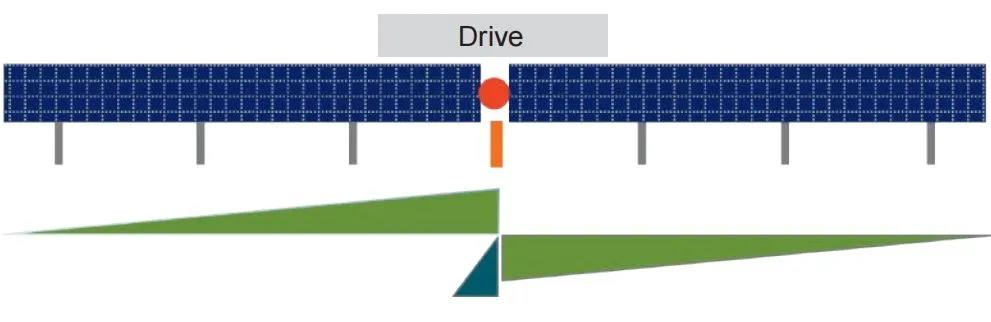

Traditional Single-drive

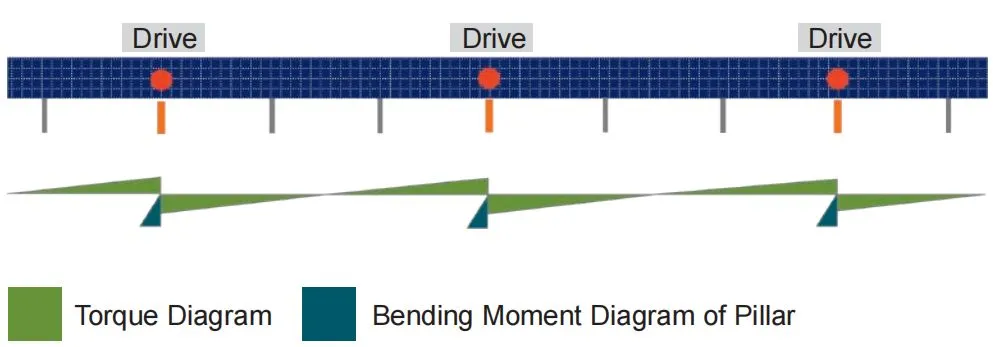

Multi-drive Tracking System
As a high-tech enterprise established in 2016, we integrate R&D, production, and marketing of Solar Mounting Systems for residential, commercial, and utility-scale customers worldwide.
