| Model NO. | WTT-2P |
|---|---|
| Certification | ISO, CE |
| Application | Commercial |
| Material | Aluminum Alloy |
| Type | Ground Bracket |
| Install Site | Open Terrain |
| Module Orientation | Landscape, Portrait |
| Anti-Corrosive | Anodized |
| Max Wind Speed | 60m/S |
| Max Snow Load | 1.6kN/M² |
| Duration | More Than 20 Years |
Single Axis Solar Tracker with Slew Drive
The solar tracking system is a solution that optimizes the use of sunlight during the process of solar thermal and photovoltaic power generation to improve the efficiency of photoelectric conversion.

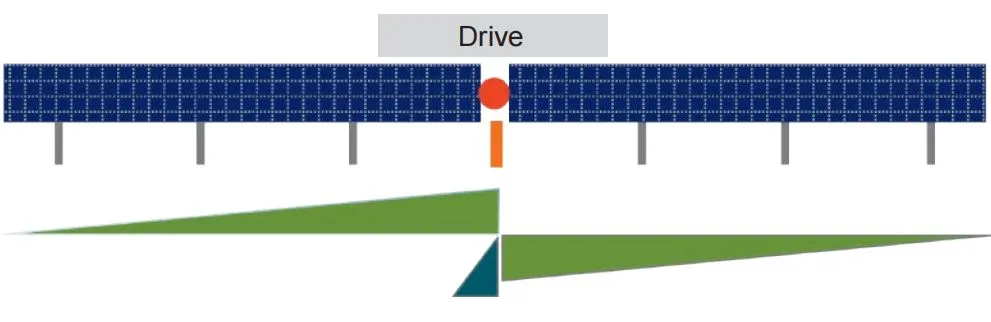

The Multi-drive double portrait horizontal single-axis solar tracker adopts a multi-actuator drive mode. This tracker system is quick and easy to install and operate, offering a stable and reliable system suitable for a variety of large-scale solar power stations.
| PV-Modules | |
| Modules Supported | Fully fit for 210 module |
|---|---|
| Structure | |
| System Type | One portrait horizontal single-axis tracker |
| Max Capacity Per Row | 72kWp (Estimated with 600W Modules) |
| Tracking Range | ±60° (Customized) |
| Tracking Accuracy | ±1° |
| Structural Materials | HDG Steel, Al-Mg-Zn Coating Steel |

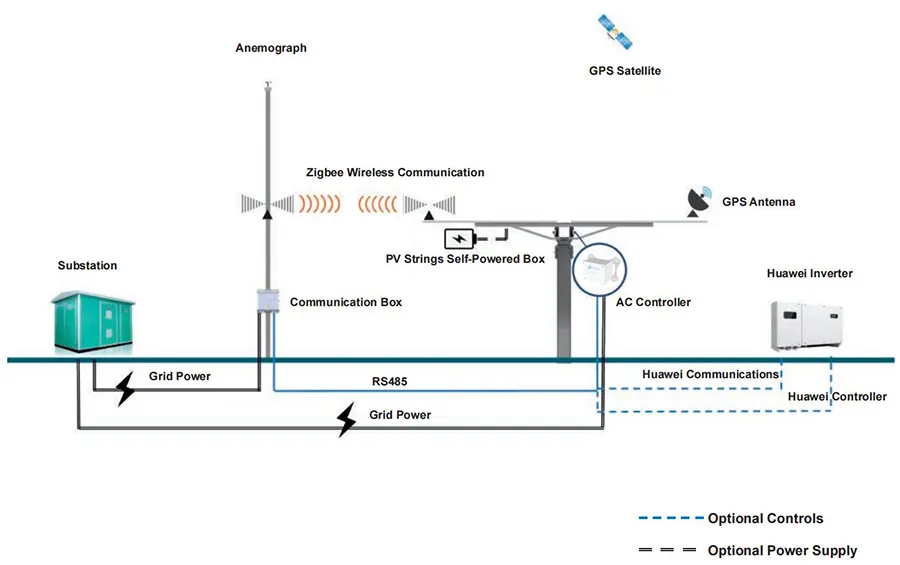

| Electrical & Control | |
| Tracking Method | Astronomical algorithm + closed-loop control (AI) |
| Drive Method | Slew Drive |
| Motor Type | 24V DC Motor |

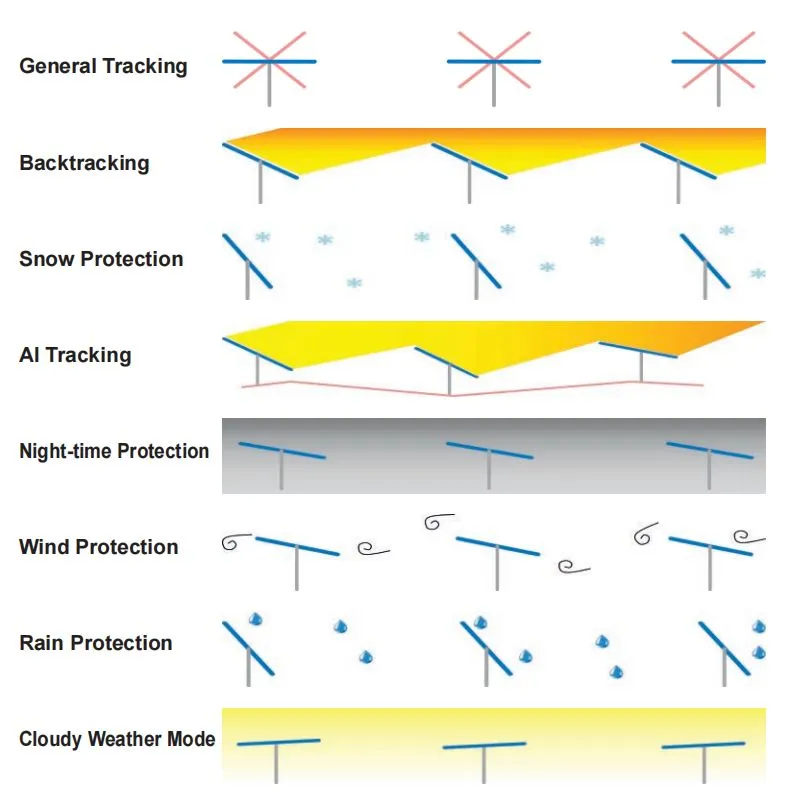

| Backtracking | Yes |
| Protection | |
| Wind Protection | ≥18m/s |
| Night Stow Mode | Yes |
| Self-diagnosis | Yes |

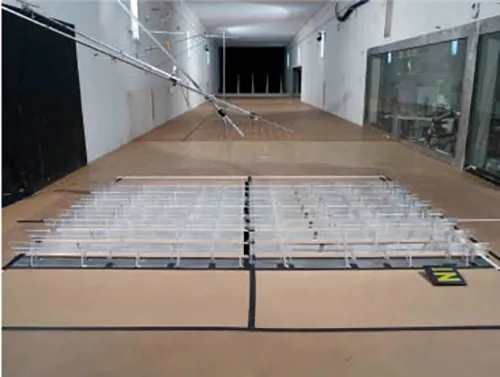

Through partnerships with leading wind engineering services, the system has undergone rigorous frequency and damping ratio studies. These tests analyze resonance, flutter, gallop, and torsional divergence caused by aerodynamics to ensure stability during operation.

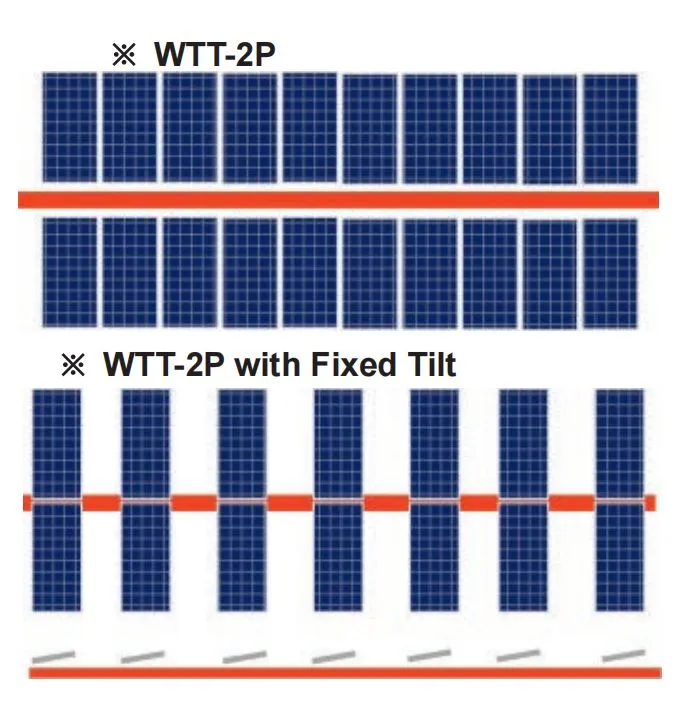

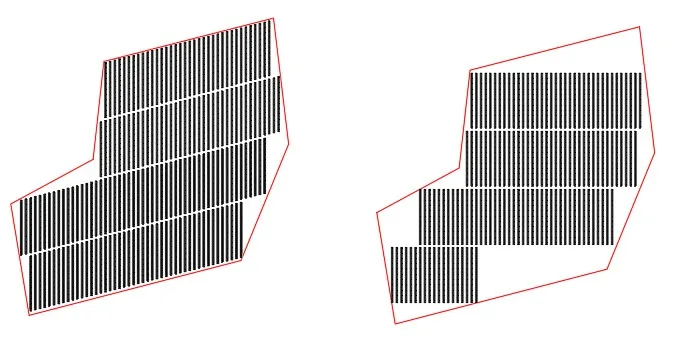

The system supports a flexible layout that fully utilizes irregular land, improving overall land utilization efficiency. It can handle up to 20% N-S slopes and provides unlimited E-W slope tolerance.
