Basic Information
Model NO.:SPS
Condition:New
Certification:ISO, CE
Application:Home, Industrial, Commercial
Specification:Normal, 1MW
Wind Load:60m/S
Control Algorithm:Astronomical Algorithm + Closed Loop
Control System:MCU
Power Supply:24dcv
Tracking Accuracy:<1°
Snow Load:1.4kn/M2
Product Name:Single-Axis Solar Tracking System
Drive System:Slewing Drive
Data Feed:RS485/Wireless Zigbee
Tracking Range:-60° to +60°
Driving Power:150W
HS Code:85414090
Production Capacity:60000 Sets/Year
Packaging & Delivery
Package Size:200.00cm * 200.00cm * 100.00cm
Gross Weight:100.000kg
Transport Package:1 Set/Carton
Technical Specifications
| Tracking Structure Parameters |
| Tracking Technology |
Horizontal flat single-axis tracking |
Max Capacity per Row |
≤48kWp (Estimated with 540W Modules) |
| Modules per Row |
90 PCS (1Px90) |
Tracking Range |
±45° to ±60° |
| Tracking Accuracy |
±1° |
Terrain Adaptability |
10° N-S, E-W unlimited |
| Wind Protection |
18m/s |
Foundation Form |
Concrete / Steel Foundation |
| Tracking Controller Parameters |
| Control System |
MCU |
Communication |
RS485 or Wireless Zigbee |
| Night Stow Mode |
Supported |
Backtracking Algorithm |
Supported |
| Overload Prevention |
Supported |
System Voltage |
DC24V |
| Drive System |
Slewing Drive |
Control Algorithm |
Astronomical + AI Closed Loop |

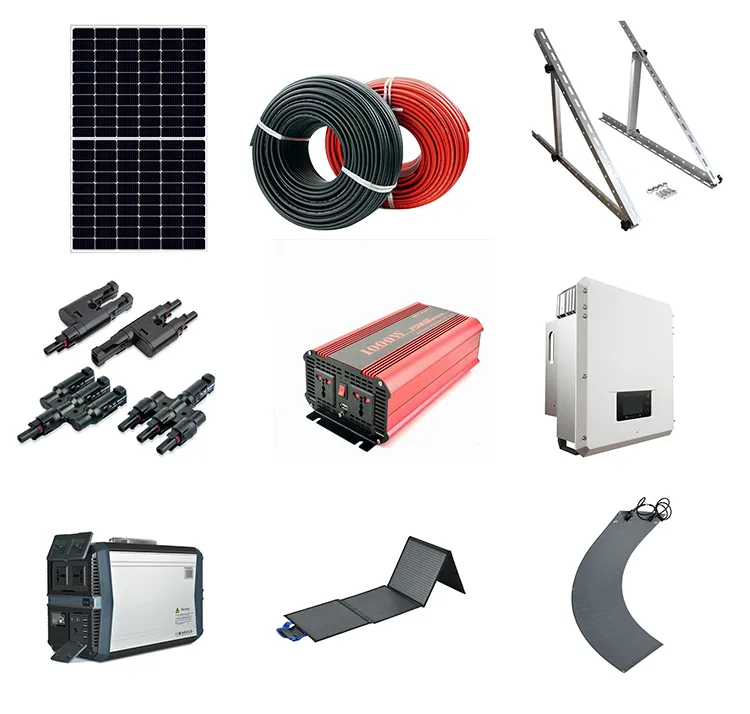

Product Display & Related Items

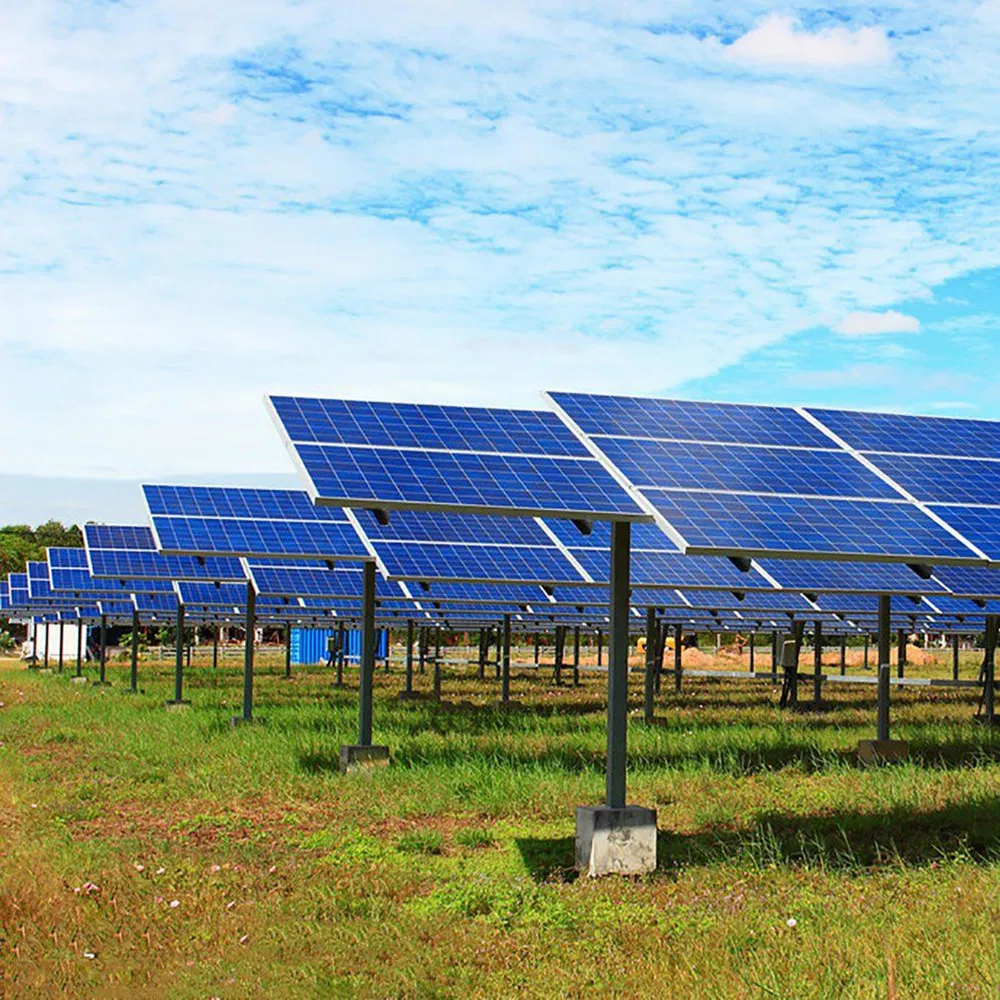

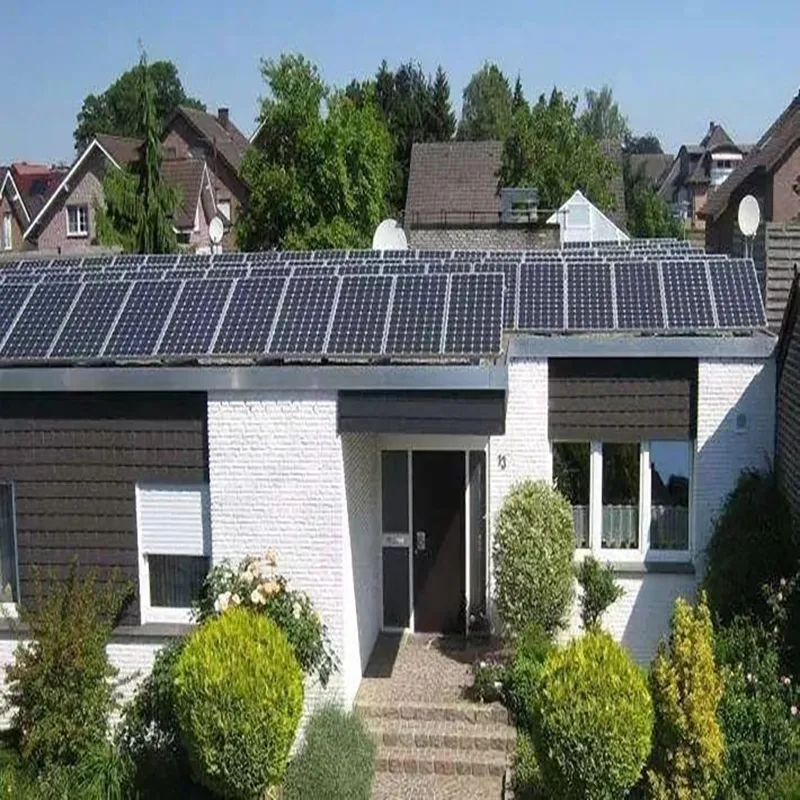

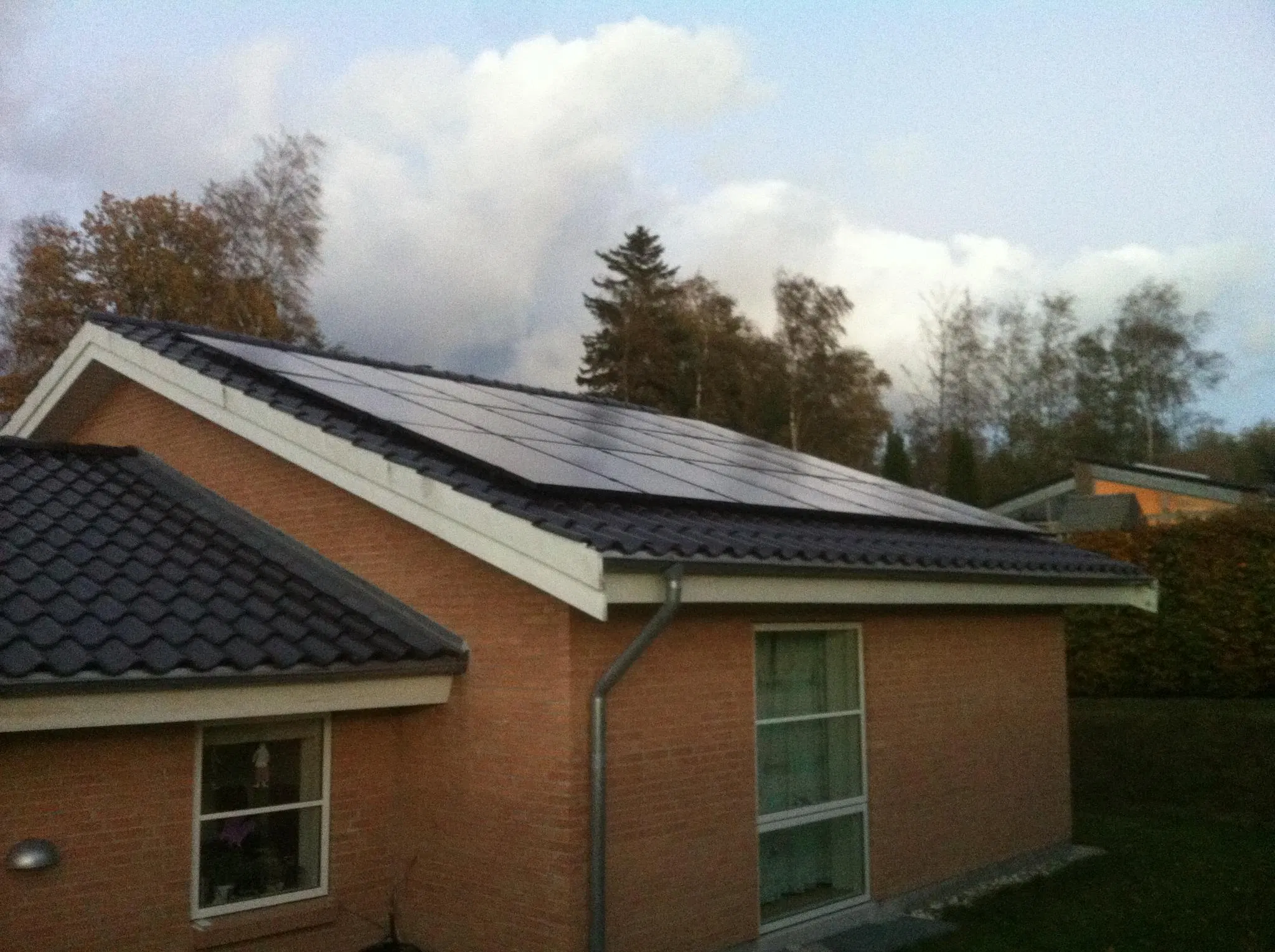

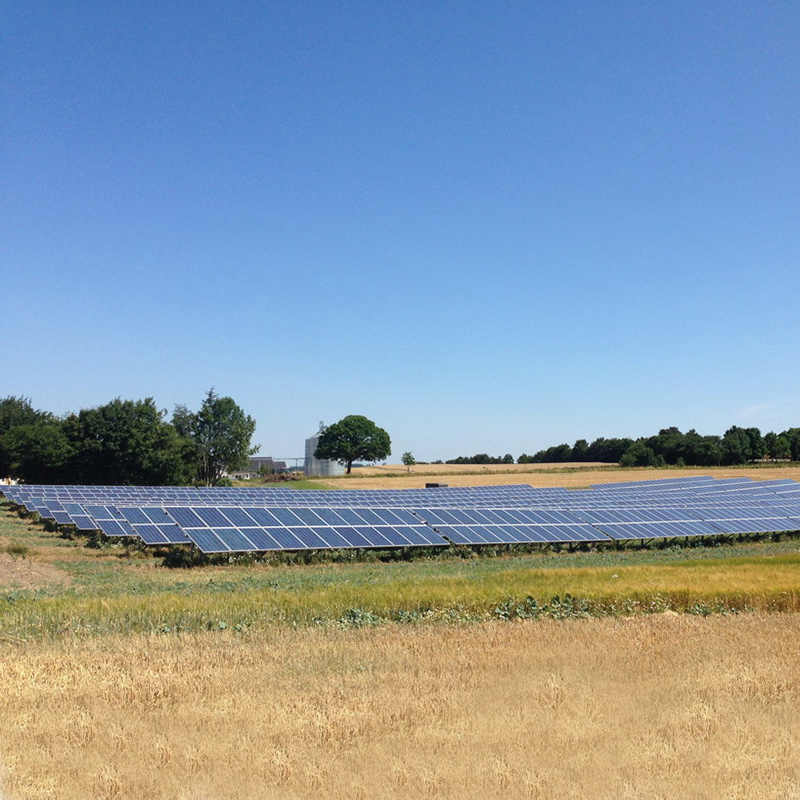

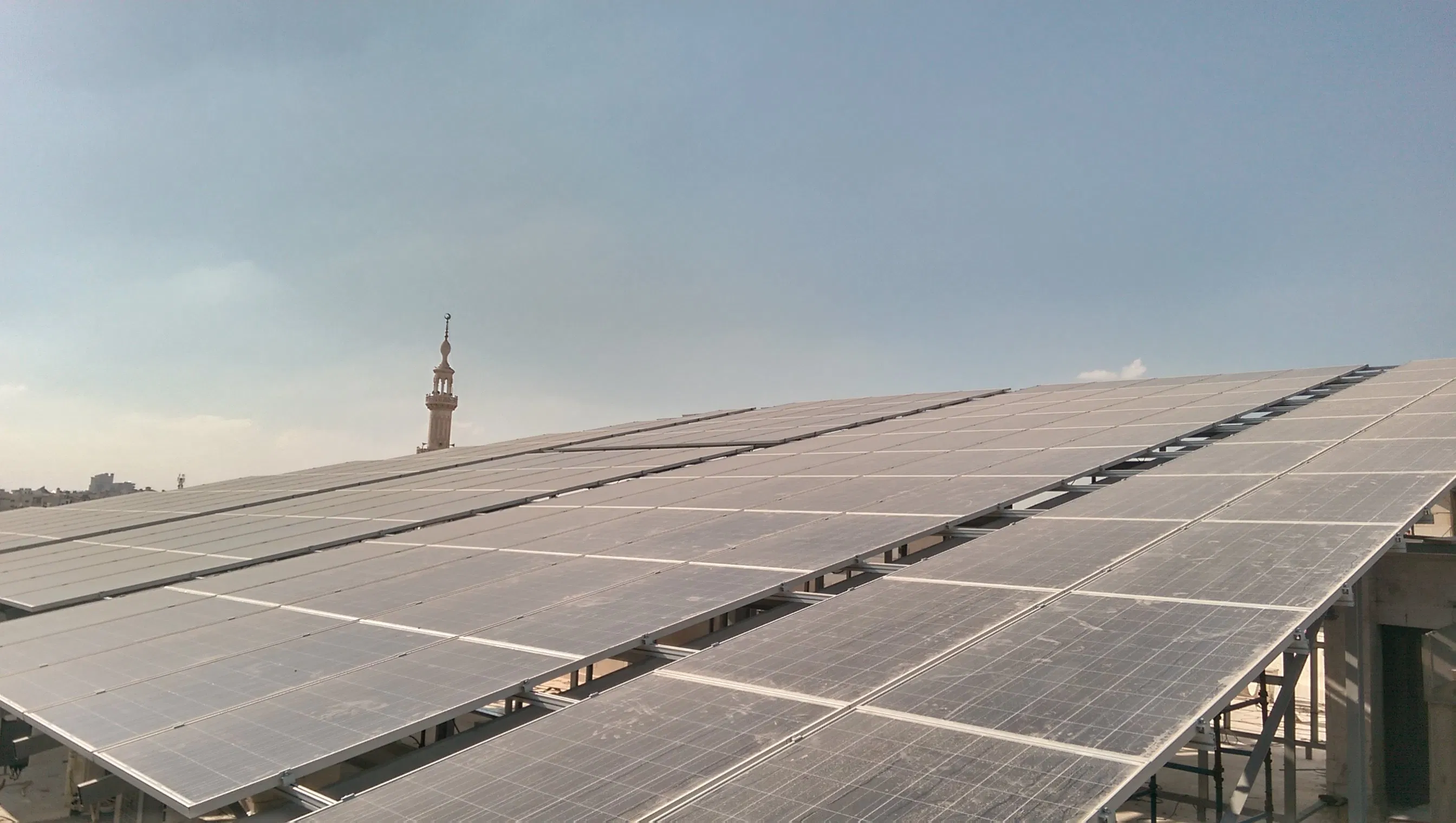

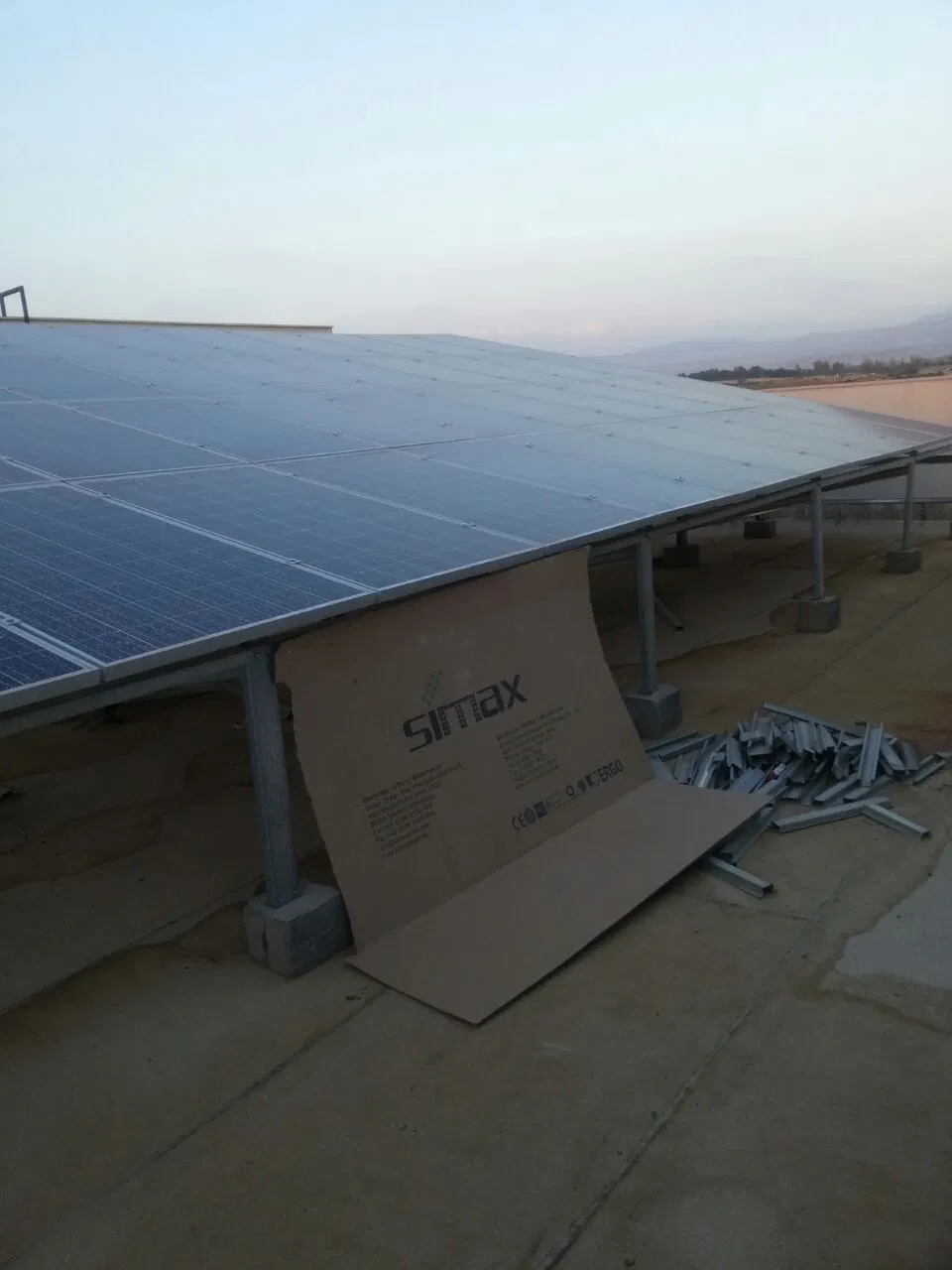

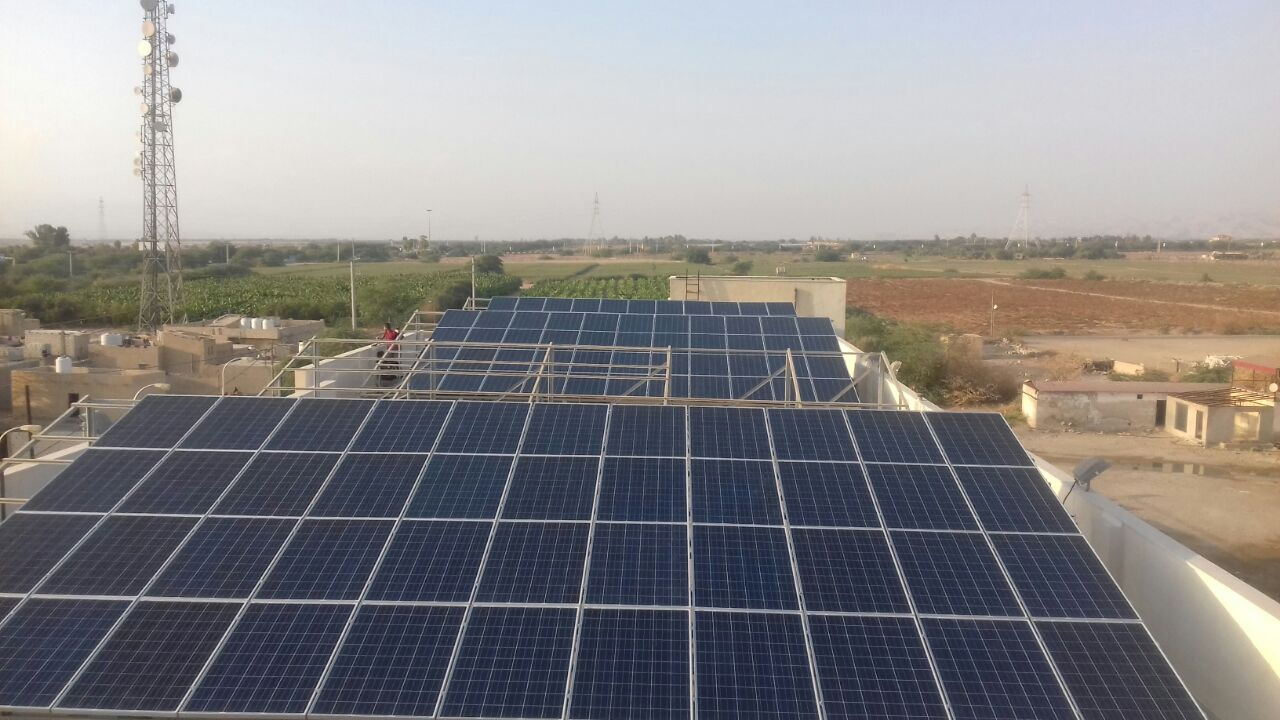

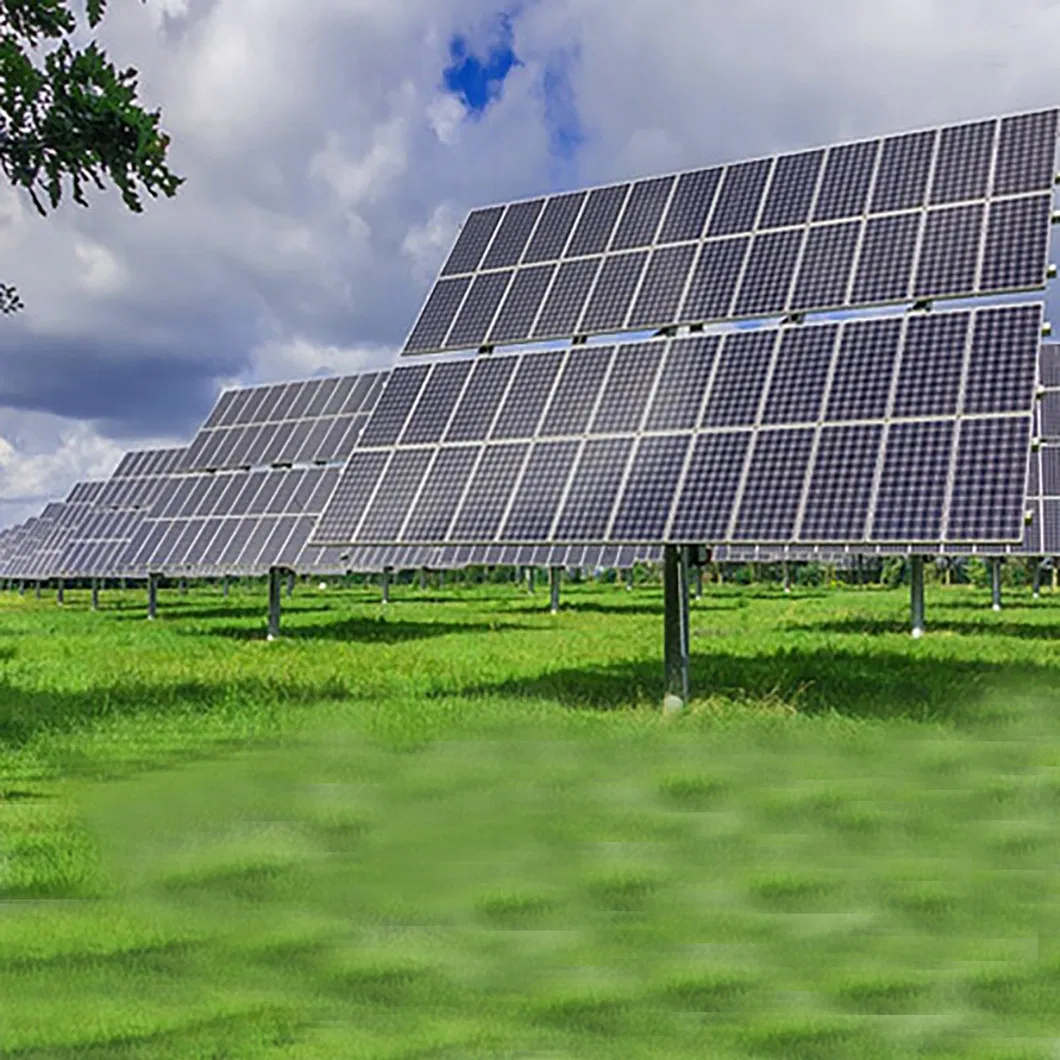

Project Cases
Certifications
Packaging & Logistics

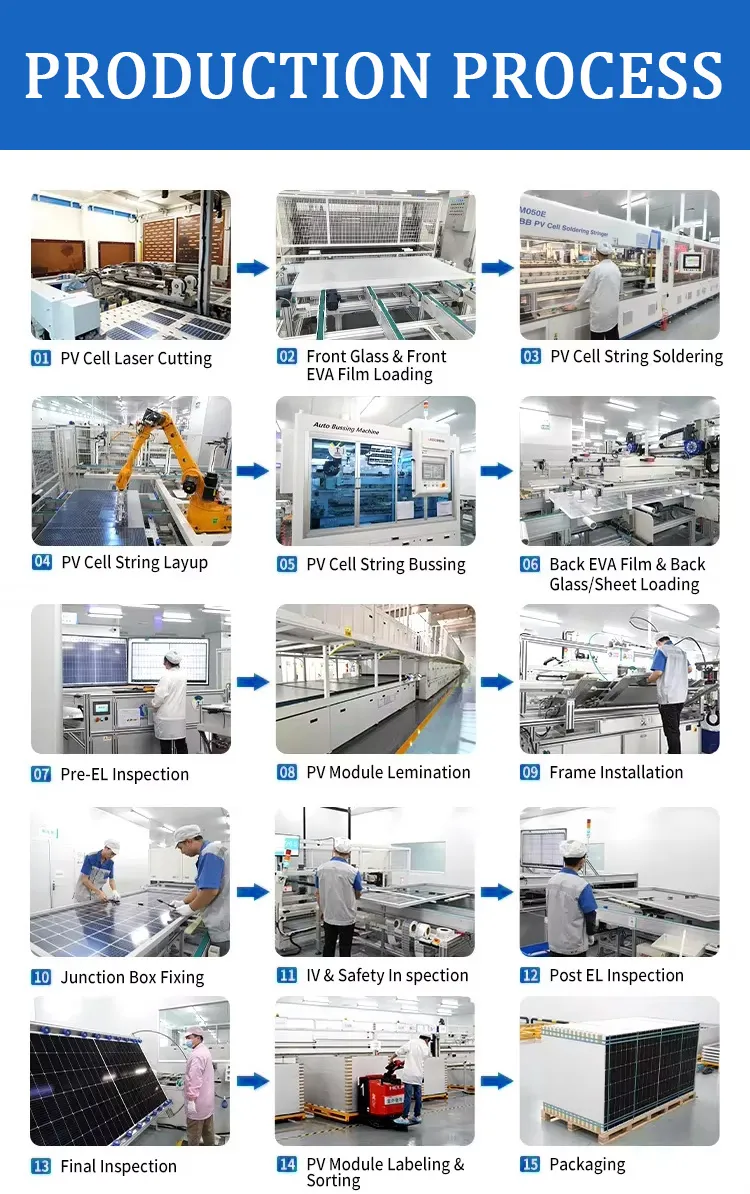

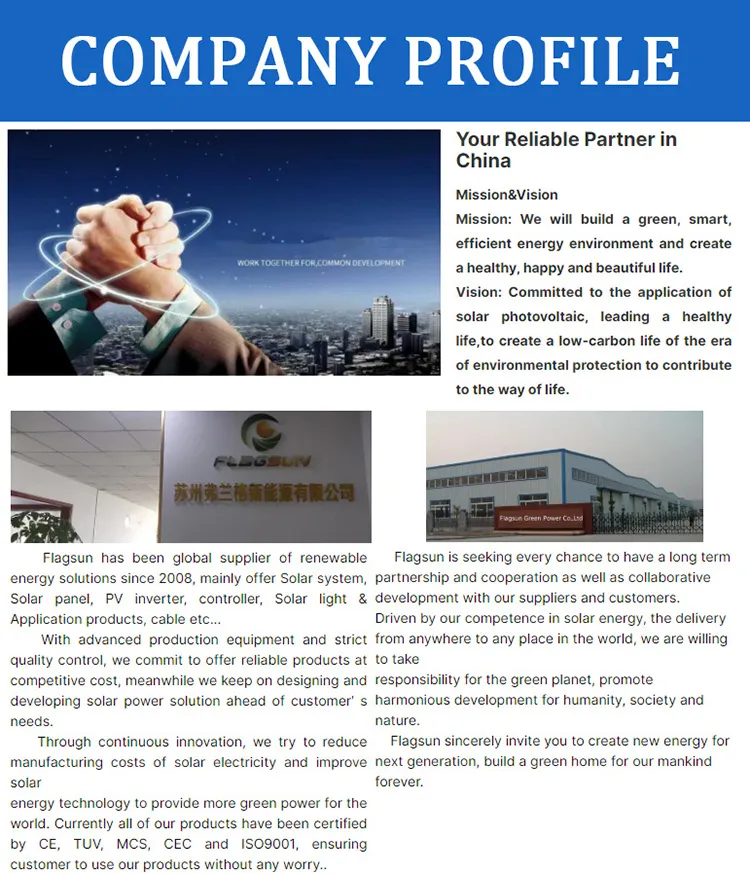

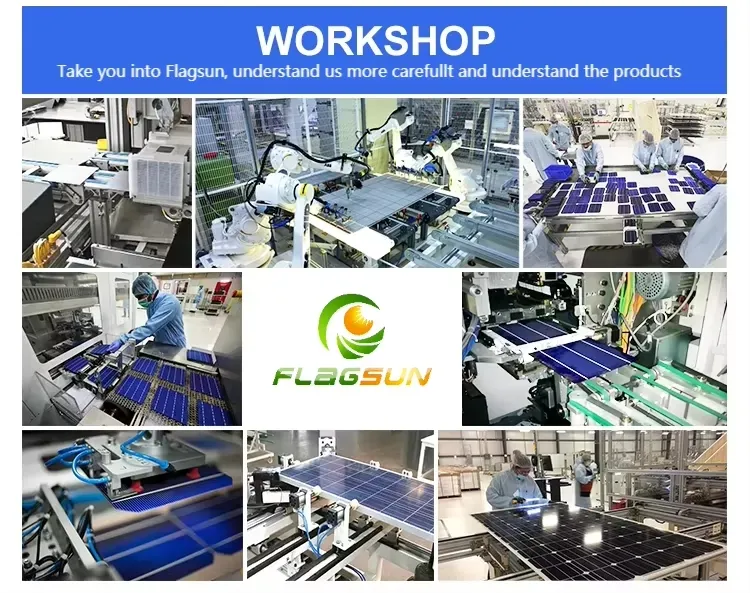

Facility Overview
Our Advantages
⭐
GRADE A SOLAR CELLS:
To ensure all are high efficient grade A solar cells.
🛡️
HIGH QUALITY:
Fully automated production processes, each solar panel is tested strictly.
💰
PRICE ADVANTAGES:
Good price, low cost as industry chain integration with scale effect.
🛠️
AFTER-SALES ADVANTAGES:
24 hours service on line, timely and fastly solve problems.
🏭
FACTORY ADVANTAGES:
More than 10 years experience in PV industry, with 25,000 square meters production base.
Frequently Asked Questions
Q1: What is the warranty period for the solar tracking system?
A: We provide a 10-year product warranty and a 25-year linear power output warranty.
Q2: How can I get the best price quote?
A: Please provide detailed requirements including power capacity, preferred materials, and order quantity so we can suggest the most suitable solution.
Q3: Are sample orders available for testing?
A: Yes, we welcome sample orders to test and check the quality. Mixed samples are also acceptable.
Q4: What is the process for placing an order?
A: First, let us know your requirements. Second, we quote based on those needs. Third, the customer confirms samples and deposits for the formal order. Finally, we arrange production.
Q5: Can I customize products with my own logo?
A: Yes, please inform us formally before production and confirm the design based on our sample.
Q6: How do you guarantee the quality of your products?
A: We have a professional product quality inspection team to ensure low defective rates and provide a comprehensive after-sales support system.
