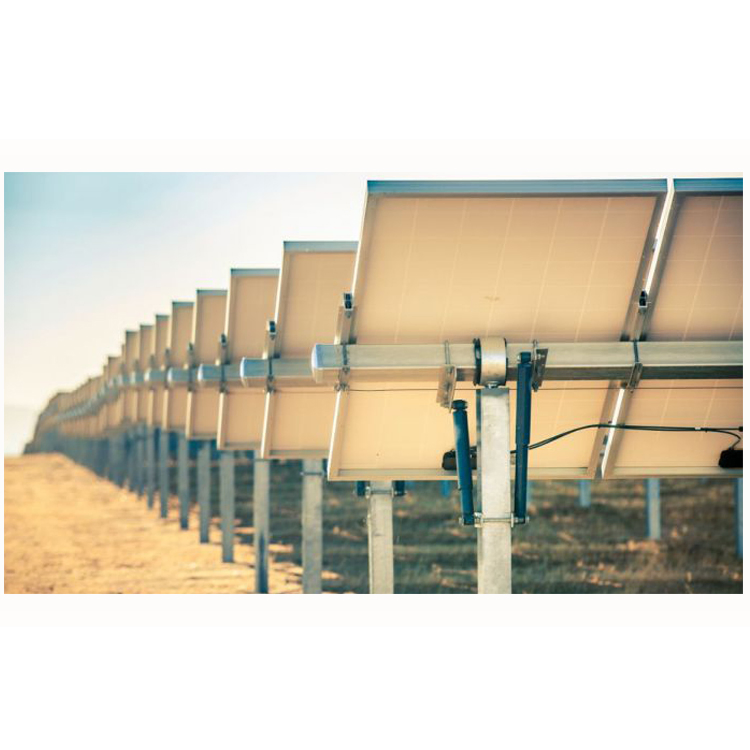

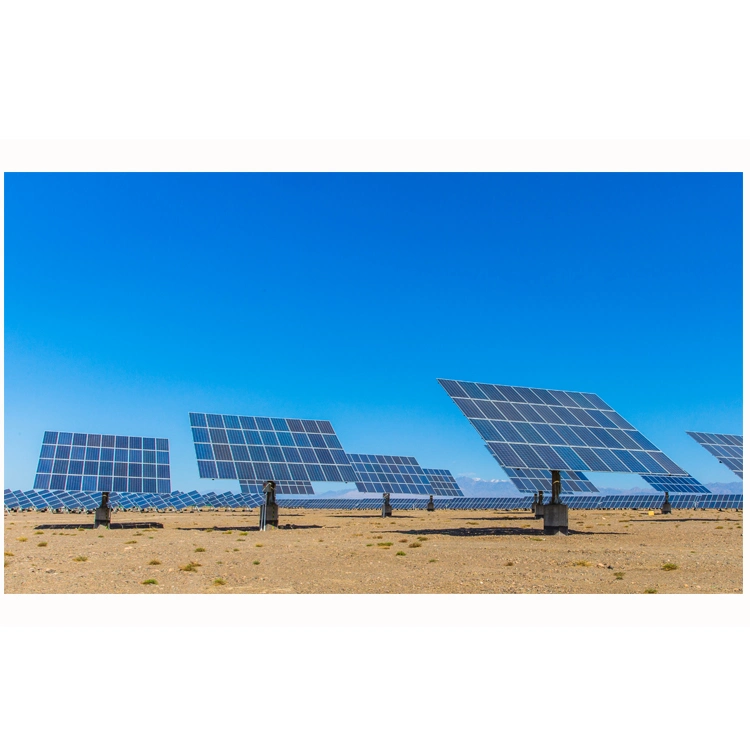

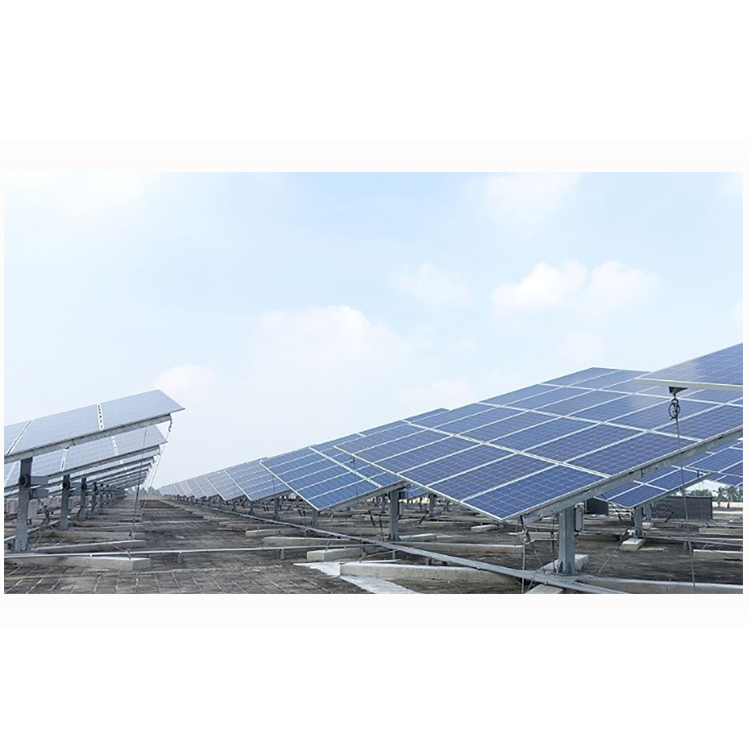

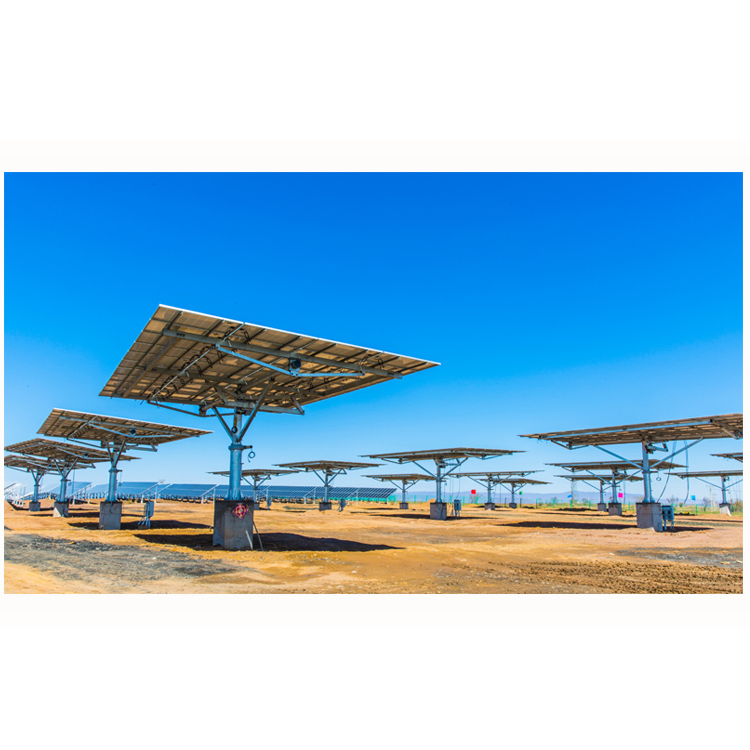

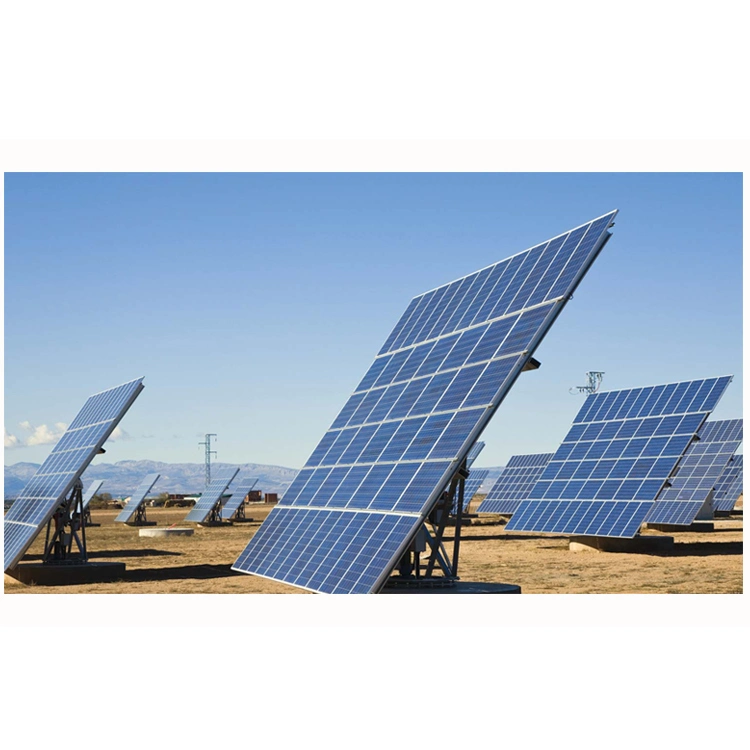

Automatic PV 2-Axis Solar Panel Mounting Tracker Sunlight Solar Tracking System Dual Axis
Automatic PV 2-Axis Solar Panel Mounting Tracker Sunlight Solar Tracking System Dual Axis
Automatic PV 2-Axis Solar Panel Mounting Tracker Sunlight Solar Tracking System Dual Axis
Automatic PV 2-Axis Solar Panel Mounting Tracker Sunlight Solar Tracking System Dual Axis
Automatic PV 2-Axis Solar Panel Mounting Tracker Sunlight Solar Tracking System Dual Axis
1 / 5
Automatic PV 2-Axis Solar Panel Mounting Tracker Sunlight Solar Tracking System Dual Axis
Automatic PV 2-Axis Solar Panel Mounting Tracker Sunlight Solar Tracking System Dual Axis
Automatic PV 2-Axis Solar Panel Mounting Tracker Sunlight Solar Tracking System Dual Axis
Automatic PV 2-Axis Solar Panel Mounting Tracker Sunlight Solar Tracking System Dual Axis
Automatic PV 2-Axis Solar Panel Mounting Tracker Sunlight Solar Tracking System Dual Axis

Automatic PV 2-Axis Solar Panel Mounting Tracker Sunlight Solar Tracking System Dual Axis

Customization: Available
Certification: ISO9001
Wind Load: up to 60m/S, up to 60m/S
Send Inquiry

Product Description

Basic Specifications
Model NO.
SF-ST001
Working Temp.
-30°C ~ 65°C
Snow Load
1.4kn/M2
System Type
PV System Tracking Structure
Warranty
10 Years (25 Years Service Life)
Material
Anodized Aluminum
Tracking Range
X-Axis ±120°, Y-Axis 0-60°
Drive System
Slewing Drive

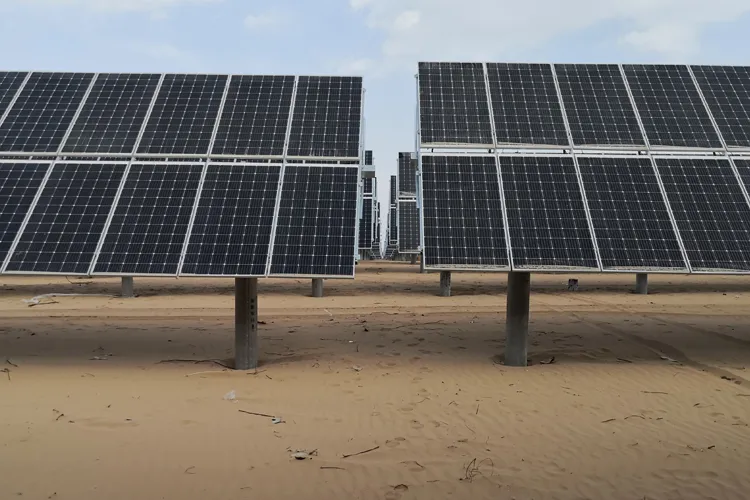

Dual Axis Solar Tracking System
Product Overview
Dual Single Axis Tracker

The solar tracking system is one of the most promising product technology trends in solar today, which helps users maximize power generation. It boosts solar power system production by continuously optimizing the tracking algorithm of each individual row in response to site features and changing weather conditions.

Key Features
  • Weight-lifting structure with 5 supporting points, combining a shaped table design with a four-link age structure driven by a slewing drive.
  • Eliminates water wave effects to prevent wind impact on the structure, reducing quiver and ensuring maximum output efficiency.
  • Reasonable stable distribution with lower steel structure costs, preventing structural deformation.
  • High landform adaptability with zero land leveling costs, making it ideal for solar agriculture, fishery projects, and diverse applications.
  • Easy installation and maintenance design to significantly reduce long-term operational costs.
Technical Specifications
Tracking Structure Data Control System Data
Tracking Tech Dual Single Axis Tracker Control Type MCU
System Voltage 1000V / 1500V Tracking Mode Closed Loop Time + GPS
Working Wind Speed 18m/s (Customizable) Tracking Accuracy <1°
Max Wind Speed 35m/s (Stow Position) Communication Wire / Zigbee / Modbus RTU
Principal Materials HDG Q235B/ Q355B/ ZAM Protection Degree IP65
Drive System Slewing Drive Auto Stow Yes (Night & High Wind)
Structural Details

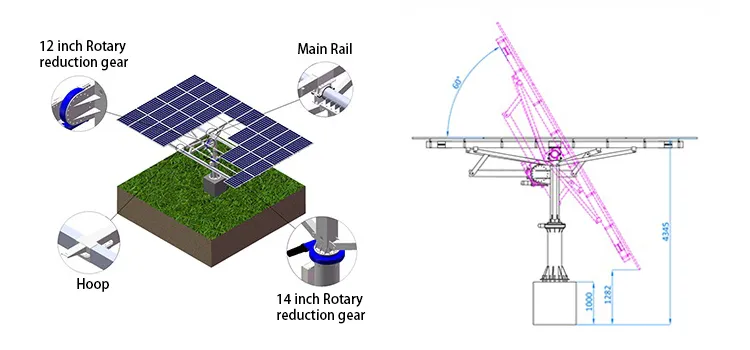

Tracking Structure Diagram

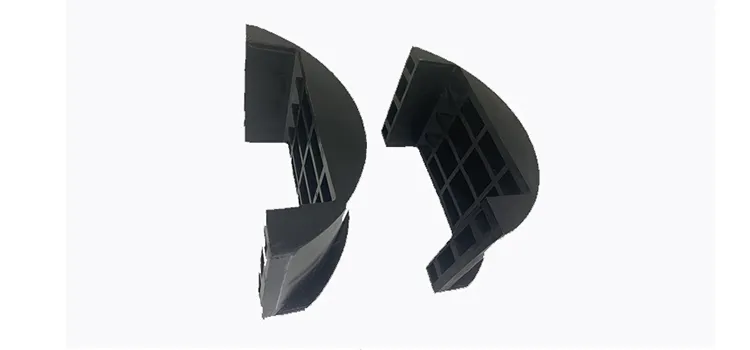

Structural Engineering

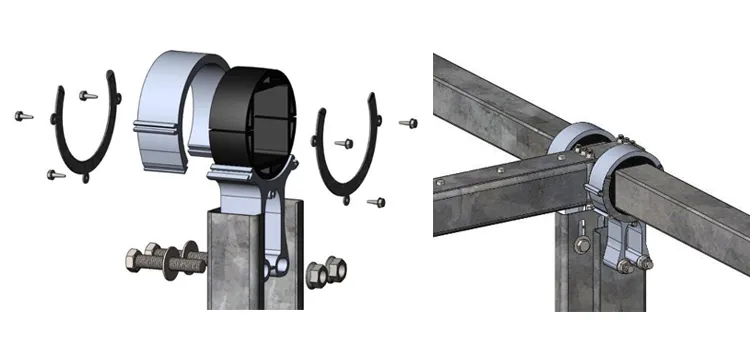

Auxiliary Components

Auxiliary Tube System

Packing and Delivery

Professional Packaging

Project Gallery & Certification

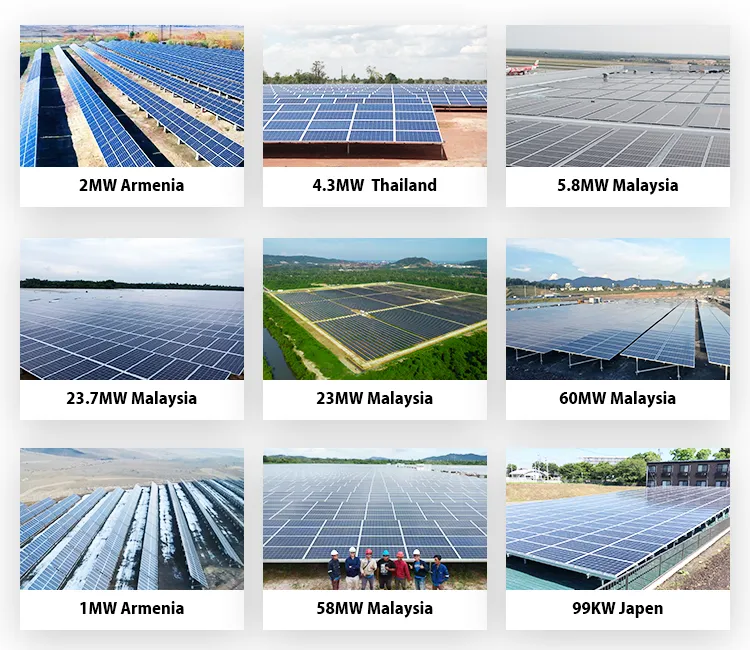

Solar Project Installation
Quality Certifications
Exhibition Display
Frequently Asked Questions
What materials are used for the tracking structure?
The system primarily uses Anodized Aluminum and High-Degree Galvanized (HDG) steel (Q235B/Q355B/ZAM) to ensure durability and corrosion resistance.
What is the warranty and expected service life?
We provide a 10-year warranty on the structure, with an overall engineering design service life of 25 years.
How does the system handle extreme weather like high winds?
The system features an automatic stow mode that activates during high winds (up to 35m/s) to protect the panels and structure from damage.
Is the tracking system customizable for specific site requirements?
Yes, customization is available based on detailed drawings, including adjustments for wind speed capacity and module arrangements.
What is the tracking accuracy and control method?
The system utilizes an MCU controller with Closed Loop Time Control and GPS, achieving a high tracking accuracy of less than 1 degree.
What is the typical lead time for orders?
Delivery time generally depends on the order quantity, but standard orders typically take approximately 10 working days.
