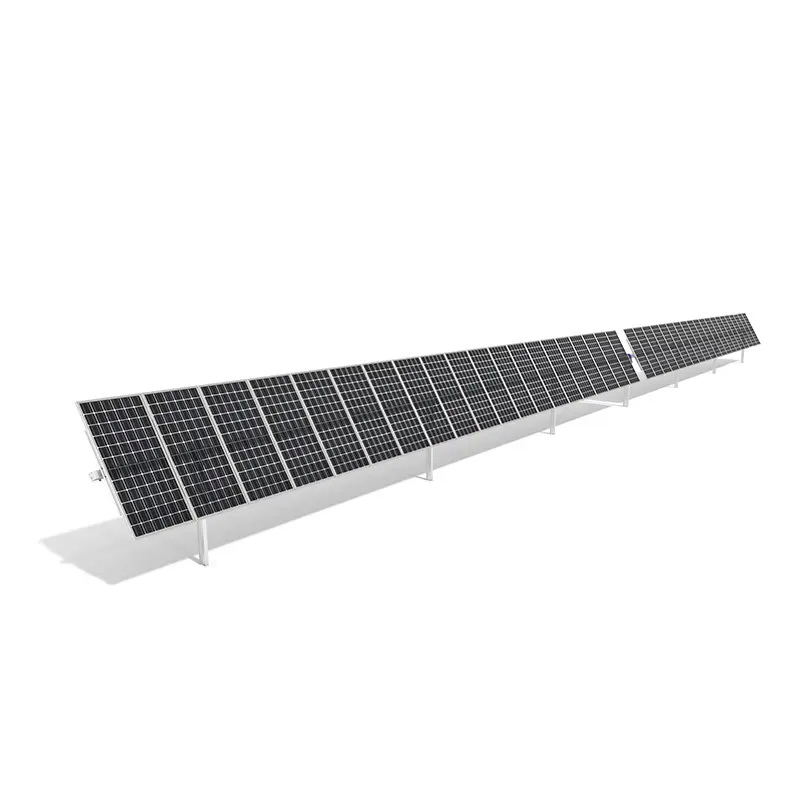

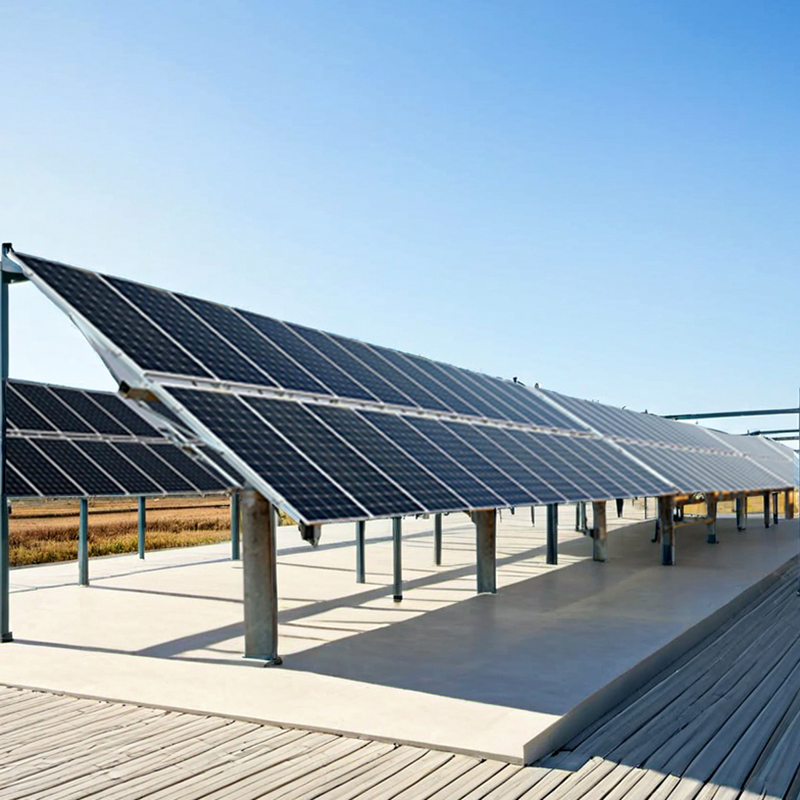

High Precision Automatic Solar Tracking System for Efficient Energy Harvesting
High Precision Automatic Solar Tracking System for Efficient Energy Harvesting
High Precision Automatic Solar Tracking System for Efficient Energy Harvesting
High Precision Automatic Solar Tracking System for Efficient Energy Harvesting
High Precision Automatic Solar Tracking System for Efficient Energy Harvesting
1 / 5
High Precision Automatic Solar Tracking System for Efficient Energy Harvesting
High Precision Automatic Solar Tracking System for Efficient Energy Harvesting
High Precision Automatic Solar Tracking System for Efficient Energy Harvesting
High Precision Automatic Solar Tracking System for Efficient Energy Harvesting
High Precision Automatic Solar Tracking System for Efficient Energy Harvesting

High Precision Automatic Solar Tracking System for Efficient Energy Harvesting

Customization: Available
After-sales Service: Yes
Warranty: 25 Years
Send Inquiry

Product Description

📊 Overview & Basic Info
Model NO.
SAST
Certification
ISO, TUV, CE
Application
Industrial
Material
Stainless Steel
Type
Tracking Bracket
Product Name
Single Axis Solar Tracker
Module Size
1956*992*40mm
Weight
1300kg
Scope of Rack
100~200m2
Power Supply
110V / 220V
Protection Level
IP65
Communication
RS485
📦 Packaging & Delivery
Package Size
200.00cm * 104.00cm * 8.00cm
Package Gross Weight
1300.000kg
Transport Package
Standard Carton
Production Capacity
100000 Watts Per Month
⚙️ Product Parameters
Tracker Structure Tracking Controller
Solar Panel Type1650*992*35mm (78 Cells) Controller TypeMCU (32bit)
Number Of Solar Panels60 PCS Control AlgorithmAstronomical Algorithm + Sensor Closed Loop
Ground Clearance400 mm Wind ProtectionAvailable
Safe Working Wind Speed17 m/s Tracking Accuracy≤±2°
Survival Wind Speed37m/s (Customizable <60m/s) Protection LevelIP65
Bracket MaterialHot-Dip Galvanized Steel System VoltageDC24
Mechanical Design Life>25 Years Working Temp-30ºC to +70ºC
Tracking Range (X)-45° to +45° Tracking Range (Y)-60° to +60°
🔍 Product Description

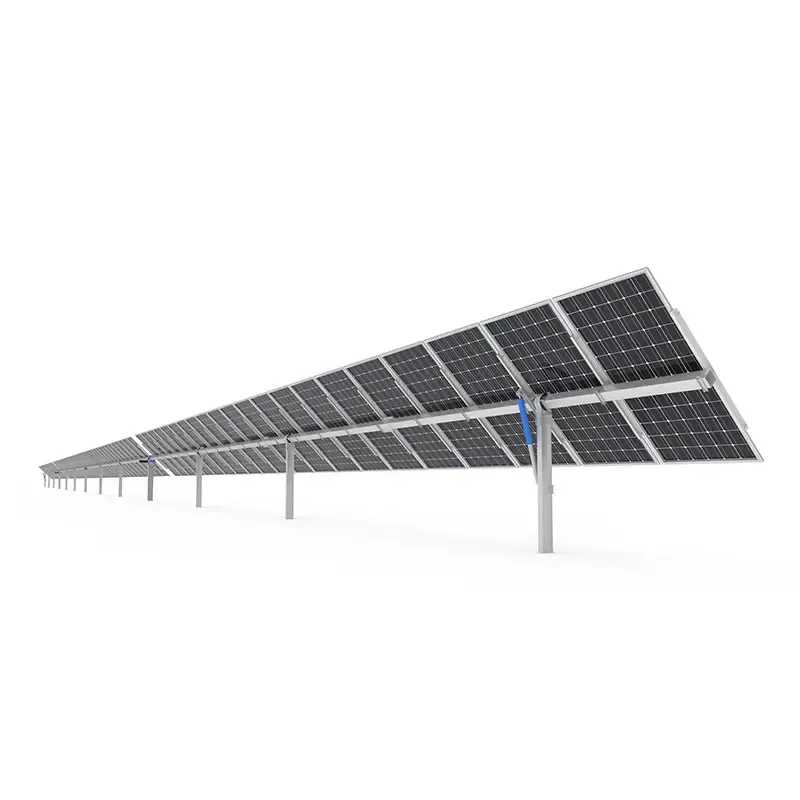

Solar Tracker Detail 1 Solar Tracker Detail 2 Solar Tracker Detail 3

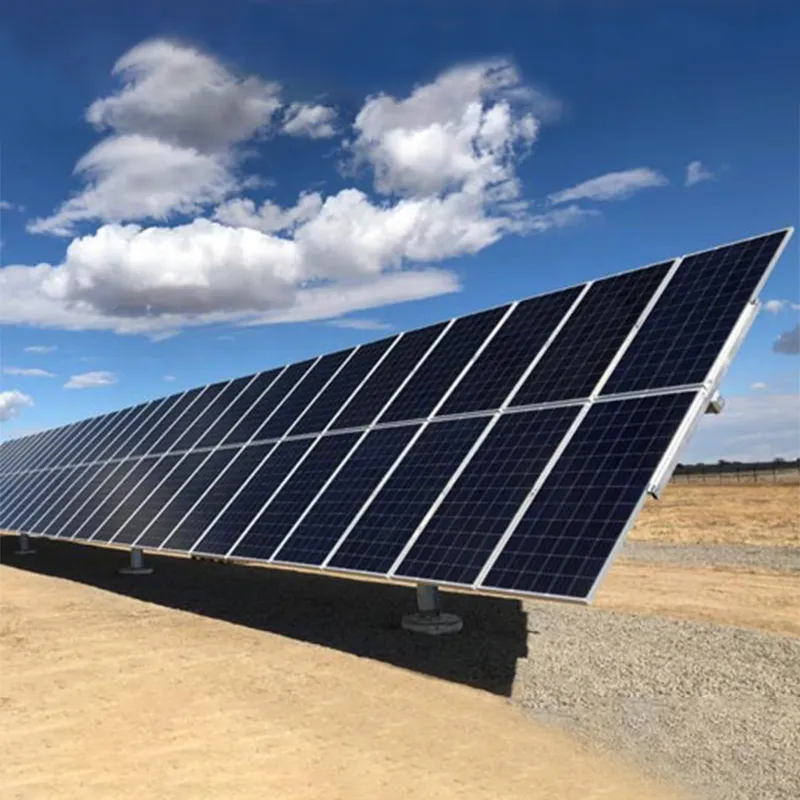

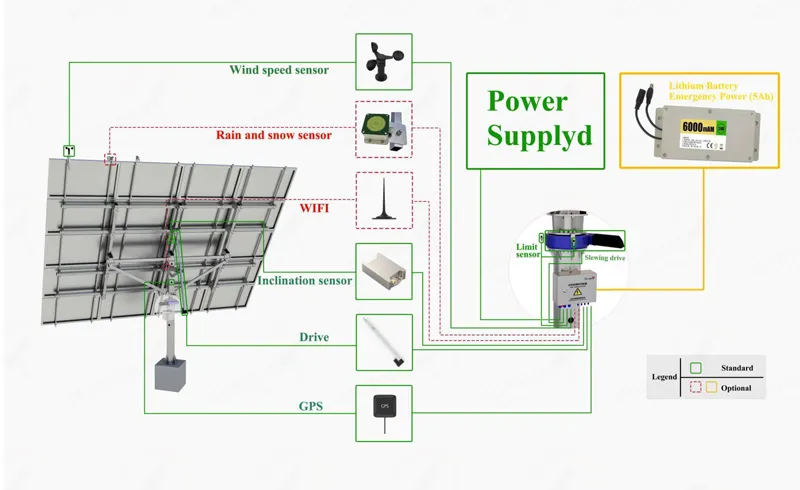

Solar Tracker Detail 4 Solar Tracker Detail 5
💡 Application Areas
Application Area
🏢 Professional Facilities

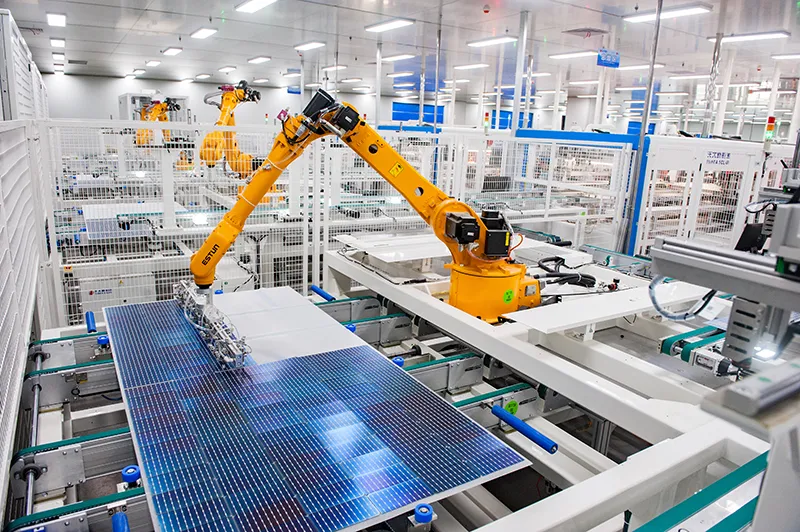

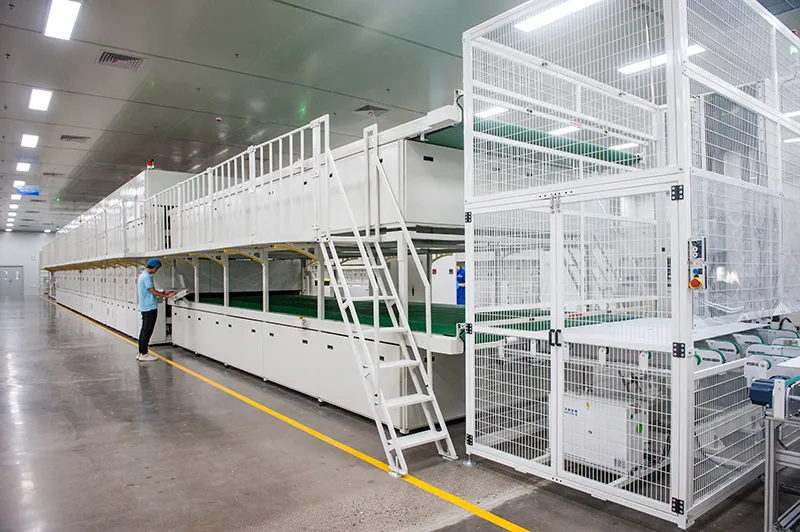

Factory 1 Factory 2

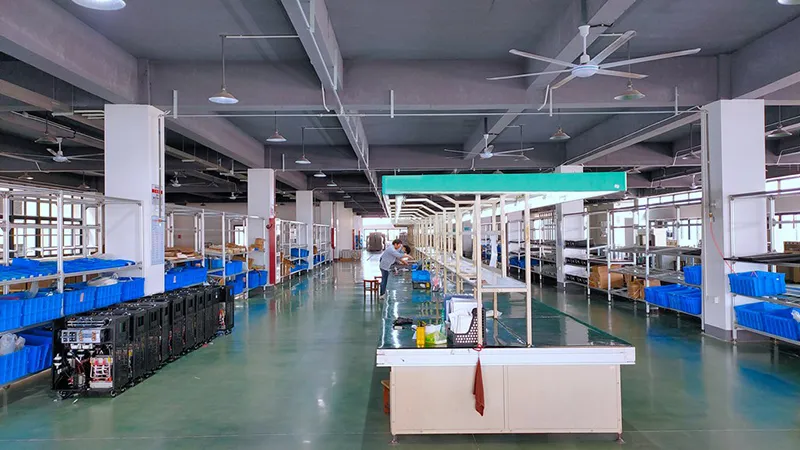

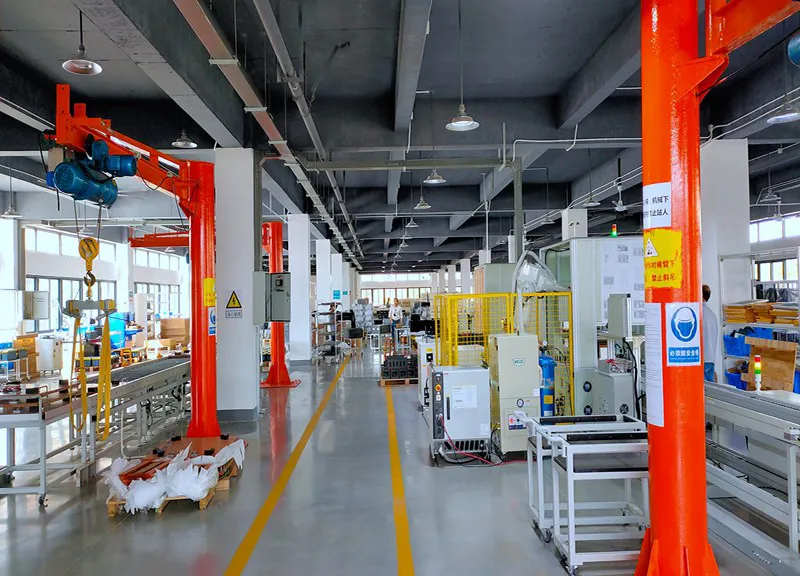

Office Facility Workshop
🛠️ Project Cases

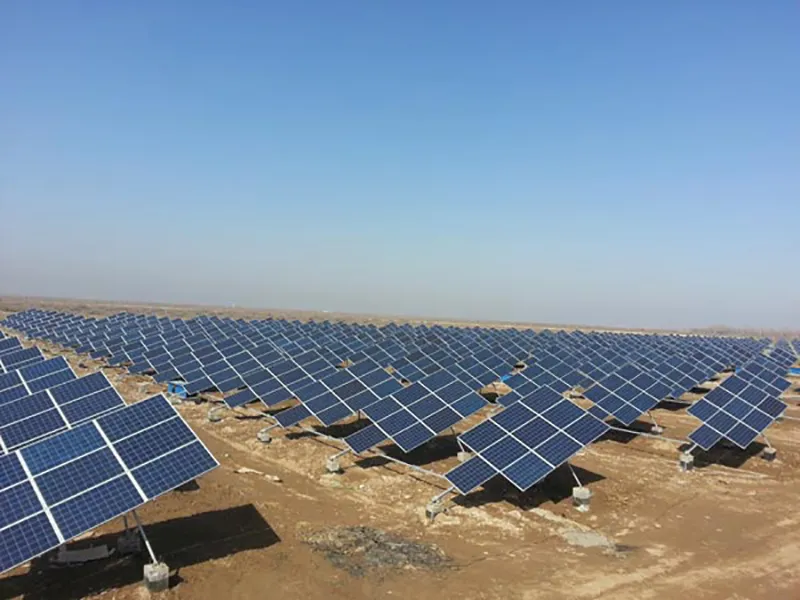

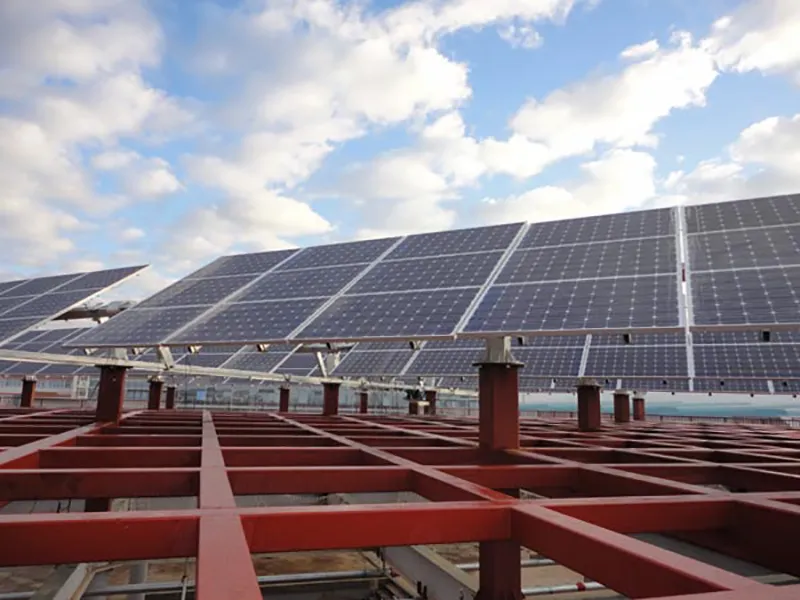

Project Case 1 Project Case 2 Project Case 3

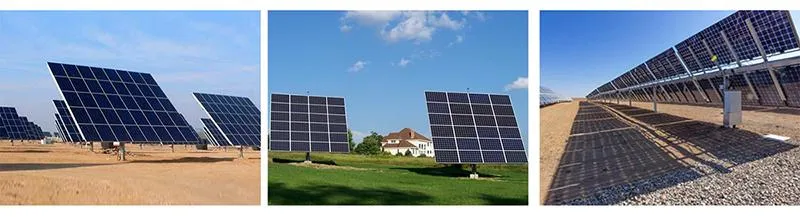

Project Case Wide
✅ Certifications
Quality Certifications
❓ Frequently Asked Questions
1. What are the advantages of a Single Axis Solar Tracker?
Single axis trackers increase energy production by 20% to 30% compared to fixed-tilt systems by following the sun's trajectory throughout the day, ensuring optimal light absorption.
2. How does the system protect itself during high winds?
The system features an automatic wind protection mode. When wind speeds exceed safe limits (17 m/s), the controller moves the panels to a horizontal "stow" position to minimize wind load.
3. What is the maintenance requirement for the SAST model?
The SAST model is designed for durability with IP65 protection and hot-dip galvanized steel. Routine maintenance is minimal, primarily involving periodic inspections of the driving mechanical parts and sensors.
4. Can the tracking system operate in extreme weather conditions?
Yes, the standard working temperature is -30ºC to +70ºC. For extreme environments, we offer customizable solutions that operate from -50ºC up to +85ºC, including optional snow removal modes.
5. What type of tracking algorithm does the system use?
The system utilizes a high-precision astronomical algorithm combined with a position sensor closed-loop control to ensure a tracking accuracy of ≤±2°.
6. Does the tracker return to its starting position at night?
Yes, the system includes a "Night Return Mode" which automatically resets the panels to the east-facing position after sunset, ready for the next morning's sun.
