Space Efficiency Compact Design MPPT Tracking Solar Power System
Space Efficiency Compact Design MPPT Tracking Solar Power System
Space Efficiency Compact Design MPPT Tracking Solar Power System
Space Efficiency Compact Design MPPT Tracking Solar Power System
Space Efficiency Compact Design MPPT Tracking Solar Power System
1 / 5
Space Efficiency Compact Design MPPT Tracking Solar Power System
Space Efficiency Compact Design MPPT Tracking Solar Power System
Space Efficiency Compact Design MPPT Tracking Solar Power System
Space Efficiency Compact Design MPPT Tracking Solar Power System
Space Efficiency Compact Design MPPT Tracking Solar Power System

Space Efficiency Compact Design MPPT Tracking Solar Power System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
WON-SPS-01
Rated Power
500W/1.5kw/3kw/6kw
Solar Controller
MPPT
Certification
ISO, CB, CE, RoHS
Battery Type
Lead Acid /Lithium/Iron Lithium
Application
Home, Industrial, Commercial
Transfer Time
<=4ms
Solar Panel Lifespan
25 Years
Battery Lifespan
6 Years
AC Input Range
165VAC-265VAC
Display
LCD
Efficiency
>85%
Key Product Features

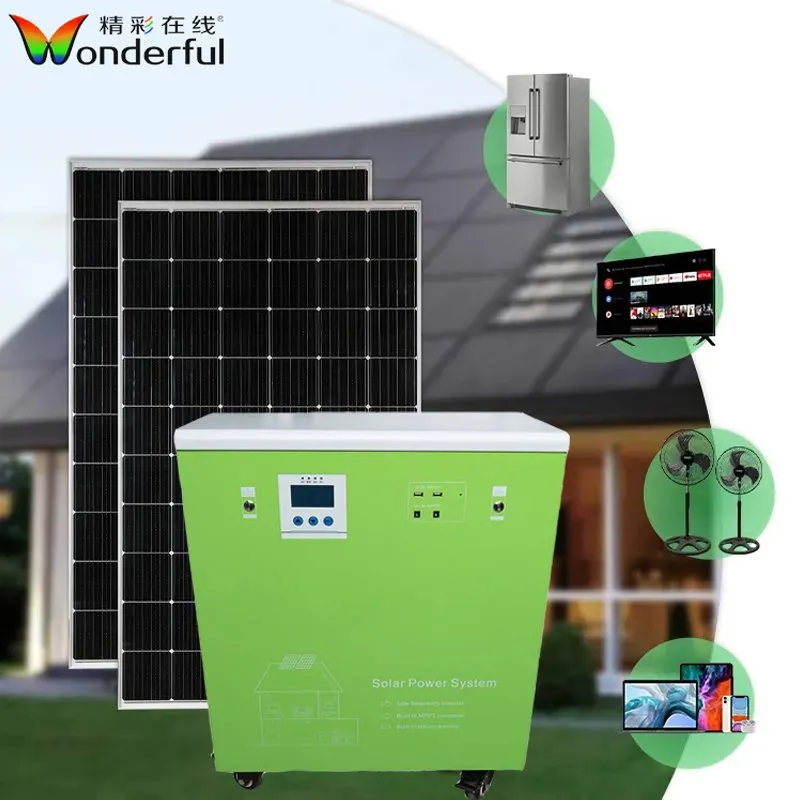

Compact Solar Power System
⚡
All-in-One Design: Built-in inverter, controller, and battery for easy installation and use.
🔄
Hybrid Charging: Supports both solar and grid charging; full charge in approximately 2-3 hours.
🌊
Pure Sine Wave: Provides continuous, stable power output with no loss to connected loads.
🔋
LiFePO4 Battery: High-performance battery technology with up to 10 years of service life.
🔌
Multiple Outputs: Includes 220V/110V AC, USB DC, and 12V DC for versatile connectivity.
🛡️
Full Protection: Built-in safety against overload, overvoltage, low voltage, and high temperatures.

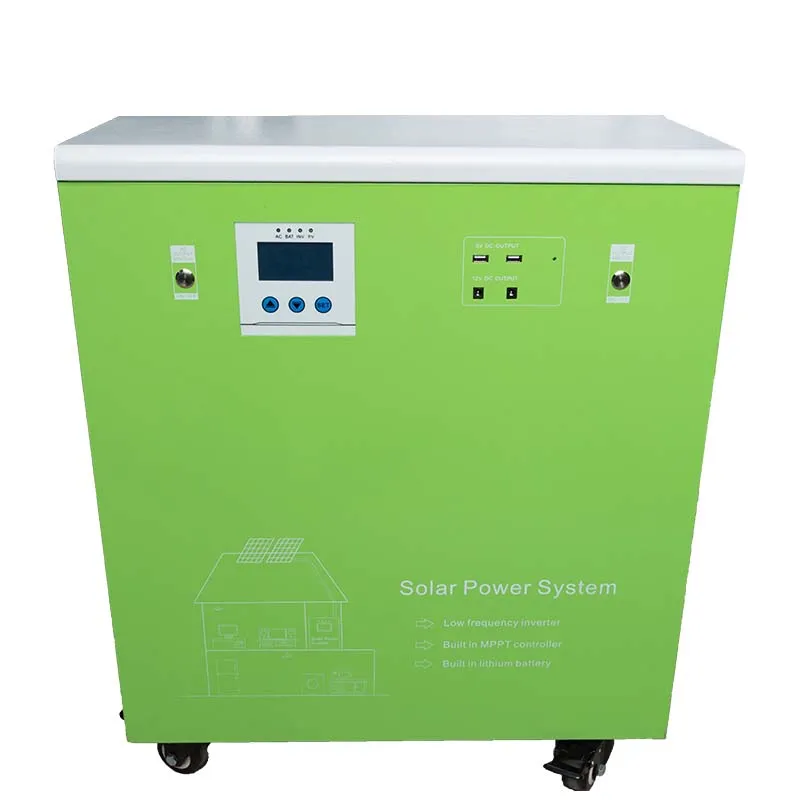

Solar System Detail 1

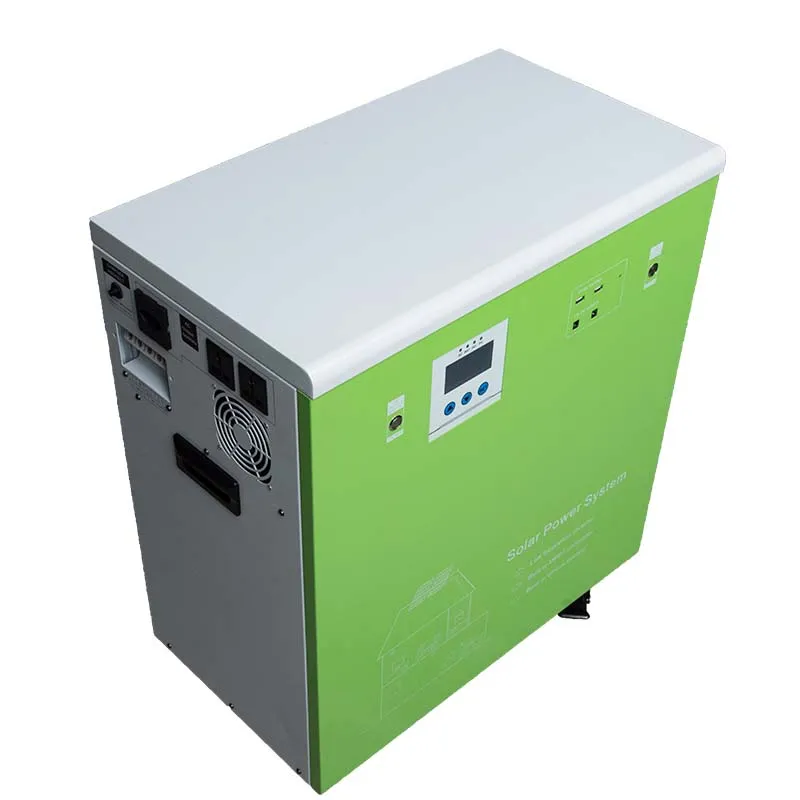

Solar System Detail 2

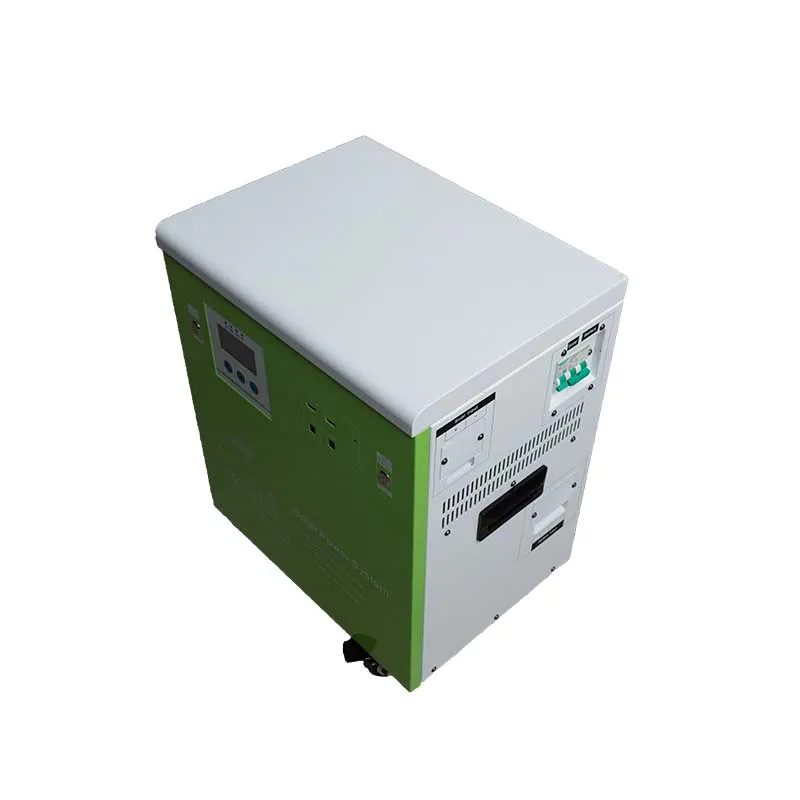

Solar System Detail 3

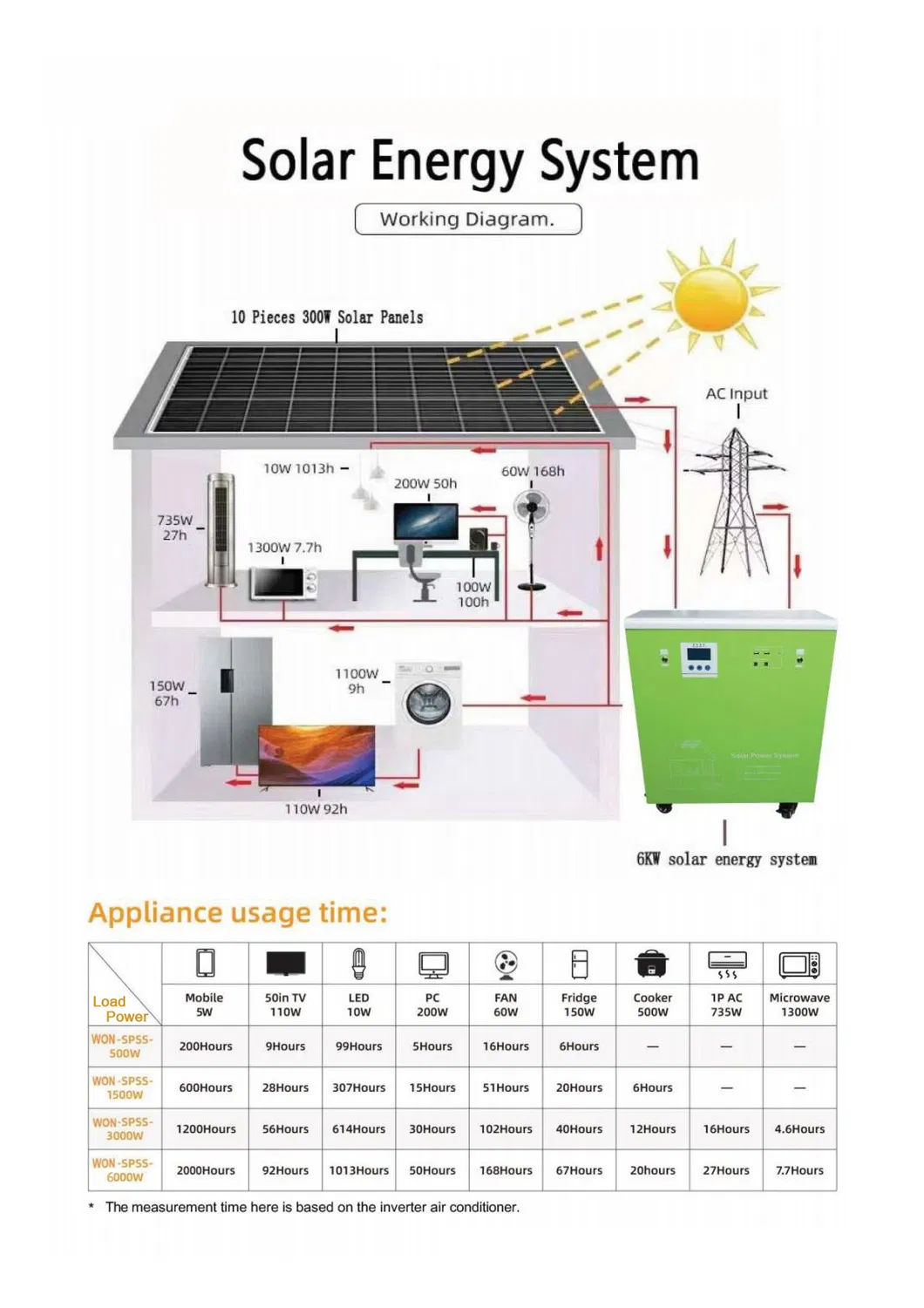

Wiring Diagram
Solar System Wiring Diagram
Technical Specifications
Model Specification 500W 1500W 3000W 6000W
Solar Panel Configuration 100W*2pcs 250W*3pcs 300W*4pcs 300W*8pcs
Charging Mode PWM MPPT MPPT MPPT
Generation/Day 700WH 2600WH 4200WH 8400WH
System Battery Capacity 640WH 2176WH 4352WH 8704WH
Rated Power 500W 1500W 3000W 6000W
Net Weight 22KG 40KG 55KG 98KG
Main Components

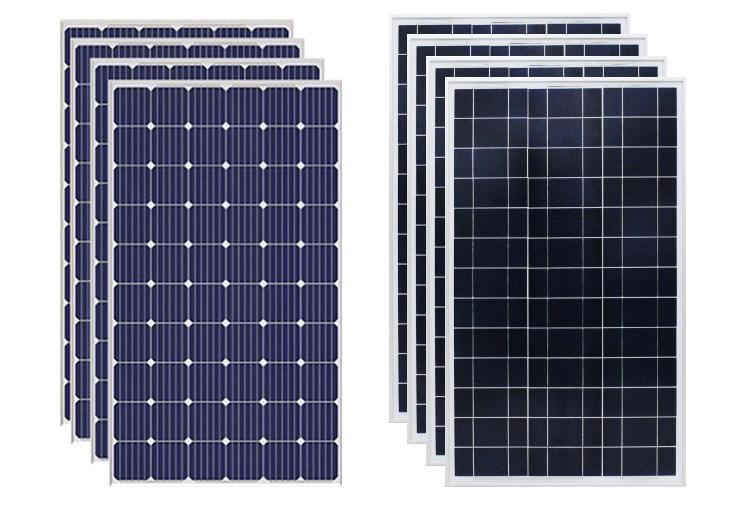

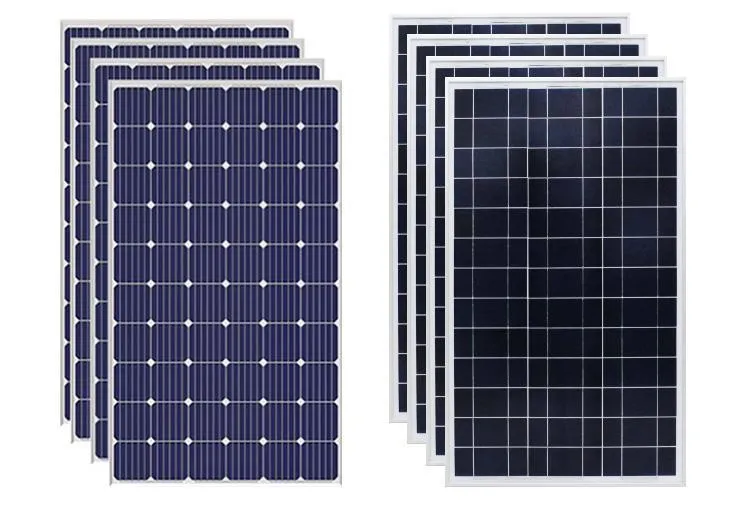

Solar Panels
Solar Panels
  • High efficiency A Grade mono cells (300W)
  • 21% conversion efficiency
  • Anti-reflection tempered glass
  • Anodic aluminium-alloy frame with MC4 junction box
Power Generator Unit
Solar Generator
  • MCU intelligent control technology
  • Settable mains mode and intelligent fan control
  • Pure sine wave AC output with LCD display
  • Automatic protection: Overload and short circuit protection
Mounting & Accessories

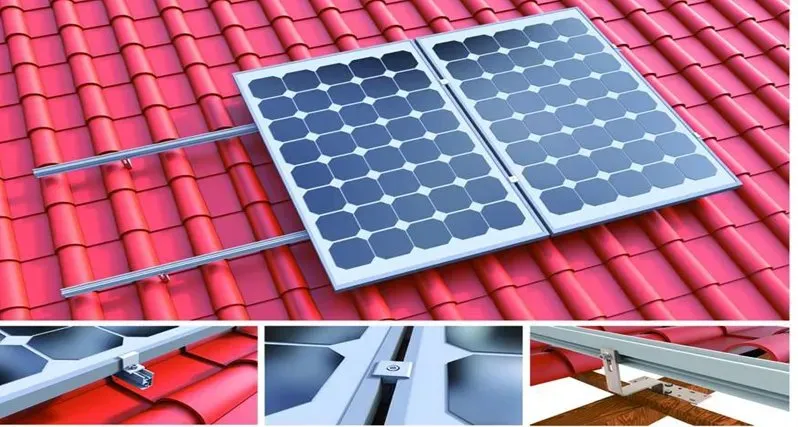

Mounting Structure
Connection Cable
  • Structure for Pitched, Flat, Tile, or Tin Roofs and Ground mounting
  • Wind Load up to 130mph; Snow Load up to 30psf
  • Includes 15m Photovoltaic cable and 10m AC plug

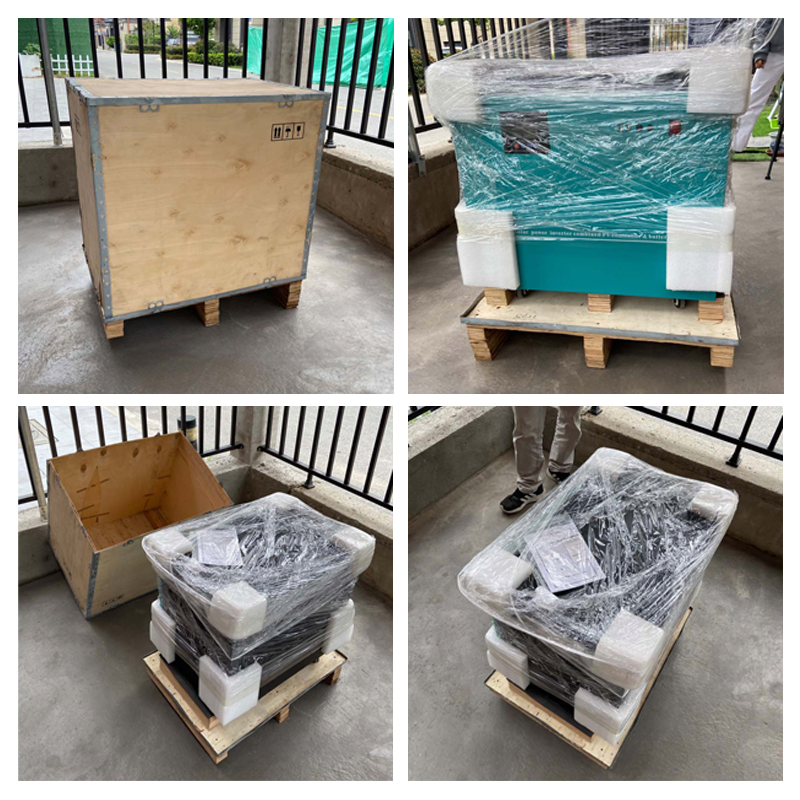

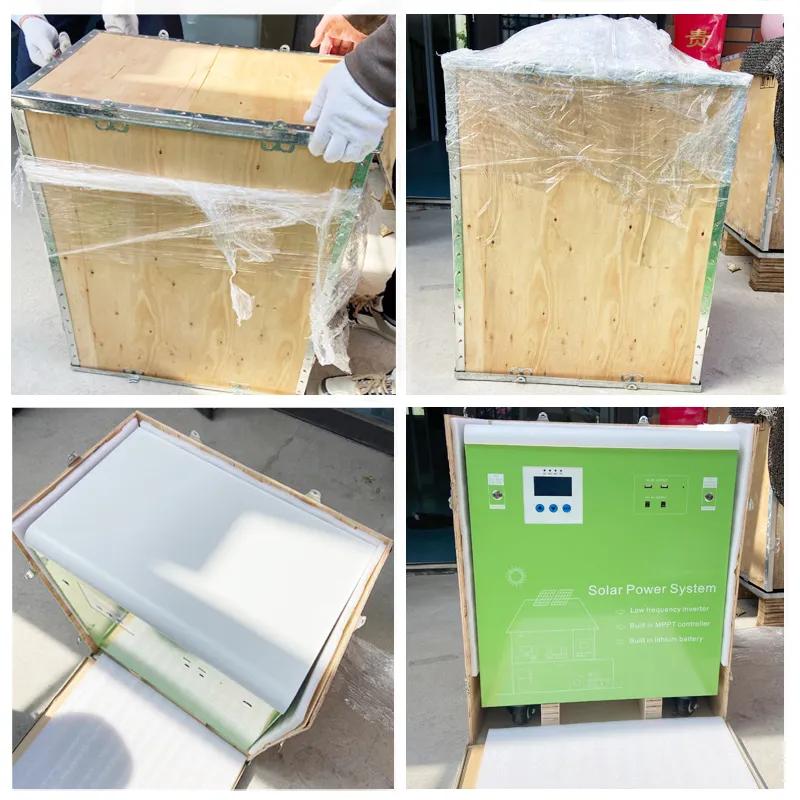

Packing & Shipping
Packing Detail 1
Packing Detail 2
Frequently Asked Questions
What components are included in this solar system?
The system is an all-in-one solution that includes high-efficiency solar panels, a built-in MPPT controller, a pure sine wave inverter, and a long-life LiFePO4 or Lead-acid battery.
How do you ensure product quality?
We maintain strict quality control by providing a pre-production sample before mass production and conducting a final inspection before every shipment.
Can the system be charged via the utility grid?
Yes, the system features a hybrid mode that allows it to be charged by both solar energy and the power grid. Charging time via grid is approximately 2-3 hours.
What is the expected lifespan of the components?
The solar panels are designed for a 25-year lifespan, while the internal batteries typically offer a service life of 6 to 10 years depending on the battery type selected.
What kind of protection does the inverter provide?
The integrated system provides comprehensive protection against overvoltage, low voltage, output overload, high temperature, and short circuits, accompanied by automatic alarms.
What appliances can this system power?
Depending on the rated power (500W to 6KW), it can support a wide range of home, industrial, and commercial applications, including lights, fans, computers, and larger appliances for the higher capacity models.
