Zylo Solar
Zylo Solar
| Parts | Specification | SP5KW | SP6KW | SP8KW | SP10KW | SP12KW |
| Solar Panel | 590W Mono Panel | 6 Pieces | 10 Pieces | 12 Pieces | 16 Pieces | 20 Pieces |
| Hybrid Inverter | Single/Three Phase | 1 pcs 5KW | 1 pcs 6KW | 1 pcs 8KW | 1 pcs 10KW | 1 pcs 12KW |
| LiFePO4 Battery | 48V 5/10KWH | 1 Pieces | 2 Pieces | 2 Pieces | 2 Pieces | 2 Pieces |
| Bracket | Ground/Roof | 1 set | 1 set | 1 set | 1 set | 1 set |
| PV Cables | 4mm² | 100m | 200m | 200m | 200m | 200m |
Note: Product dimensions and physical appearance are nominal. The manufacturer reserves the right to make changes from time to time without prior notification.

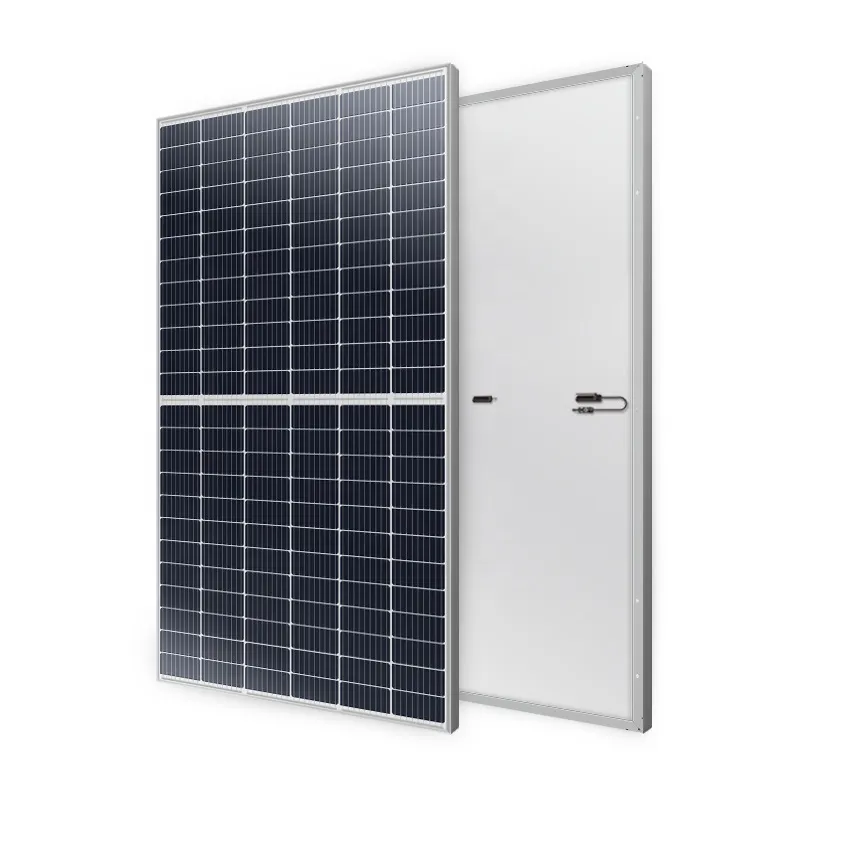

Peak Power Watts: 590W
Maximum Power Voltage: 41.5V
Maximum Power Current: 11.3A
Open Circuit Voltage: 48.5V
Short Circuit Current: 11.96A
Dimensions: 2094*1038*35 mm
Weight: 25 kg
AC 220V/230V/50HZ, Capacity 5.5KW
MPPT voltage range 70-450Vdc
Maximum photovoltaic connection 5.5kwp
Packaging Dimensions: 600*180*420 mm
Gross Weight: 15 KG

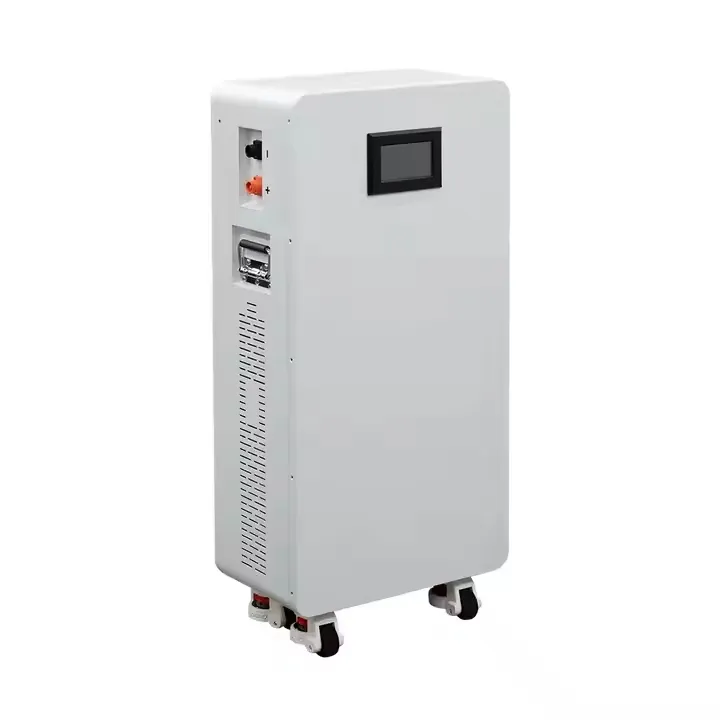

Capacity: 4.8KWH
Including battery connection and communication cables
Package Size: 710*500*310 mm
Gross Weight: 103 KG
High safety and long cycle life.
Remote monitoring via Wi-Fi/GPRS. Apps available for PC, iOS & Android.

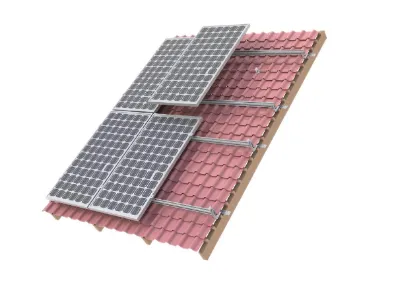

AI6005 & SUS304 Rails. Compatible with Asphalt Shingle, Tile, or Ground.

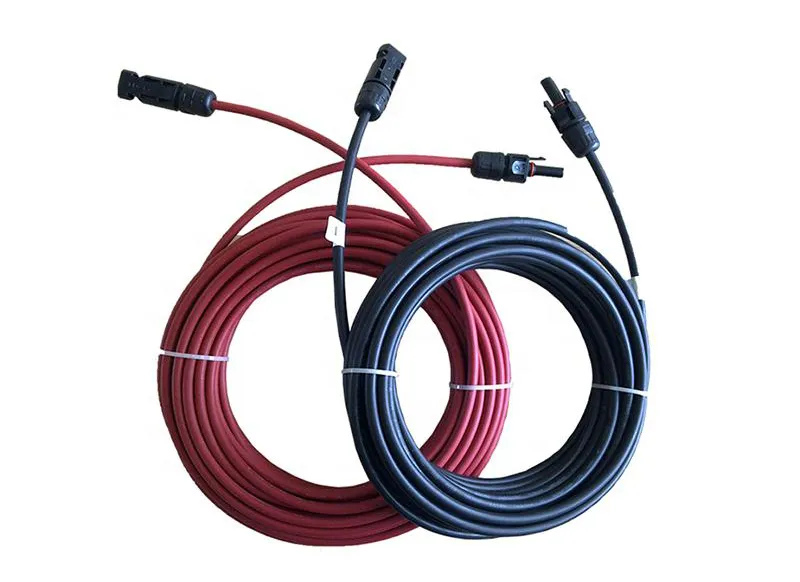

4mm2/6mm2 TUV rated cables. MC4 connectors with 25-year lifetime.
The LiFePO4 battery included in the CSAS system is rated for approximately 1000 cycles, providing long-term energy storage reliability for off-grid or hybrid applications.
Yes, the mounting system is versatile. We offer customized brackets for both ground installations and various roof types, including asphalt shingle and metal roofs.

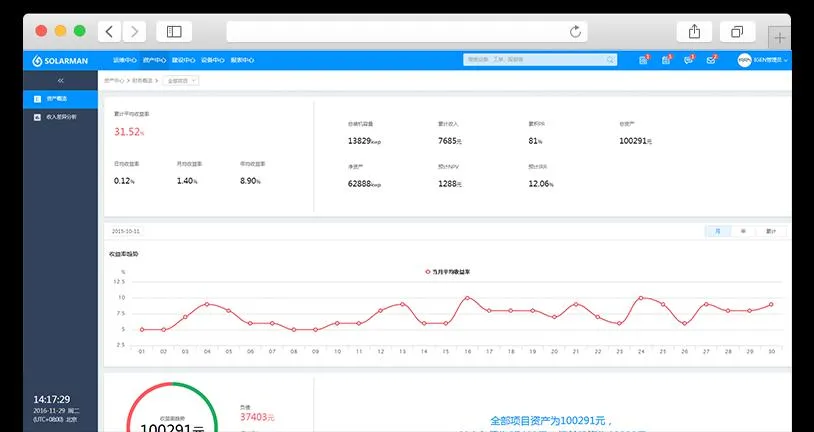

Absolutely. The system includes a Data Logging Stick that supports Wi-Fi, Lan, or GPRS, allowing you to monitor performance via an app on PC, iOS, or Android devices.
The entire system and its components, including panels and inverters, are certified under ISO and CE standards, ensuring international quality and safety compliance.
The system utilizes high-efficiency Monocrystalline Solar Panels, specifically 590W mono panels, to ensure maximum power generation even in limited space.
Yes, the package includes PV cables (typically 100-200 meters depending on the kit), MC4 connectors, and basic installation tool sets are optional to assist with the setup.
