Single/Three Phase 3-4kw Solar Charger Power Grid Power Hybrid Supply Control Board PCBA Controller for Inverter Heat Pump & Water Heater with Compressor Drive
Single/Three Phase 3-4kw Solar Charger Power Grid Power Hybrid Supply Control Board PCBA Controller for Inverter Heat Pump & Water Heater with Compressor Drive
Single/Three Phase 3-4kw Solar Charger Power Grid Power Hybrid Supply Control Board PCBA Controller for Inverter Heat Pump & Water Heater with Compressor Drive
Single/Three Phase 3-4kw Solar Charger Power Grid Power Hybrid Supply Control Board PCBA Controller for Inverter Heat Pump & Water Heater with Compressor Drive
Single/Three Phase 3-4kw Solar Charger Power Grid Power Hybrid Supply Control Board PCBA Controller for Inverter Heat Pump & Water Heater with Compressor Drive
1 / 5
Single/Three Phase 3-4kw Solar Charger Power Grid Power Hybrid Supply Control Board PCBA Controller for Inverter Heat Pump & Water Heater with Compressor Drive
Single/Three Phase 3-4kw Solar Charger Power Grid Power Hybrid Supply Control Board PCBA Controller for Inverter Heat Pump & Water Heater with Compressor Drive
Single/Three Phase 3-4kw Solar Charger Power Grid Power Hybrid Supply Control Board PCBA Controller for Inverter Heat Pump & Water Heater with Compressor Drive
Single/Three Phase 3-4kw Solar Charger Power Grid Power Hybrid Supply Control Board PCBA Controller for Inverter Heat Pump & Water Heater with Compressor Drive
Single/Three Phase 3-4kw Solar Charger Power Grid Power Hybrid Supply Control Board PCBA Controller for Inverter Heat Pump & Water Heater with Compressor Drive

Single/Three Phase 3-4kw Solar Charger Power Grid Power Hybrid Supply Control Board PCBA Controller for Inverter Heat Pump & Water Heater with Compressor Drive

Customization: Available
After-sales Service: Sales and Technical Support
Warranty: 12 Months
Send Inquiry

Product Description

📋 Overview

Basic Information

Model NO.
SolarHP3Tb
Condition
New
Certification
ISO, CE, RoHS
Application
Water Heater Controller, Thermal Controller
Rated Voltage
220V, 380V
Power Type
AC/DC Hybrid
Compressor Type
BLDC/Pmsm
Refrigerant
R410; R32; R290
Remote Control
WiFi, APP
Production Capacity
300,000 Pieces/Year

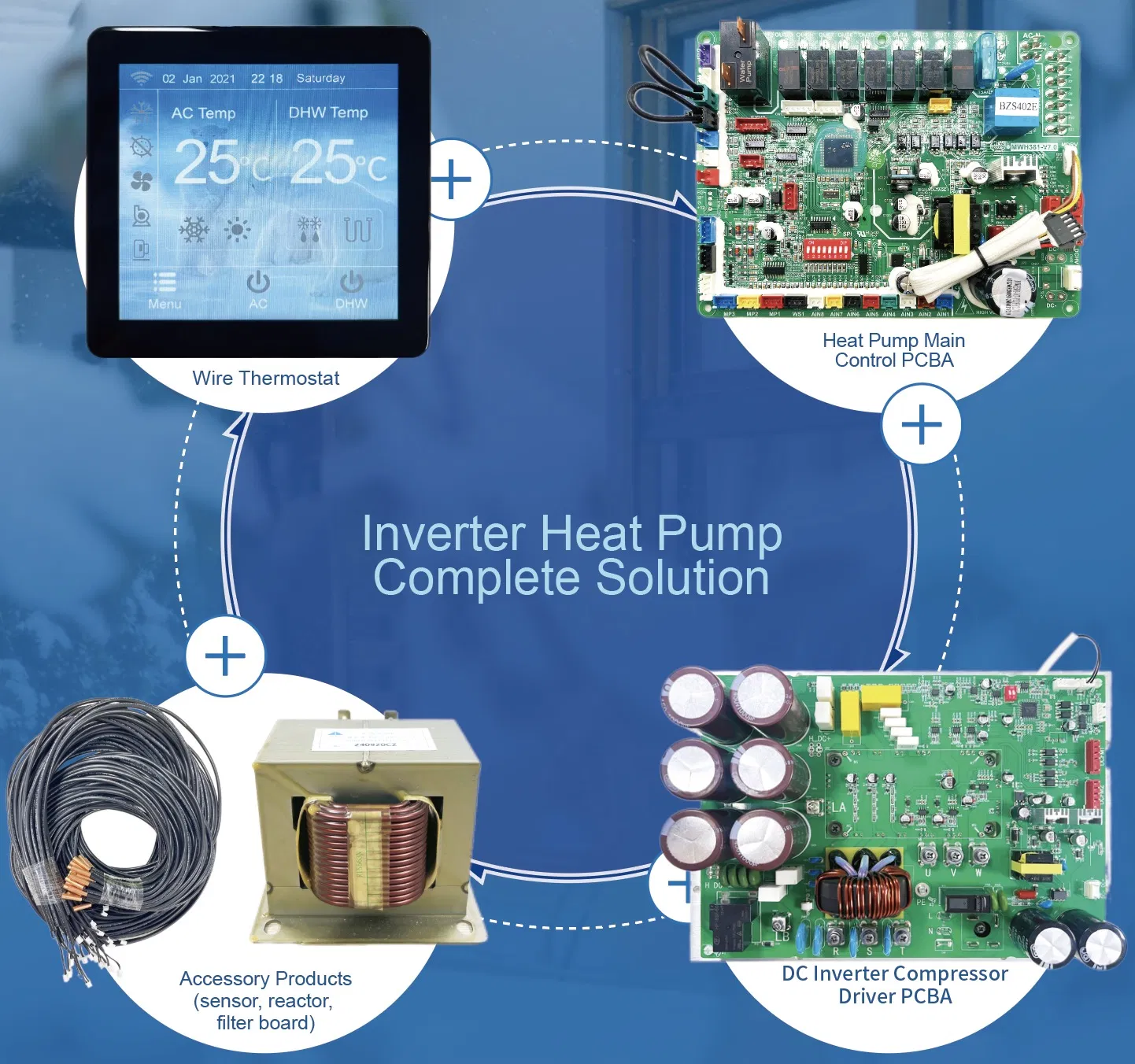

🎮 Heat Pump Controller Set

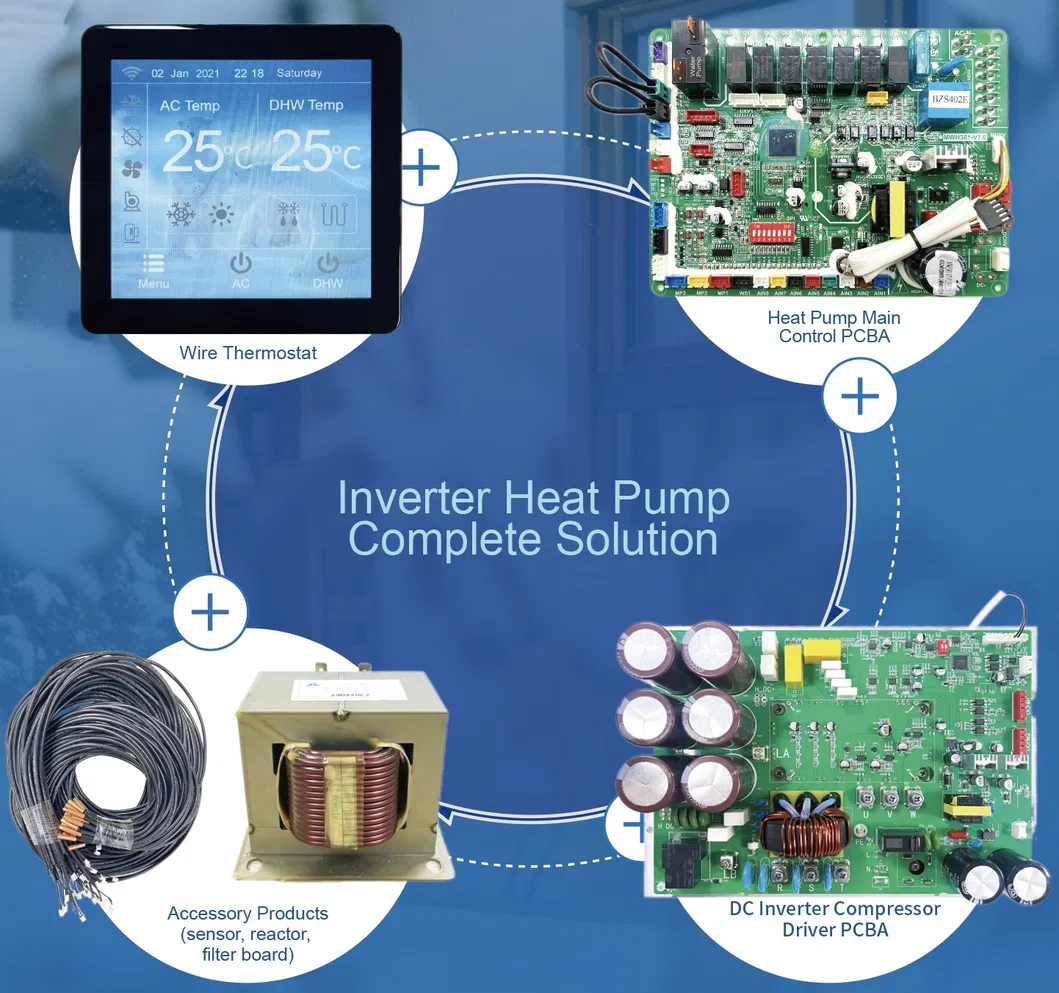

Controller Board PCBA

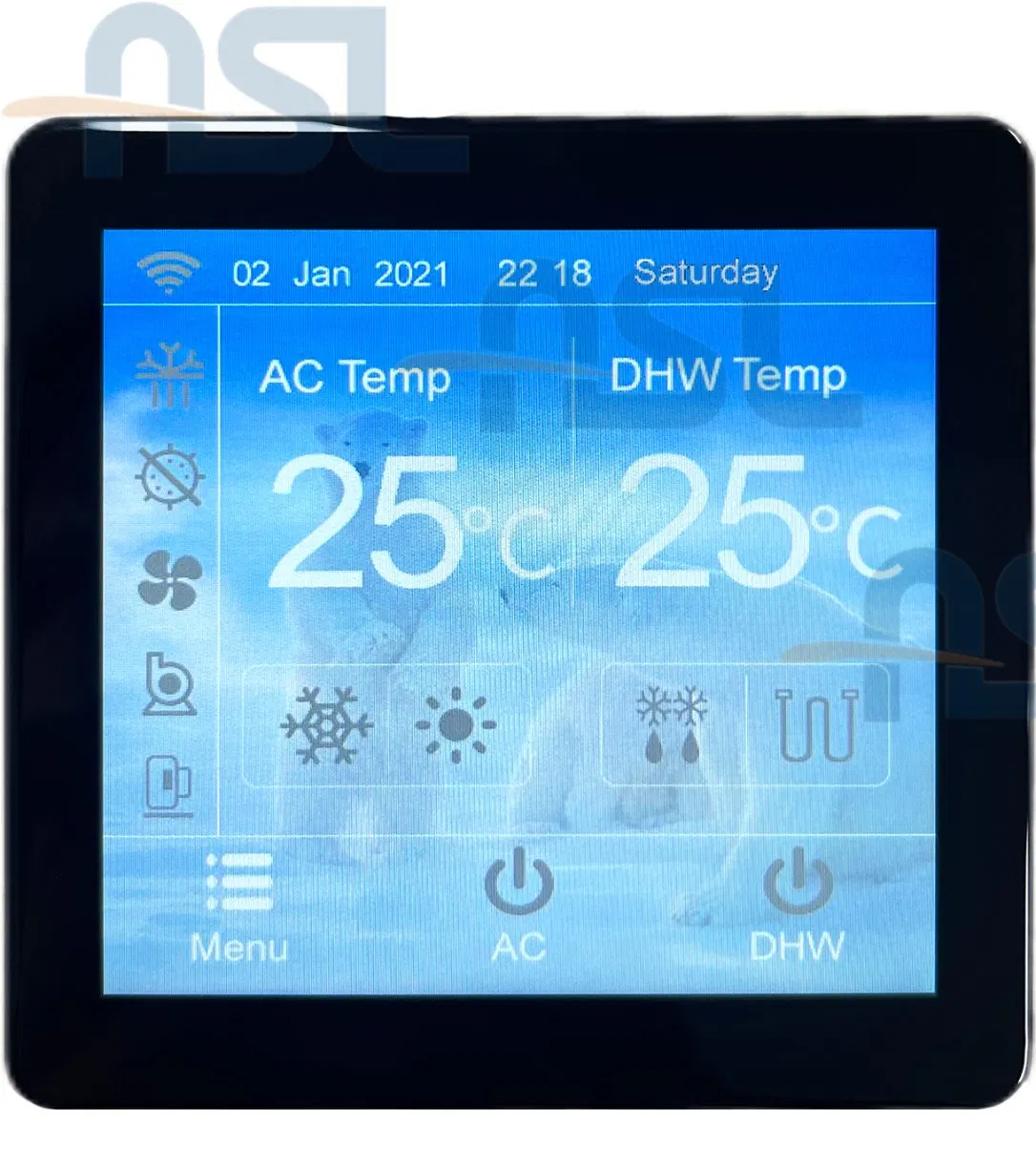

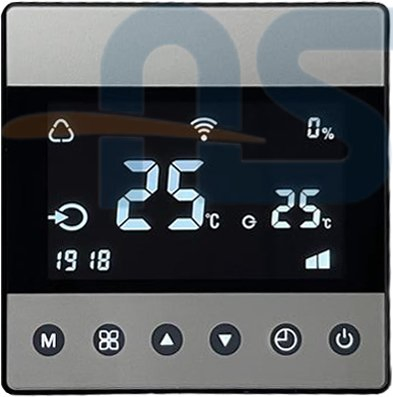

1. Wire Thermostat

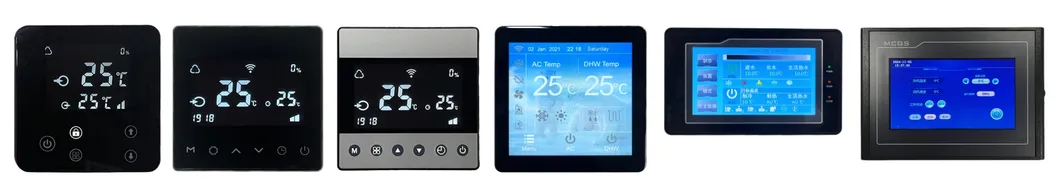

Thermostat Interface
FeatureDetails
Available Product Type86 Type IPS Touch Screen, LCD Touch Button, 4.3 Inch TFT, 7 Inch TFT
Input VoltageDC 12V±5%
Communication ProtocolModbus-RS485
Operating Temperature-20~70°C
Display MethodIPS Screen, LCD Screen, TFT Screen

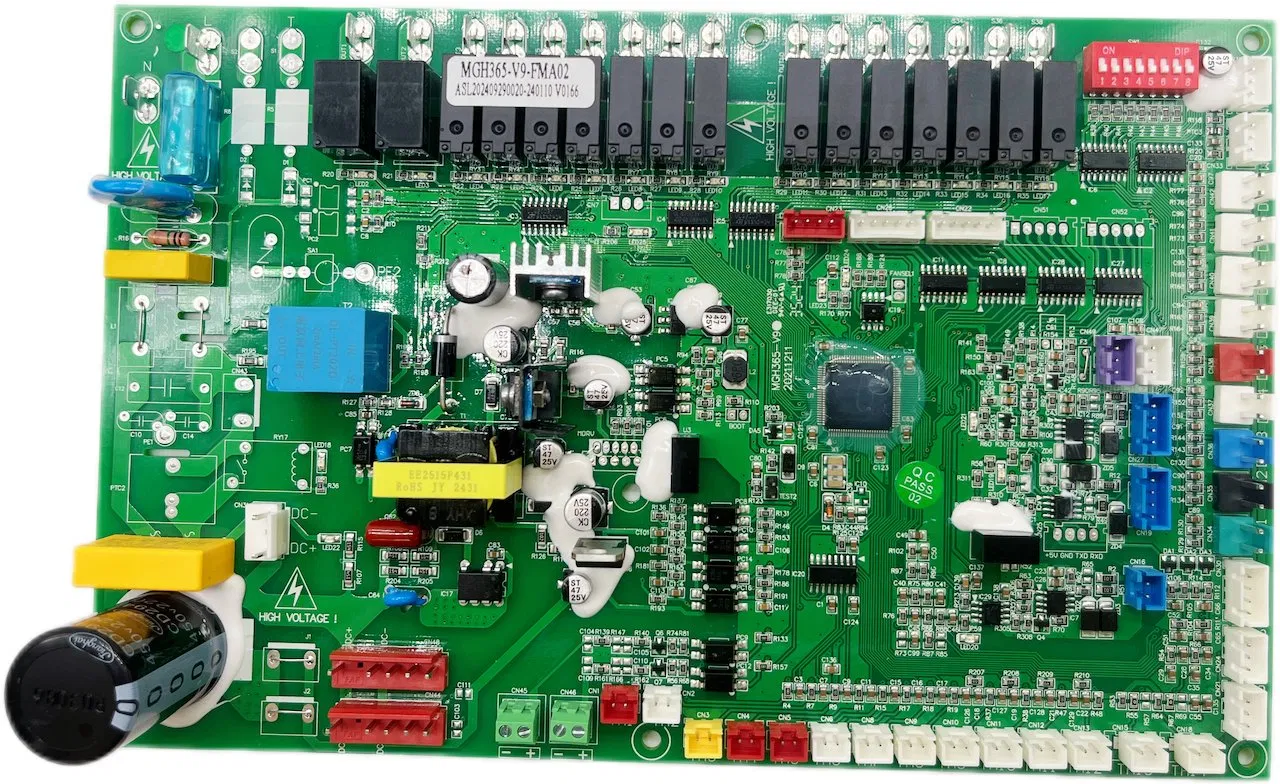

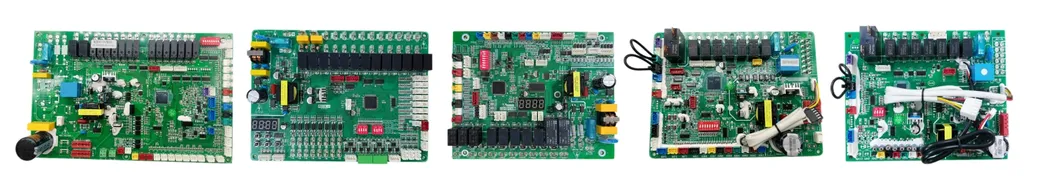

2. Main Control Board

Main Control Board
SpecificationsDetails
ApplicationAir to Water Heat Pump, Water Heater, Water Cooler, Floor Heating
Rated VoltageSingle Phase AC220V / Three Phase AC380V / Solar Power
On-off Input9 channels
Analog Input17 channels
Relay Output16 channels
Dimension (mm)251*161*41.6

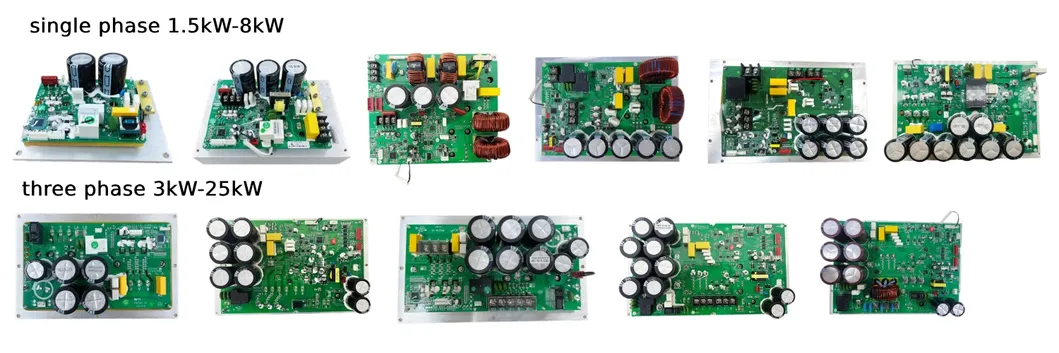

3. Inverter Compressor Drive Board

Compressor Drive Board
ParameterDetails
Product NameInverter Compressor Driver PCBA
Rated Power InputSingle Phase: 1.5kW-8kW; Three Phase: 4kW-25kW
Heat-dissipating MethodAir Cooling / Liquid Cooling
Efficiency0.93~0.95
Mechanical Frequency20Hz-120Hz

4. Accessory Products

Including sensors, reactor, PFC inductor, and filter board. We use world-famous brand sensors for high-quality guarantee.

🏢 Professional Background
Certificates

Established in 2005, the manufacturer has consistently led the market in DC inverter solutions. National High Tech Enterprise Certificate / Quality Certificate / Patents / ETL Report / UL Report / TUV Report.

  • 120+ countries & regions: Products used globally in diverse environments.
  • 30w+ pieces: Annual production capacity of DC inverter heat pump PCBA.
  • 60%+ global market share: Dominant position in the DC Inverter Pool Heat Pump segment.

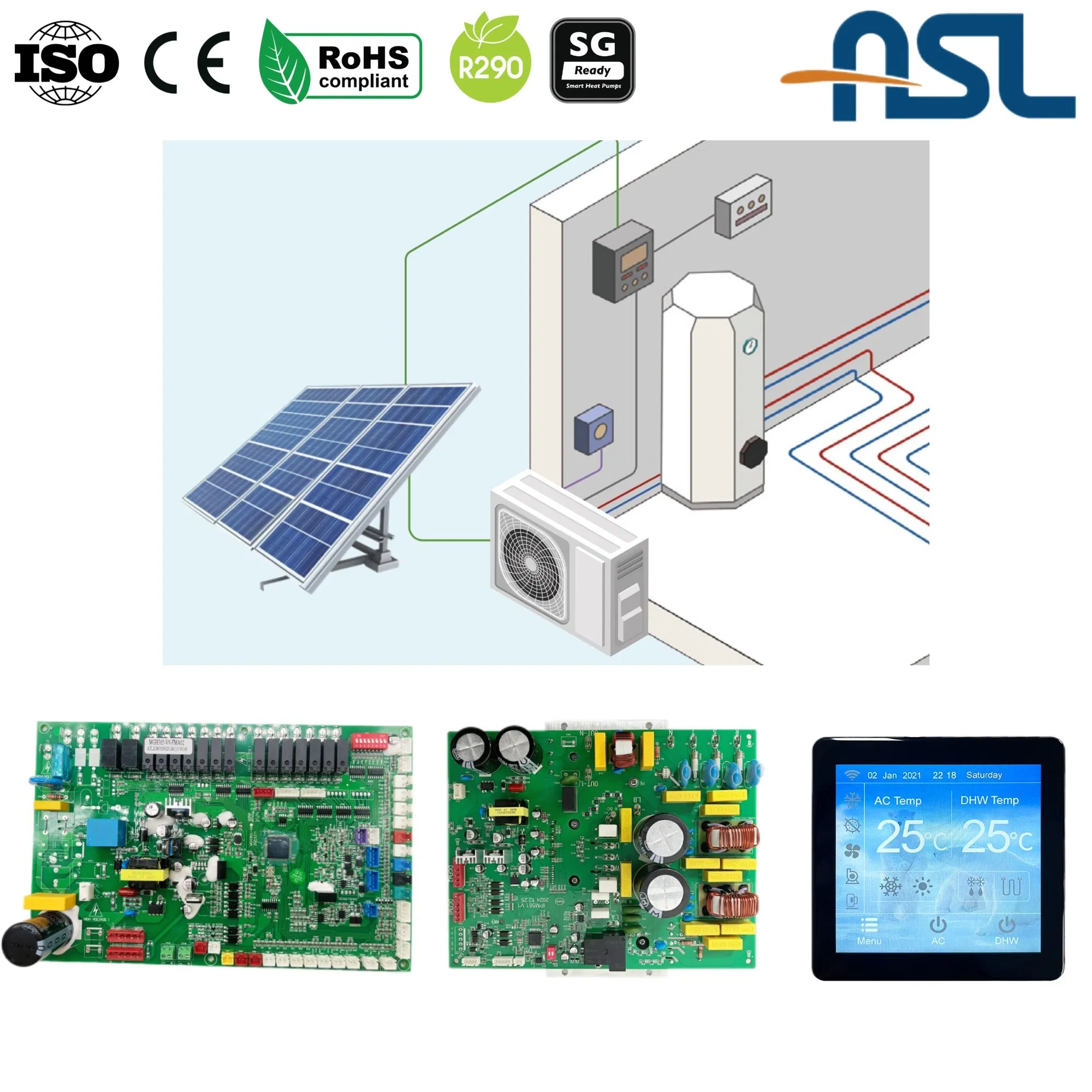

🌍 Usage Scenarios
Usage Scenarios

Solar Heat Pump | Water Heater | Water Cooler | Floor Heating | Dehumidifier | Heat Pump Dryer | Swimming Pool Heat Pump | Geothermal Heat Pump

🚀 Key Advantages
Core Technology

Leading DC Inverter Technology

  • Master core logic of variable frequency control systems with over 20 years of experience.
  • Advanced low-frequency torque compensation and weak magnetic self-adaptive technology.
  • Comprehensive coverage of all major variable frequency compressor brands and models.
  • Strict quality control with established production processes and standards.
🤝 Business Partners
Partners
❓ Frequently Asked Questions
1. What is the typical delivery time for orders?
The standard delivery time is between 20 to 30 days depending on the order volume and customization requirements.
2. What kind of warranty do you provide for the products?
All PCBA products come with a 1-year guarantee to ensure reliable performance.
3. Are the PCBA products standardized for all heat pump brands?
No, because the logic and structure of different heat pump brands vary, we customize the PCBA solutions for every individual customer.
4. What is the process for technical cooperation?
The process includes technical communication, solution suggestion/quotation, sample ordering, software/hardware design, logic confirmation, sample testing, and finally batch production.
5. What certifications do your controllers hold?
Our products are certified by ISO, CE, RoHS, and TUV, meeting international safety and quality standards.
6. Which communication methods are supported for remote control?
We support RS485 (Modbus), WiFi, and specialized App-based control for modern interaction.
