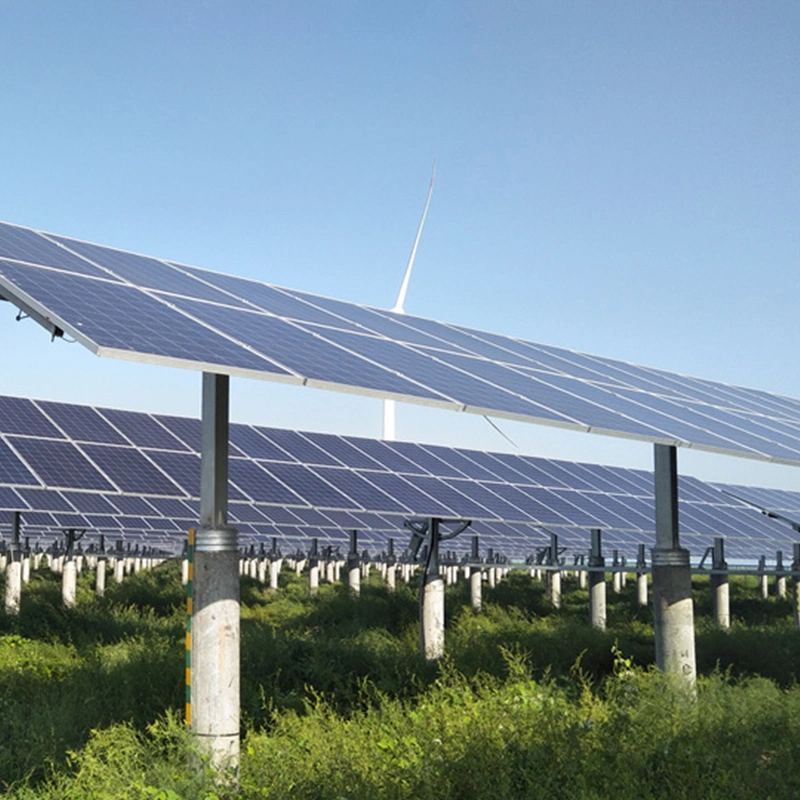

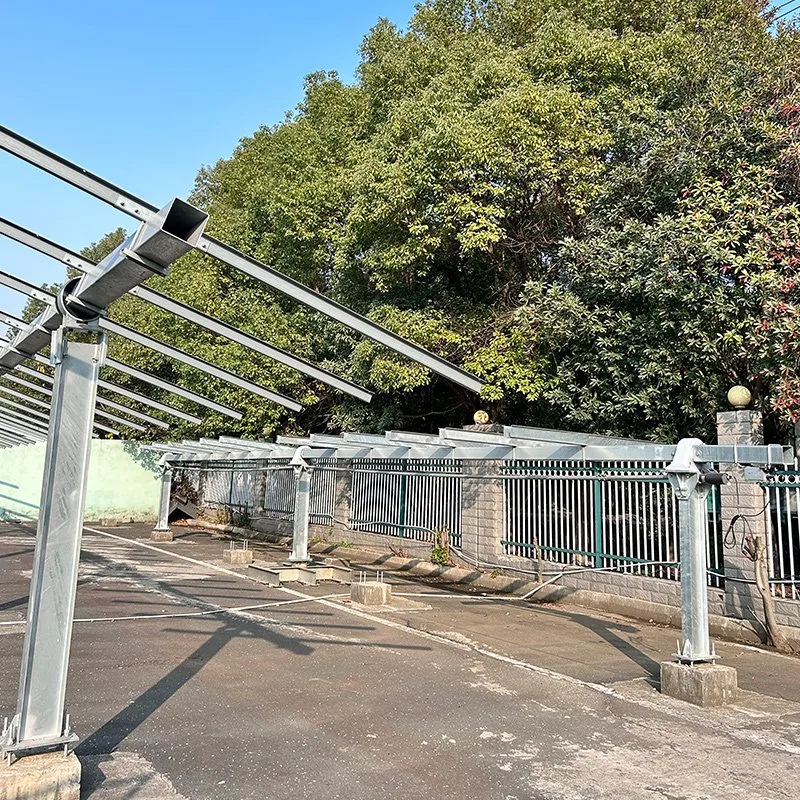

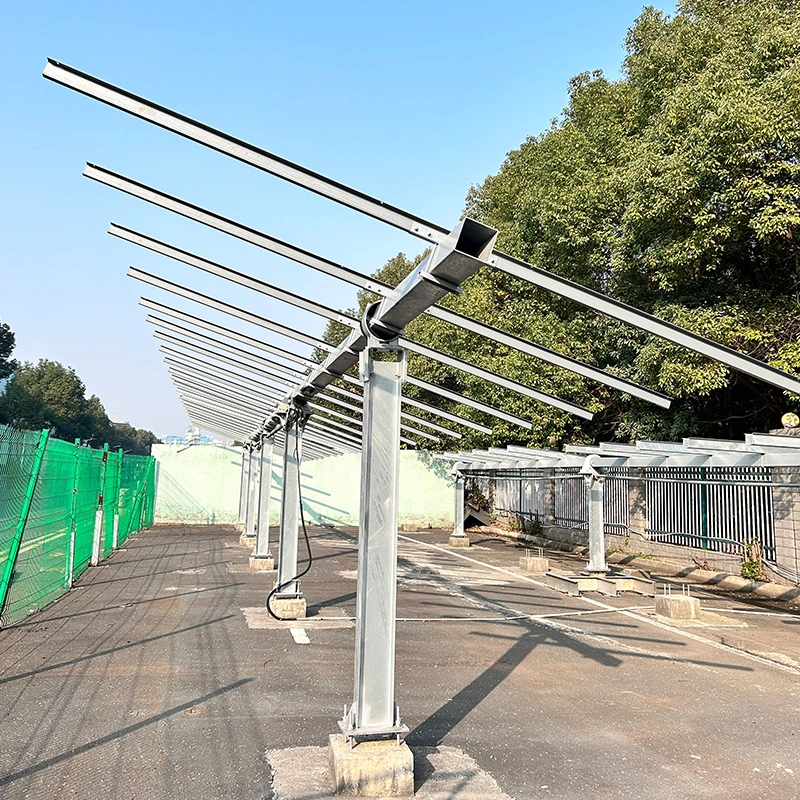

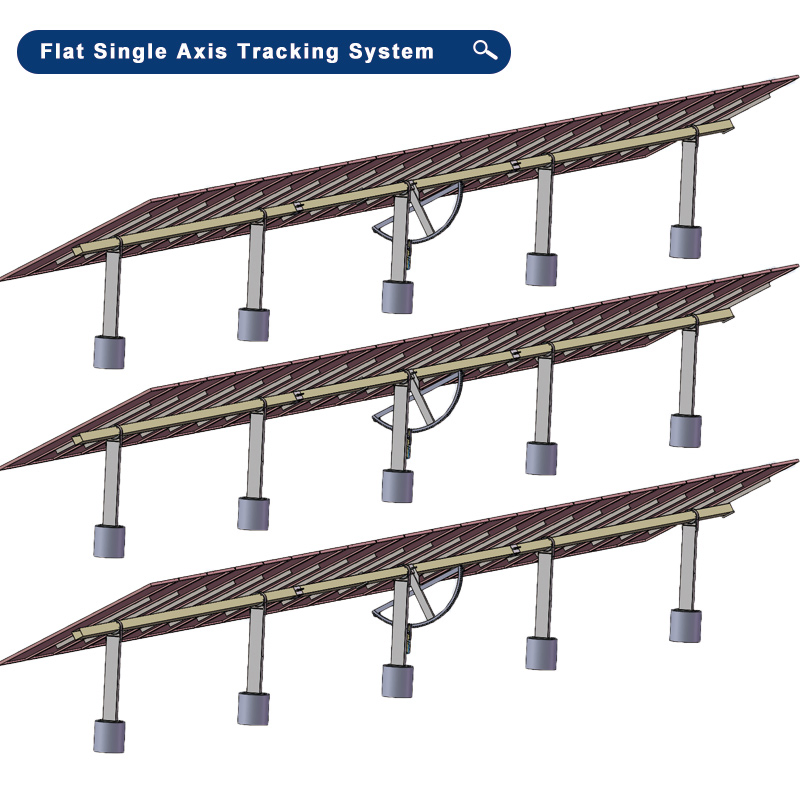

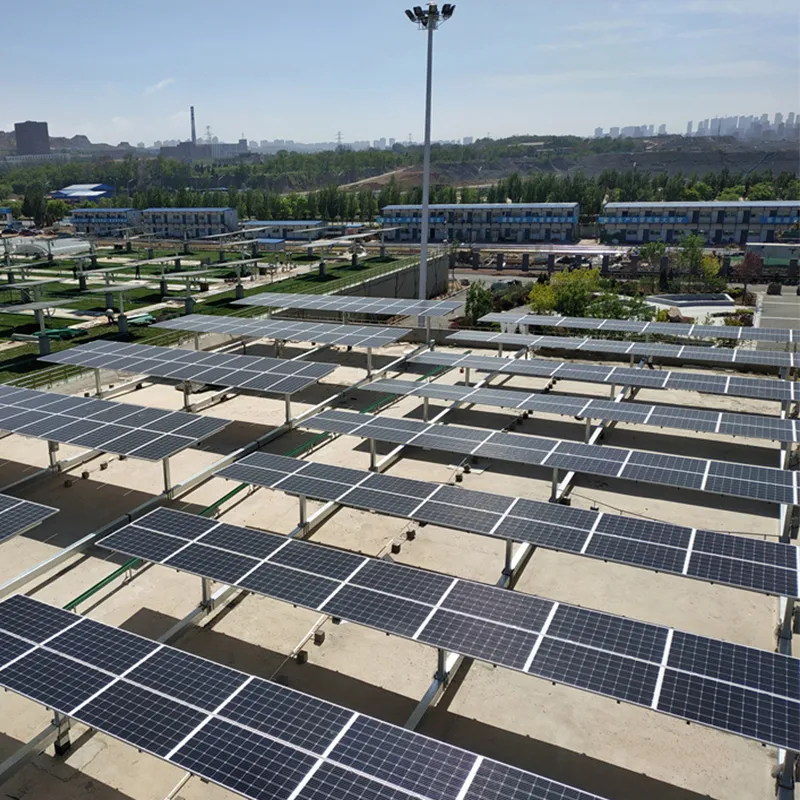

Wuxi Metal Factory Complete Set Flat Single Axis Solar Tracker Solar Tracking System
Wuxi Metal Factory Complete Set Flat Single Axis Solar Tracker Solar Tracking System
Wuxi Metal Factory Complete Set Flat Single Axis Solar Tracker Solar Tracking System
Wuxi Metal Factory Complete Set Flat Single Axis Solar Tracker Solar Tracking System
Wuxi Metal Factory Complete Set Flat Single Axis Solar Tracker Solar Tracking System
1 / 5
Wuxi Metal Factory Complete Set Flat Single Axis Solar Tracker Solar Tracking System
Wuxi Metal Factory Complete Set Flat Single Axis Solar Tracker Solar Tracking System
Wuxi Metal Factory Complete Set Flat Single Axis Solar Tracker Solar Tracking System
Wuxi Metal Factory Complete Set Flat Single Axis Solar Tracker Solar Tracking System
Wuxi Metal Factory Complete Set Flat Single Axis Solar Tracker Solar Tracking System

Wuxi Metal Factory Complete Set Flat Single Axis Solar Tracker Solar Tracking System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

◈ Basic Information
Model NO.
Solar Tracker
Condition
New
Certification
ISO, CE
Application
Home, Industrial, Commercial, Steel Solar Mounting System
Specification
Normal, Aluminum Alloy
Material
Aluminum Alloy
Type
Solar Panel Mounting Accessories
Wind Load
60m/S
Snow Load
1.4kn/M2
Product
Flat Single Axis Solar Tracking System
Origin
China
Production Capacity
50000ton/Year
◈ Packaging & Delivery
Package Size
45.50cm * 26.50cm * 37.50cm
Gross Weight
23.600kg
◈ Dual Axis Solar Tracking System Features

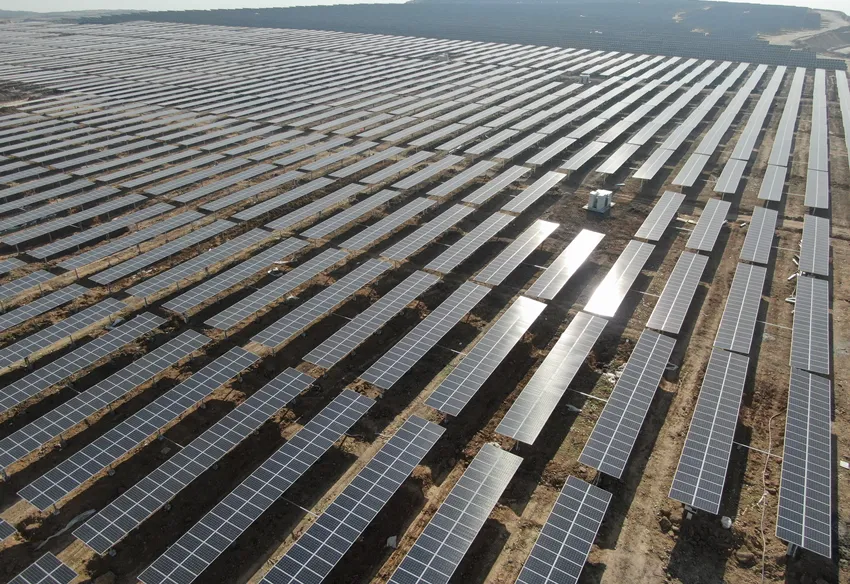

Solar Tracking System Overview
✓ Higher efficiency, +10%-25% more energy
✓ No back shadows design for bi-facial solar modules
✓ Simple structure: Easy for installation and maintenance
✓ Less power consumption: Only about 3-5kWh/set/year
✓ High frame strength: Better wind-resistance performance
✓ Reliable technology, low failure rate, high tracking accuracy
✓ Smart control, self-positioning & self-correction
✓ Rain wash & Snow prevention modes
✓ High polymer rotating parts: Free maintenance for 25 years
◈ Technical Data
Item Parameter
System TypeSingle Row Type/2-5 Rows Linked
Control ModeTime + GPS
Average Tracking Accuracy0.1°-2.0°(adjustable)
Gear Motor24V/1.5A
Output Torque5000 N.M
Power Consumption5kWh/year/set
Azimuth Angle Range+-50°
Elevation Angle Range50°
Back TrackingYes
Max Wind Resistance40 m/s (Horizontal) / 24 m/s (Operation)
MaterialHot-dipped galvanized >65μm
Working Temperature-40°C - +75°C
Weight (Per Set)200-400 KGS
◈ Main Components
No. Description Size (mm)
1Driving Vertical Pole-
2Supporting-
3Plastic Bearing-
4Purlin ConnectionsWidth: 34mm
5Gear Ring-
6Chain Link-
7Spindle Connector-
8PurlinLength: 1750mm
9Center BeamLength: 8792mm
◈ Product Gallery
Solar Tracker Detail 1

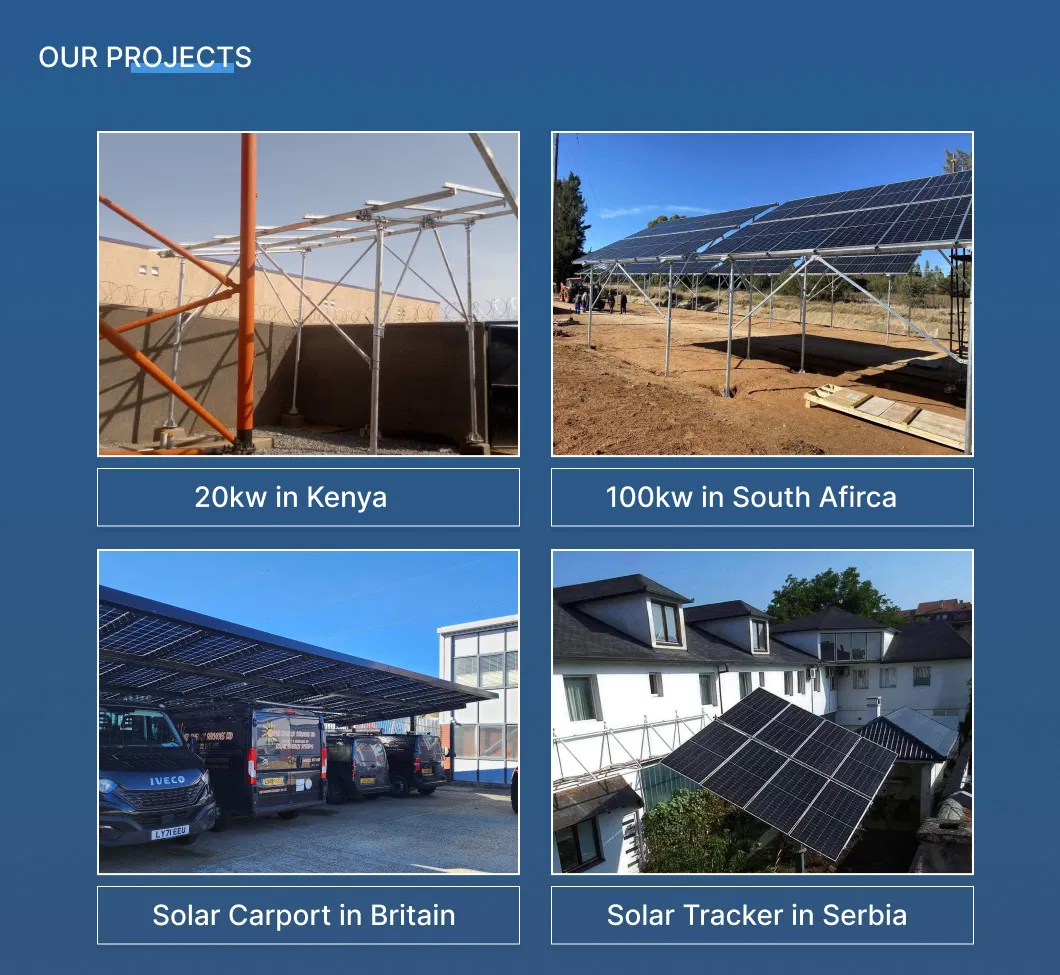

Solar Tracker Detail 2
Solar Tracker Detail 3
Solar Tracker Detail 4
Solar Tracker Detail 5
Solar Tracker Detail 6
Solar Tracker Detail 7
Solar Tracker Detail 8
Solar Tracker Detail 9
◈ Frequently Asked Questions
Q1: How much extra energy can the tracking system generate?
The system provides higher efficiency, typically generating 10% to 25% more energy compared to fixed mounting systems.
Q2: Does this system support bi-facial solar modules?
Yes, it features a "no back shadows" design specifically optimized for bi-facial solar modules to maximize power output.
Q3: What are the maintenance requirements?
The system uses high polymer materials for rotating parts, ensuring free maintenance for up to 25 years. It also includes smart self-positioning and correction.
Q4: How does the system handle extreme weather like heavy snow or rain?
It includes a "Rain Wash Mode" to reduce manual cleaning needs and a "Snow Prevention Mode" to maximize power generation time during winter.
Q5: What is the tracking accuracy of the system?
The system utilizes Time + GPS control mode, achieving an average tracking accuracy of 0.1° to 2.0°, which is also adjustable.
Q6: What is the power consumption of the tracker itself?
The tracking system is highly efficient, consuming only about 3-5kWh per set per year.
