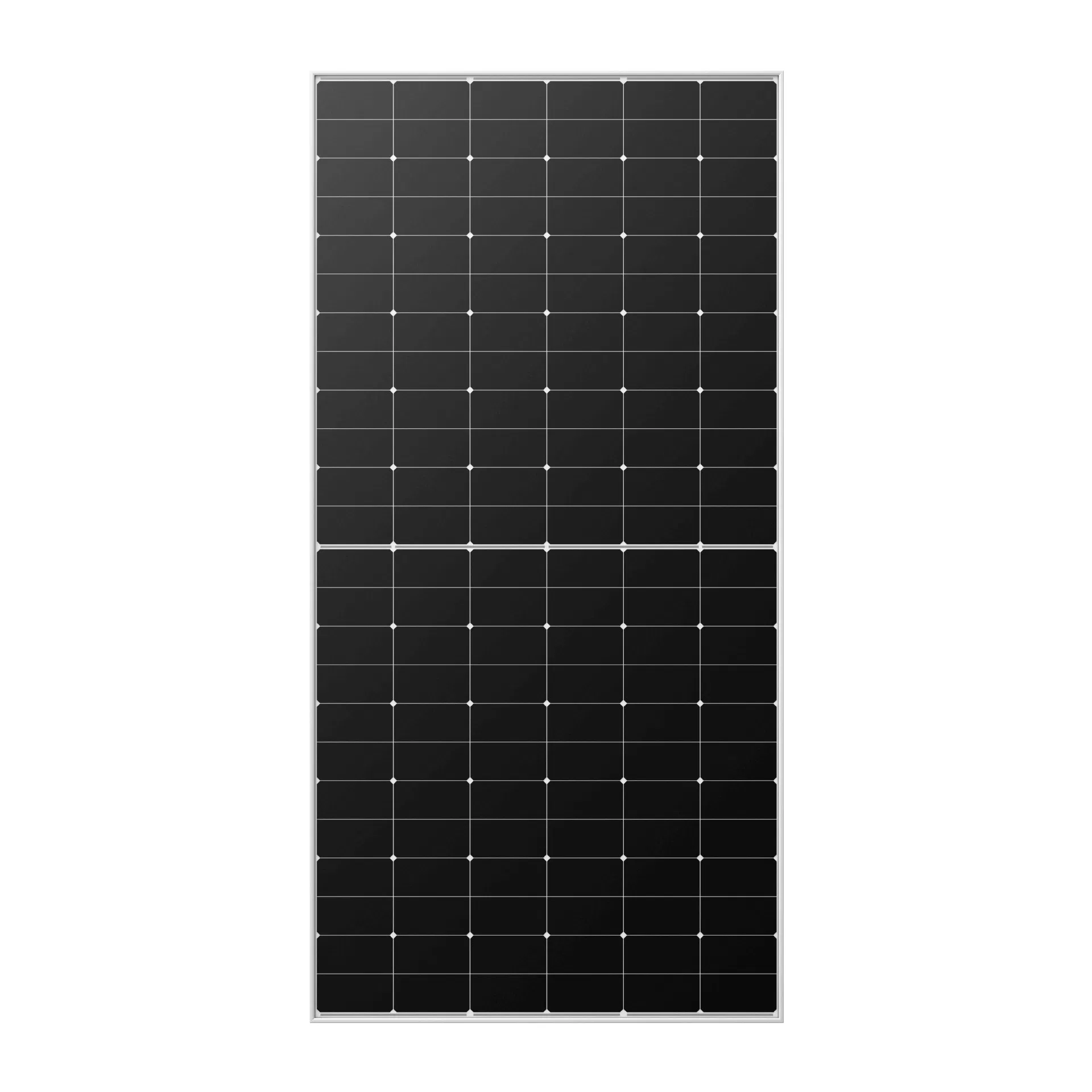

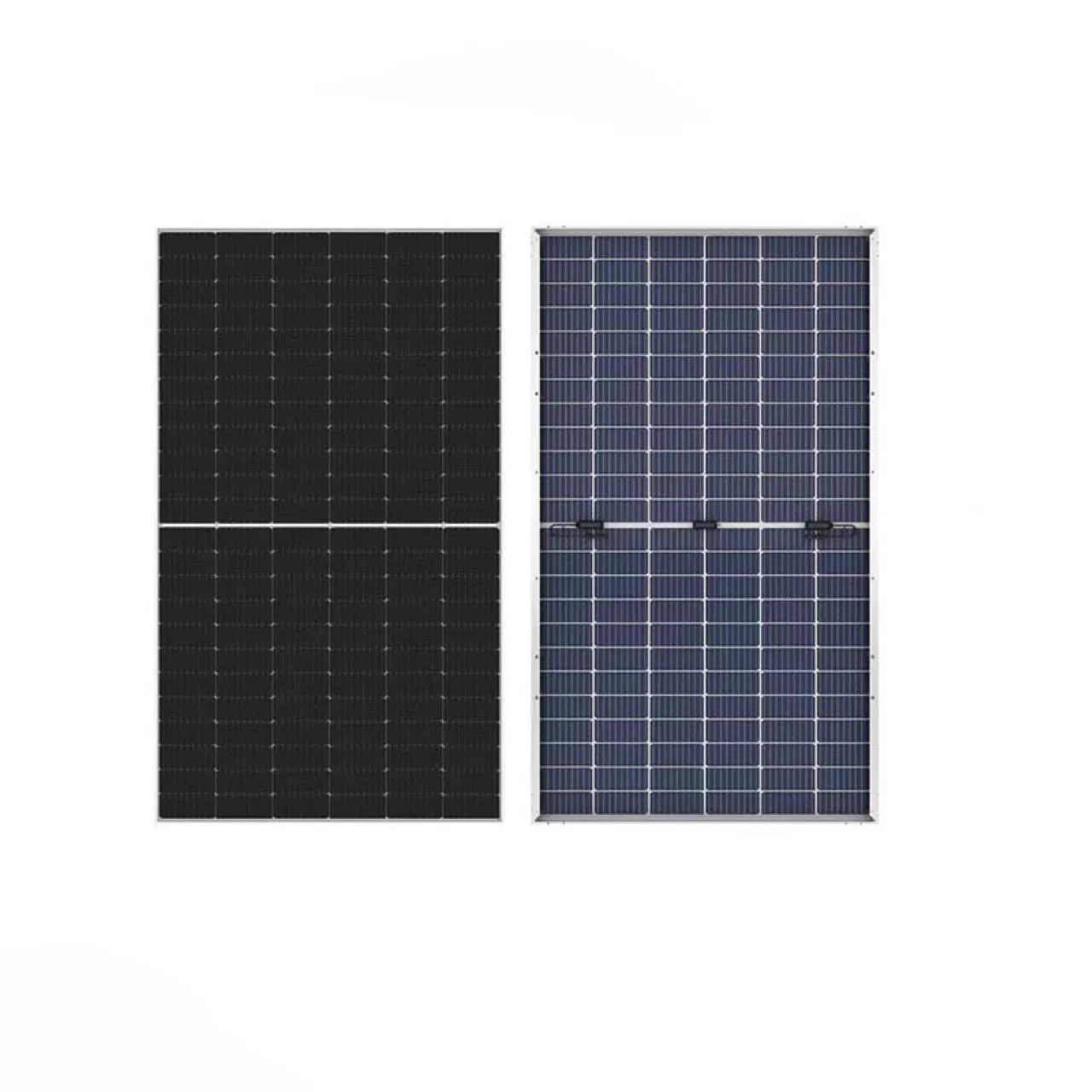

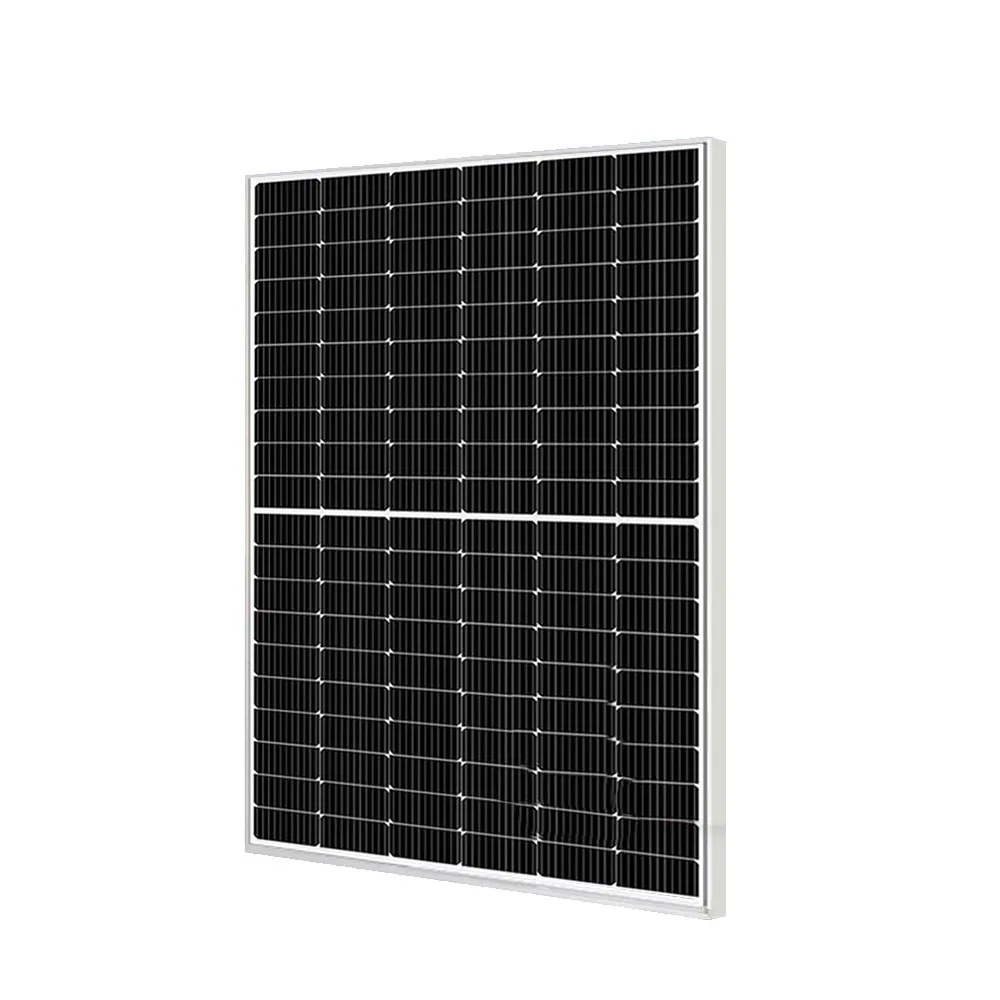

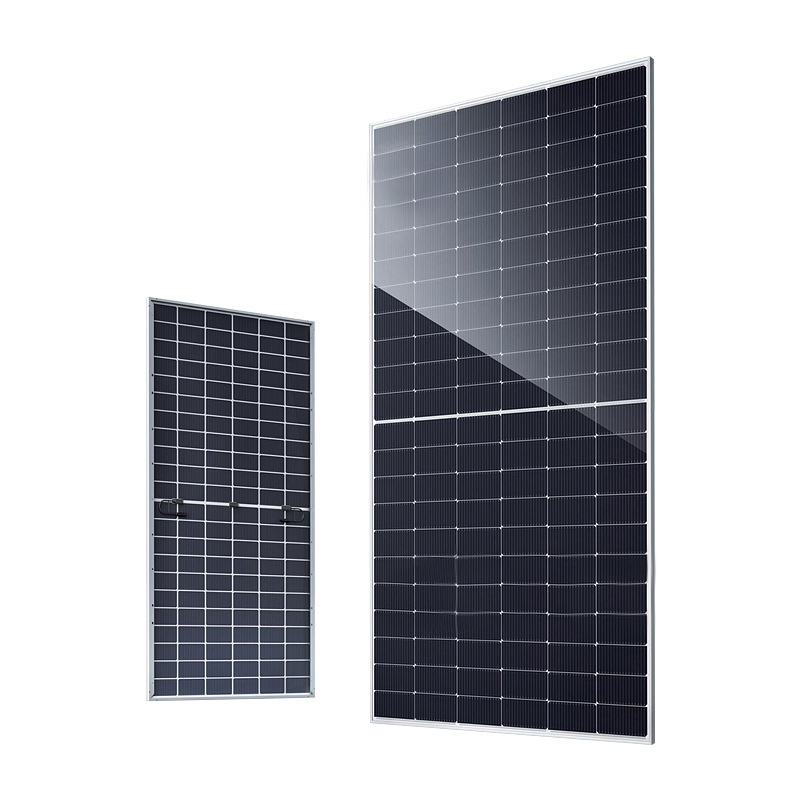

Bifacial Double Glass Solar Panel 535W 540W 545W 550W High Efficiency Photovoltaic Module Competitive Factory Price for Global B2B Buyers

Basic Specifications

Model:144HB-182M

Application:Industrial

Certification:ISO, CE

Material:Monocrystalline Silicon

Power Output:535W

Dimensions:2279*1134*30mm

Weight:32kg

Efficiency:20.7%

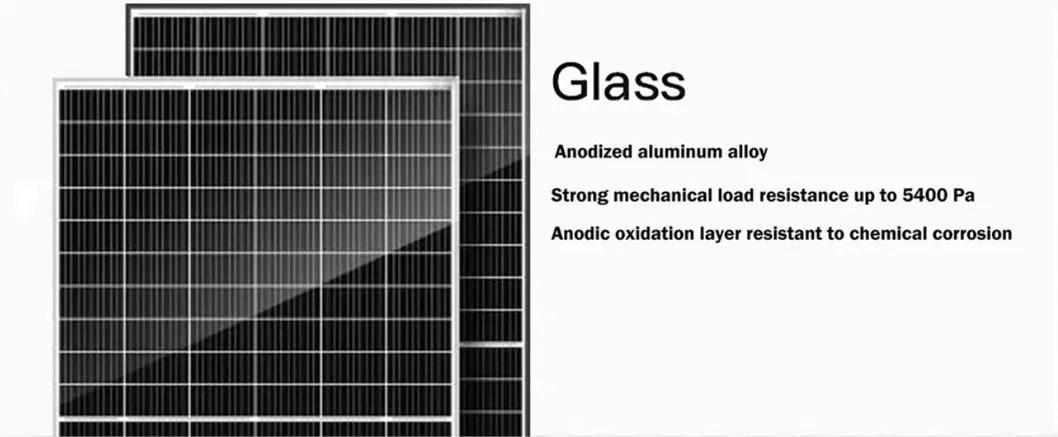

Frame:Anodized Aluminium Alloy

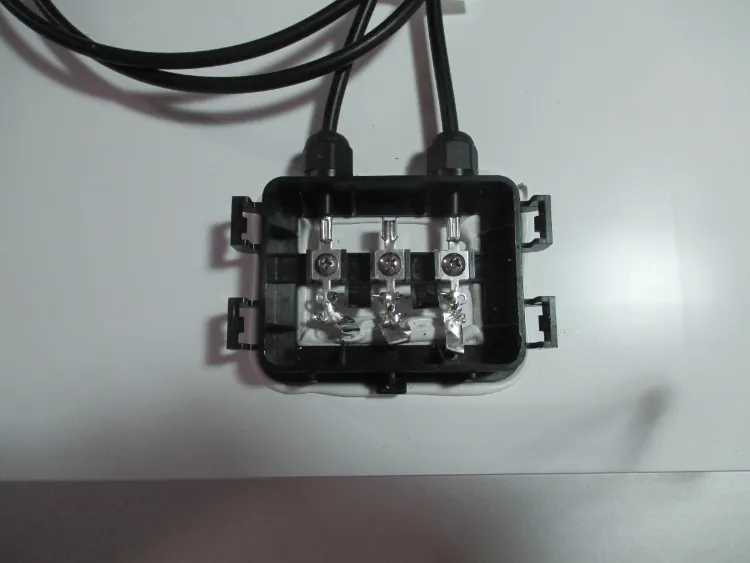

Junction Box:IP68, Three Diodes

Detailed Specification

Number of Cells	144pcs ( 6*24)
Size of Module	2279113430mm
Junction Box/Connector	IP68 Three diodes
Maximum Power Pm(W)	535 W
Power Tolerance	+/- 3%
Maximum Power Voltage(Vmp)	41.48 V
Maximum Power Current (Imp)	12.90 A
Open Circuit Voltage(Voc)	49.46V
Short Circuit Current(Isc)	13.79 A
Module Efficiency	20.7%
Maximum System Voltage	1500 V
Operating Temperature	-40°C to 85°C
Heavy Mechanical Load	5400Pa (meet IEC61215)

Product Features

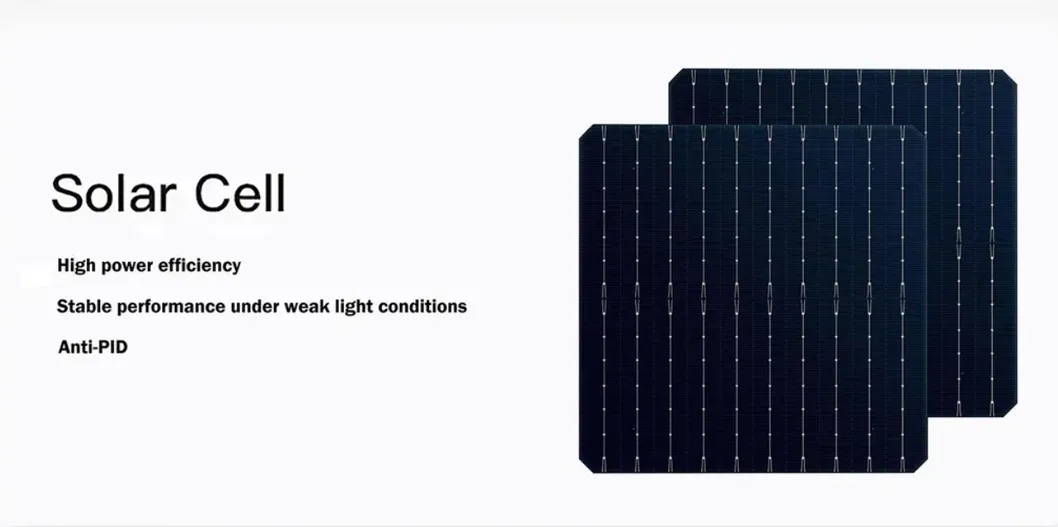

High efficiency solar cell with positive tolerance only

International quality management system with 100% panel power and EL test before shipment. Approved for fire test, ammonia corrosion, and salt mist resistance.

Temperature Coefficients

Power temperature coefficient: - 0.45 %/ºC
Current temperature coefficient: 0.065±0.015 %/ºC
Voltage temperature coefficient: - 0.35 %/ºC
NOCT (Normal Operating Cell Temp): 45±2ºC

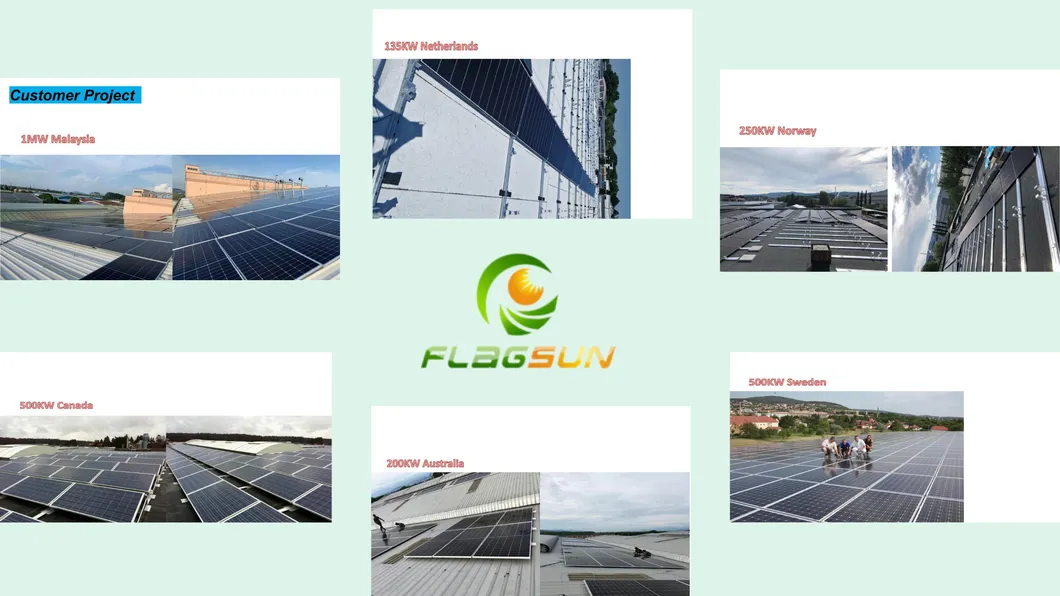

Global Projects

Supplied high-quality solar products to over 100 companies worldwide, establishing strong relationships through premium modules.

Markets Covered:
Asia, Europe (Germany, France, Finland, etc.), Australia, Americas (US, Canada, Brazil, Chile), and Africa.

Packaging & Logistics

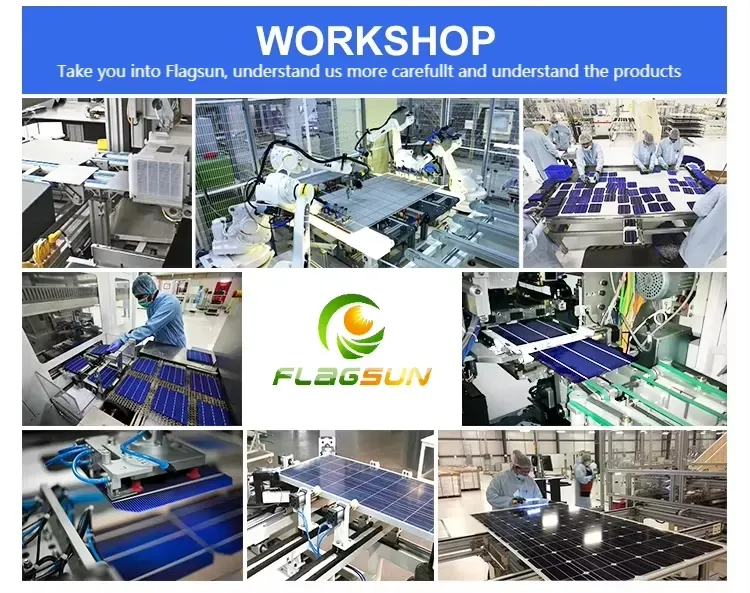

Production Capability

Our Core Advantages

★
GRADE A SOLAR CELLS: All modules utilize high-efficiency grade A cells to ensure maximum performance.
★
STRICT QUALITY CONTROL: Fully automated production with rigorous testing for every single panel.
★
COST EFFICIENCY: Industry chain integration allows for competitive pricing through scale effects.
★
EXPERT EXPERIENCE: Over 10 years of expertise in the photovoltaic industry with a large-scale production base.

Frequently Asked Questions

Q1: How is the product quality guaranteed? A: We maintain quality through pre-production samples before mass manufacturing and a mandatory final inspection for every unit before shipment.

Q2: What makes your solar modules different from others? A: Our modules are utilized in over 130 countries, powering residential, commercial, and off-grid systems with a proven track record of over 1.5GW installed capacity.

Q3: What are the accepted delivery terms for orders? A: We provide flexible delivery terms including FOB, CFR, CIF, and EXW to meet different logistical needs.

Q4: What payment methods do you support? A: We accept payments in USD, EUR, and CNY via T/T, L/C, and Credit Card.

Q5: Can the solar panel cables be customized? A: Yes, the cable lengths are fully customizable based on specific project requirements.

Q6: Are the modules resistant to harsh environmental conditions? A: Absolutely. Our panels have passed Ammonia and Salt Mist corrosion resistance tests, ensuring durability in coastal or agricultural environments.
