Model NO.
540W-550W bifacial
Certification
ISO, CE, TUV
Material
Monocrystalline Silicon
Type
Monocrystalline Solar Panel
Frame
Anodized Aluminium Alloy
Packing Configuration
31 PCS/Carton, 720 PCS/40hq
Front Glass
2.0 mm Tempered Glass
Cable Length
350 mm or Customized Length
Warranty
12 Years Material & Workmanship
Specification
2279*1134*30 mm
Production Capacity
50000 Pieces/Year

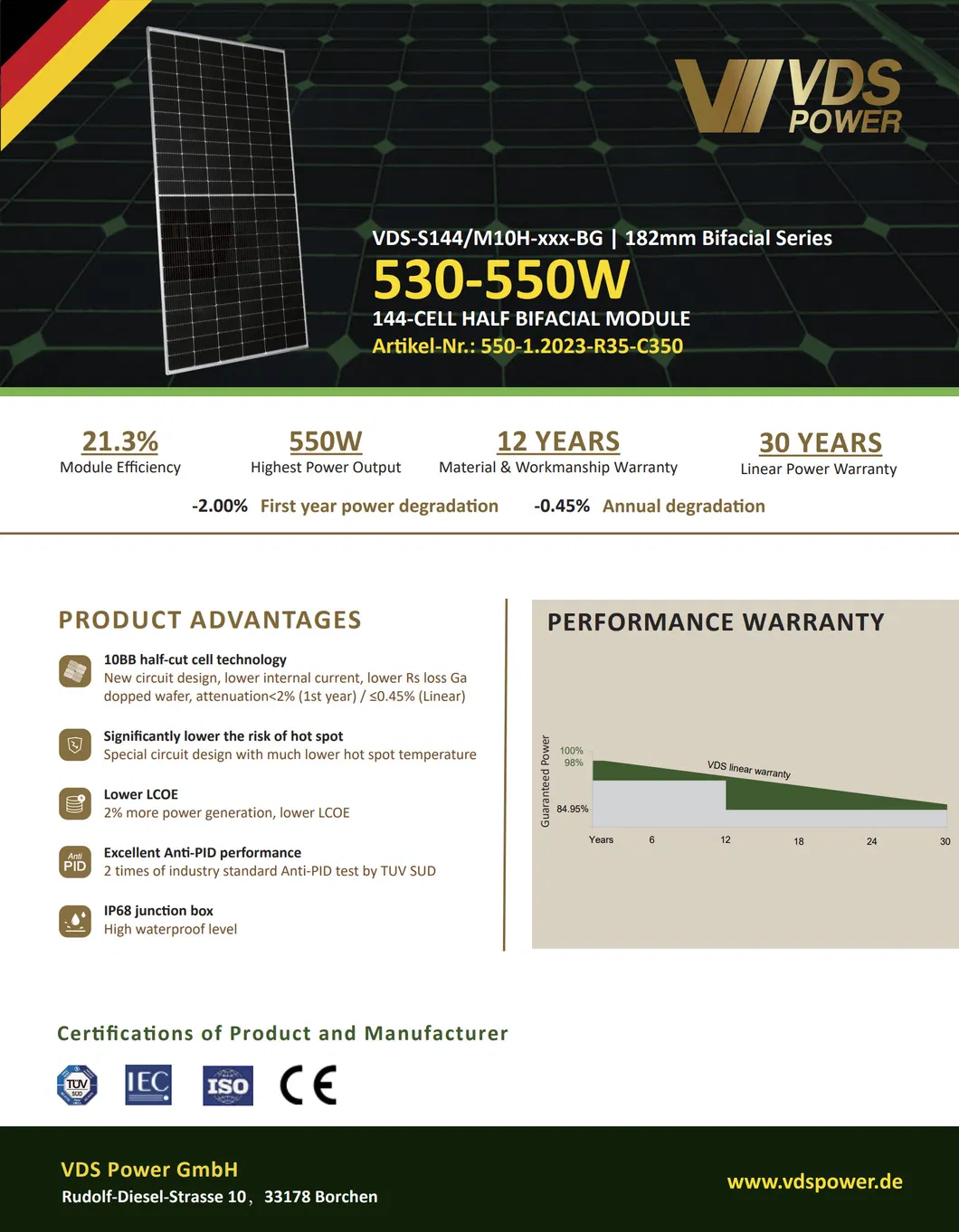

10BB Half-Cut Cell
New circuit design, lower internal current, lower Rs loss. Ga dopped wafer, attenuation < 2% in the 1st year.
Lower LCOE
Significant reduction in hot spot risks and 2% more power generation compared to standard modules.
Anti-PID Performance
Excellent Anti-PID performance verified by 2 times the industry standard testing by TUV SUD.
IP68 Protection
High waterproof level junction box ensuring long-term outdoor durability and safety.
Frequently Asked Questions
What are the main advantages of 10BB half-cut cell technology?
The 10BB half-cut technology features a new circuit design that results in lower internal current and lower Rs loss. It significantly reduces the risk of hot spots and improves the overall efficiency of the module.
What is the efficiency and power output of these panels?
These monocrystalline modules offer a power range between 540W and 550W with a high module efficiency of up to 21.3%.
How durable are the bifacial glass modules?
The modules are built with 2.0mm tempered glass and an anodized aluminium alloy frame. They feature an IP68 junction box for maximum waterproof protection and have passed rigorous Anti-PID testing.
What is the warranty period for this product?
We provide a 12-year warranty on material and workmanship, ensuring long-term reliability for industrial and commercial applications.
What is the loading capacity for shipping?
Standard packaging includes 31 pieces per carton, with a total capacity of 720 pieces per 40HQ container.
Are these panels suitable for industrial use?
Yes, these panels are specifically designed for industrial applications, providing lower LCOE (Levelized Cost of Energy) and higher power generation over their lifespan.
