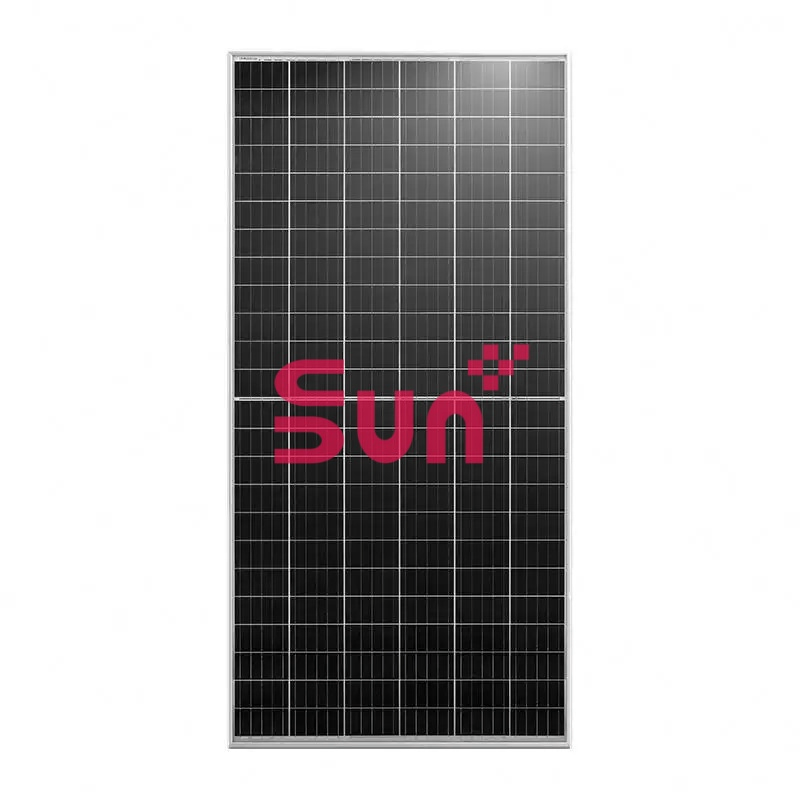

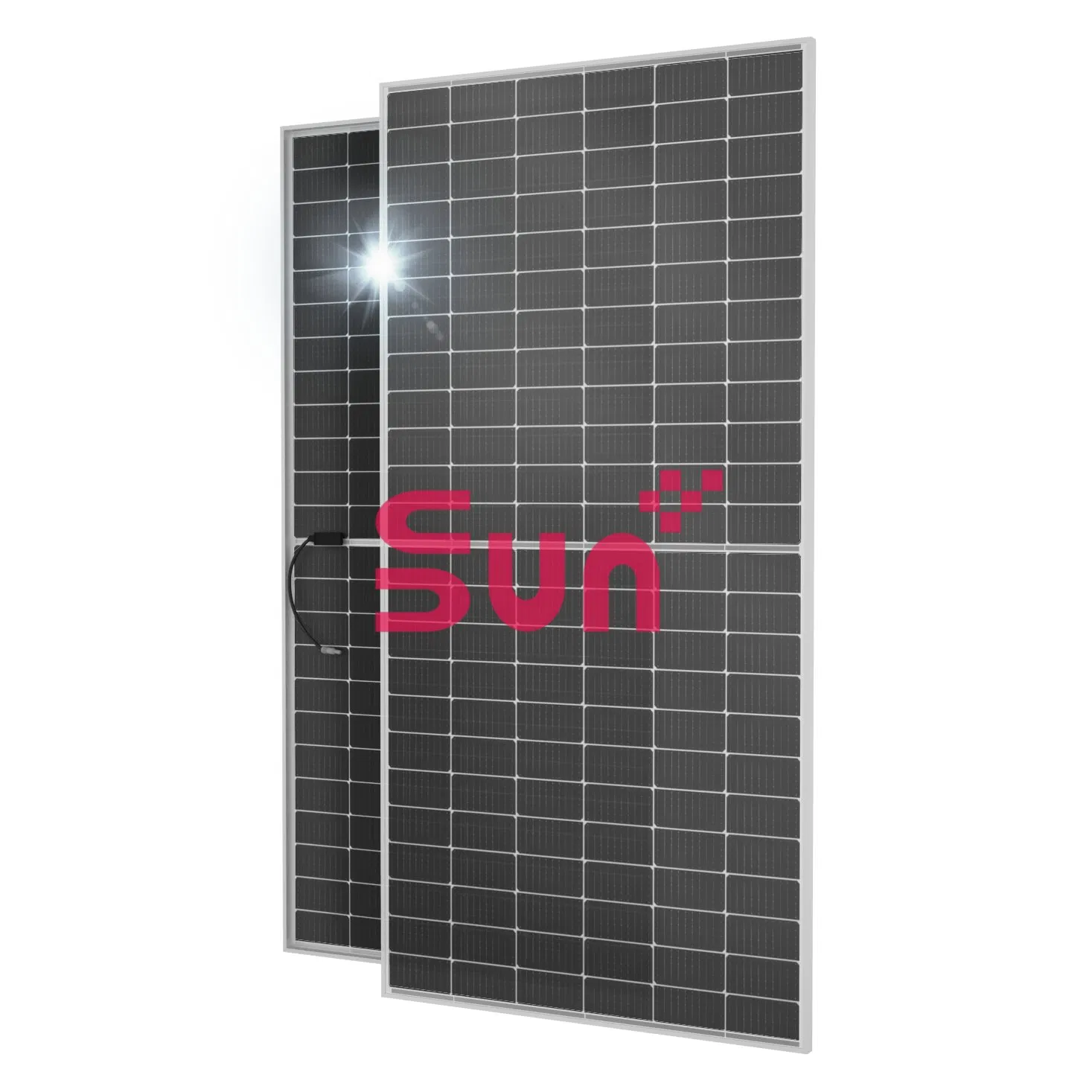

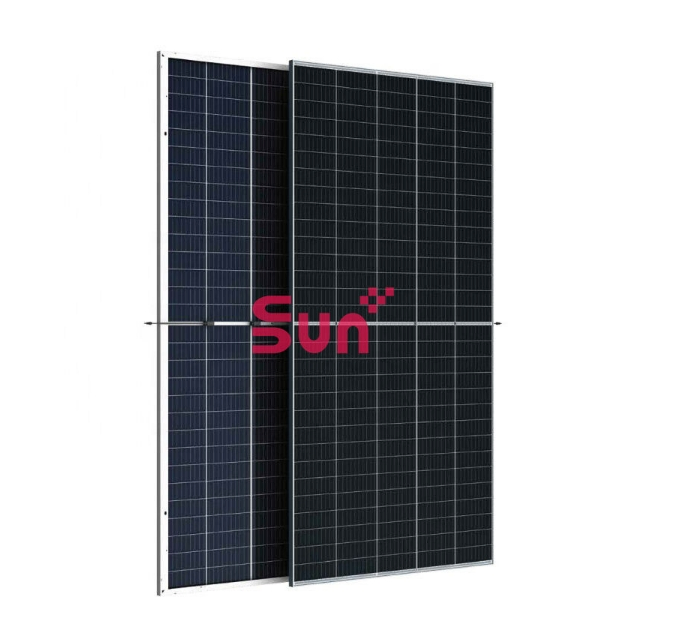

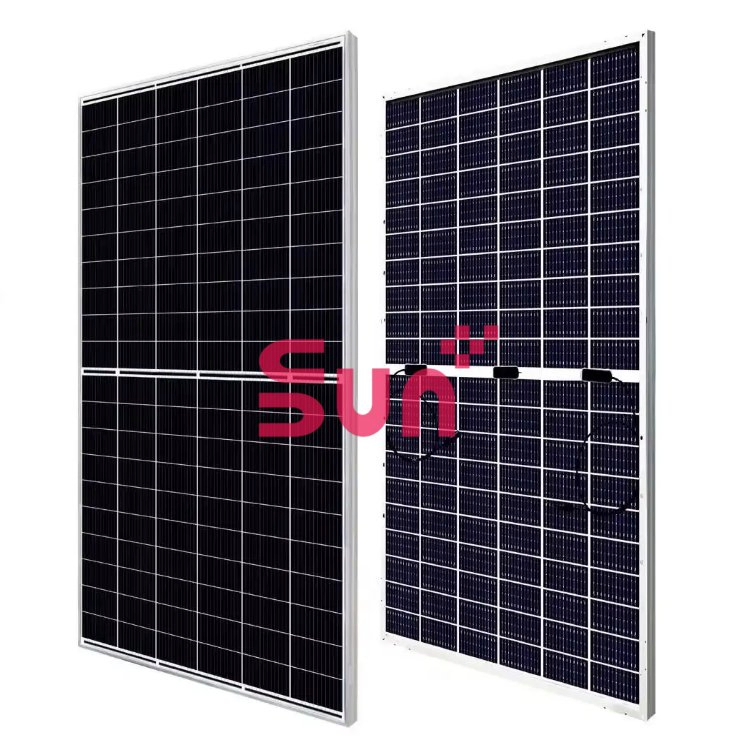

Sunplus 610W 620W Premium Bifacial Mono Solar Cell Modules for Factory Rooftops with TUV

1 / 5

Sunplus 610W 620W Premium Bifacial Mono Solar Cell Modules for Factory Rooftops with TUV

Customization:	Available
Warranty:	25 Years
Number of Cells:	132

Send Inquiry

Product Description

Basic Information

Model NO.

SR4-66HNH 610W 620W

Application

Industrial

Condition

New

Certification

TUV/CSA

Material

Monocrystalline Silicon

Weight

31.9kg

Front Cover

0.08 in Tempered Glass, Anti-Reflection Coated

Back Cover

2.0 mm (0.08 in), Heat Strengthened Glass

Frame

Anodized Aluminium Alloy

Cell

N-Type Monocrystalline

Junction Box

Protection Class IP68, with Bypass Diodes

Maximum Efficiency

23.30%

Specification

2382x1134x30mm

HS Code

8541430000

Product Description

1. Low electricity generation costs

2. PID Resistance

3. Better Shadow Performance

4. Durability Against Extreme Environmental Conditions

5. NDC Technology

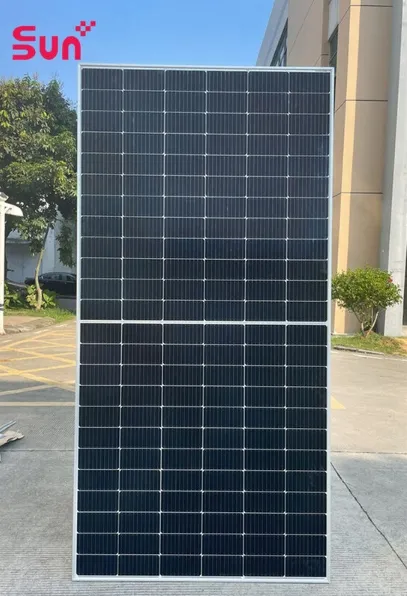

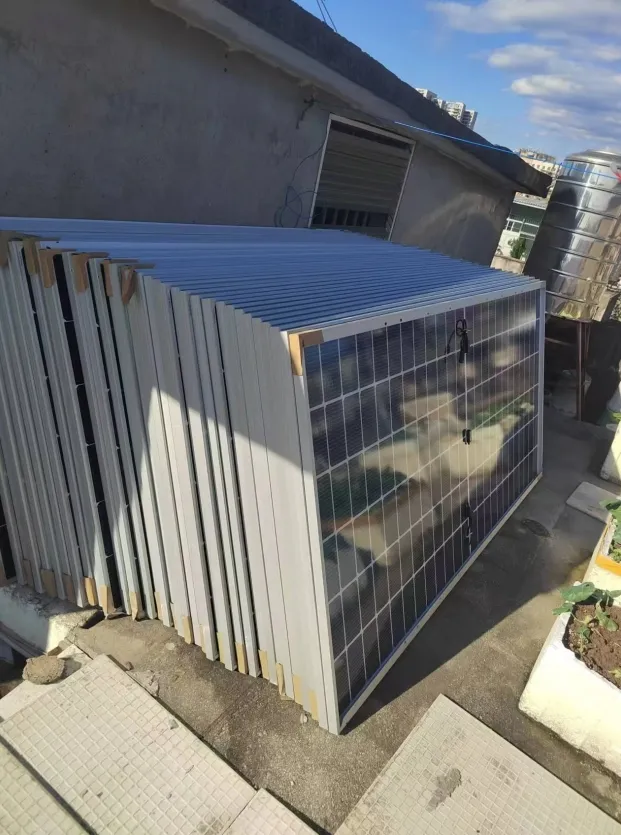

Detailed Photos

Product Parameters

Power Class	Unit	610	615	620	625	630
PERFORMANCE AT STANDARD TEST CONDITIONS (STC)
Power at MPP (Pmax)	[W]	610	615	620	625	630
Short Circuit Current (Isc)	[A]	15.94	16.02	16.11	16.19	16.27
Open Circuit Voltage (Voc)	[V]	48.74	48.89	49.04	49.19	49.34
Efficiency	[%]	≥22.6	≥22.8	≥23.0	≥23.1	≥23.3
PERFORMANCE AT NORMAL OPERATING CONDITIONS (NMOT)
Power at MPP (Pmax)	[W]	466	471	476	481	486
Short Circuit Current (Isc)	[A]	12.78	12.81	12.84	12.87	13.00
Open Circuit Voltage (Voc)	[V]	46.50	46.80	47.10	47.40	47.70

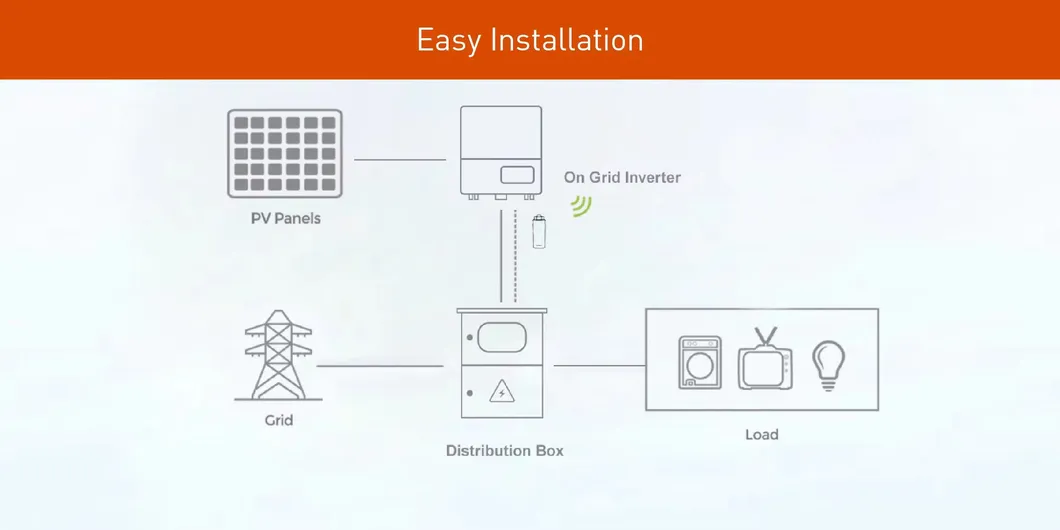

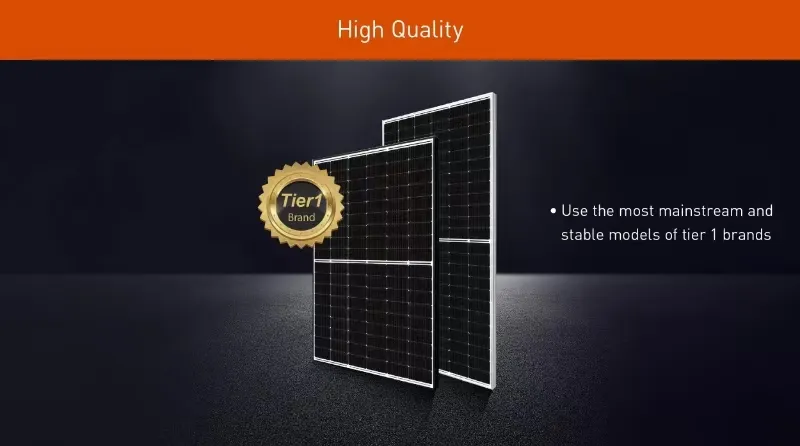

Key Advantages

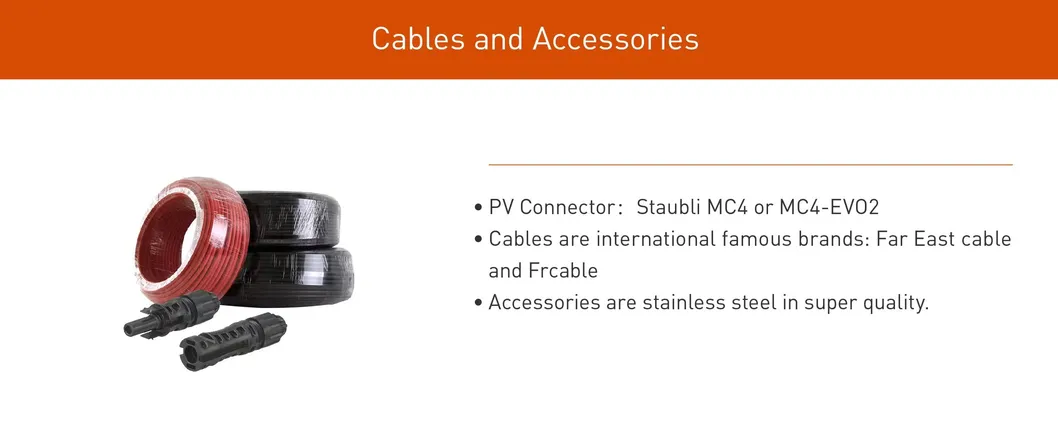

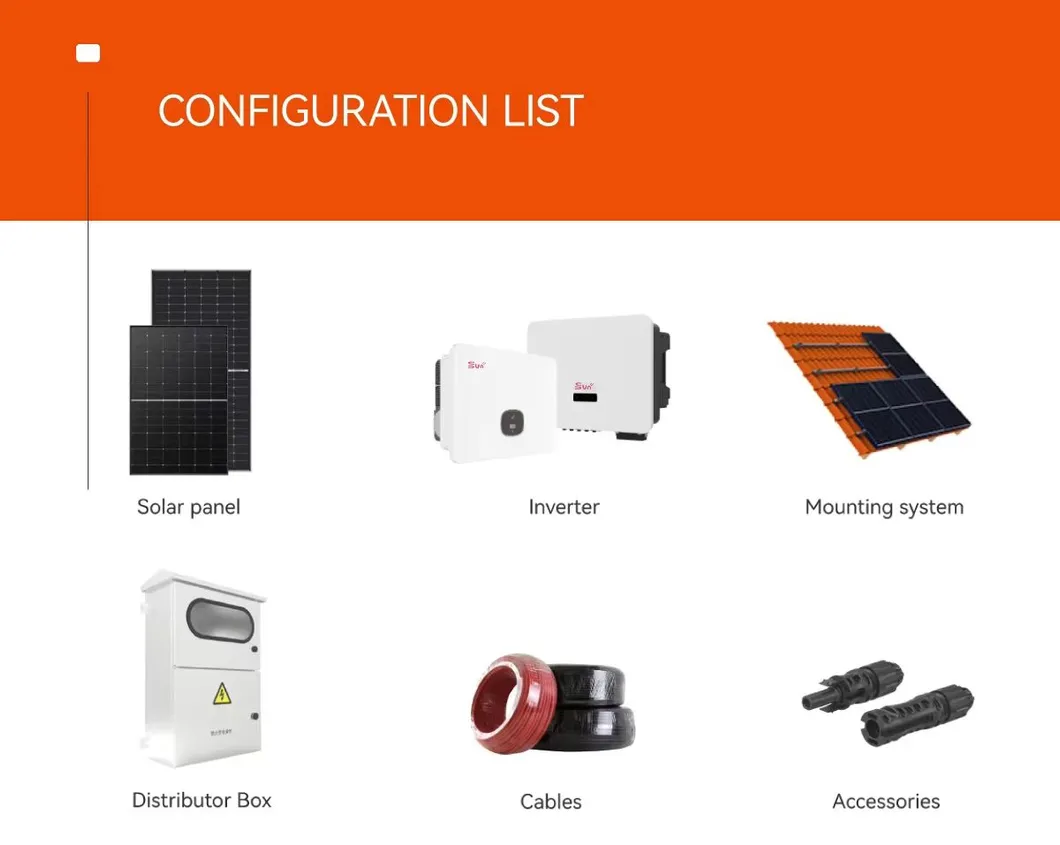

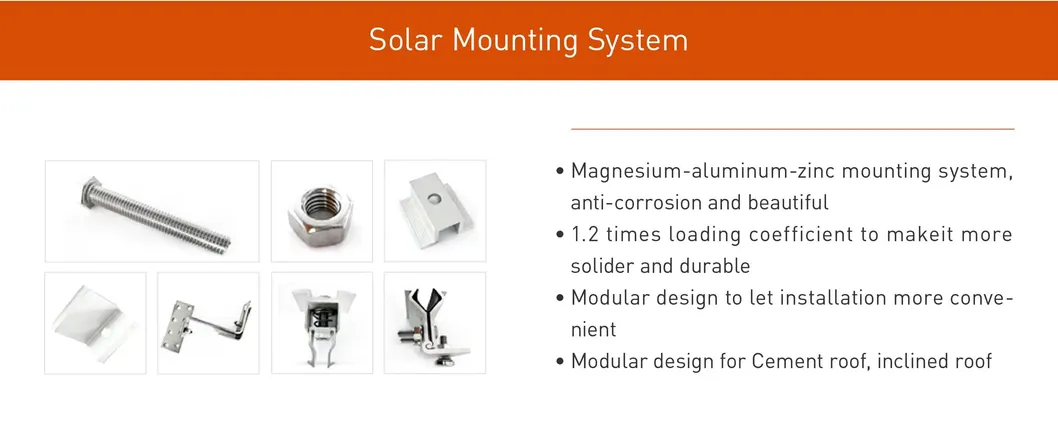

Configuration & Dimensions

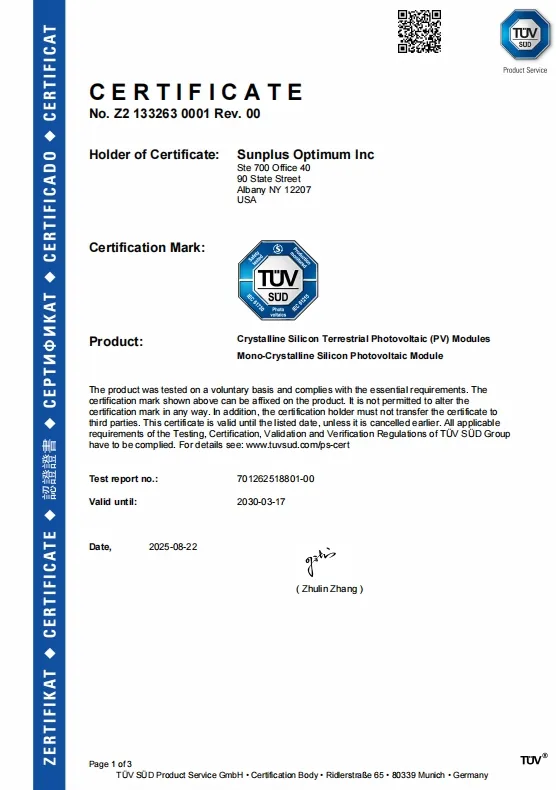

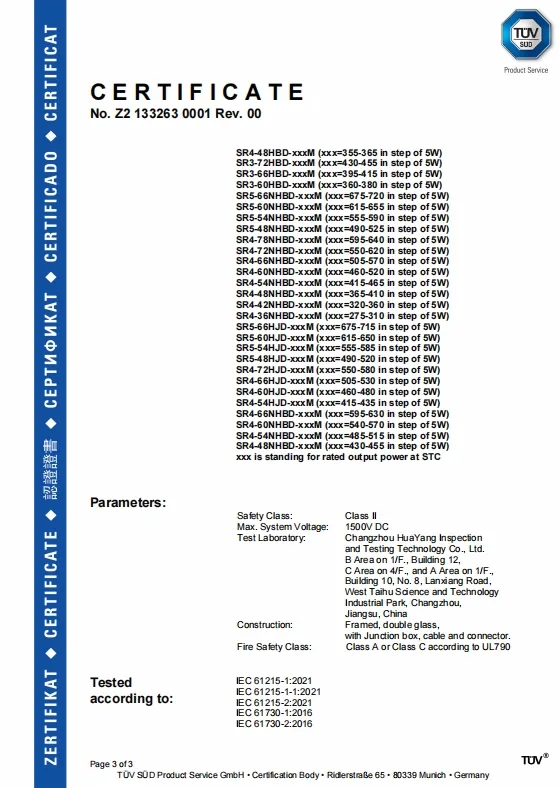

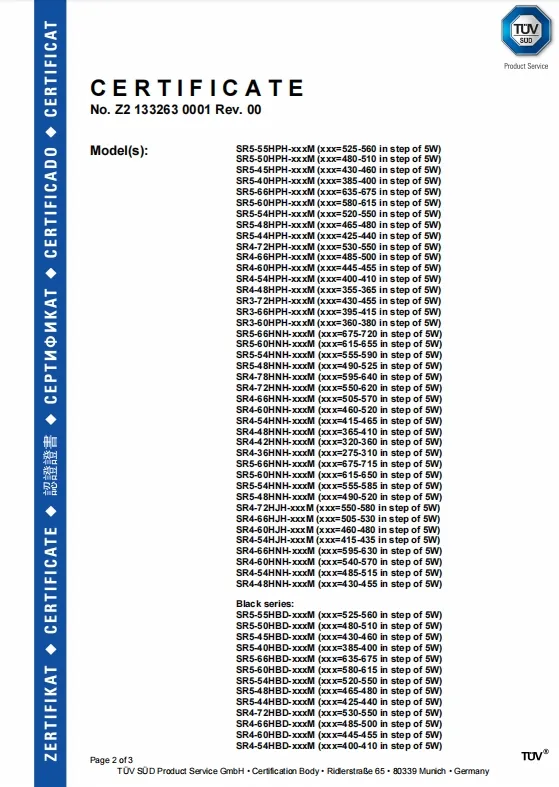

Certifications

Professional Capabilities

Our company is a PV manufacturer with a fully integrated supply chain that is internationally recognized for producing high-quality solar modules, solar inverters and storage batteries. We are dedicated to delivering reliable and cost-effective PV modules, PV inverters, energy storage systems globally to utility, commercial, and residential markets.

We operate several global manufacturing bases strategically located to strengthen the global photovoltaic industry's supply chain and promote energy independence.

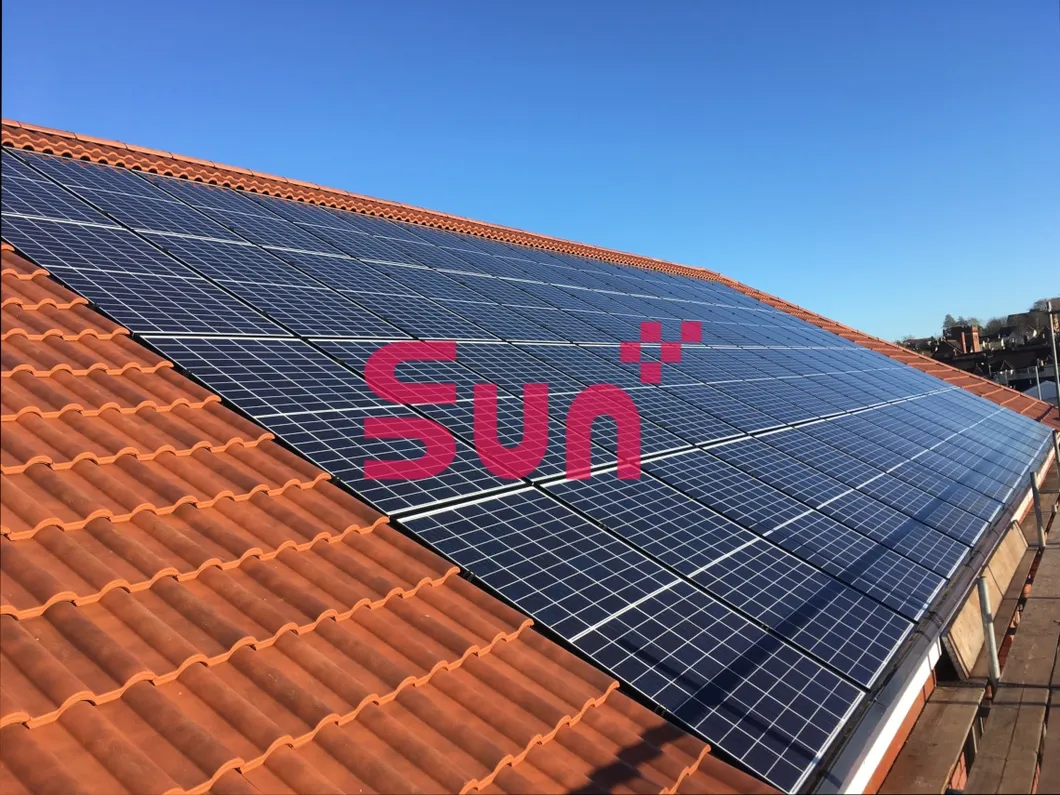

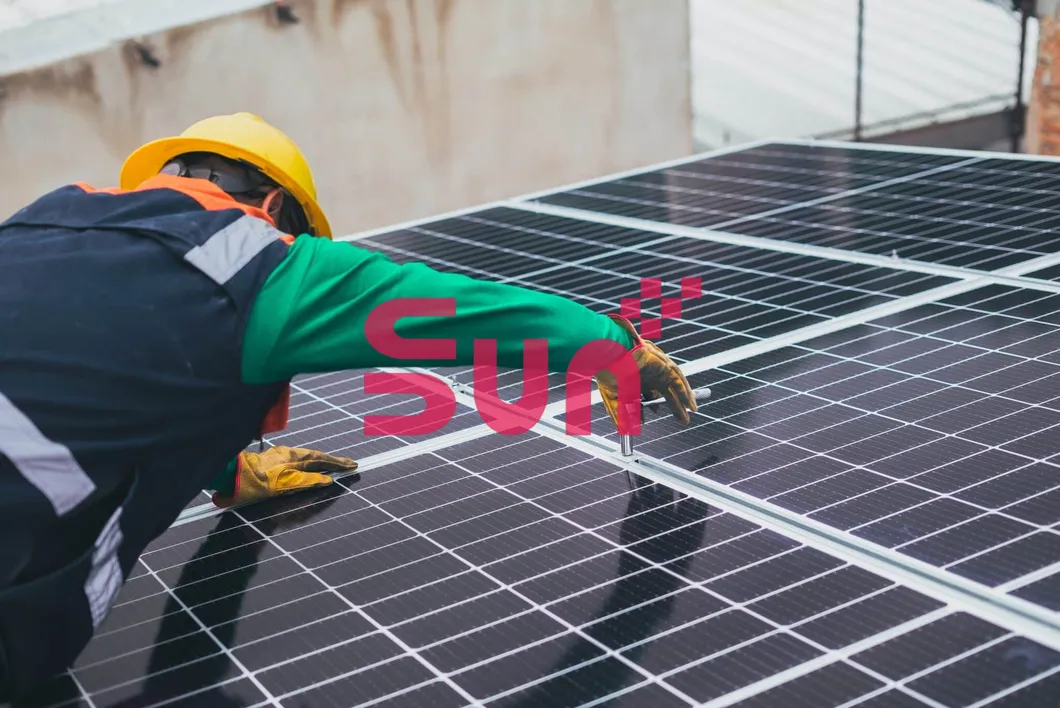

Global Projects

Frequently Asked Questions

What are the advantages of N-type monocrystalline solar cells?

N-type cells offer higher conversion efficiency, lower light-induced degradation (LID), and better performance in low-light conditions compared to traditional P-type cells.

How does Bifacial technology increase energy yield?

Bifacial modules can capture sunlight from both the front and the rear side by utilizing reflected light from the ground, potentially increasing total energy generation by up to 10-30%.

Is the module resistant to extreme environmental conditions?

Yes, our modules are designed with dual-glass protection and IP68 junction boxes, providing high durability against salt mist, ammonia, sand, and extreme weather.

What is the significance of PID Resistance?

PID (Potential Induced Degradation) resistance ensures that the solar panel maintains its performance over time by preventing power loss caused by stray currents in extreme climates.

What does NDC technology provide?

NDC technology optimizes the internal cell structure and connections to minimize power loss from shading and internal resistance, leading to a higher overall module efficiency.
