6000 Watts Kemapower Hybrid Pure Micro Power System Solar Frequency DC Pure Energy Integrated Inverter
6000 Watts Kemapower Hybrid Pure Micro Power System Solar Frequency DC Pure Energy Integrated Inverter
6000 Watts Kemapower Hybrid Pure Micro Power System Solar Frequency DC Pure Energy Integrated Inverter
6000 Watts Kemapower Hybrid Pure Micro Power System Solar Frequency DC Pure Energy Integrated Inverter
6000 Watts Kemapower Hybrid Pure Micro Power System Solar Frequency DC Pure Energy Integrated Inverter
1 / 5
6000 Watts Kemapower Hybrid Pure Micro Power System Solar Frequency DC Pure Energy Integrated Inverter
6000 Watts Kemapower Hybrid Pure Micro Power System Solar Frequency DC Pure Energy Integrated Inverter
6000 Watts Kemapower Hybrid Pure Micro Power System Solar Frequency DC Pure Energy Integrated Inverter
6000 Watts Kemapower Hybrid Pure Micro Power System Solar Frequency DC Pure Energy Integrated Inverter
6000 Watts Kemapower Hybrid Pure Micro Power System Solar Frequency DC Pure Energy Integrated Inverter

6000 Watts Kemapower Hybrid Pure Micro Power System Solar Frequency DC Pure Energy Integrated Inverter

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications
Model NO.
GPSW-II
Source Flow
Active Inverter
Phase
Single
Output Power
>1000W
Certification
CE, ISO9001
Type
DC/AC Inverters
Power Source
Solar Power
Wave String
Sine Wave Inverter
Power Factor
0.9~1.0
Efficiency
>95% AC Mode, >88% DC Mode
Product Overview: GPSW-II 1-6KW
Sine Wave Power Inverter With Charger

KEY FEATURES

  • Low Frequency Power Inverter with charger 1-6KW
  • 2 in 1 Off Grid hybrid design (Inverter + Power Charger)
  • Selectable Grid power priority, Solar Power priority or Power Saver Modes
  • Perfect for backup HOME UPS or Off-grid solar systems
  • Low frequency toroidal transformer, Pure sine wave with AVR

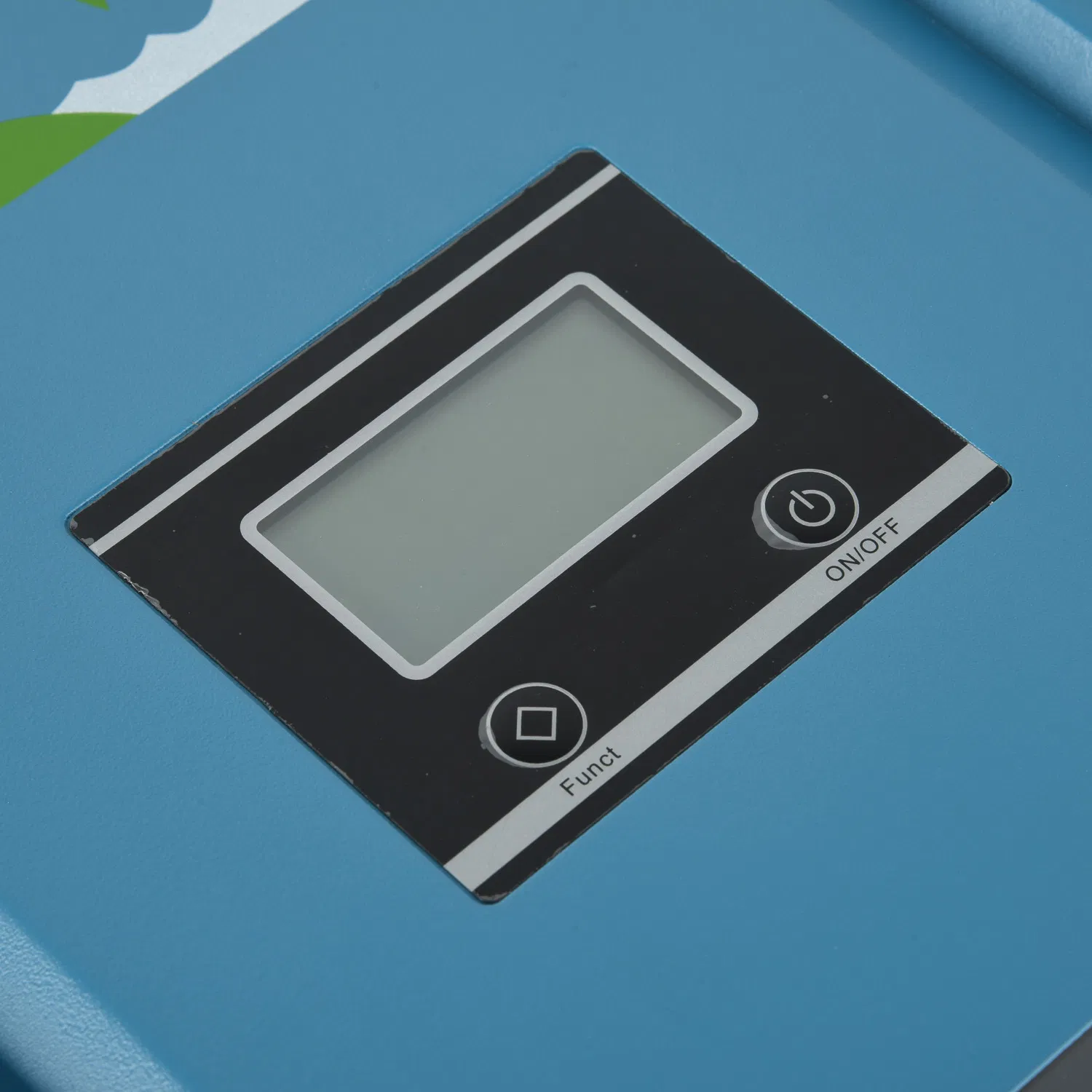

  • LCD display for smart setup and simple operation
  • Automatic Transfer Time less than 10ms
  • Max 30A Adjustable Charge Current
  • Comprehensive protection: Overload, Short-circuit, Battery Low
  • RS232 / SNMP communication optional

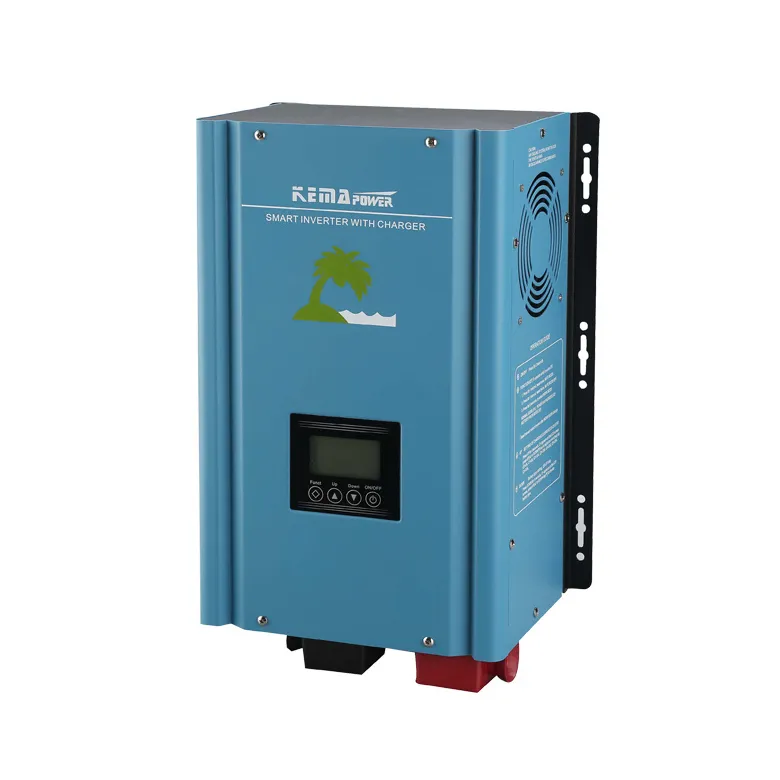

Sine Wave Power Inverter
Product Display

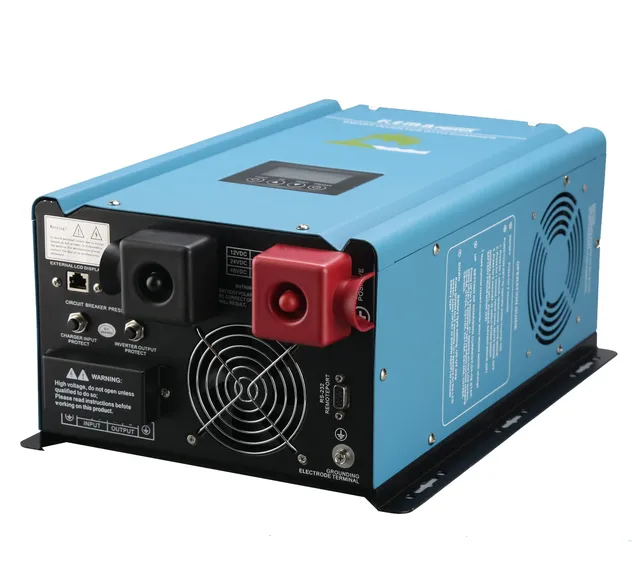

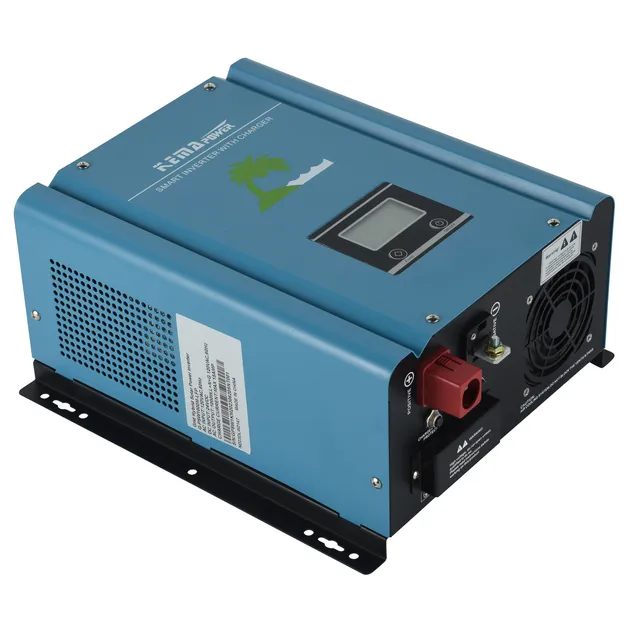

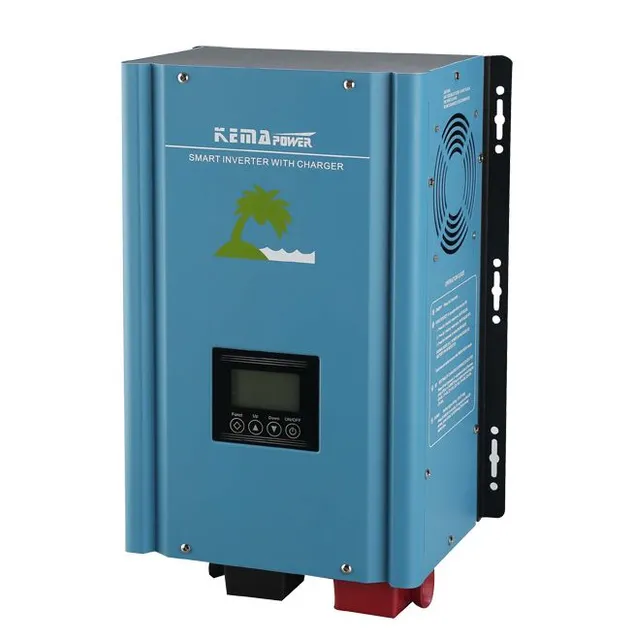

Inverter View 1 Inverter View 2 Inverter View 3
Technical Specifications
ITEM GPSW-II-1KW GPSW-II-2KW GPSW-II-3KW GPSW-II-4KW GPSW-II-6KW
Rated Power 1000W 2000W 3000W 4000W 6000W
Efficiency >95% under AC mode, >88% under DC mode, Toroidal transformer
Battery Voltage 12/24/48VDC 12/24/48VDC 24/48VDC 24/48VDC 48/96VDC
Charge Current 30A (default), Adjustable via LCD
Input Range 85-138VAC / 170-275VAC 170-275VAC
Wave Form Pure Sine Wave
Transfer Time Less than 10 ms
Protection Low voltage, Overload, Short circuit, Over temperature

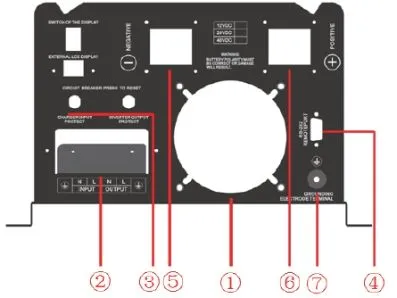

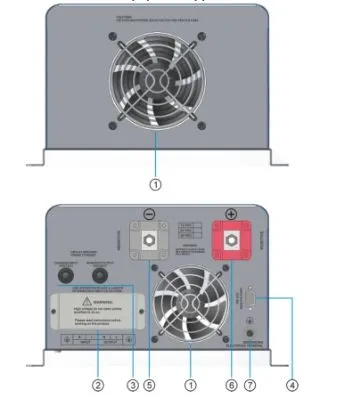

Interface & Connection Guide

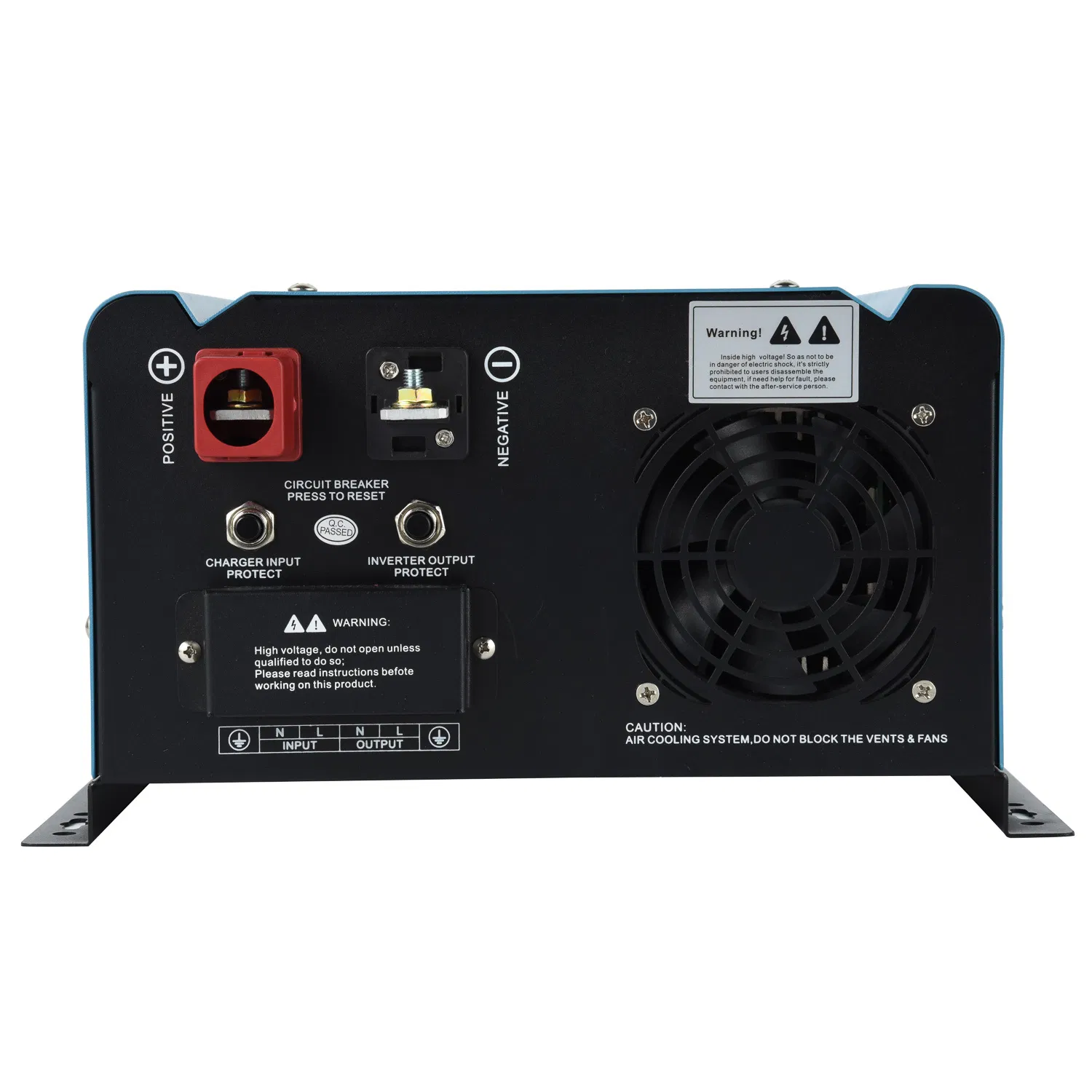

Interface View Terminal View

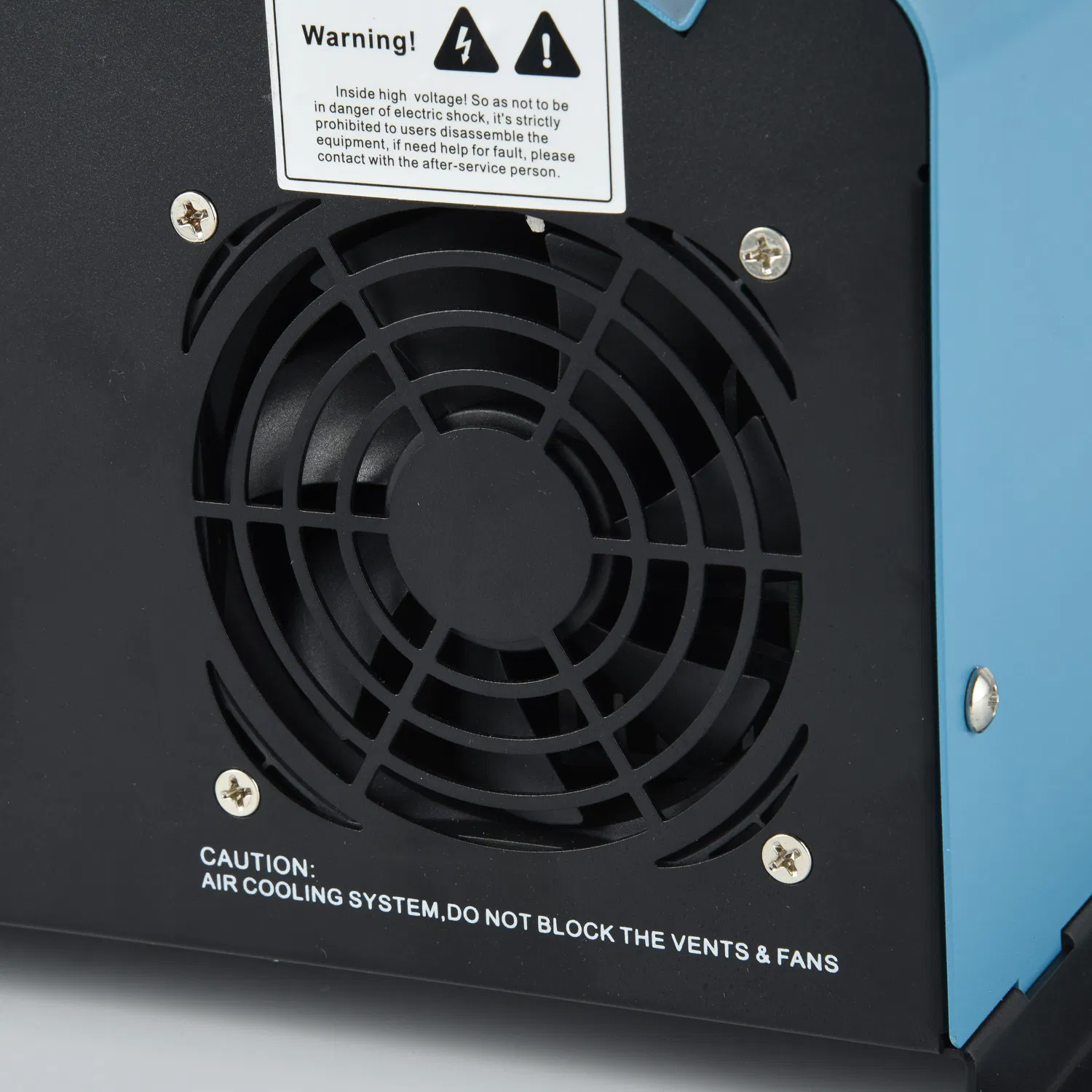

1. Cooling Fan
2. AC Input/Output Terminal
3. AC Fuse Holder
4. RS232 Interface (Optional)

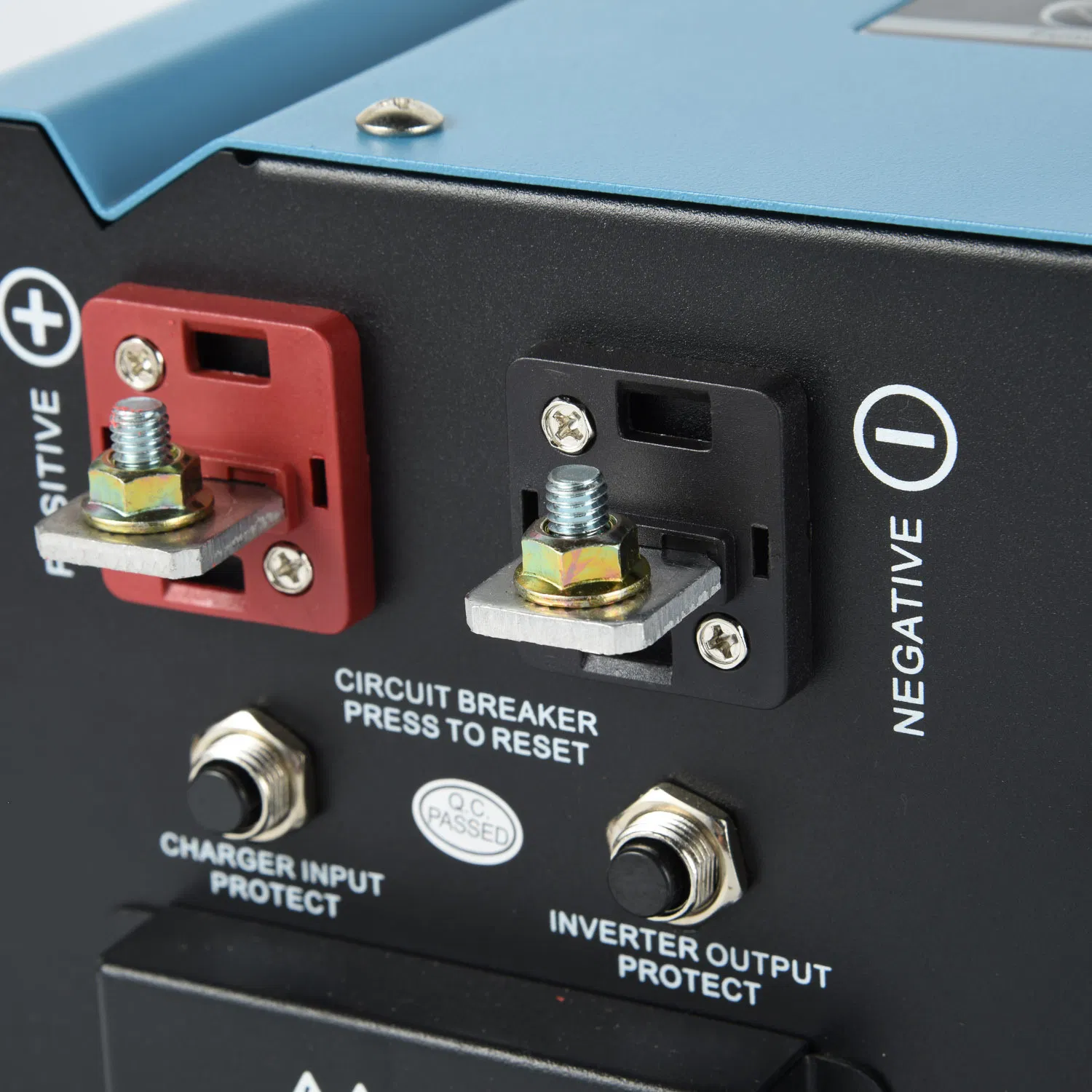

5. Battery Negative (-)
6. Battery Positive (+)
7. Earth/Ground Terminal

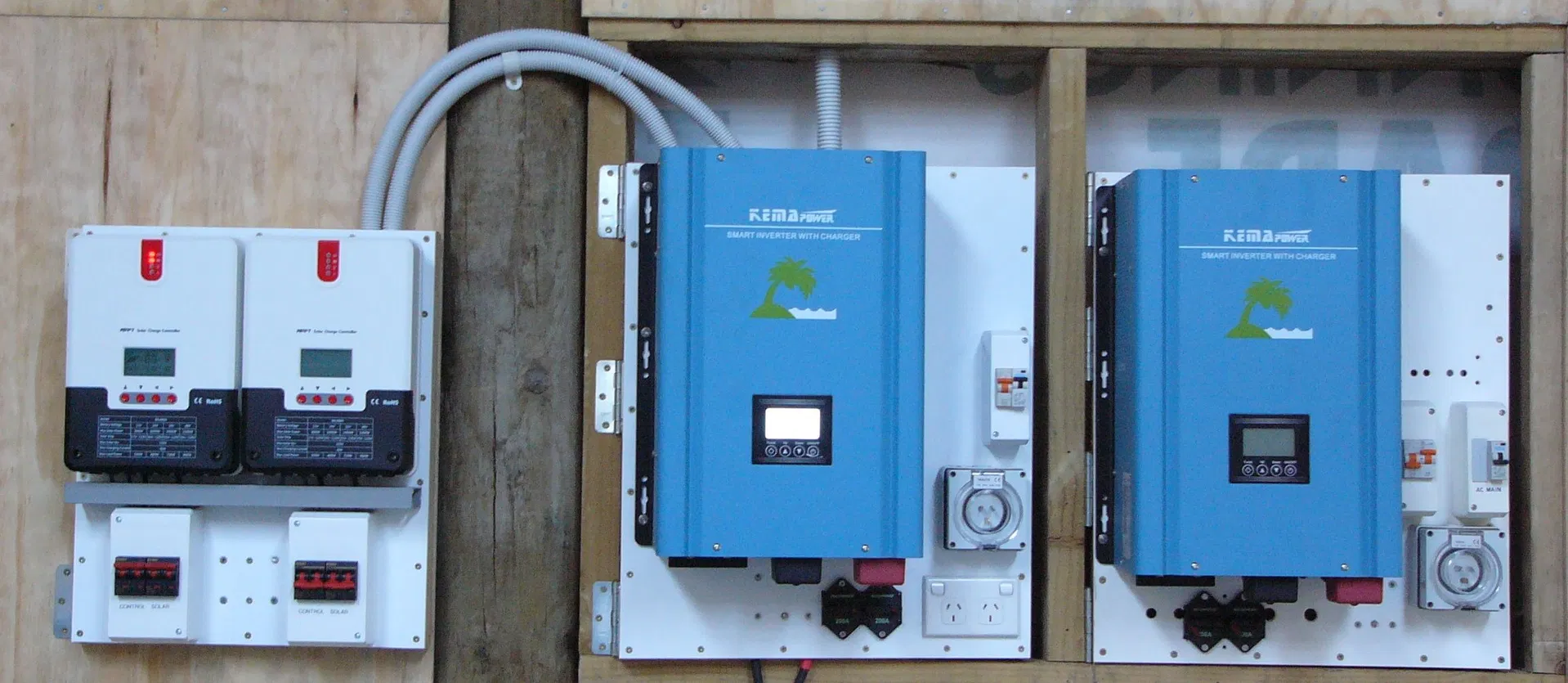

Inverter Details
Manufacturing Process
Quality Control
Frequently Asked Questions
What is the main advantage of a low-frequency inverter like the GPSW-II?
The GPSW-II uses a toroidal transformer which provides higher peak power capacity and better durability compared to high-frequency inverters, making it ideal for heavy inductive loads.
How fast does the unit switch to battery power during a blackout?
The automatic transfer time is less than 10 milliseconds, which is fast enough to keep most sensitive electronics and computers running without interruption.
Does this unit include a built-in solar charge controller?
No, the GPSW-II is a standalone sine wave inverter with an AC charger. It can be integrated into a solar system, but an external solar charge controller is required.
Can I adjust the charging current for different battery sizes?
Yes, the charging current is adjustable up to 30A (C0-C6 settings) via the LCD monitor to match your specific battery bank requirements.
What working modes are supported?
It supports three main modes: Grid Priority (UPS mode), Battery/Solar Priority, and Power Saver mode (detects load every 10ms).
Is the output compatible with sensitive home appliances?
Absolutely. The pure sine wave output ensures that even the most sensitive appliances, such as refrigerators, motors, and medical equipment, run smoothly and safely.
