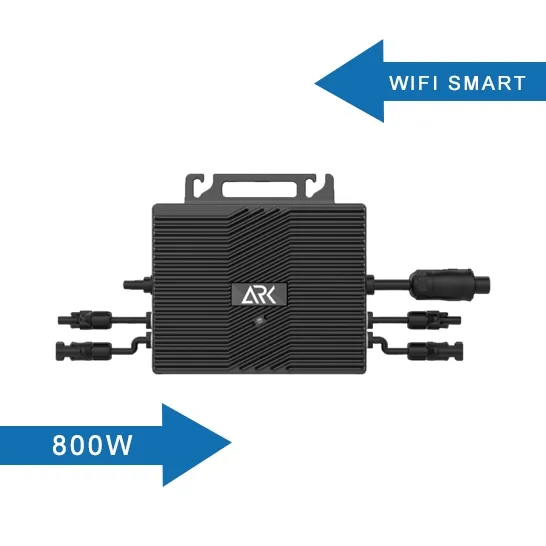

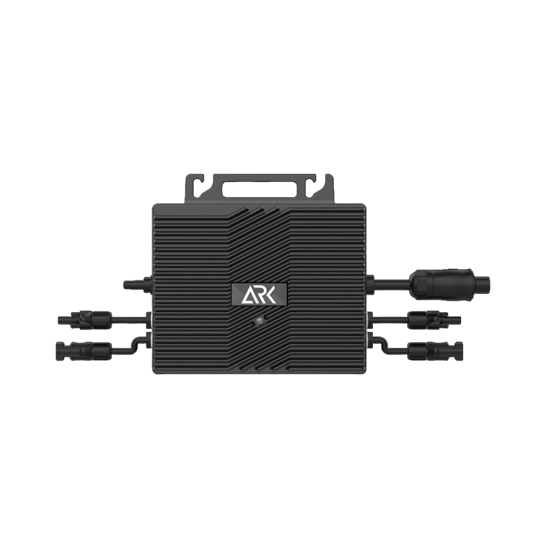

Innovative 800W Micro Solar Inverter with WiFi for Maximum Energy Harvest

1 / 5

Innovative 800W Micro Solar Inverter with WiFi for Maximum Energy Harvest

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊 Basic Info.

Output Power

501 - 1000W

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Push-pull Type

Nature of Wave String

Sine Wave Inverter

Grid Type

Grid Inverter

Specification

233*232*42

Origin

China

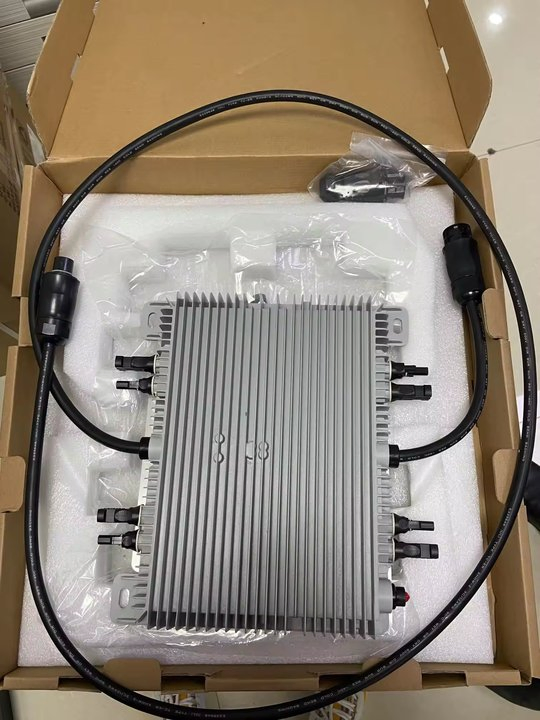

📦 Packaging & Delivery

Package Size

24.00cm * 24.00cm * 5.00cm

Package Gross Weight

3.000kg

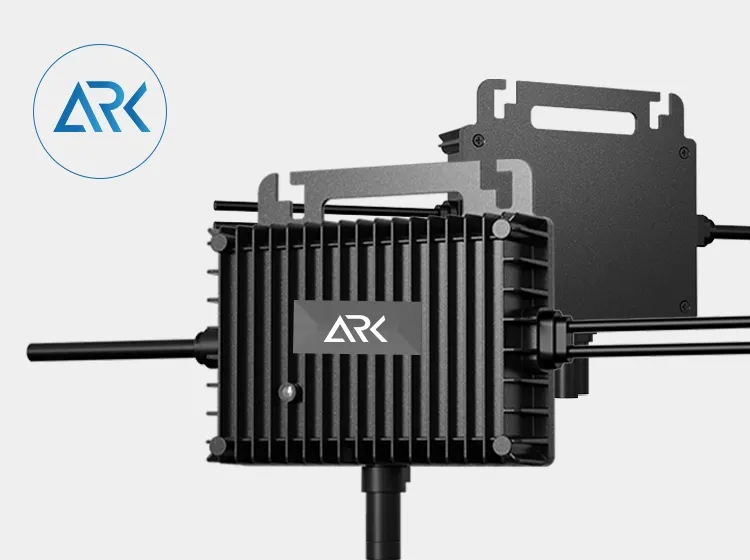

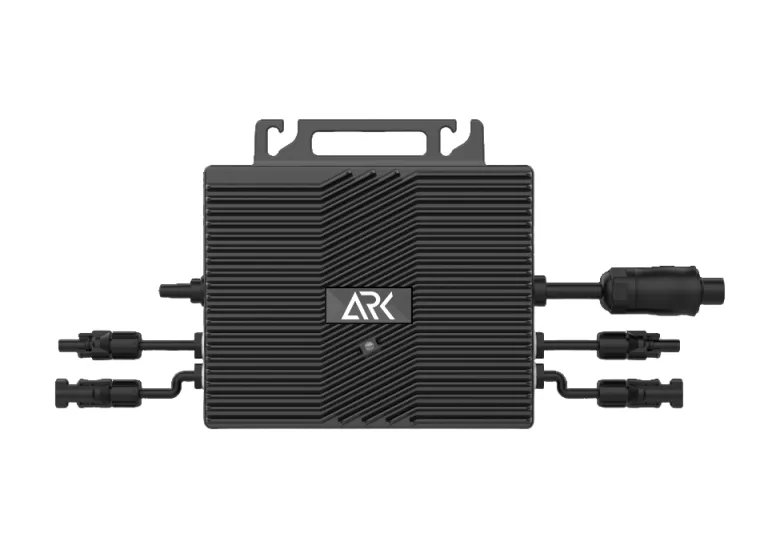

⚙️ Product Description

Low night power consumption: Microinverters have very low power consumption at night (<50mW), ensuring almost no power drain when not generating.

Small size: Compact dimensions of 233*232*42 (mm) and weight of 2kg allow for easy installation and low roof load.

Compatibility: Wide power range compatible with various photovoltaic modules. High efficiency (CEC 95.5%) for maximum energy conversion.

Boost Output by 96.7%: Industry-leading peak efficiency for maximum harvest.

Shade Doesn't Stop Us: Individual MPPT for each panel ensures optimal performance despite shading or mismatched panels.

Handle More Power: 20A continuous input capacity maximizes overall system output.

Beat the Heat: Reliable operation from -40°C to 70°C, with minimal derating at high temperatures.

Waterproof & Durable: IP67-rated for lasting performance in any climate.

World-Class Reliability: 30-year design life and a 10-year warranty for long-term peace of mind.

Safety First: Low DC voltage design minimizes electrical risks during installation and operation.

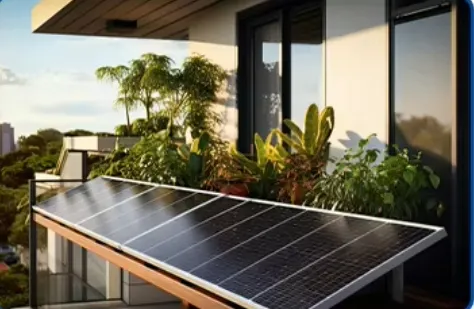

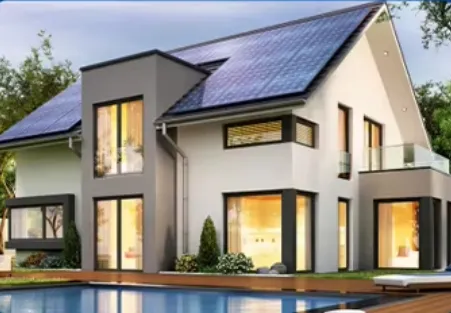

🏠 Applications

🏆 Why Choose Us

Independent research and development
Independently design overall schemes of PCBA, energy management system(EMS) and intelligent monitoring system (including IoT platforms and monitoring APP).

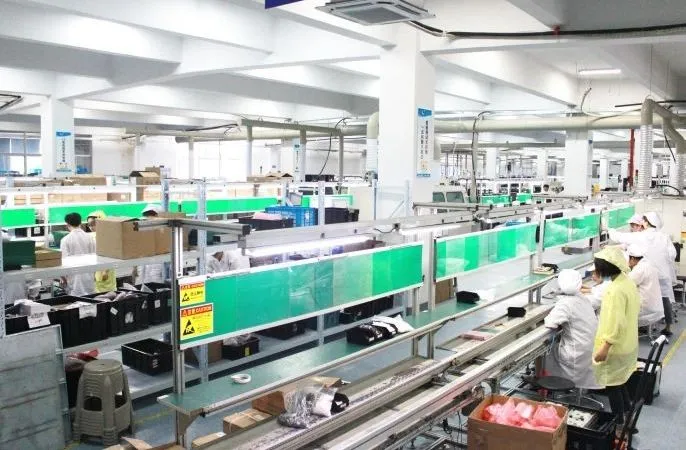

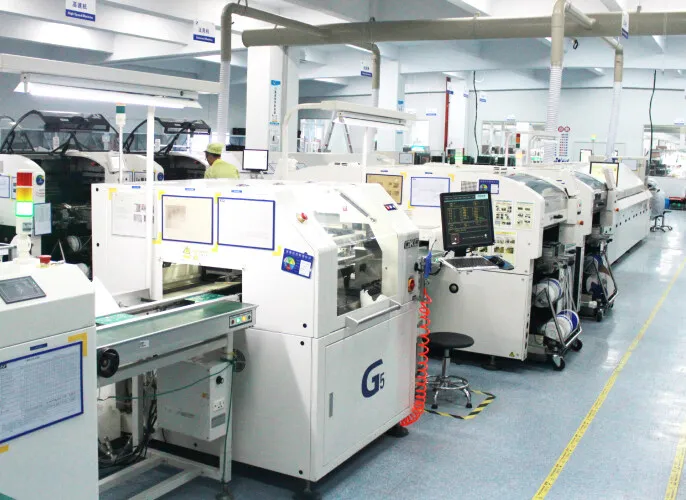

Independent production
Self-produce key components of microinverters, such as PCBA and monitoring devices for microinverters.

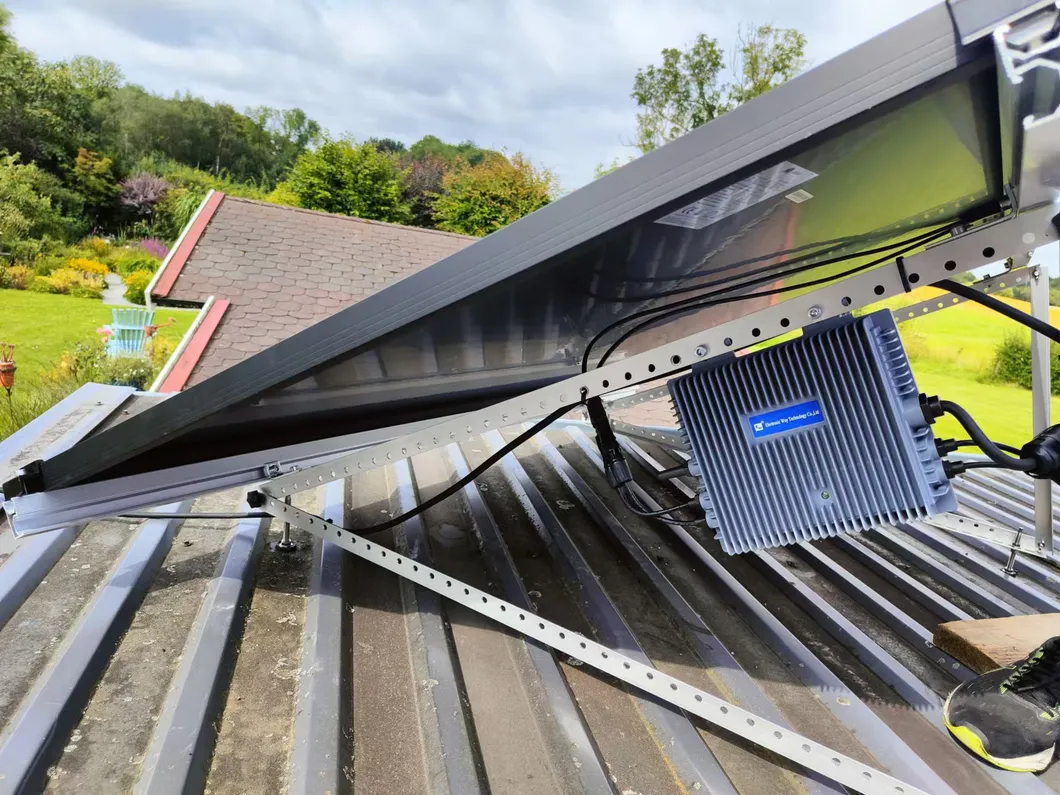

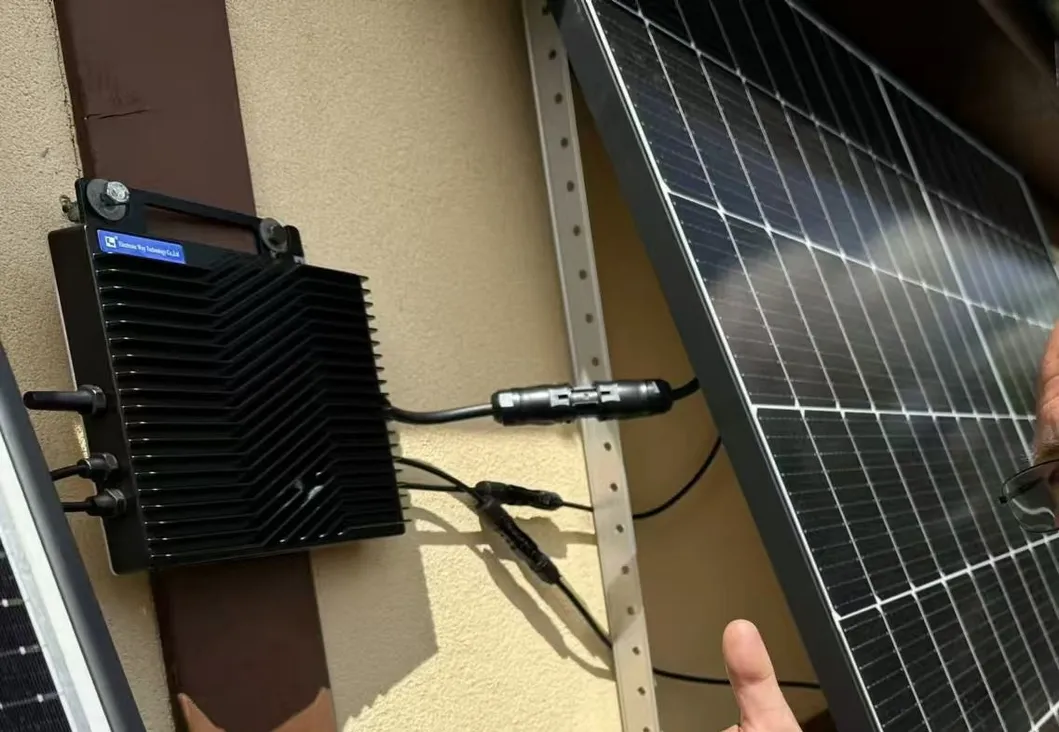

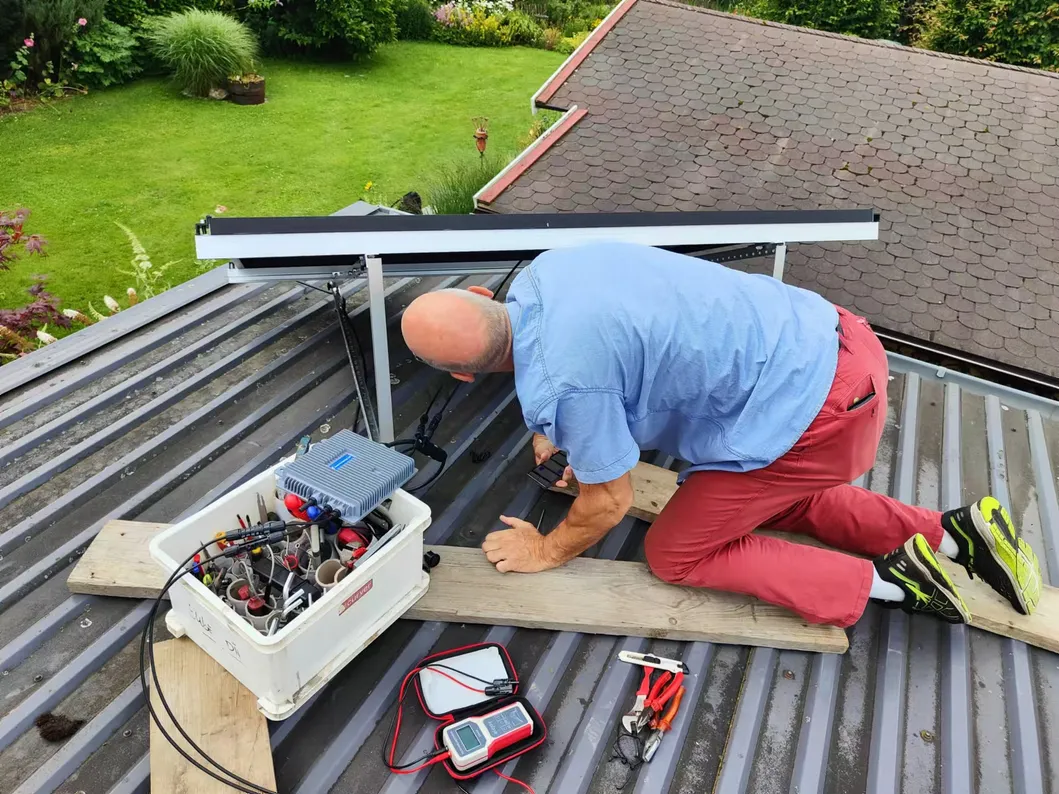

🌟 Cases

📋 Product Parameters

Model	400W Series	800W Series	2000W Series
Input Data (DC)
Recommended Module Power [W]	300~550/MPPT	300~550/MPPT	300~550/MPPT
Start up Voltage [V]	18	18	18
MPPT Voltage Range [V]	17.5~55	17.5~55	17.5~55
Max. Input Voltage [V]	60	60	60
Max. Input Current [A]	13.3	13.3	13.3
Max. Short-circuit Current [A]	20	20	20
Output Data (AC)
Max. Continuous Power [VA]	400	800	2000
Nominal Output Current [A]	1.74	3.48	8.7
Nominal Output Voltage [V]	220/230/240	220/230/240	220/230/240
Nominal Frequency [Hz]	50/60	50/60	50/60
Efficiency
CEC Weighted Efficiency	95.50%	95.50%	95.50%
MPPT Efficiency	99.90%	99.90%	99.90%
Night Power Consumption [mW]	<50	<50	<50
Mechanical Data
Dimensions (WHD mm)	22718342	23323242	38023342
Weight [kg]	1.8	2	3.75

❓ FAQ

What is the peak efficiency of this micro inverter?

The system achieves an industry-leading peak efficiency of 96.7% and a CEC weighted efficiency of 95.5%, ensuring maximum energy harvest.

How does shading affect the micro inverter system?

Unlike string inverters, each solar panel in our system has its own individual MPPT. This ensures optimal performance for every panel, even if others are shaded or mismatched.

What is the operating temperature range?

The device is designed to operate confidently in extreme conditions from -40°C to 70°C, with minimal power derating even at high temperatures.

Is the inverter suitable for outdoor installation?

Yes, the micro inverter is IP67-rated waterproof, making it highly durable and capable of lasting performance in various climates.

What is the expected lifespan and warranty?

Our micro inverters are engineered with high-quality components for a 30-year design life and come with a standard 10-year warranty.

Does the system consume power at night?

The power consumption at night is extremely low, typically less than 50mW, ensuring no significant energy drain when the sun is down.
