Zylo Solar
Zylo Solar
| Model NO. | WBQ600 |
| Output Power | 400W |
| Certification | CE, VDE/En50549/CE-LVD/CE-EMC/CE-Red |
| Type | DC/AC Inverters |
| Power Source | Solar Power |
| MPPT Voltage Range | 22-55V |
| Nominal Output Voltage | 230V |
| IP Grade | IP67 |
| Communication | 2.4G Wi-Fi / Bluetooth |

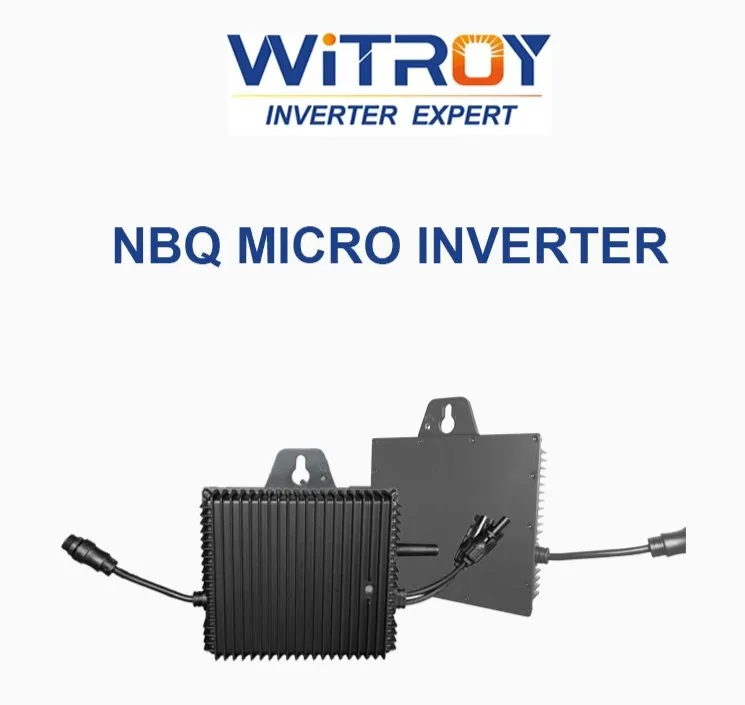

Boost your solar gains with the WBQ Series EU micro inverters (400-2000VA)!
Flex 1/2 MPPTs for uneven light, lock in 96.5% peak efficiency (more power = more profit), and rely on IP67 waterproofing + natural cooling for zero-fuss outdoor durability. Wi-Fi/Bluetooth lets you monitor remotely—CE/VDE-certified, ideal for grid-tied PV setups.

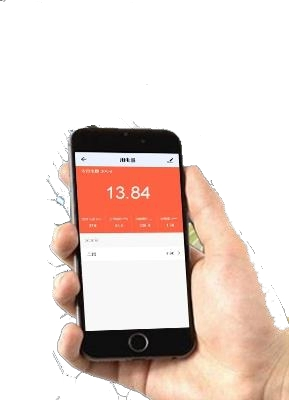

1. DOWNLOAD APP

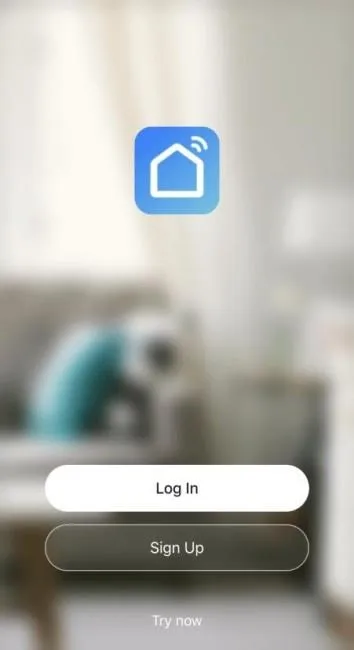

2. REGISTER & LOG IN

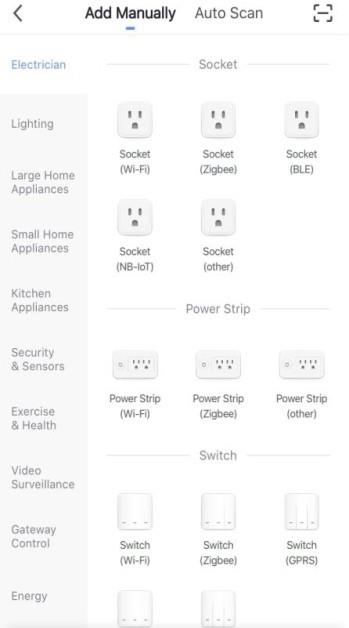

3. SELECT WIFI BUTTON
| Input Data (DC) | |
| Commonly used module power | 275~530W*1 |
| Maximum input voltage | 60V |
| MPPT voltage range | 22-55V |
| Maximum input current | 14A*1 |
| Output Data (AC) | |
| Rated output power | 400VA |
| Rated output current | 1.74A |
| Nominal output voltage | 230V |
| Efficiency | |
| Peak efficiency | 96.5% |
| Nominal MPPT efficiency | >99.5% |
| Night power consumption | <50mW |
| Mechanical Data | |
| Ambient temperature range | -40℃ to +65℃ |
| Dimensions (W*H*D) | 181*193*38.5mm |
| Weight | 2.54kg |
